Door Reed Sensor - Aten I-CASE PE-EA1442

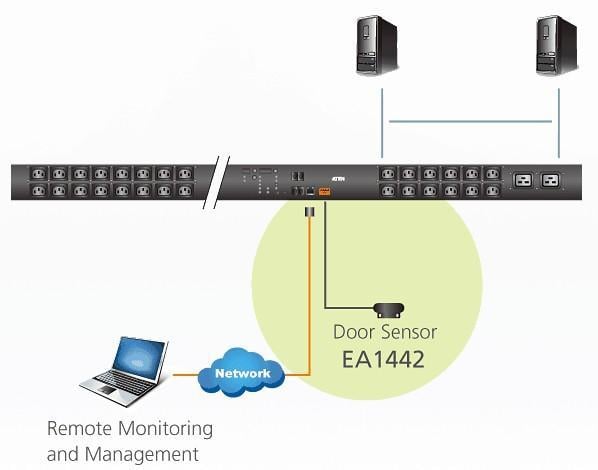

For data center security, ATEN offers Reed door sensors that operate in tandem with power distribution units, thus allowing monitoring of access to doors of cases mounted in racks, alerting users when the door is opened. It is possible to monitor environmental conditions with alarms based on custom minimum/maximum thresholds.



* The sensor is an optional accessory; it is possible to use the ATEN PDU without port sensors. However, for complete data center security management and full utilization of ATEN solutions, sensor installation becomes necessary.



**Supports only the PE7/PE8/PE9 series



Features

• The door Reed sensor allows monitoring of the door of the case mounted in the rack.


• High sensitivity


• Easy operation



Technical specifications

• Switching voltage (max) 70V AC/DC


• Switching current 50 mA


• Contact capacity (max) 1 watt


• Initial contact resistance 0,2 Ohm max.


• Rated current (max) 100 mA


• Discharge voltage 150 VCC


• Insulation resistance 100 Mohm min.


• Switching cycle 5x 107´ at 12.V 50 mA


• Detection distance 16mm min.



Environmental features

• Temperature from -20°C to +60°C
• Humidity 80°C 95% relative humidity 72 hours

Certifications

• CE


• RAEE



Package contents

• 1x Switch


• 1x Magnet
