Continuity Group UPS AND 3 Pro 5000 VA 4500 W On Line Black - Infosec ICUE 3 PRO 5000

Equipped with dual-converting on-line technology managed by a microprocessor, the E 3 Pro RT range provides a fully secure and perfect sinusoidal wave current for all computer networks.

Thanks to its powerful battery charger integrated by 3,5 A, to ensure a prolonged backup time, è can add up to four sets of batteries. Then, according to the requirements, an external battery connector allows you to add dedicated batteries to the extended backup time.



Benefits

- It is designed to fit easily in various environments: horizontally, in a patch housing with fixing brackets (included), or vertically as a tower with the base (included).

- It offers a high performance thanks to its optimal power factor (0,9).

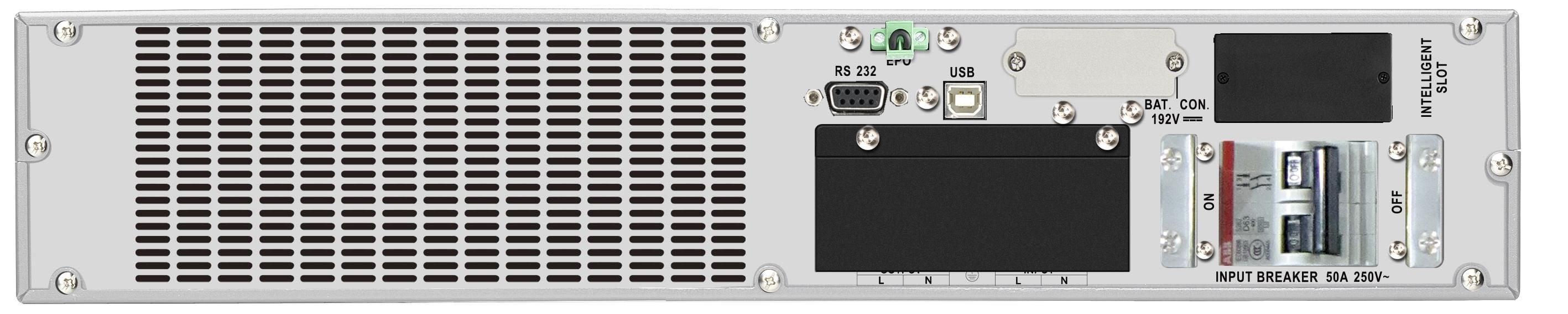

- It offers different communication solutions: RS 232 and USB communication ports allow communication between UPS and various protected computer devices. This is managed through the InfoPower software. A SNMP slot allows the connection of a SNMP agent and the use of its associated software for remote UPS management.

- It is equipped with a state LCD screen with precise display settings and easy to use in real time.



Energy saving functions:

• Efficiency up to 95 % reduces energy consumption and costs. This mode à operation delivers static bypass power and returns to double conversion online when needed.



Technical specifications

• Technology: Online Double Conversion


• Power: 5000 VA 4500 W


• Power factor: 0,9


• Electric sockets: 4 outputs IEC


• Communication: USB port


• Touch screen LCD: load level, battery level, modeà AC, modeà battery, modeà bypass and failure



Entry

• Voltage: 220 / 230 / 240 VAC


• Voltage range: 60 - 145 VAC or 120 - 300 VAC to 50 % of load; 90 - 145 VAC or 180 - 300 VAC load to 100 %


• Frequency: 40 / 70 Hz (auto sensing)



Exit

• Voltage: 220 / 230 / 240 VAC


• Voltage range: ± 10 %


• Frequency (synchronous range): 47 Hz ~ 53 Hz or 57 Hz ~ 63 Hz


• Frequency (modalità battery): 50 Hz ± 0,25 Hz or 60 Hz ± 0,3 Hz


• Output current: 10 A



Battery

• Charger function when UPS è connected to the network


• Cold start (without network): sì


• Battery type: 16 x 12 V/ 9 Ah


• Charging time: 4 hours at 90 % after full discharge


• Backup time: from 5 to 30 minutes



Protection

• Do not load


• Overload


• Overvoltage



Dimensions

• Width 438 mm


• Depthà 530 mm


• Height 88 mm


• Weight: 15 kg



Certifications

• CE


• RoHS



Package contents

• 1 x Continuity Group; EUCI 3 PRO 5000


• 1 x Input cable (1 to 3 models kVA)


• 1 x IEC output cable (1 to 3 models kVA)


• 1 x USB cable


• 1 x Base stand


• Handles included


• 1 x User manual


• 1 x InfoPower Software
