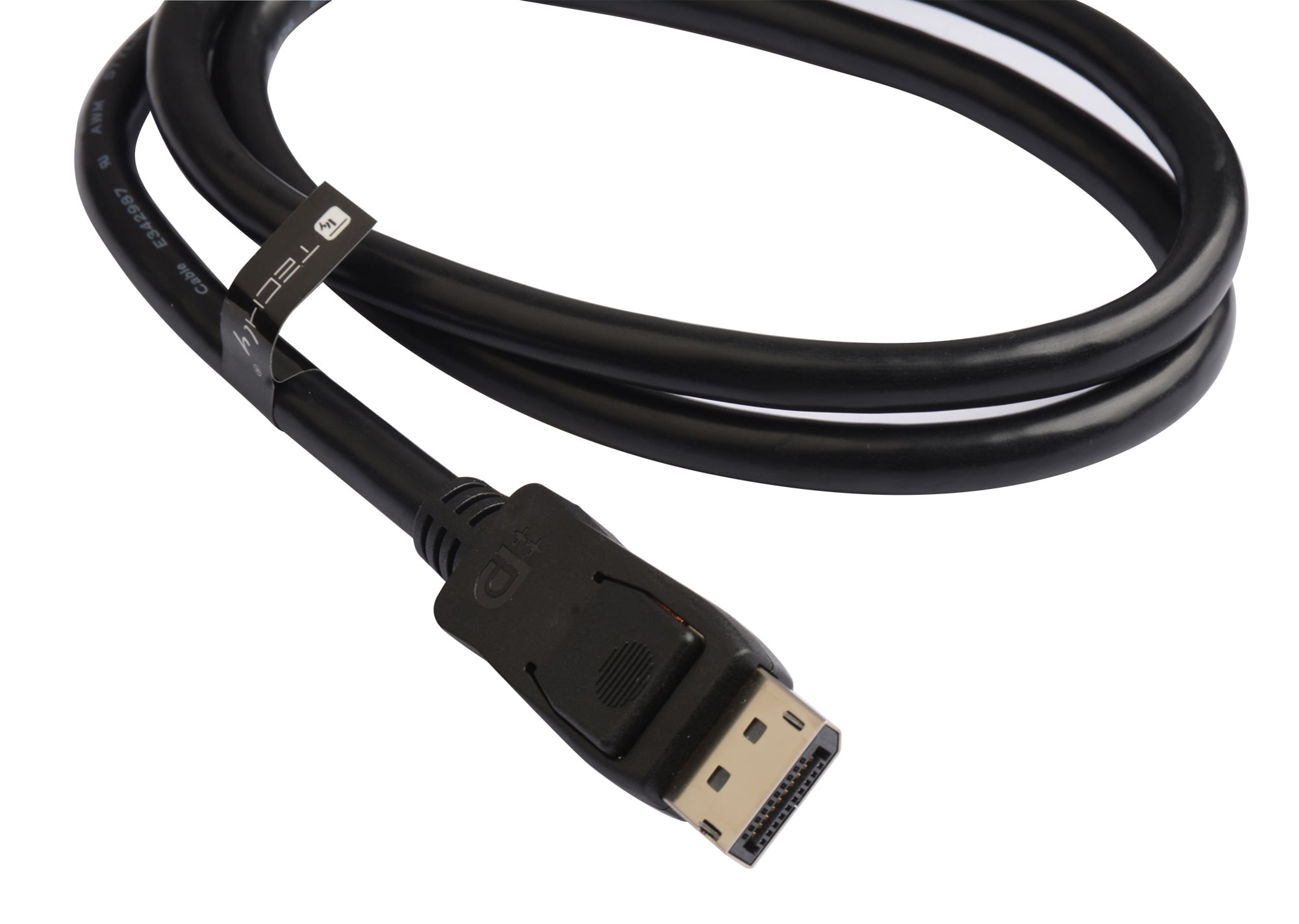

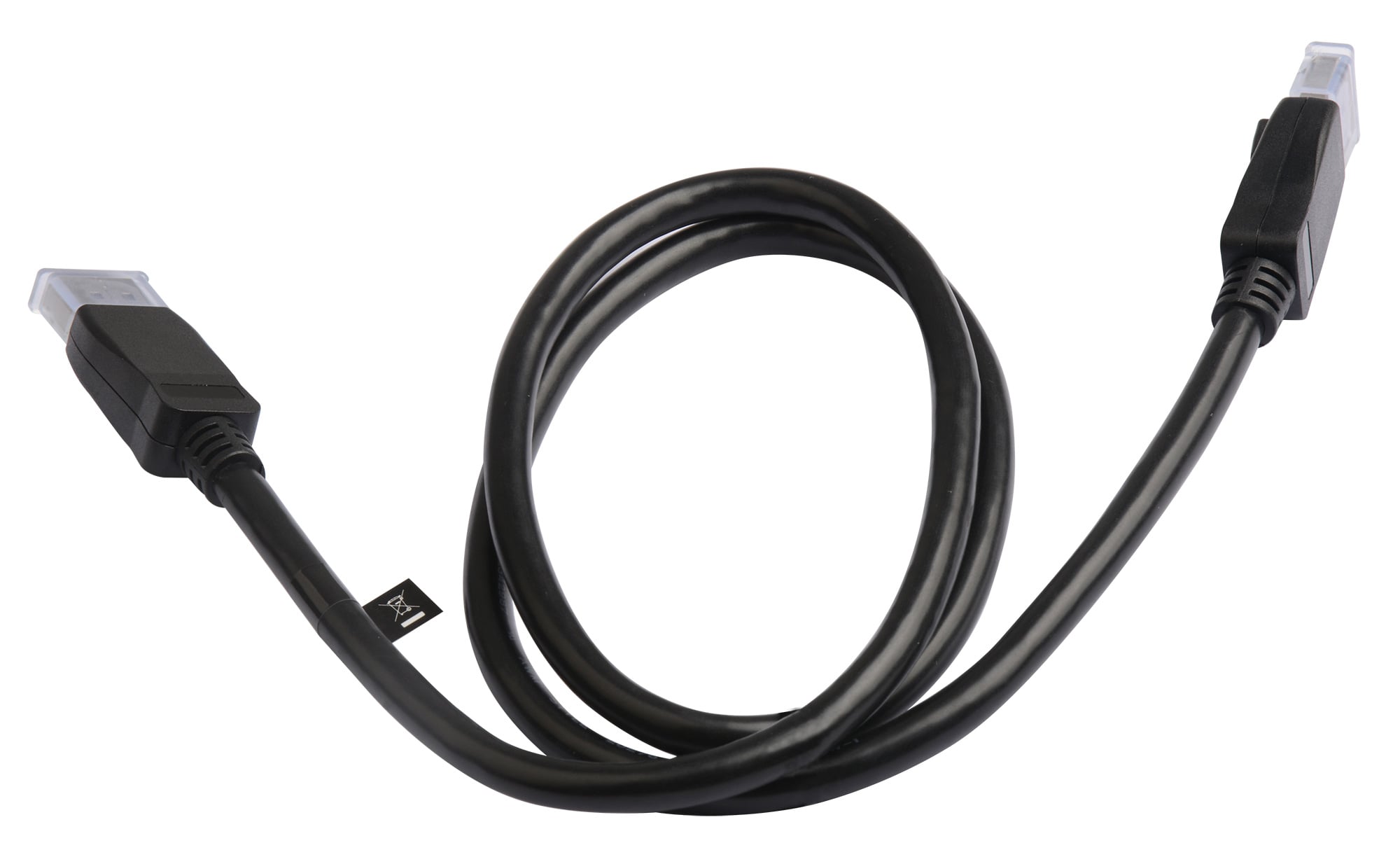

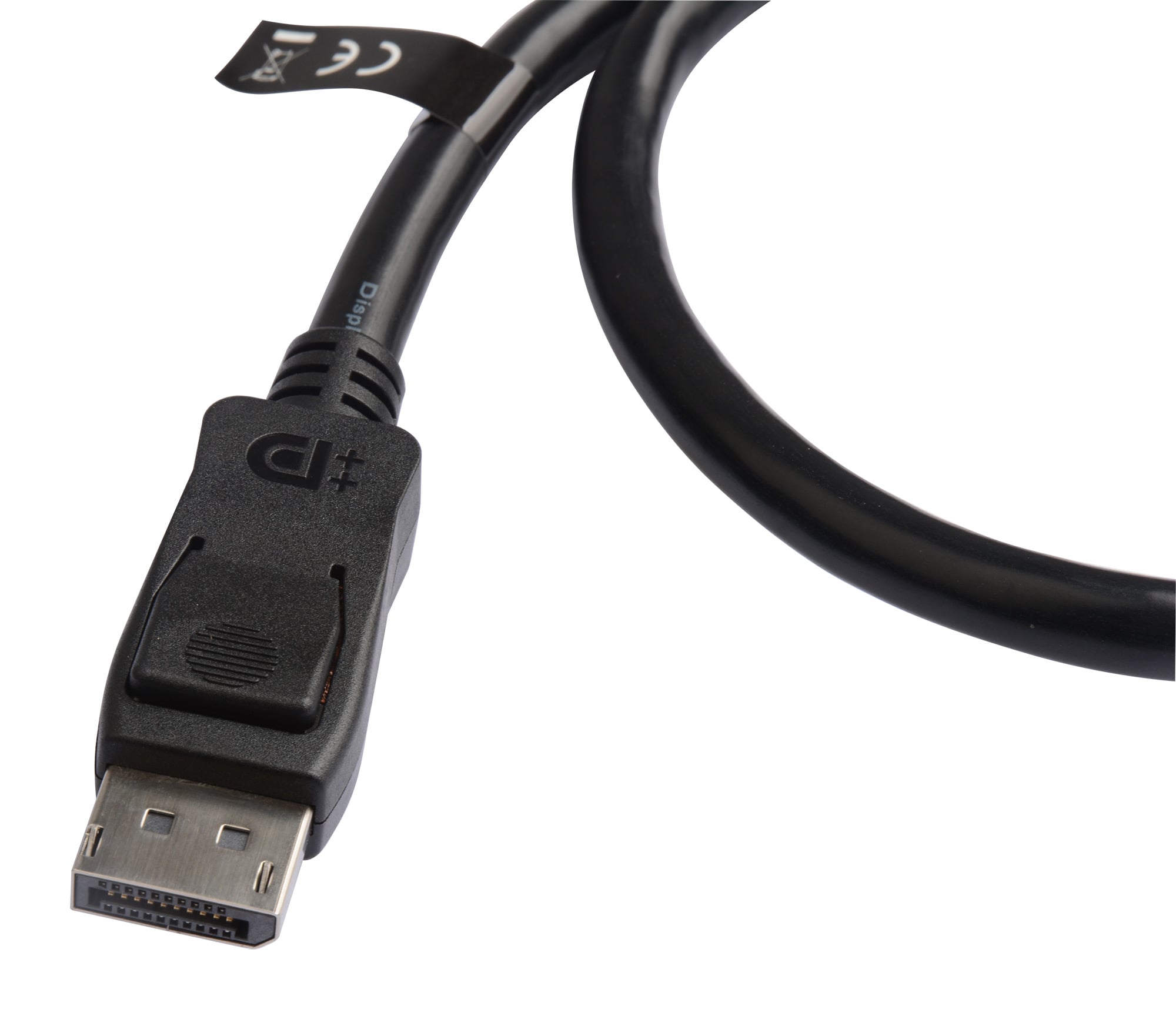

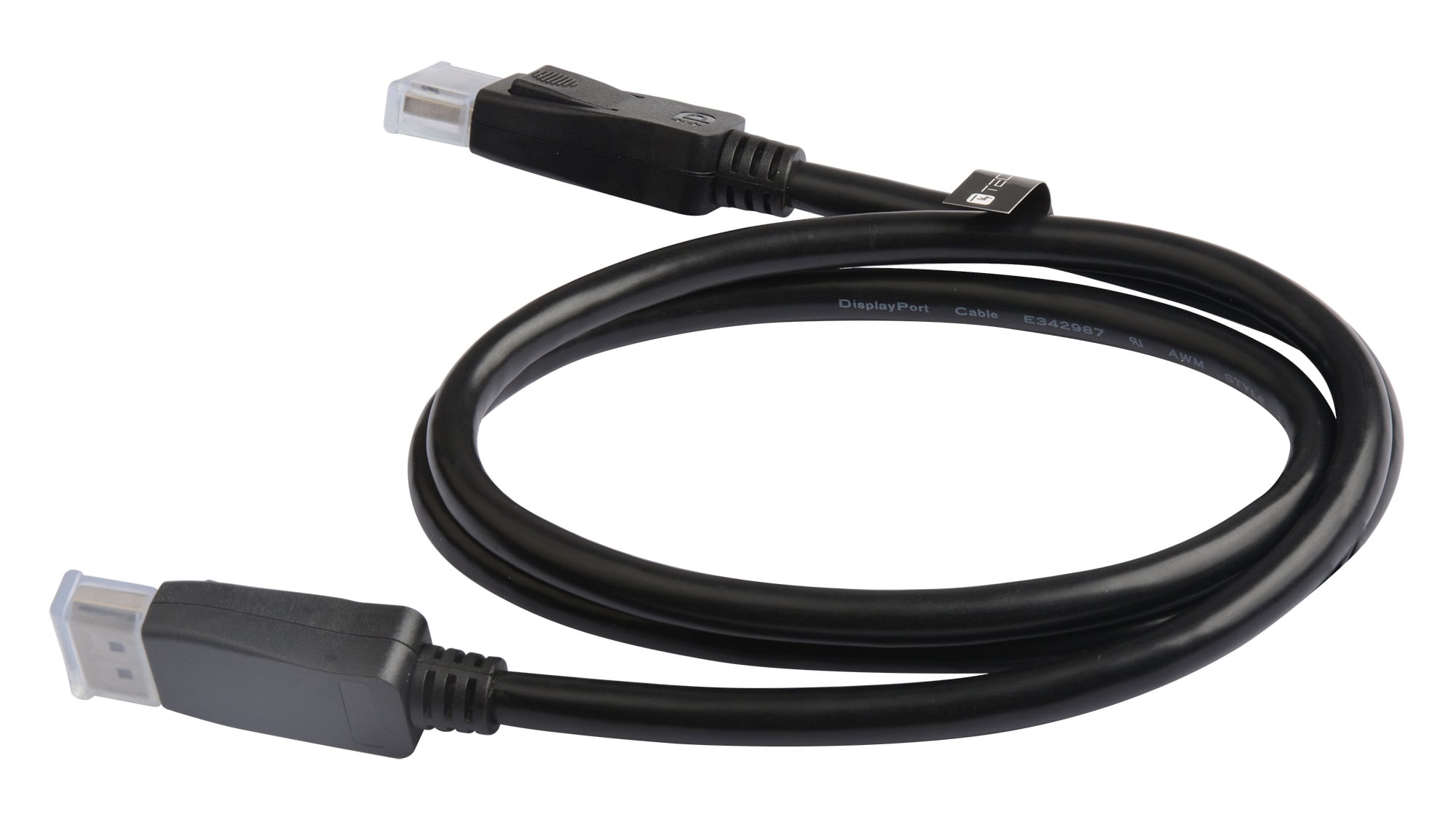

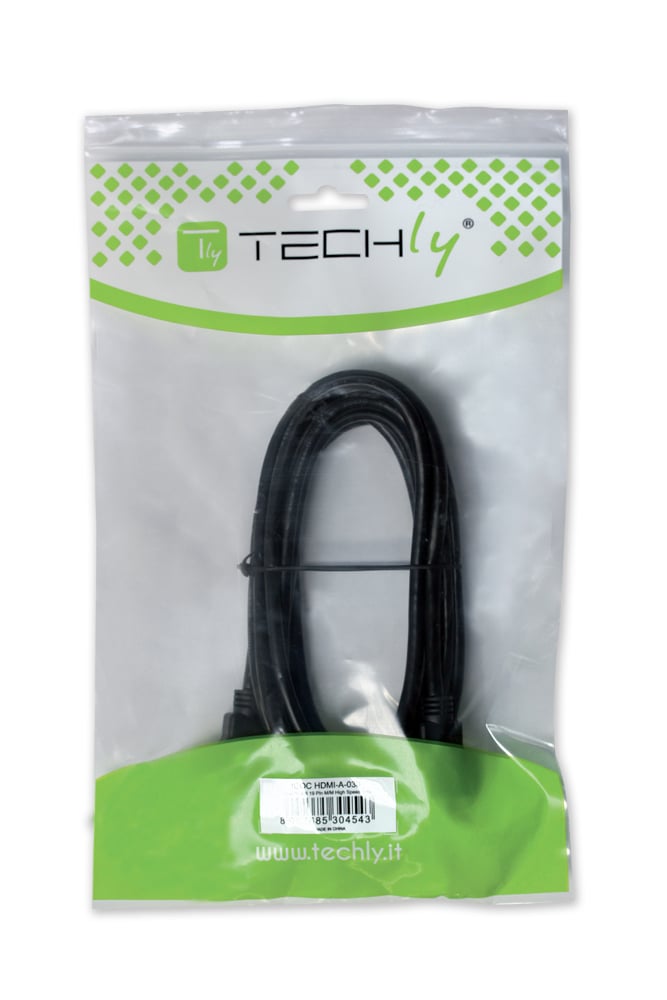

DisplayPort 1.4 DP++ 8 K M/M 2 m black - Techly IOC DSP-A 14 - 020

Experience audio and video in quality à Ultra HD and best sound transmission. Connect two DisplayPort devices with this DisplayPort connection cable. Useful for connecting external screens or projectors with a suitable computer or notebook.



Technical specifications

• DisplayPort 20 -pin male to DisplayPort 20 -pin male certificate DP ++ (DisplayPort Dual Mode)

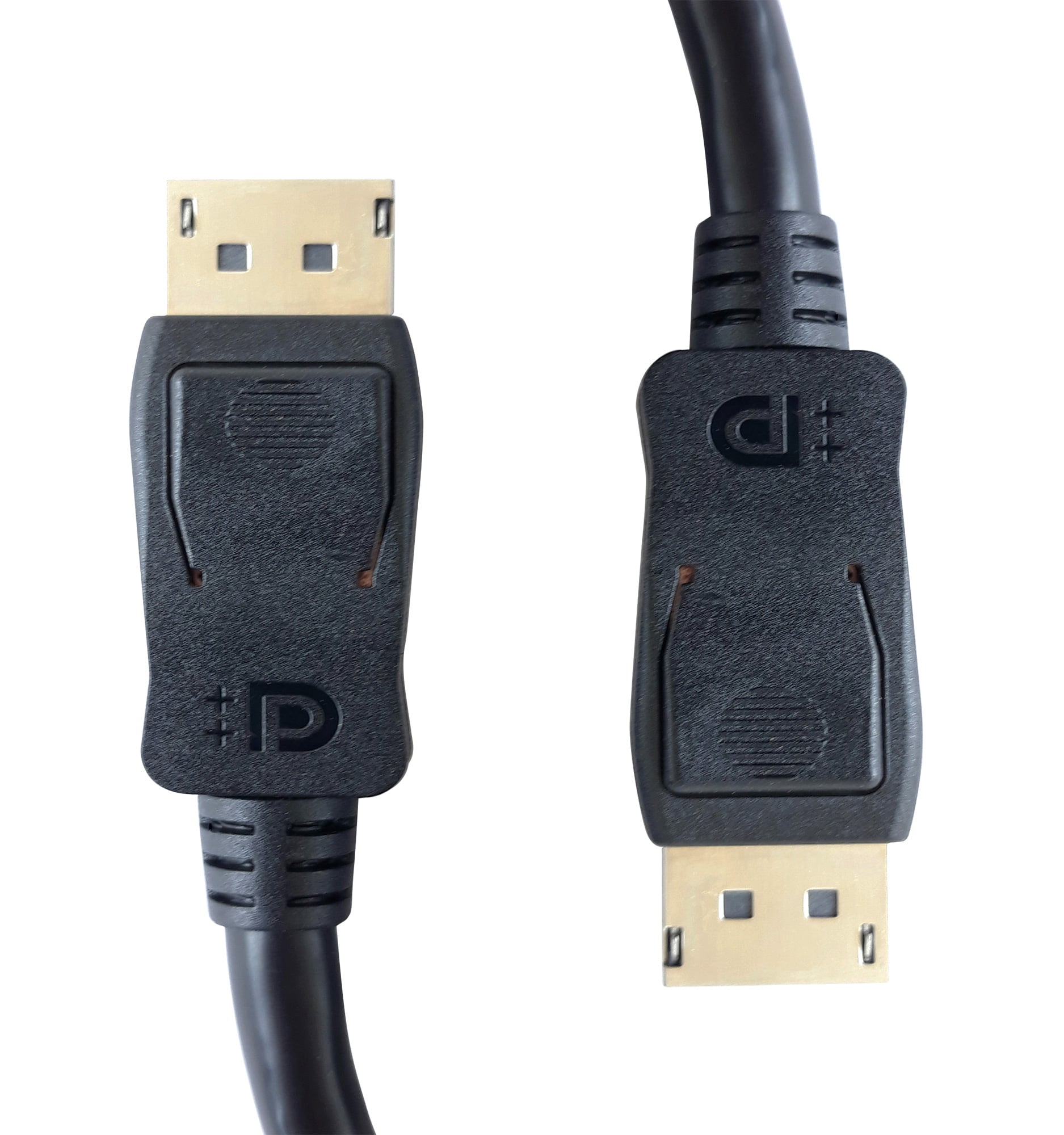

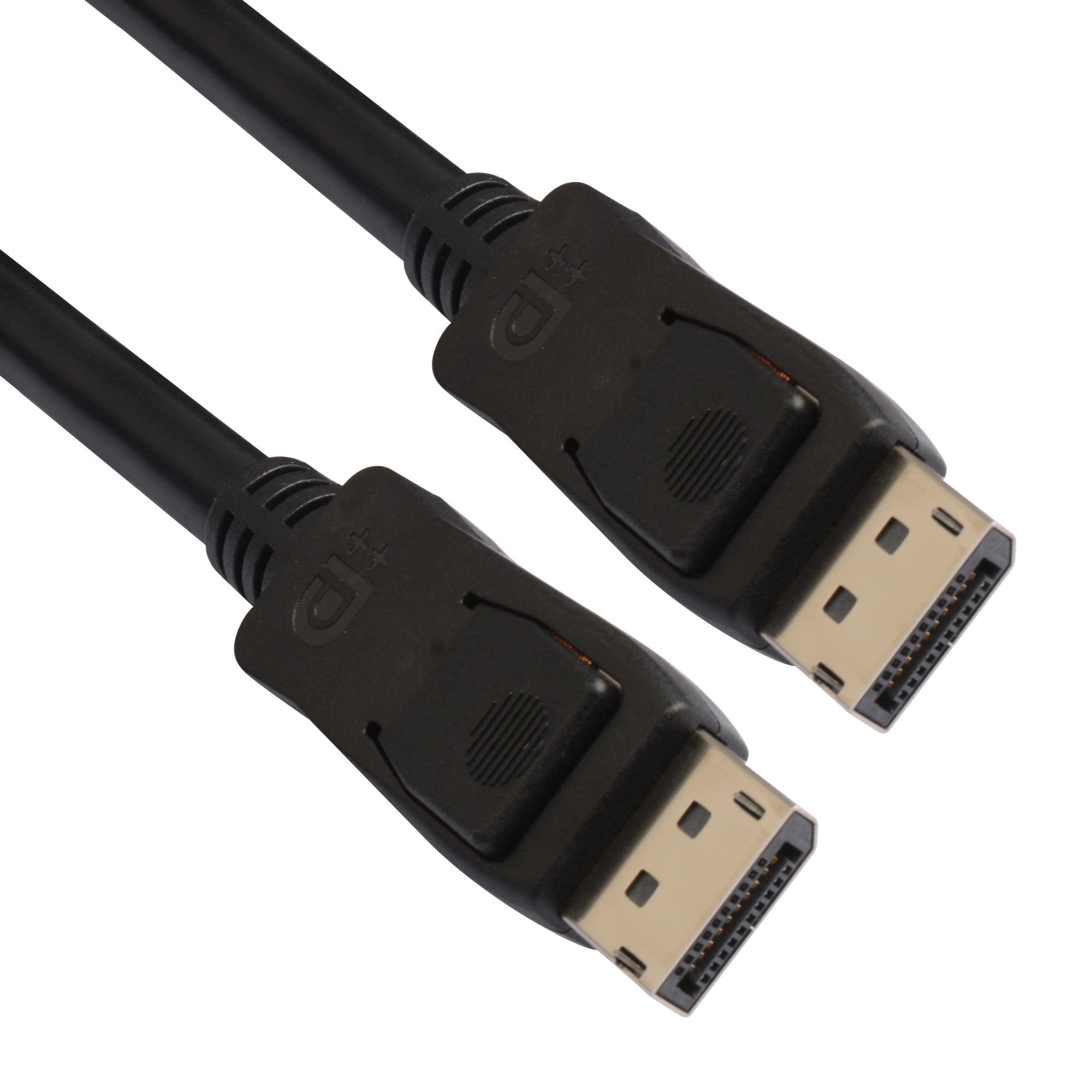

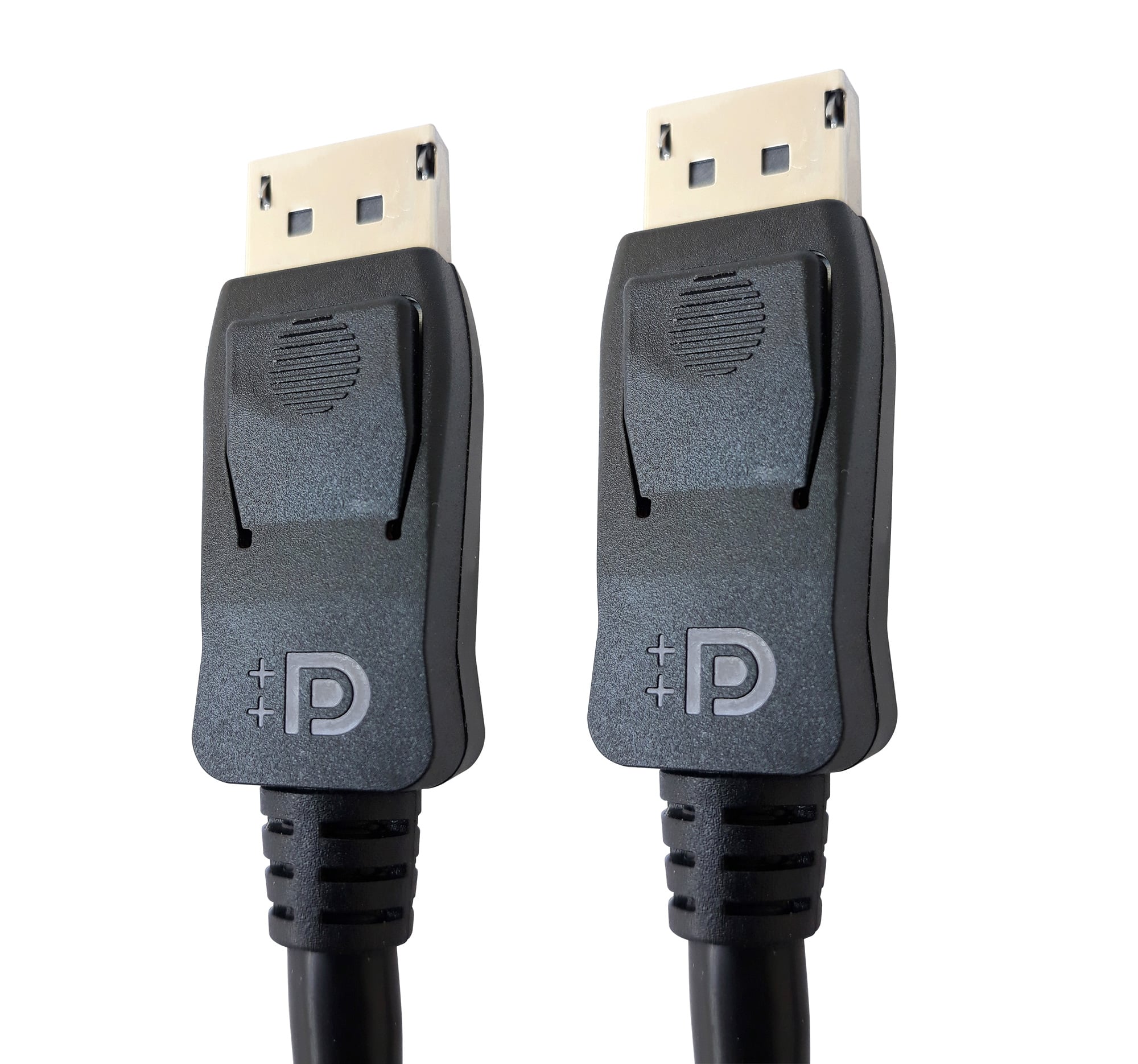

• Connectors: 2 DisplayPort 20 -pin male


• Consistent with DisplayPort 1.4 standards


• Retrocompatible with DisplayPort 1.3 , 1.2 and 1.1

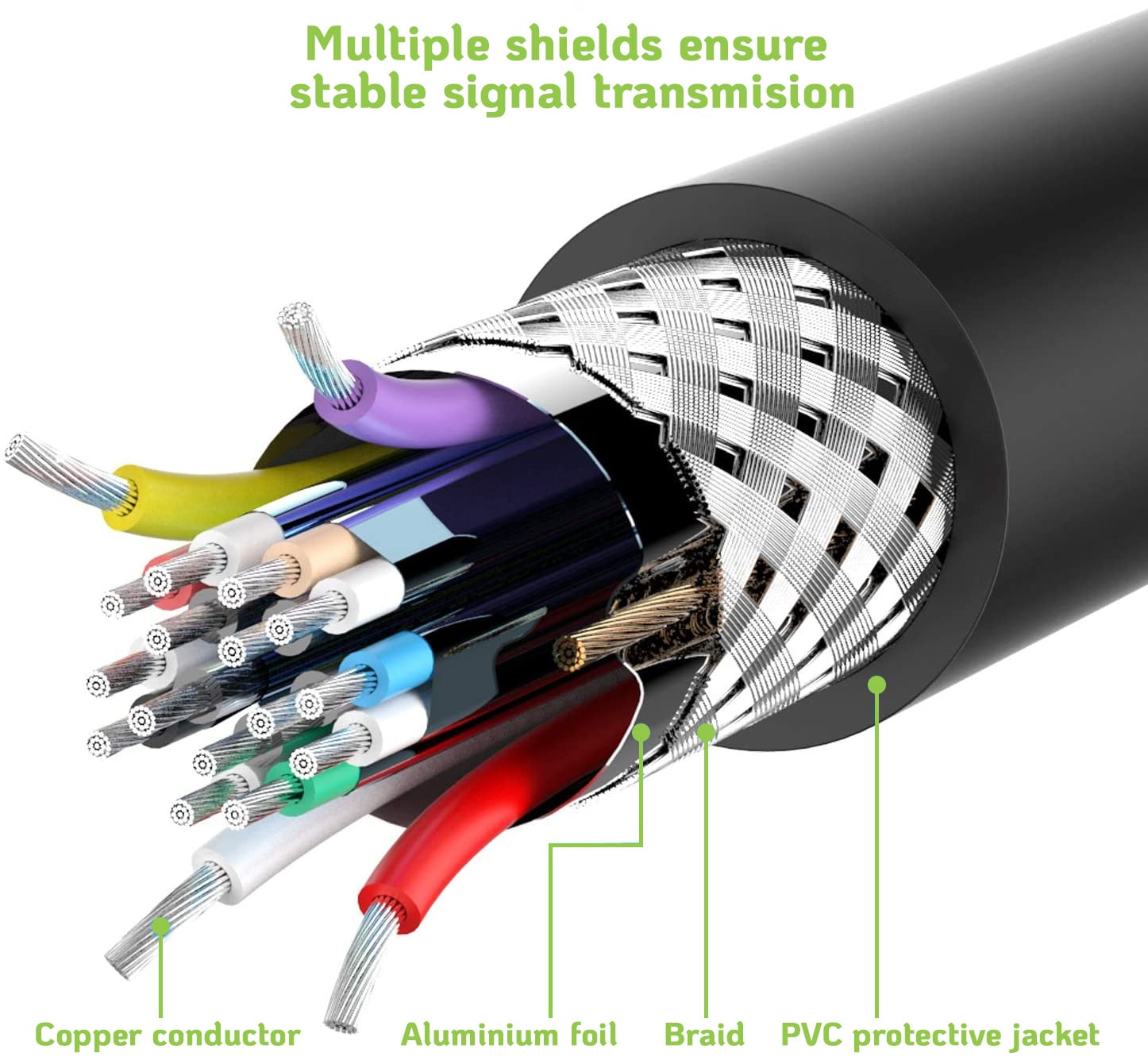

• Triple shielding


• Used for audio and video signal transfer


• With locking stops


• Pin 20 not connected


• Cable section: 32 AWG


• Cable diameter: approx. 5.0 mm


• Copper conductor


• Transmission of audio and video signals


• Velocità data transfer up to 32.4 Gbps


• Resolution up to 8 K/60 Hz and 4 K/120 Hz:



Display with DSC support:

7680 x 4320 at 60 Hz

5120 x 2880 at 120 Hz

3840 x 2160 at 240 Hz

Display without DSC support:

7680 x 4320 at 30 Hz

5120 x 2880 at 60 Hz

3840 x 2160 at 120 Hz

(depending on the system and the hardware connected)

• Supports Display Stream Compression 1.2 (DSC)


• Support HDR


• Supports HDCP 1.4 and 2.2


• Supports modalità Dual Mode (DP++)


• Supports velocità HBR 3 data (8,1 Gb/s)


• Up to 32 audio channels for speakers


• Velocità audio sampling up to 1536 kHz


• Supports color sampling in 4 format: 4: 4 , 4: 2: 2 and 4: 2: 0


• Color: black


• Length: 2 m



Package contents

• Video audio cable Display port 1.4 8 K 2 m
