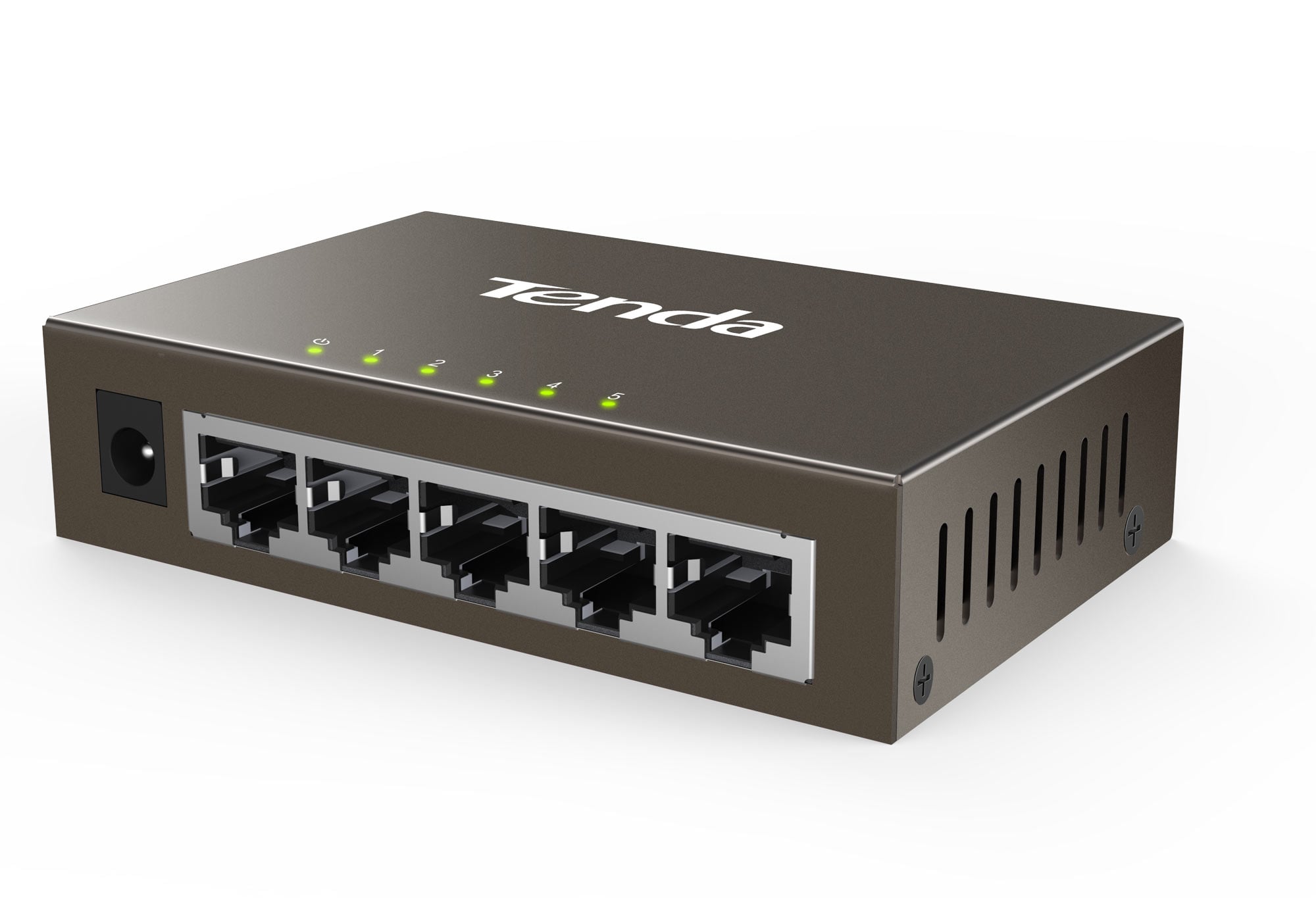

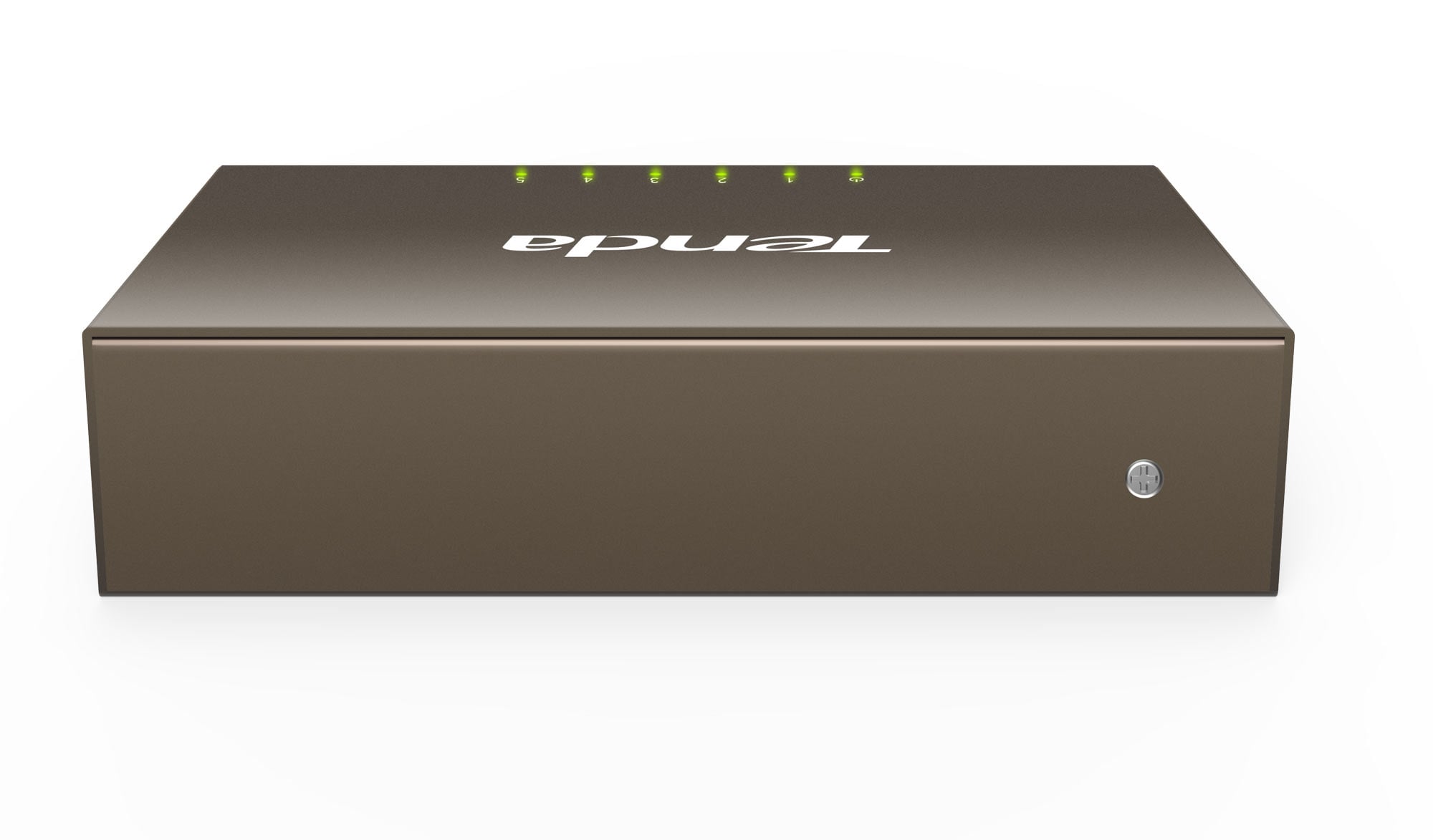

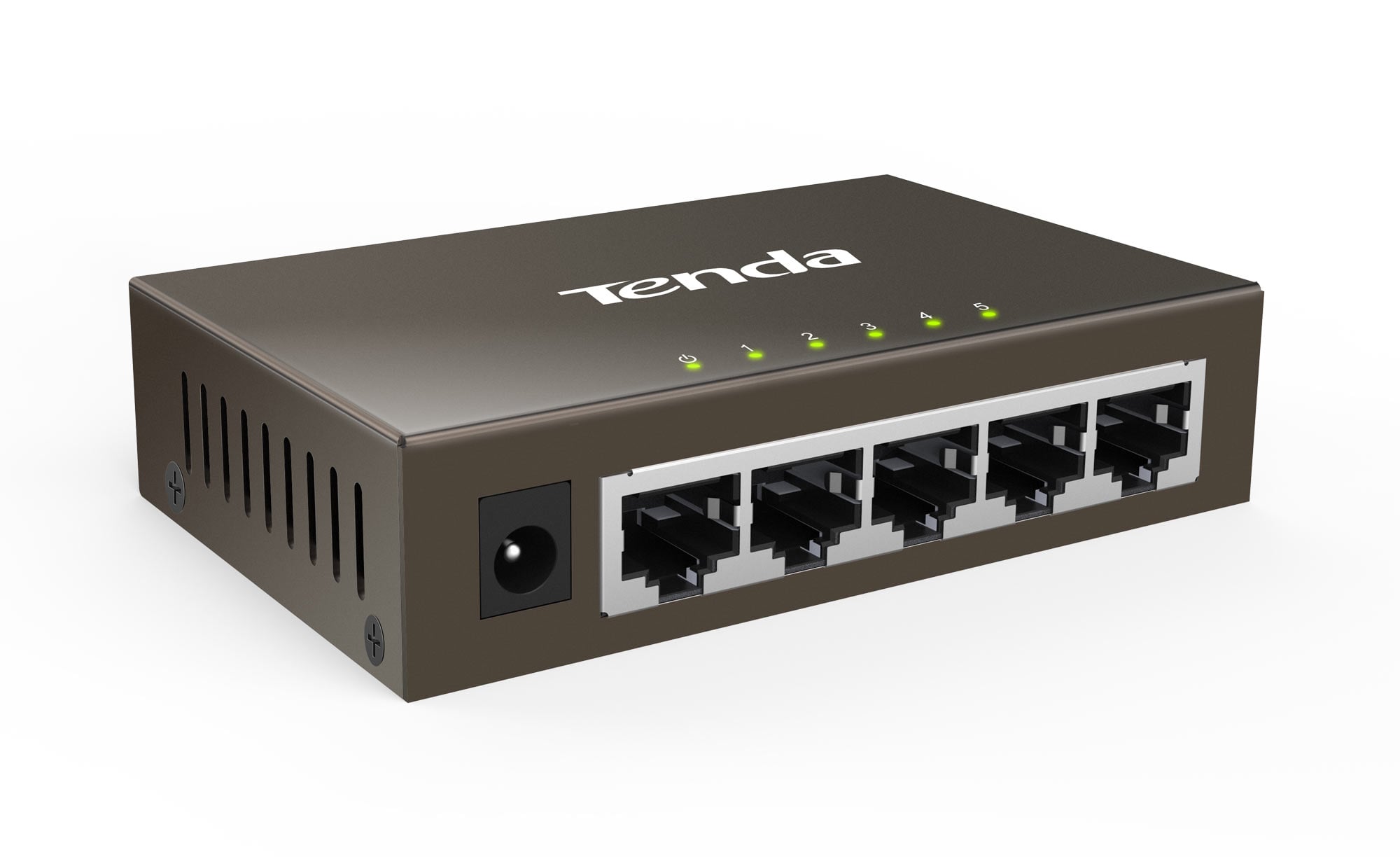

The I-SWHUB TEF1005D features a housing made of industrial galvanized steel of 0,8 mm, ensuring excellent durability over time and good heat dissipation capacity, guaranteeing stable operation and more reliable safety. The 5 RJ45 ports with automatic auto-negotiation support wire-speed speeds and large cache capacity, ensuring smooth surveillance video playback and stable data transmission 24 hours on 24.
Features- Unmanaged layer2 Fast Ethernet Switch 5 ports 10/100 Desktop TEF1005D
- With metal structure ensures exceptional durability and system stability, suitable for video surveillance applications.
- Supports full-duplex communication, auto-negotiation and auto MDI/MDIX
- User-friendly design: the RJ45 ports and LED indicators are on the same side and vertically aligned to more intuitively show the network status.

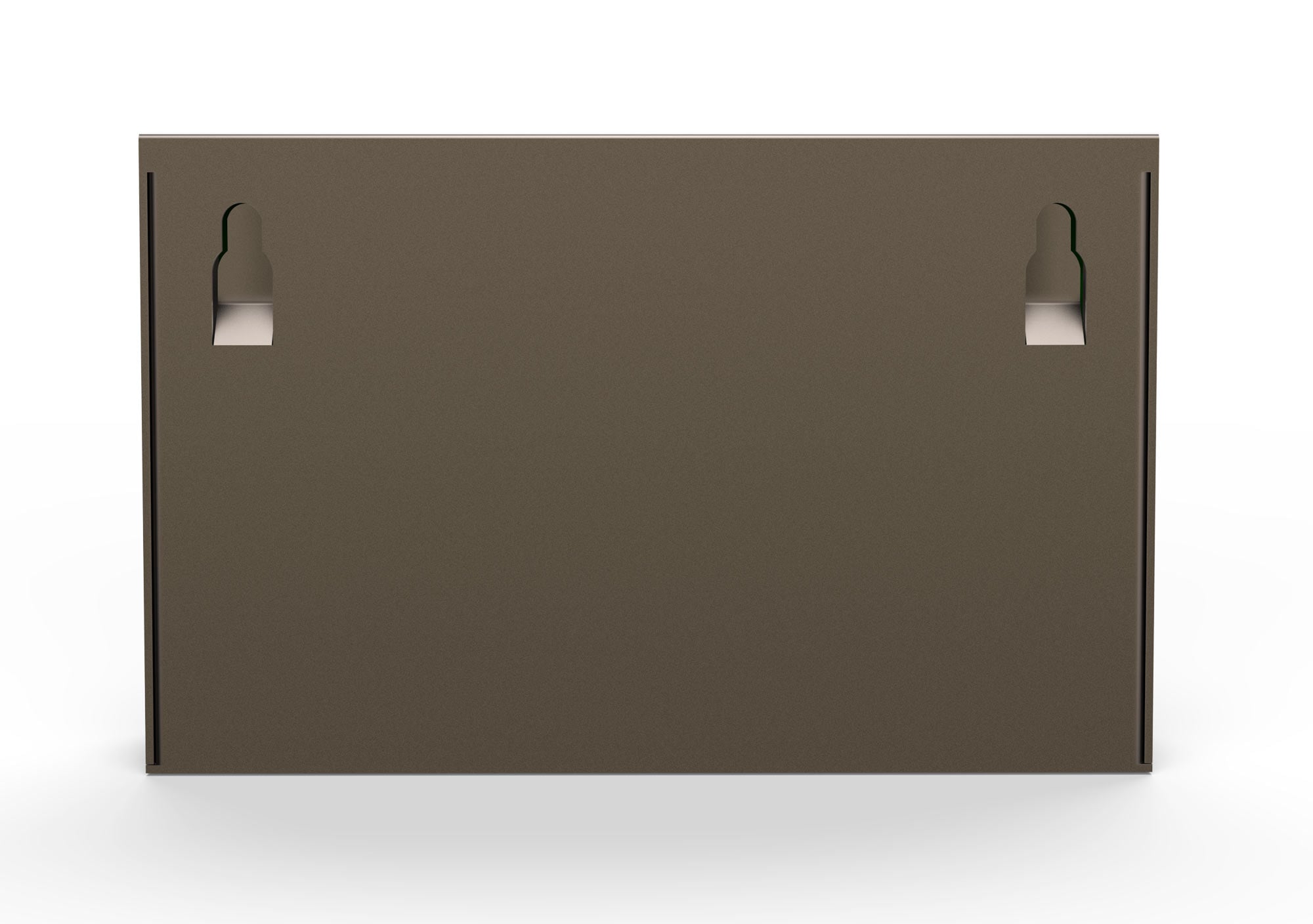

- With holes on the bottom to also allow wall mounting.
Specifications- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Transmission:
- 10Base-T: Cat. 3 UTP or higher
- 100Base-TX: Cat.5 UTP or higher
- Interface: 5 RJ45 ports 10/100Mbps auto-negotiation, auto MDI/MDIX
- Lightning protection for the 5 ports
- LED: 1 LED for power, 5 LED for 10/100Mbps Link/Act
- Forwarding mode: Store-and-Forward
- MAC Address: 1K
- MAC Address Learning: automatic update
- Forwarding Rate:
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
- Switching capacity: 1.0Gbps
- Access control: CDMA/CD
- Input power: 100~240V AC, 50/60Hz
- Output power: 5V DC, 0.6A
- Dimensions: 100 × 64 × 23 mm (L*P*A)
Environmental information- Operating temperature: -10°C~45°C
- Storage temperature: -40°C~70°C
- Operating humidity: 10%~90% RH (non-condensing)
- Storage humidity: 5%~90% RH (non-condensing)
Package contents- Fast Ethernet Desktop Switch 5 ports TEF1005D
- Power adapter 5V 0.6A
- Instruction manual
