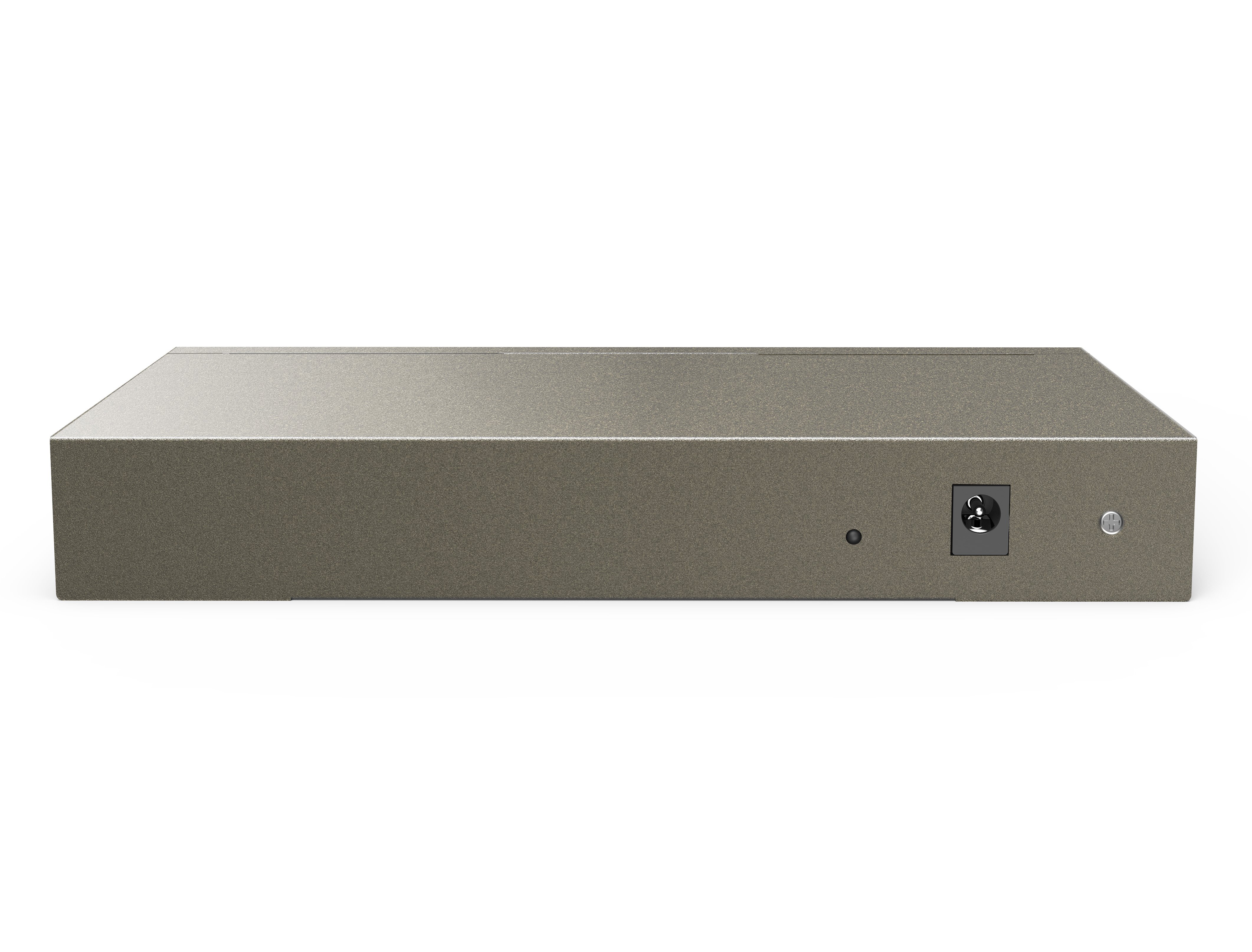

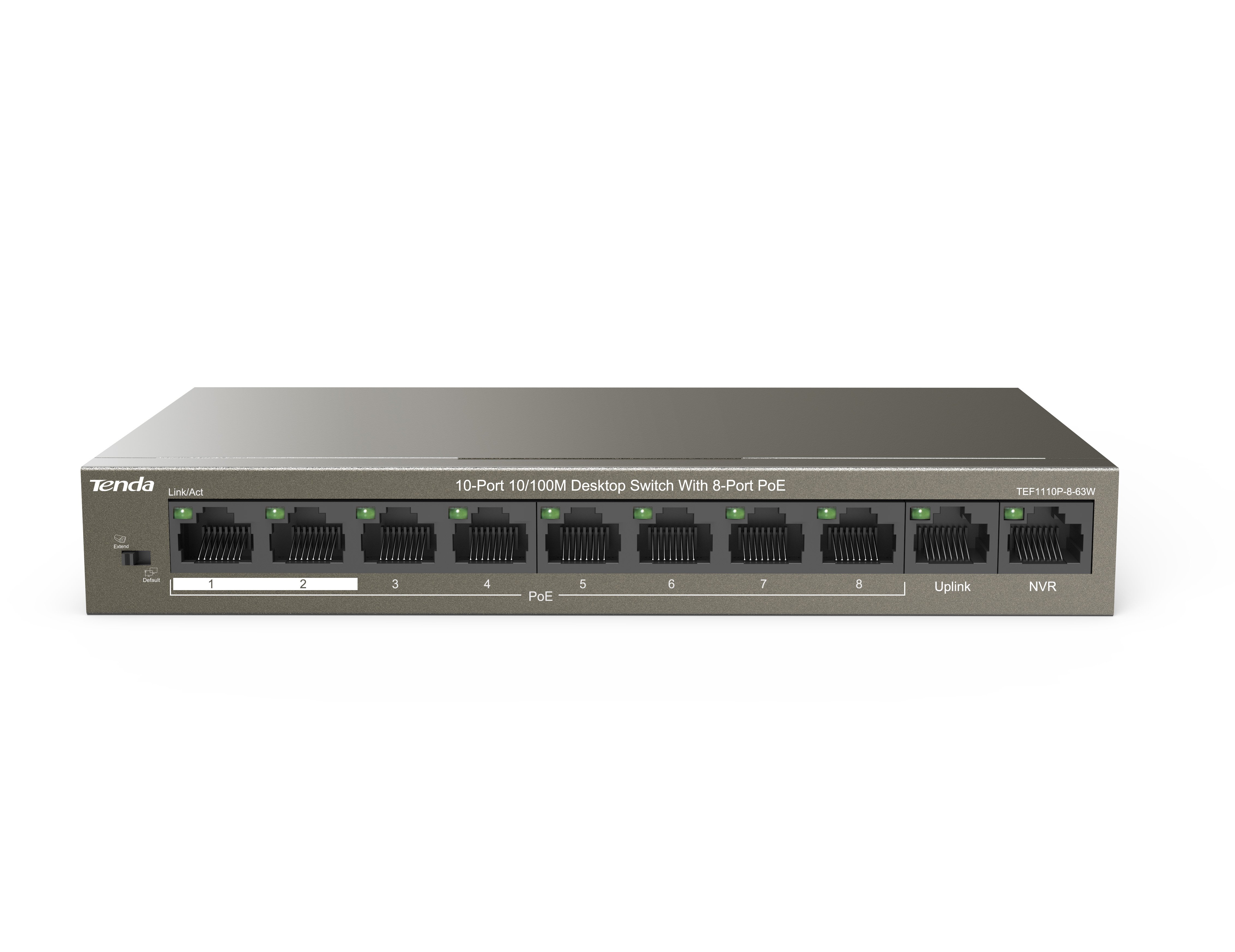

Desktop Switch 8 Ports 10/100 PoE 63W - Tenda I-SWHUB TEF1110P8

I-SWHUB TEF1110P8 is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda.

Compliant with IEEE 802.3at/af, it can intelligently identify PoE-based devices.

The switch provides a maximum PoE power of 63W and 30W per port.

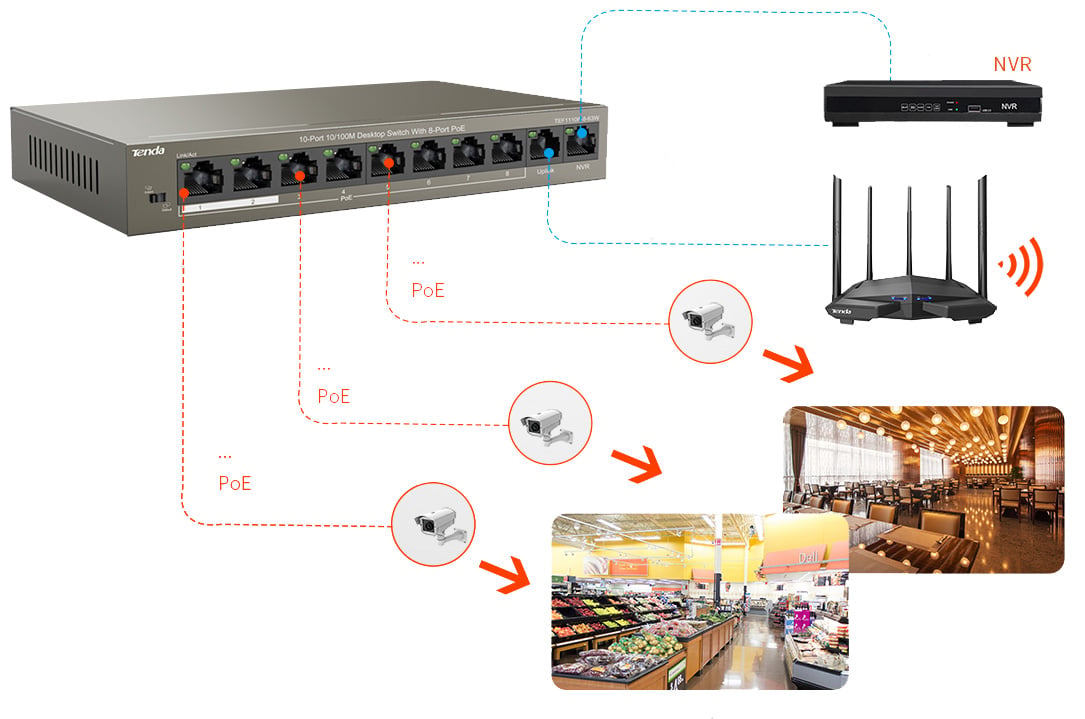

Featuring extended mode, one-key VLAN and QoS, TEF1110P-8-63W is the ideal choice for SMEs, supermarkets and restaurants with small-scale video surveillance.



Features

• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/a


• 8 ports 10/100 Mbps Base-TX RJ45 for data transmission and power


• 2 ports RJ45 Base-TX 10/100 Mbps for data transmission


• MAC 1K and MAC address auto-learning


• Full-duplex flow control compliant with IEEE 802.3x and back-duplex backpressure


• Backplane bandwidth 2 Gbps


• Maximum power consumption of a single port: 30W


• Maximum switch power consumption: 58W


• Supports intelligent management functions, including extended mode, VLAN and QoS


• Desktop and wall-mount switch


• Plug and play



Technical specifications

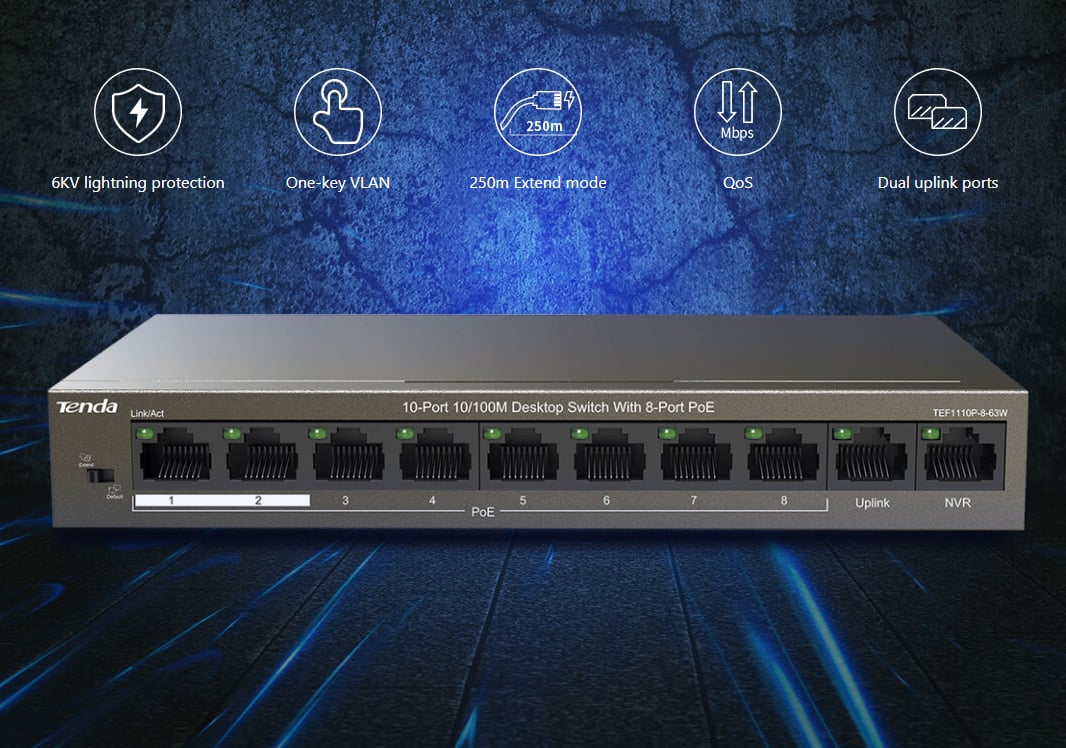

• Offers various types of security and protection, including lightning protection 6 kV


• PSE short circuit protection, PoE overload protection, overvoltage protection


• Dual uplink ports


• With two uplink ports at 10/100 Mbps, the switch is able to meet the current uplink bandwidth demand with NVR and router connection


• Standard PoE power supply


• The switch supports IEEE 802.3at/af standards


• Maximum PoE power of 58W and 30W per single port


• 250 m data transmission


• Supports extended mode and one-key VLAN


• Hardware DIP mode selector


• Maintains long-distance transmission effortlessly



Dimensions

• Width: 177.5 mm


• Depth: 104 mm


• Height: 26 mm



Environmental features

• Operating temperature: 0 - 45°C


• Operating humidity: 10% - 90% non-condensing


• Storage temperature: -40 - 70°C


• Storage humidity: 5% - 90% non-condensing



Package contents

• Switch I-SWHUB TEF1110P8


• User manual
