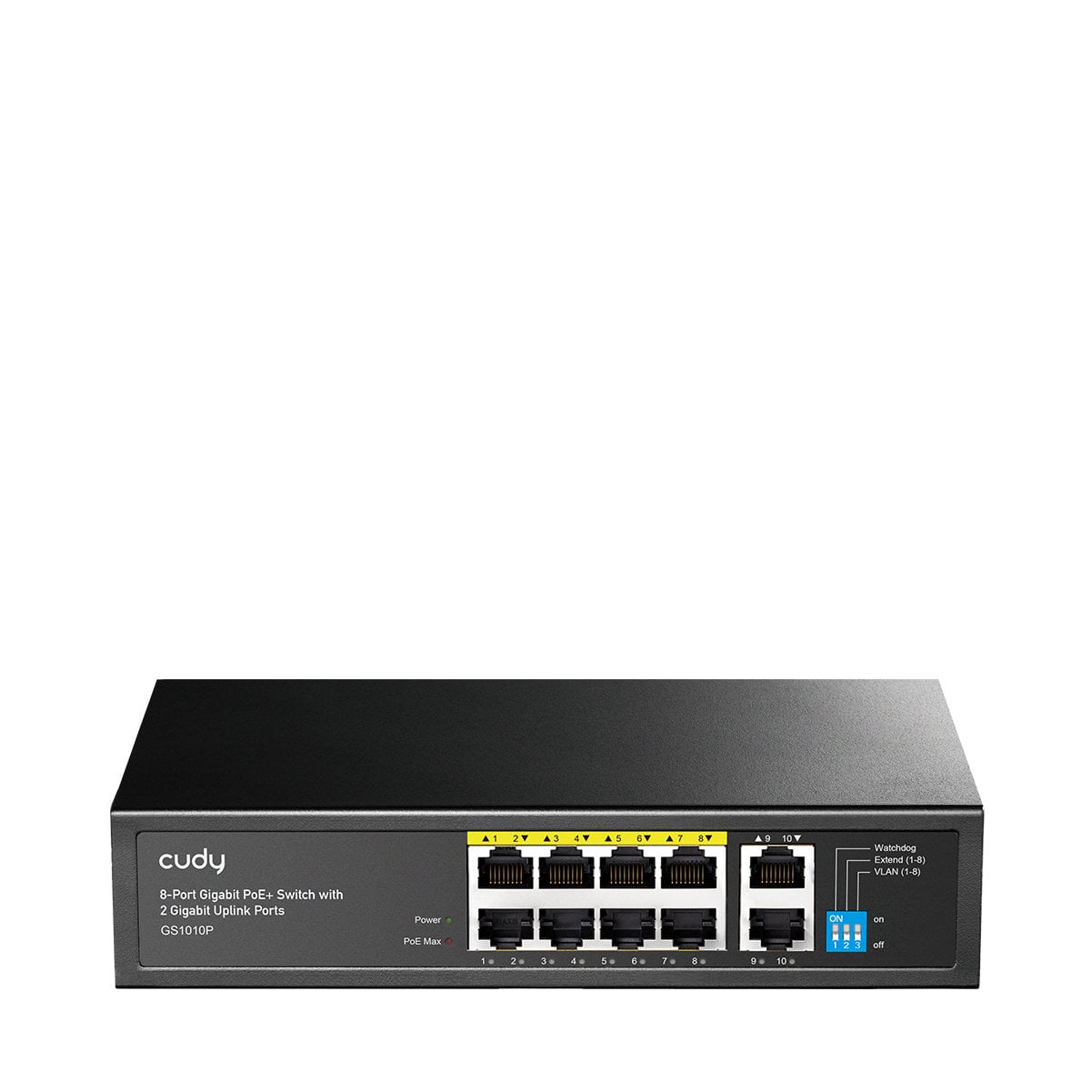

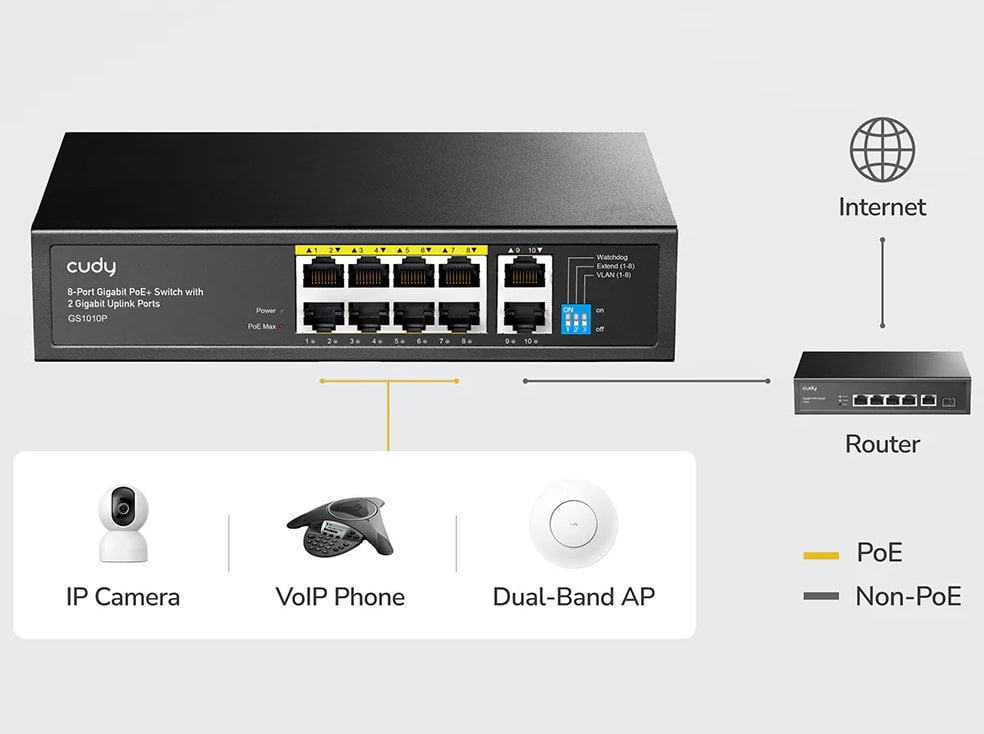

Switch Gigabit PoE+ 8 Doors with 2 Uplink GbE, GS 1010 P Black - Cudy ICU-GS 1010 P

•

• Switch 8 ports Gigabit PoE+ and 2 ports Uplink GbE

• 120 W power supply and silent cooling system

• PoE ports comply with IEEE 802.3 at/af standards; each PoE port delivers up to 30 W of power making it suitable for access points, IP cameras, digital signage and most other PoE devices

• PoE port priorityà simplifies device power management

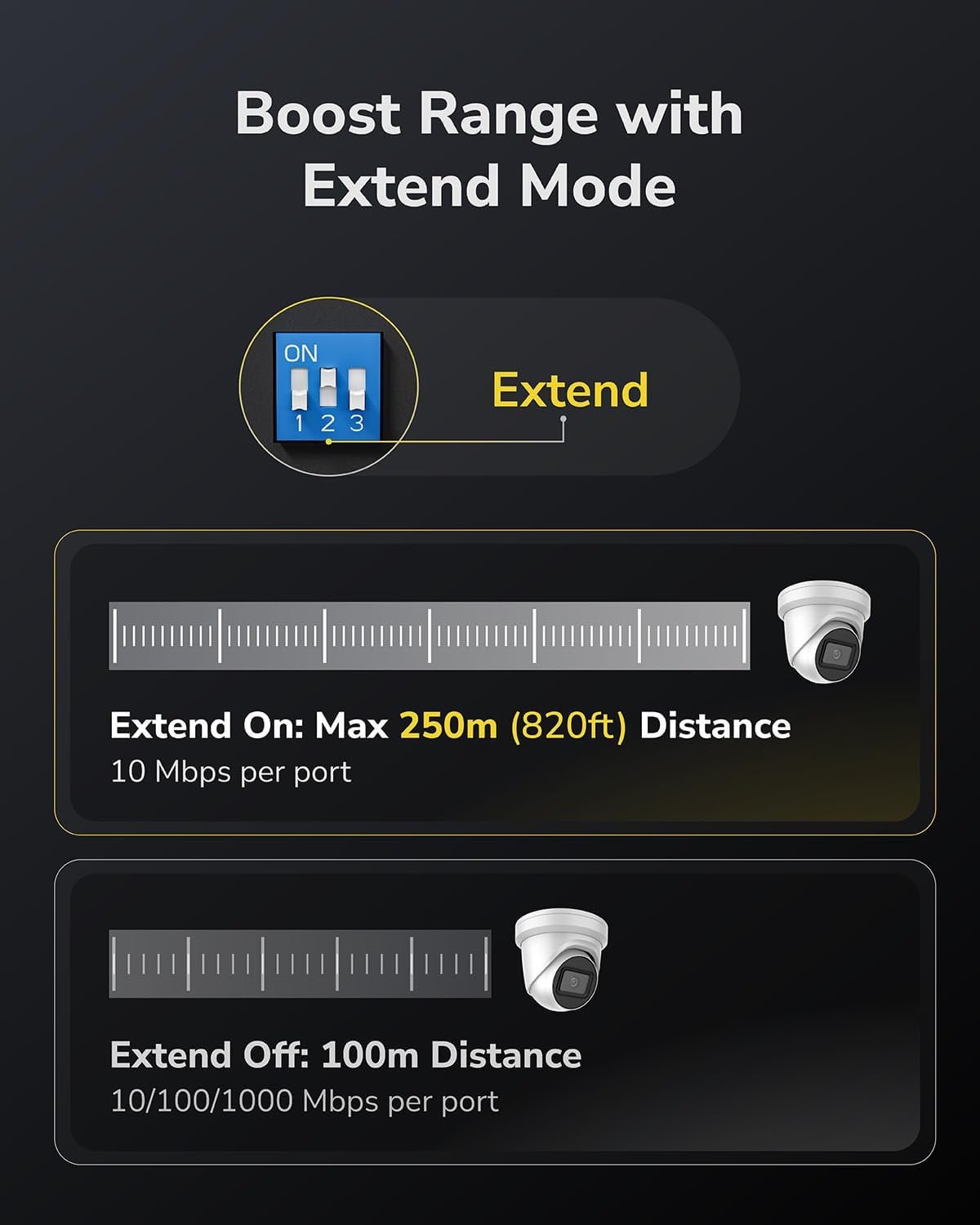

• For long distance networks, è can enable the mode à Extend to connect clients up to 250 meters away, limiting the speed à of the ports to 10 Mbps

• Watchdog hardware è active on all PoE ports (reset PoE clients not reactive when mode à Extended è active)

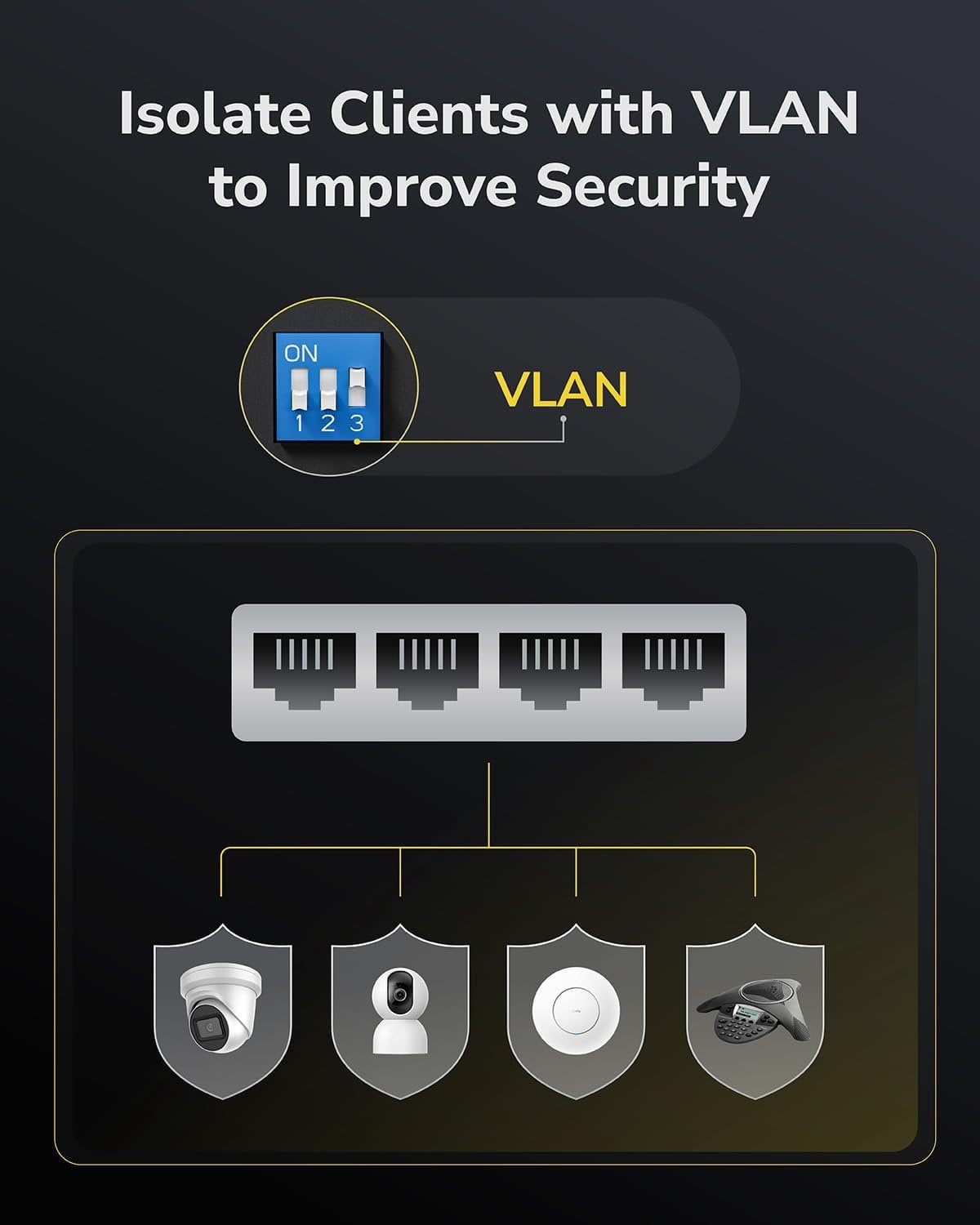

• The VLAN blocks downlink ports for greater security to prevent client-side hacking, preventing sensitive data from leaking. Downlink clients can only communicate with uplink devices

• Protections: ESD: Contact 6 kV; Air 8 kV; Surge: Power DM 2 KV, CM 4 KV; RJ 45 cm 4 kV

• Solid metal housing that supports desktop or rack positioning via brackets (not included in the package)


Technical specifications

•

• Power supply: AC 100 - 240 V 50 / 60 Hz; 120 W

• Protocols Poe: IEEE 802.3 i (10 Base-T); IEEE 802.3 u (100 Base-TX); IEEE 802.3 ab (1000 Base-TX); IEEE 802.3 x (Flow control); IEEE 802.3 /at PoE

• Maximum power for each door: 30 W

• Maximum power excluding PoE: 10 W

• Velocità and supported distance:

• Cat. 3 cable or higher: 100 meters to 10 Mbps

• Cat. 5 or higher cables: 100 meters to 100 Mbps

• Cat. Cable 5 and above: 100 meters to Gigabit

• Cat. Cable 5 and above: 250 meters to 10 Mbps

• MAC: 2048 (2 K)

• Bandwidth: 20 Gbps

• Velocità Package Forwarder: 14,88 Mpps

• Jumbo Frame: 16 KB

• Package buffer memory: 1 Mbit


Environmental features

•

• Operating temperature: - 10 ~ 50 °C

• Storage temperature: - 40 °C ~ 70 °C

• Umidità operating: 10 ~ 90 %, without condensation

• Storage humidità 5 ~ 95 %, without condensation

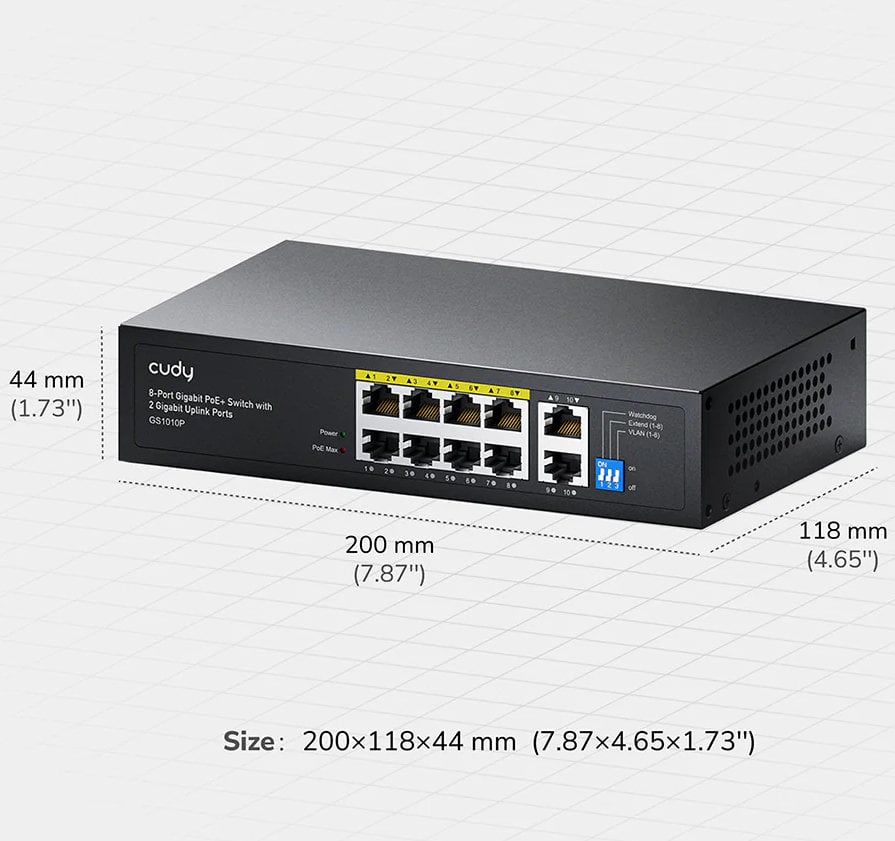

Dimensions

•

• Width: 200 mm

• Depthà: 118 mm

• Height: 44 mm


Package contents

•

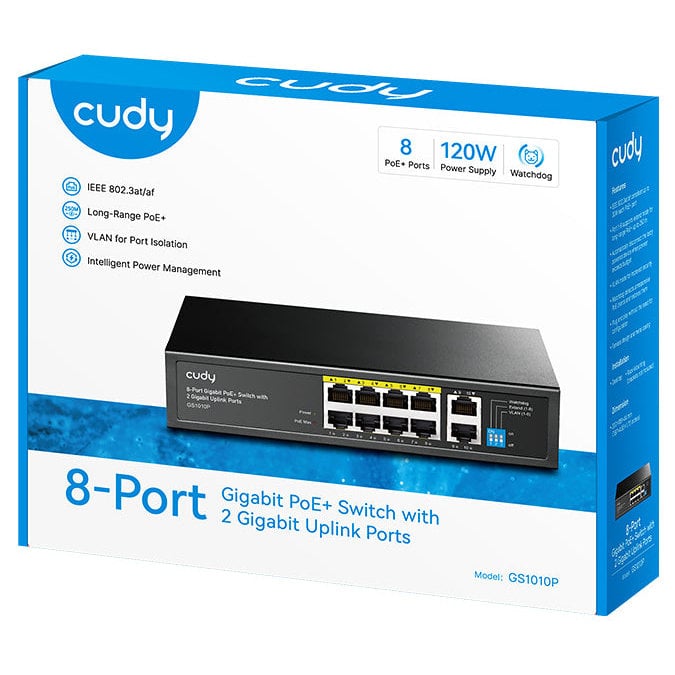

• Switch Gigabit PoE+ 8 Doors with 2 GBE ICU-GS 1010 P

• Power cable

• User manual
