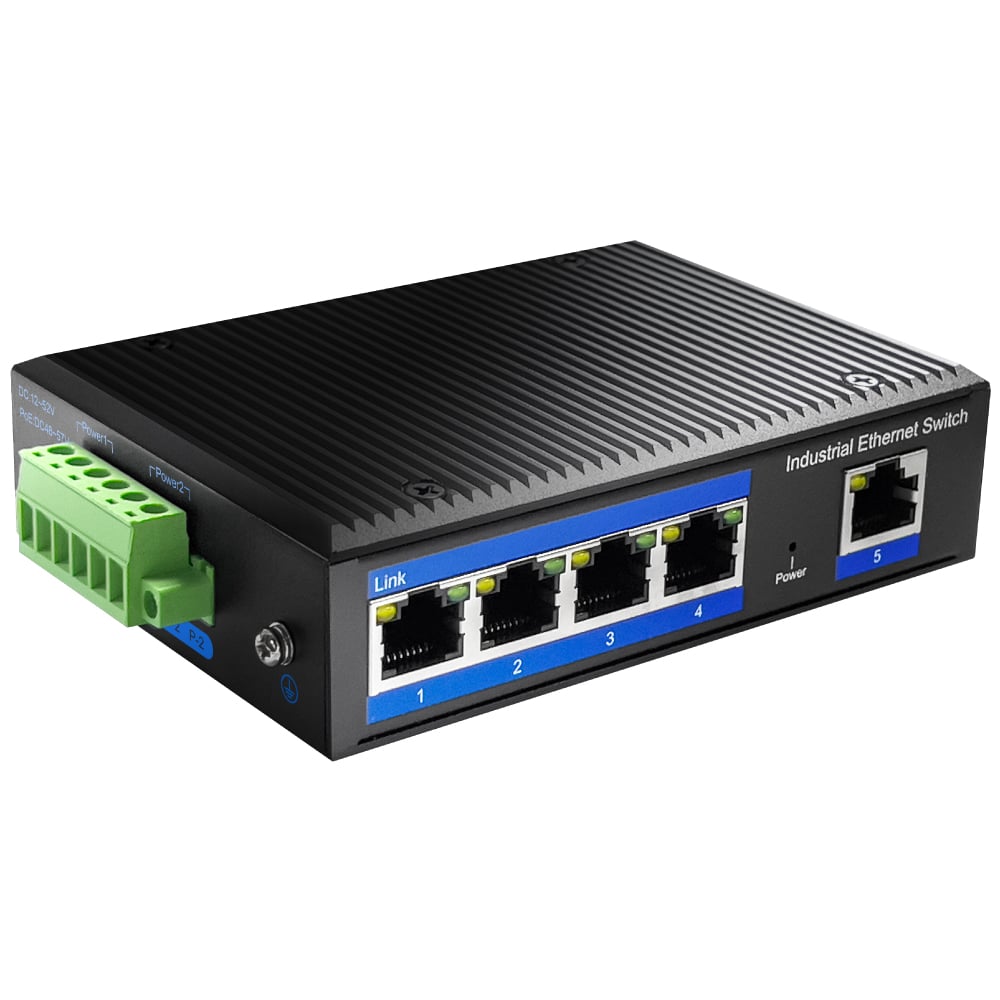

Industrial Switch Gigabit 5 Porte - Cudy ICU-IG 1005

• 5 Ethernet ports 10 / 100 / 1000 Mbps


• redundant power input from 12 V to 52 V CC


• Operating temperature from - 40 °C to 85 °C


• Aluminum case IP 40


• Supports Ethernet ESD protection from 6 KV CC


• Supports EFT CC protection from 6 KV for the power line


• Stability; free fall, shock and vibration


• Hardware design on DIN guide and wall mountable



Technical specifications

• Doors 10 / 100 BASE-TX: 5 doors RJ- 45 auto-MDI / MDI-X


• Performance specification:



- Bandwidth: 14 Gbps

- Package buffer memory: 1.2 Mbit

- Velocità packet forwarding: 10.5 Mpps

- Table of MAC addresses: 2 K

• DIN Guide Installation


• Maximum frame size: 9000 byte package size


• Flow control: back pressure for half duplex, IEEE 802.3 x pause frame for full duplex


• Aluminum case IP 40


• LED indicators:



- Power: red

- Ethernet: yellow

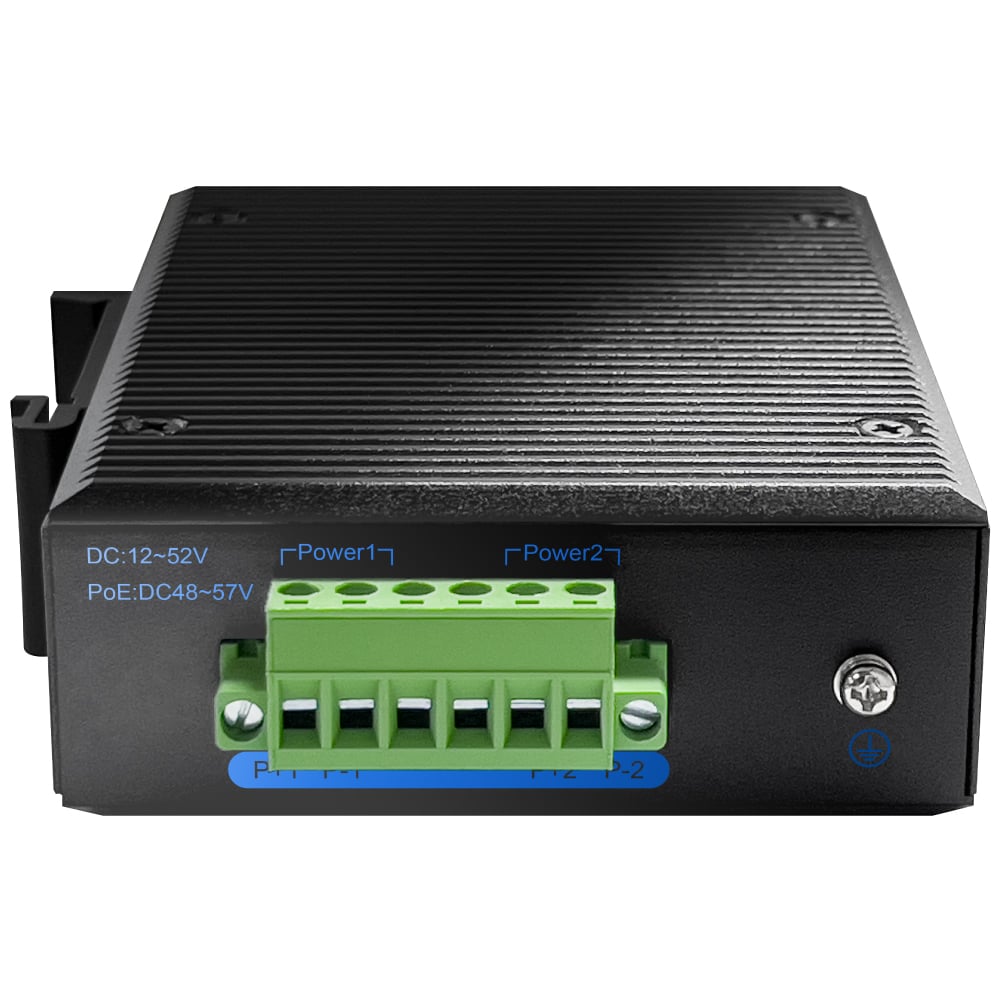

• redundant power supply from 12 to 52 V DC (Note: this product does not include a power supply)


• Power consumption 3 watt maximum


• Overvoltage protection ± 4 KV


• Network protocols:



IEEE 802.3 10 BASE-T;

IEEE 802.3 i 10 Base-T;

IEEE 802.3 u 100 Base-TX/FX;

IEEE 802.3 ab 1000 Base-T;

IEEE 802.3 z 1000 Base-X;

IEEE 802.3 x

• Network cables:



10 BASE-T: Cat 3 , 4 , 5 UTP (≤ 100 meters)

100 BASE-TX: Cat 5 or higher UTP (≤ 10 meters)

1000 BASE-TX: Cat 6 or higher UTP (≤ 100 meters)



Dimensions

• Width: 118 mm


• Depthà: 86 mm


• Height: 33,5 mm



Environmental features

• Operating temperature: - 40 ~ 85 °C


• Storage temperature: - 40 ~ 85 °C


• Humidità relative: 5 %~ 95 % (without condensation)



Package contents

• Industrial switch ICU-IG 1005


• User manual
