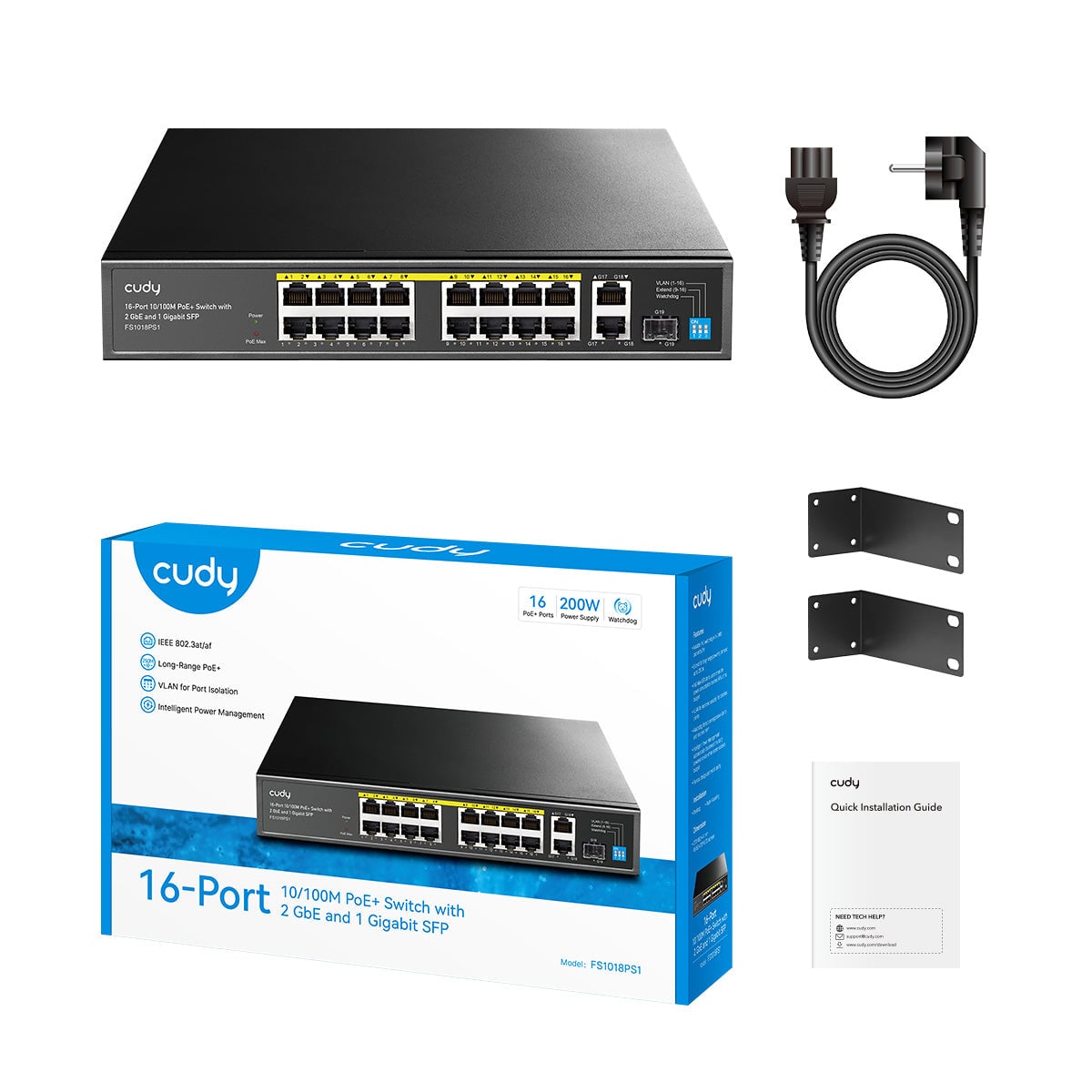

Switch PoE+ 10 / 100 M 16 Doors with 2 GbE and 1 SFP port - Cudy ICU-FS 1018 PS 1

• Switch 16 ports with 2 ports uplink 10 / 100 / 1000 M + 1 SFP port


• PoE power supply from 200 watt, up to 30 watt per door


• 16 doors 10 / 100 M PoE+


• The modeà CCTV supports remote PoE power supply up to 250 m


• The modalità VLAN island each PoE port for security reasons


• Consistent with the IEEE 802.3 standard at/IEEE 802.3 af


• Plug&play, simple configuration without need à configuration


• The watchdog reactivates the abnormal PD by restoring the POE power



Technical specifications

• Integrated power supply


• Voltage range 100 ~ 240 V AC


• Power consumption 190 W per 16 PoE


• Velocità:



- Doors 1 ~ 16: 10 / 100 /Mbps

- G 17 ~G 18 Port: 10 / 100 / 1000 Mbps

- G 19 Port: SFP 1.25 bps

• Transmission distance:



- 100 meters for RJ 45

- The distance è determined by the optical module

- Optional optical module è

• Network standard: IEEE 802.3 802.3 u 802.3 ab 802.3 af/at


• Capacità switching: 7.2 G


• Velocità transfer:



- 14880 pps for 10 Mbps

- 148800 pps for 100 Mbps

- 1488000 pps for 1000 Mbps

• MAC Address 4 K


• PoE:



- Acceso (orange): the IP è connected

- Off: no PD connected or feed forwarding failed

- Pin assignment PoE V+(Pin RJ 45 1 , 2) - (Pin RJ 45 3,6)

• Color: gray



Environmental features

• Working temperature 0 ~ 40 °C


• Storage temperature - 40 ~ 70 °C


• Humidità without condensation 0 ~ 85 %



Dimensions

• Width: 280 mm


• Depthà: 180 mm


• Height: 44 mm



Package contents

• Switch PoE+ 16 ports ICU-FS 1018 PS 1


• User manual
