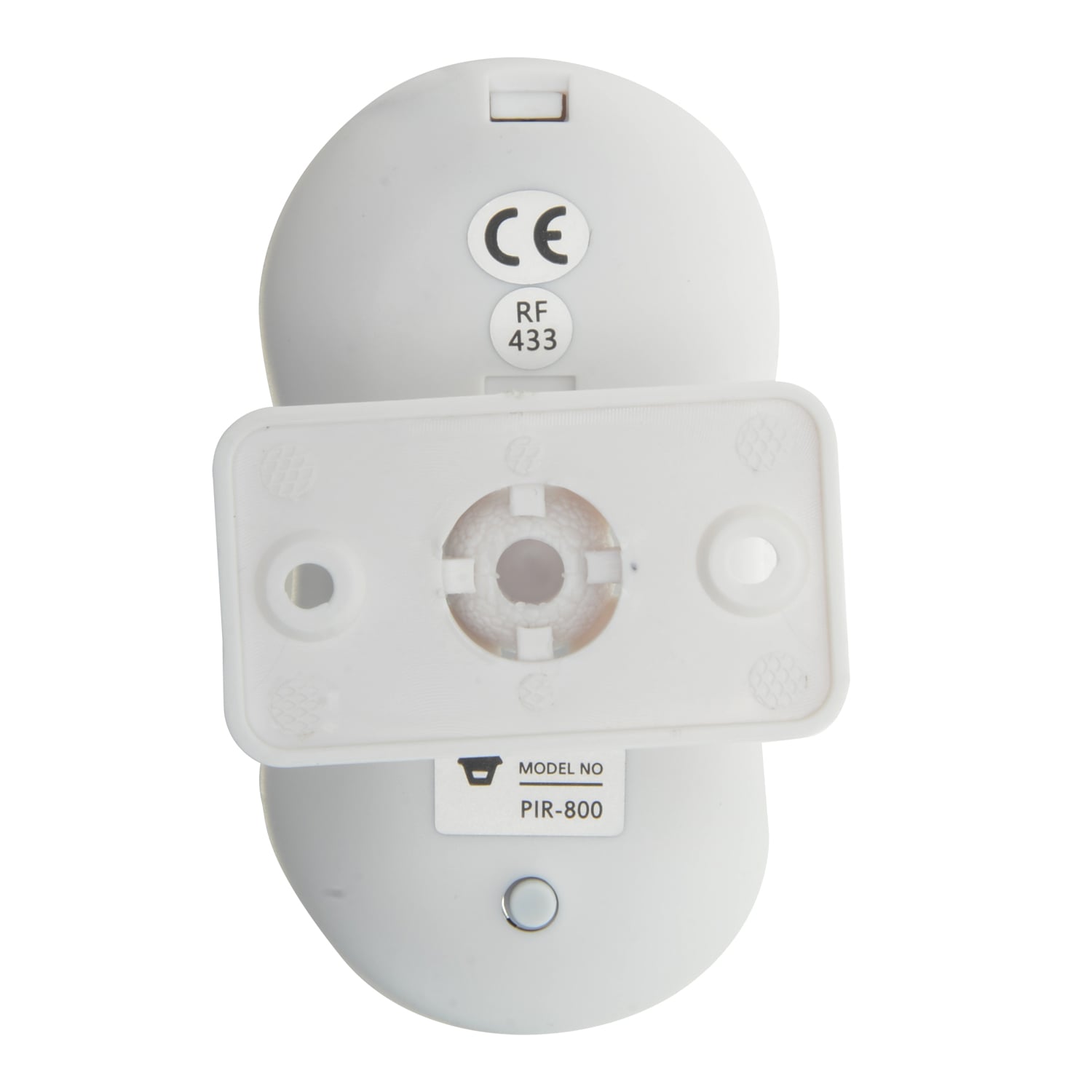

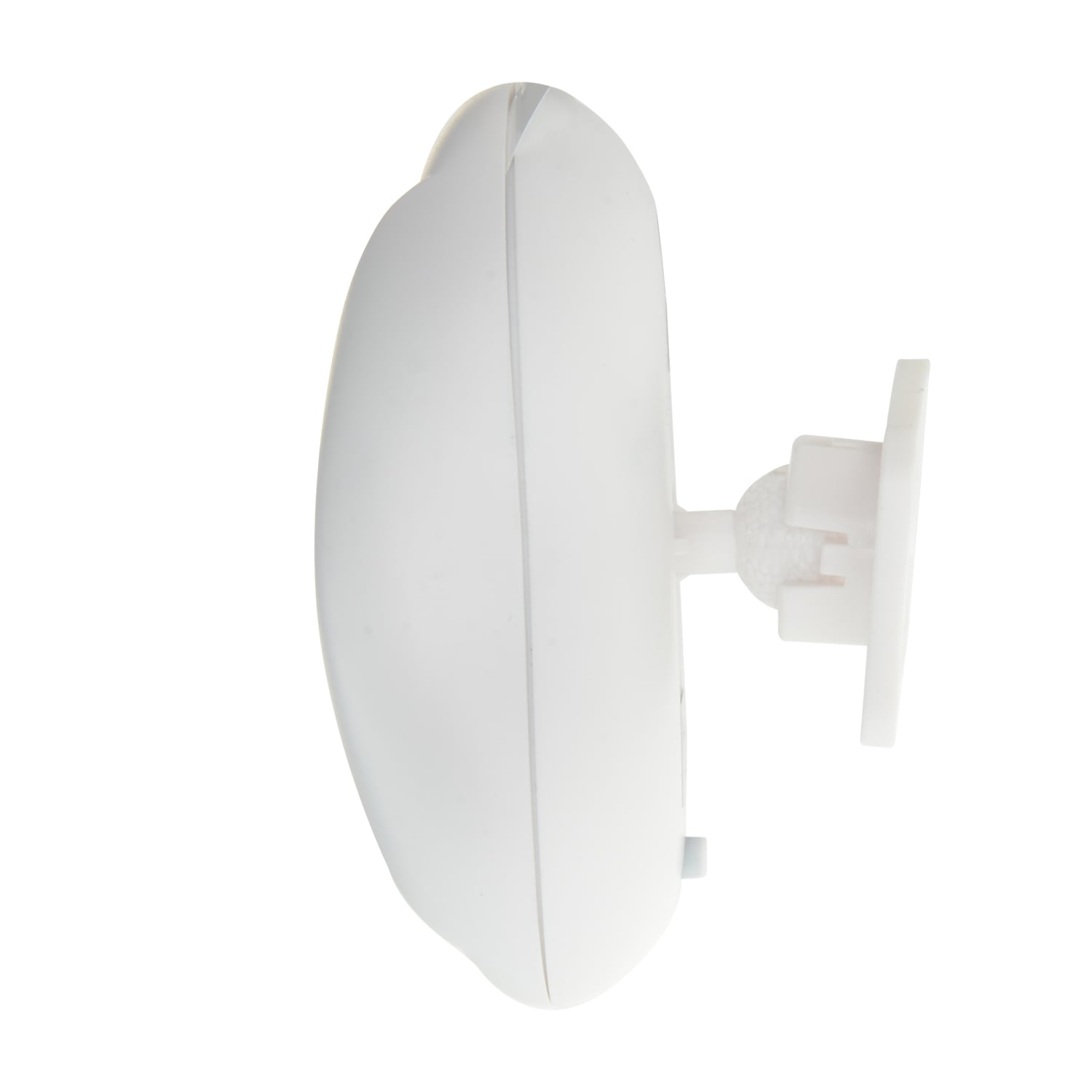

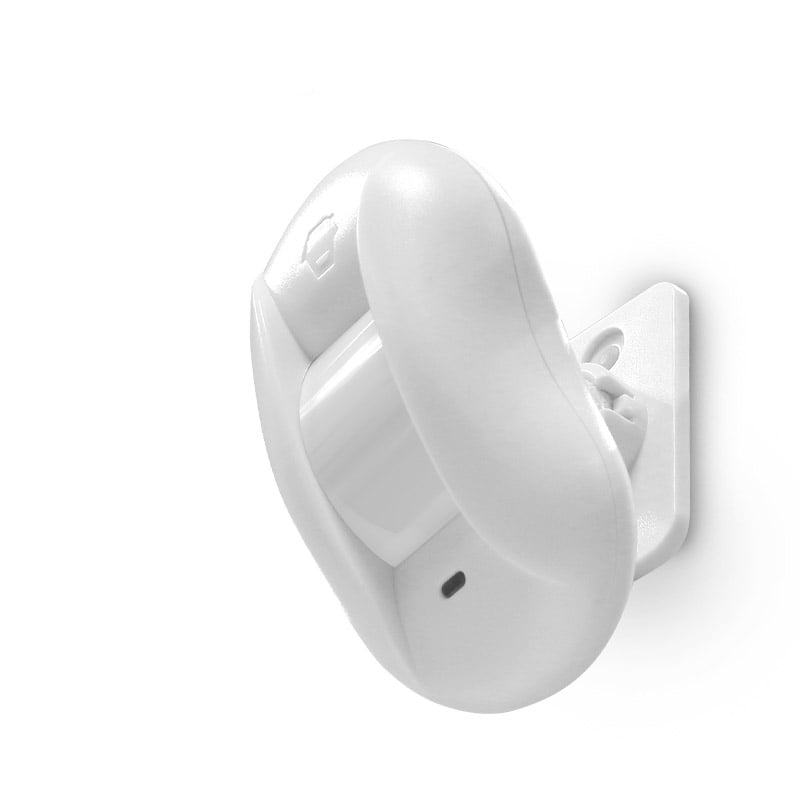

- IDATA AF-HDP 800 è a sophisticated passive infrared instrument (P.I.R. Passive Infrared Ray) capable of recognizing human movement and distinguishing it from interference caused by other heat sources, also called a curtain effect
- Technologies such as compensation of the intervention threshold with the temperature and anti-turbulence of the air ensure an adaptation to the environment in real time and substantially reduce the risks of false alarm
- Compatible with all 433,92 MHz systems
Features- Power supply: DC 3 V (Battery AA 1.5 V LR 6 x 2 pcs)
- Mode consumption expected: ≤ 50 µA
- Power consumption in mode à alarm: ≤ 9.5 mA
- Field of coverage: 5 m / 15 °
- Wall installation
- Transmission distance: ≤ 80 m (open area)
- Transmission frequency: 433,92 MHz (± 75 KHz)
- Panel Material: ABS Plastic
- Operating Conditions:
- Temperature: - 10 oC ~ 55 oC
- Humidità: ≤ 80 % (without condensation)
- Detector: 48 x 33 x 88 mm
- Support: 52 x 30 x 11,6 mm

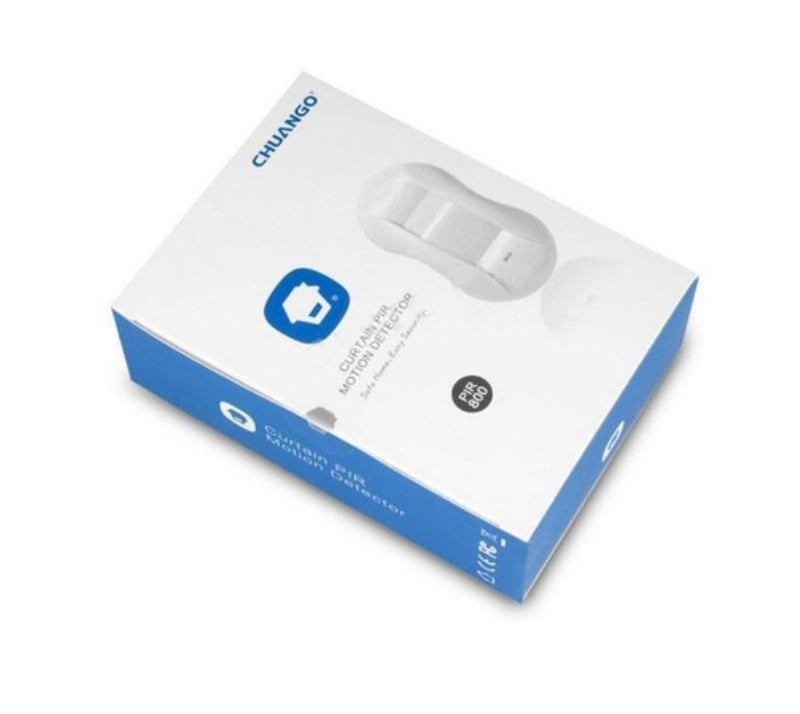

Package includes- PIR Tent Movement Sensor PIR- 800
- Battery AAA LR 03 x 2 pcs
