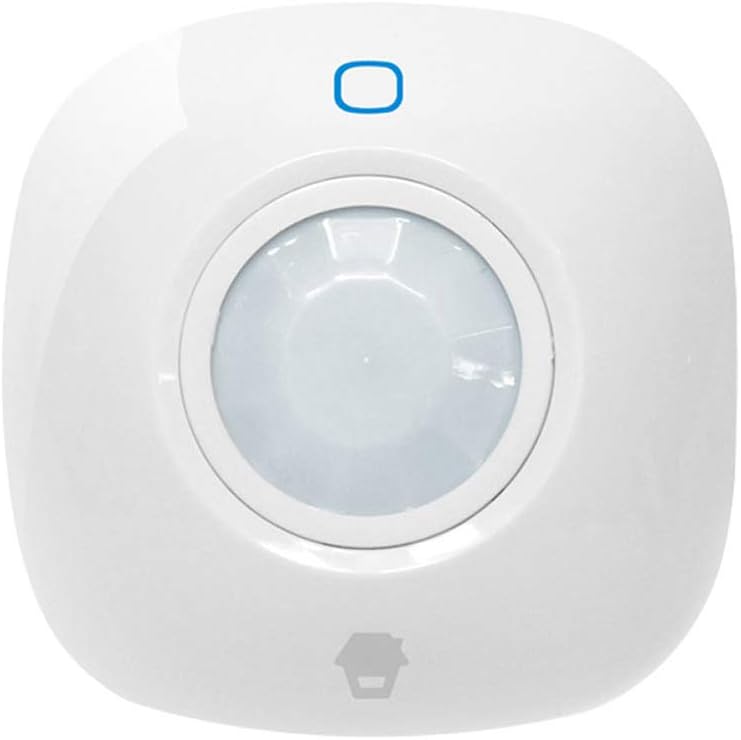

Ceiling Movement Sensor for 433 MHz Alarm Kit, PIR- 700 - Chuango IDATA AF-HDP 700 C

The IDATA AF-HDP 700 C è motion sensor is a sophisticated passive infrared instrument (P.I.R. Passive Infrared Ray) capable of recognizing human movement and distinguishing it from interference caused by other heat sources. Equipped with technologies such as compensation of the threshold of intervention with the temperature and anti-turbulence of the air, guarantee an environmental adaptation in real time and substantially reduce the risks of false alarm.

Compatible with all 433,92 MHz systems.



Features

• Ceiling motion sensor for alarm kit 433 Mhz

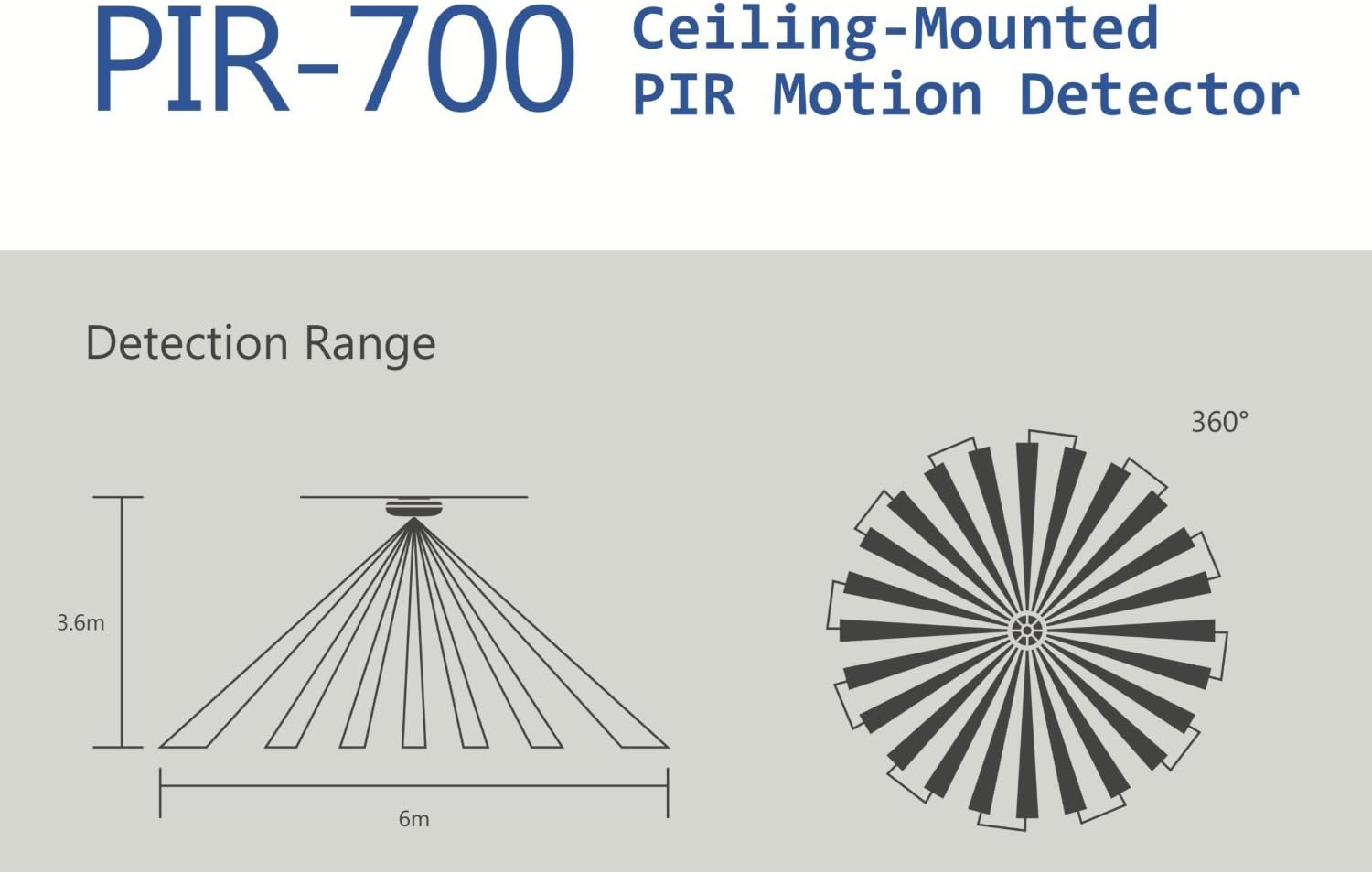

• Covering range: radius of 6 m / 360 ° at a height of 3,6 m

• Transmission distance: ≤ 80 m (open area)

• Ceiling installation

• Transmission frequency: 433 MHz (± 75 KHz)

• Panel Material: ABS Plastic

• Operating conditions: Temperature: - 10 oC ~ 55 oC / Humidità: ≤ 80 % (without condensation)

• Power supply: DC 3 V (Battery AA 1.5 V LR 6 x 2 pcs)

• Mode consumption expected: ≤ 50 µA

• Power consumption in mode à alarm: ≤ 9.5 mA


Dimensions

• Detector: 90 x 90 x 37 mm

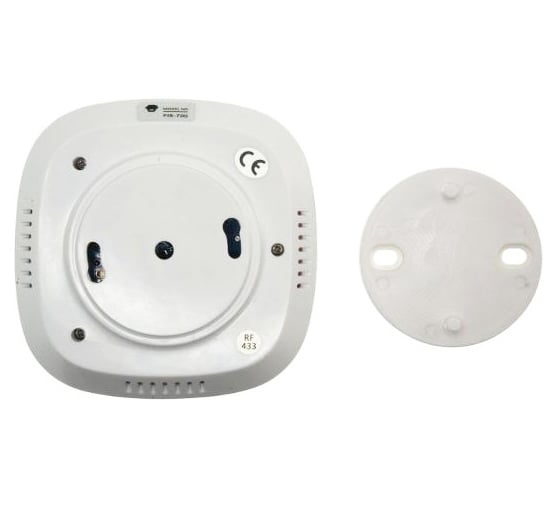

• Support: 56 x 56 x 8 mm


Package contents

• 1 x Movement Sensor IDATA AF-HDP 700 C with support

• 1x User manual

• 2 x Battery 1,5 V AA LR 6
