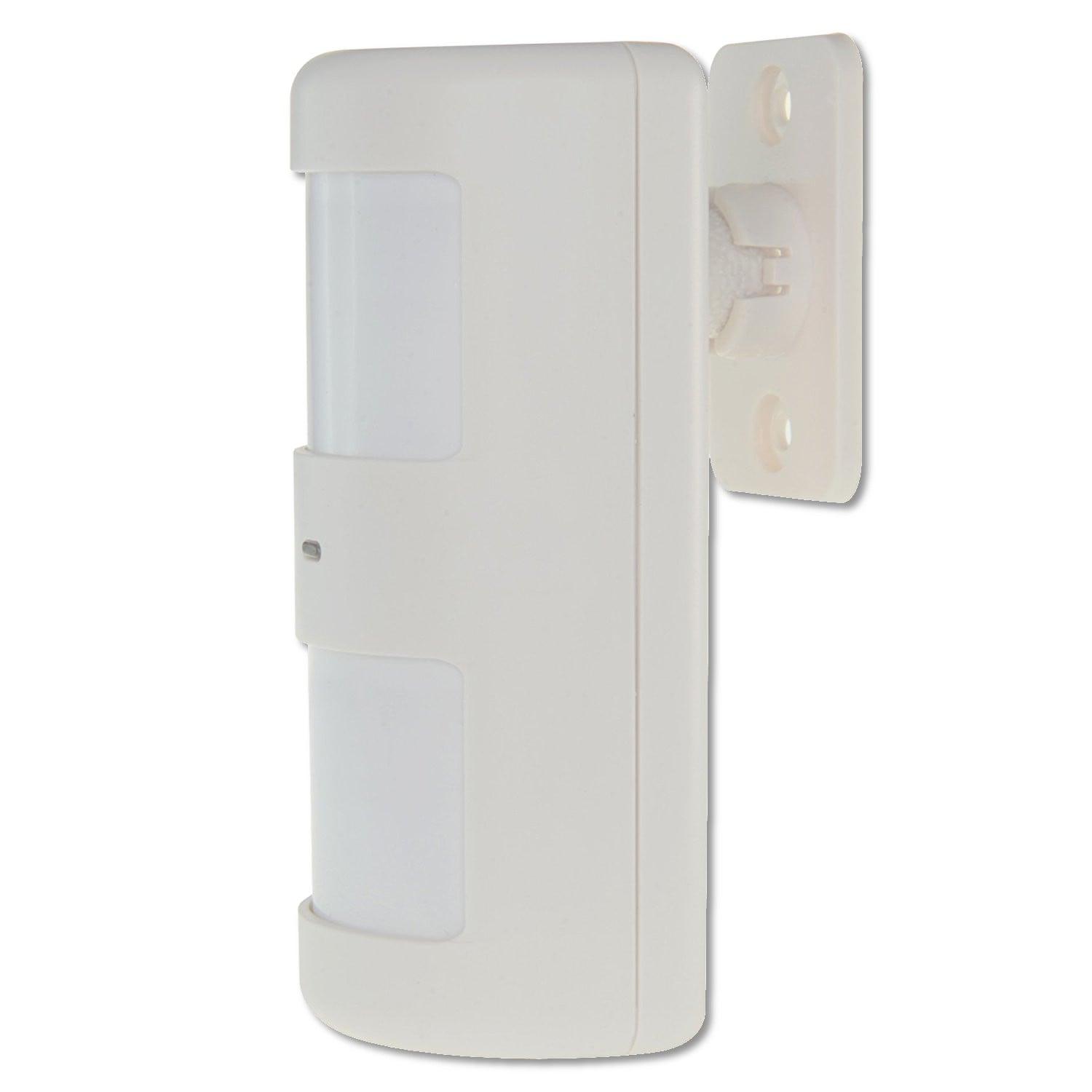

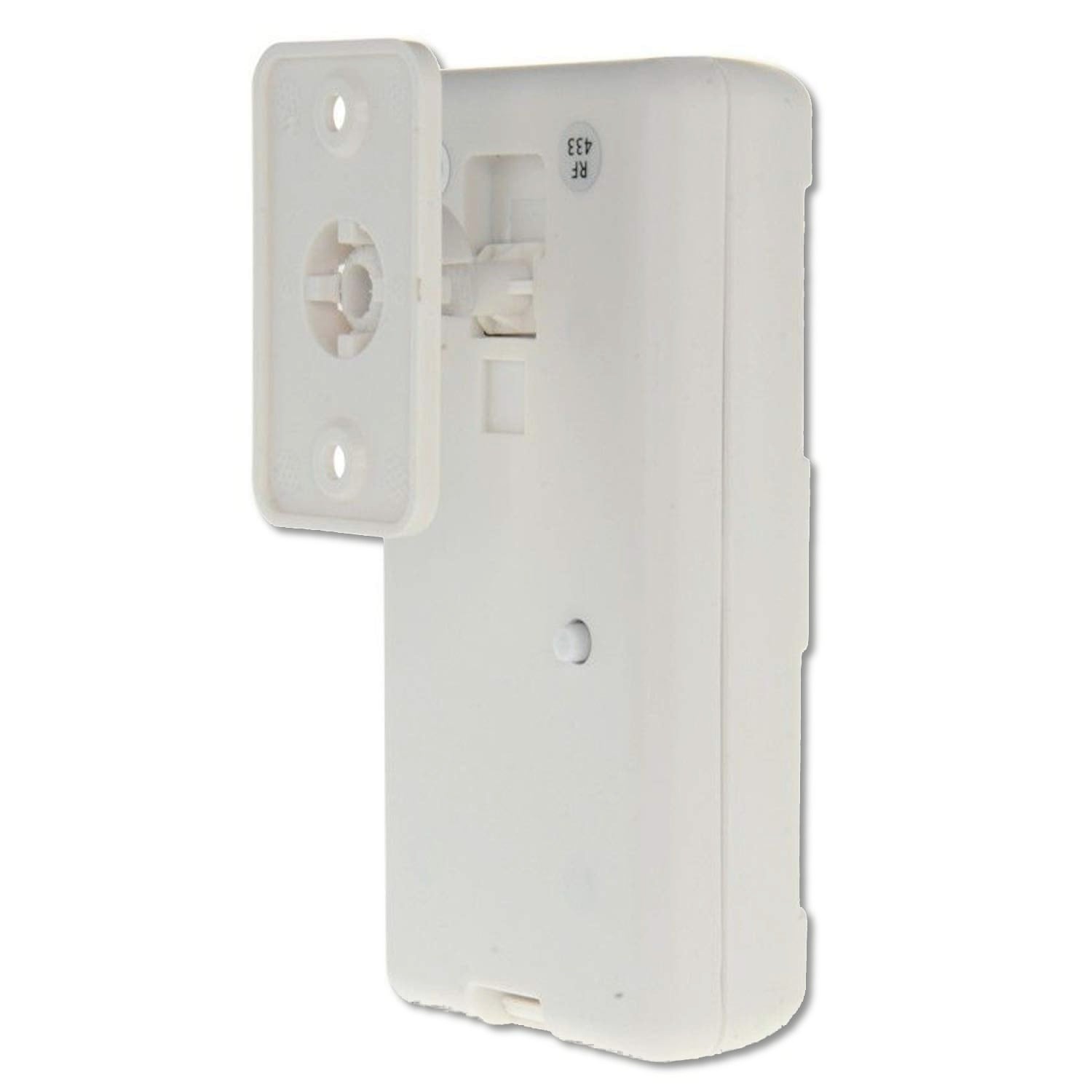

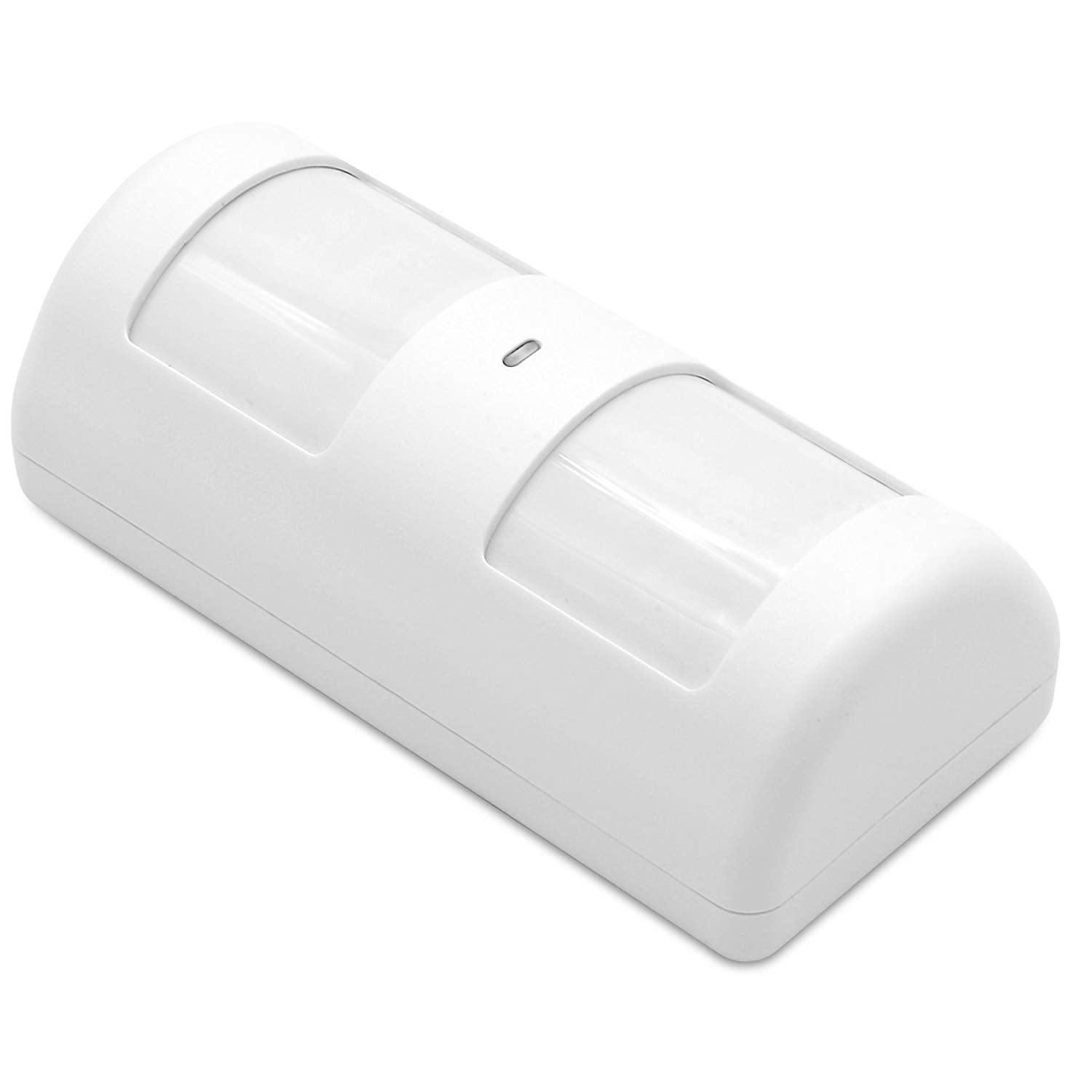

Infrared Immun Pet Movement Sensor Wireless, PIR- 910 - Chuango IDATA AF-HDP 910 C

Using proprietary infrared technology and sophisticated algorithm, the PIR-910 accurately detects the movements of the human body and effectively reduces interference and false alarms with automatic temperature compensation. Easy to install, adapts to any environment and è reliable, can also send down-to-earth warning when used with a GSM alarm system. The detector does not consider the presence of small pets up to 25 kg.



Characteristics:

• PIR Motion Sensor Bidirectional Immune Pet Model: PIR- 910


• Two-way communication with the control panel


• Power supply: DC 3 V (AA 1.5 V LR 6 x 2)


• Consumption in Modelità Expected: ≤ 90 μA


• Modelit/agrave consumption; Alarm: ≤ 9.5 mA

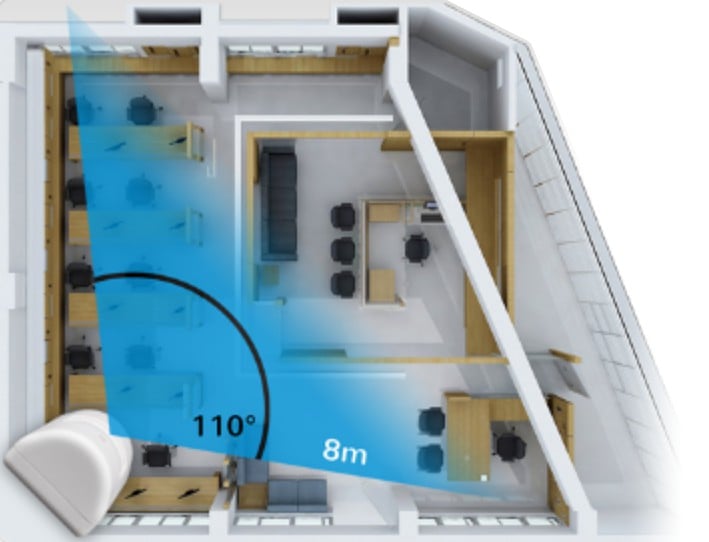

• Coverage field: 8 m / 110 o


• Transmission distance: ≤ 100 m (open area)


• Common to animals weighing ≤ 25 kgs


• Transmission frequency: 433 MHz (± 75 KHz)


• Panel Material: ABS Plastic


• Operating Conditions:



- Temperature: - 10 oC ~ 55 oC

- Humidità: ≤ 80 % (without condensation)

• Dimensions (L x A x P):



- Detector: 108 x 52 x 36.8 mm

- joint: 52 x 30 x 26.5 mm



Package contents

• PIR Movement Sensor Model: PIR- 910


• Batteries: 1,5 V AA x 2
