Industrial Hub USB 3.2 4 Doors - Manhattan IDATA USB 3 -SER- 4 MH

€93.16
Tax included €76.40 excl. VAT

SuperSpeed USB 3.2 Hub with 4 type A and 1 type B door. Transfer speed up to 5 Gbps. Robust metal housing, screw connections. Wall-mounted, DIN or counter rail. Power supply via AC, bus or terminal (power supply not included).



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Provides four SuperSpeed 3.2 USB ports for additional peripherals
  • Supports data transfer speeds à up to 5 Gbps
  • Robust metal housing and USB connections with screw closure offer greater safety in high traffic areas and industrial environments
  • Rubber feet included, removable wall supports and DIN guide holder provide multiple installation possibilities
  • Different power options, via AC, bus and terminal with overcurrent protection and ESD from 20 kV; does not support simultaneous use of terminal block and AC power supply
  • Supports specific 1.2 battery charging (BC 1.2)
  • Retrocompatible with all 2.0 and 1.1 USB devices
  • LED indicator for power supply and door activation
  • Plug and Play
  • Requires additional industrial power supply (not included)


Standards and certifications:

  • USB 3.2 (Già USB 3.0), 2.0 , 1.1 , 1.0
  • FCC
  • CE
  • RoHS
  • RAEE


Doors

  • Velocità transfer: 12 Mbps / 480 Mbps / 5 Gbps
  • Four USB 3.2 type A
  • A 3.2 type B USB

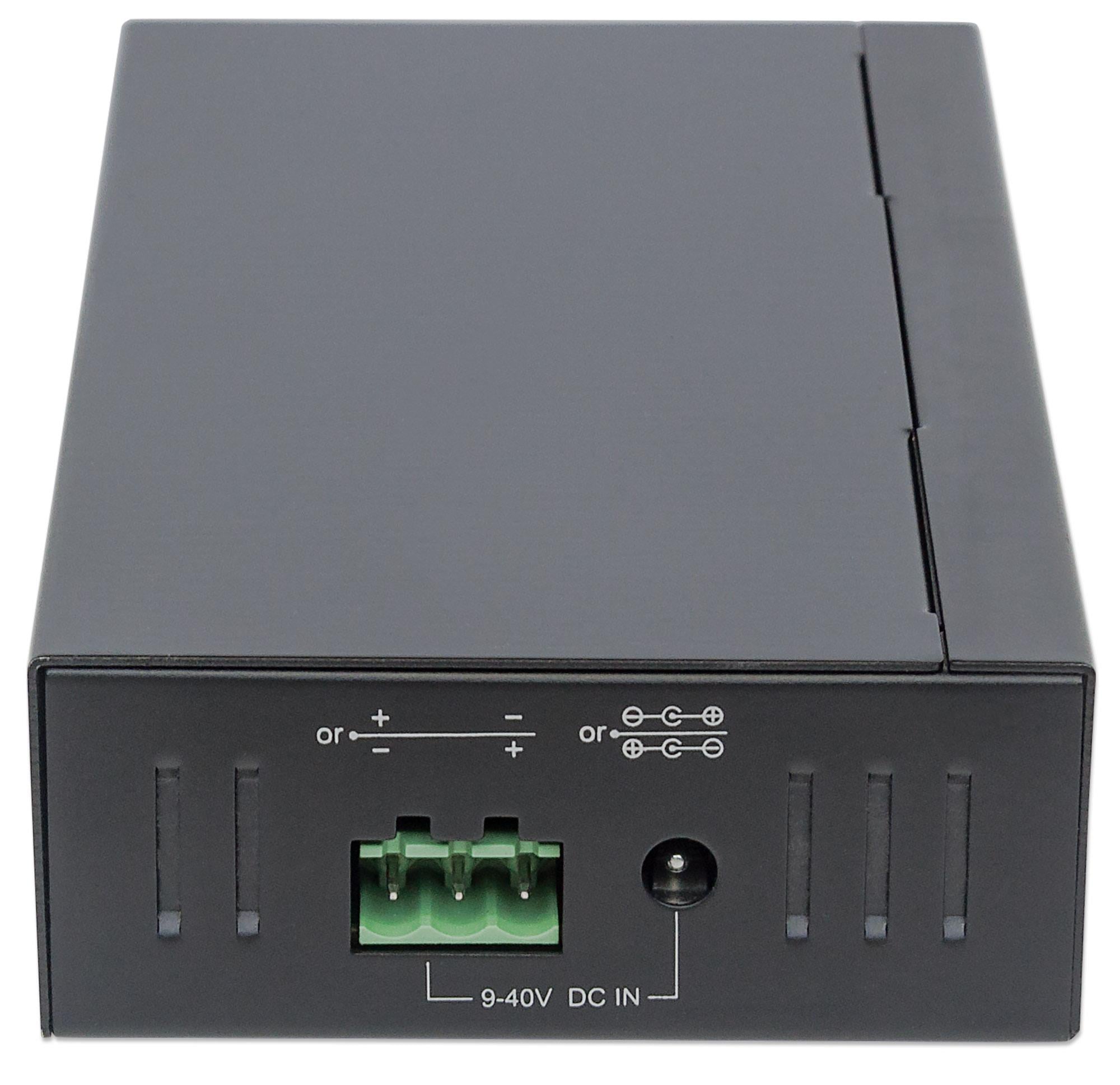

  • VDC port 9 - 40 polarità reverse
  • VDC port 9 - 40 polarità reverse, terminal block three pins


Physical information

  • Dimensions: 15.8 x 3.2 x 8 cm
  • Weight: 0.33 kg
  • Type A Type B USB 3.2 cable: 1 m, connector with screw
  • Housing: metal
  • Brackets for removable wall installation
  • Removable DIN bar installation bracket
  • LED power indicator: green


System requirements

  • Does not support simultaneous use of terminal block and DC power supply
  • PC or Mac system with USB
  • Windows XP / Vista / 7 / 8.1 / 10 or Mac OS 9 or higher
  • USB port available
  • Power supply from 18 W (recommended; è can also use a higher power supply)


Operational environment

  • Operating temperature: 0 - 40 °C
  • Storage temperature: - 20 - 60 °C
  • Humidità (without condensation): 0 – 96 %


Package contents

  • Industrial Hub USB 3.2 4 Doors
  • USB cable
  • A bracket for fixing on DIN bar
  • Two brackets for wall mounting
  • Terminal lock 3 pin
  • User manual

  • Brand
  • Reference
    IDATA USB3-SER-4MH
  • EAN13
    0766623161411
