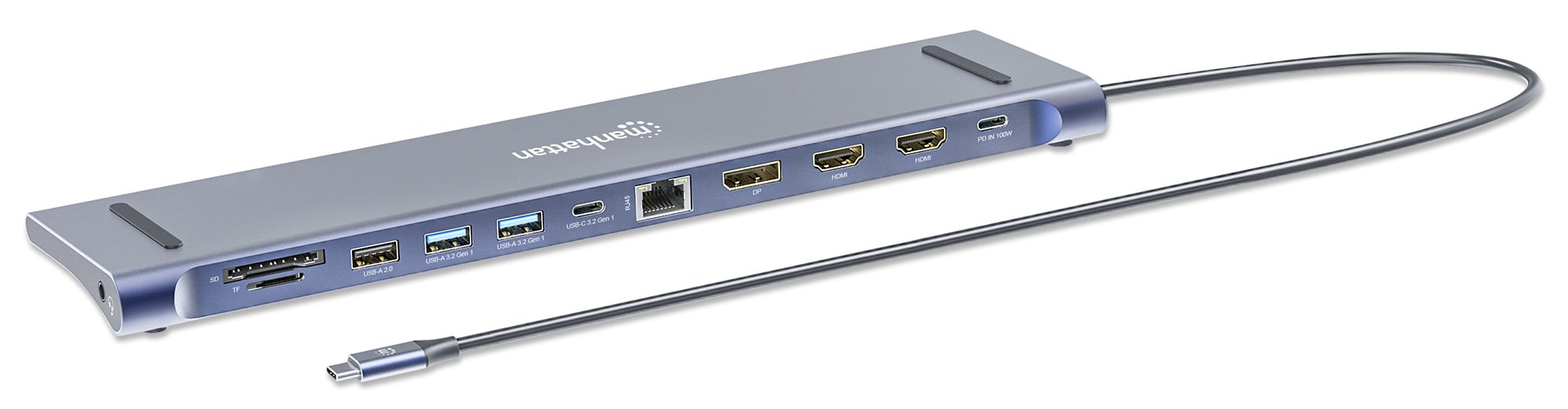

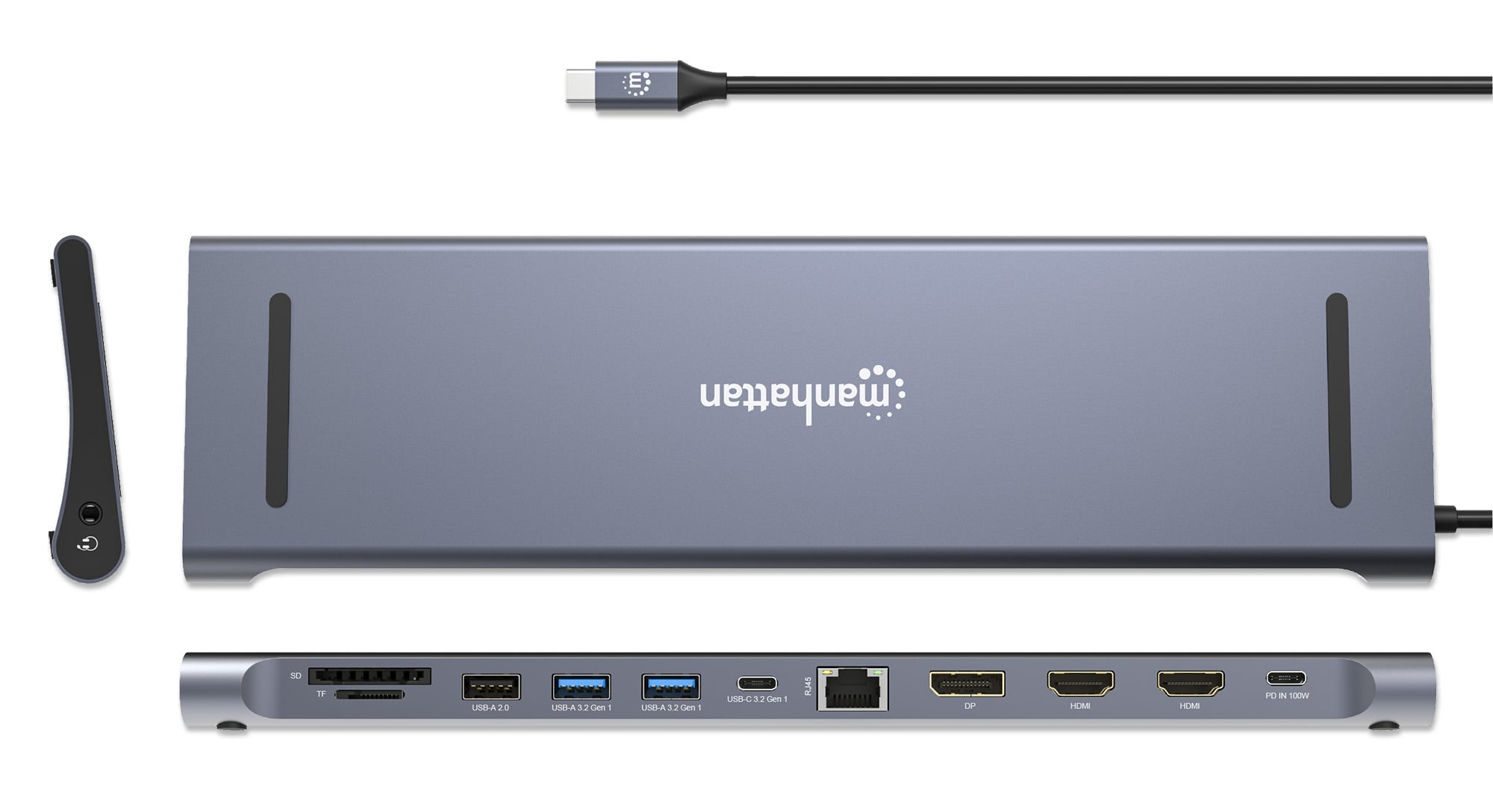

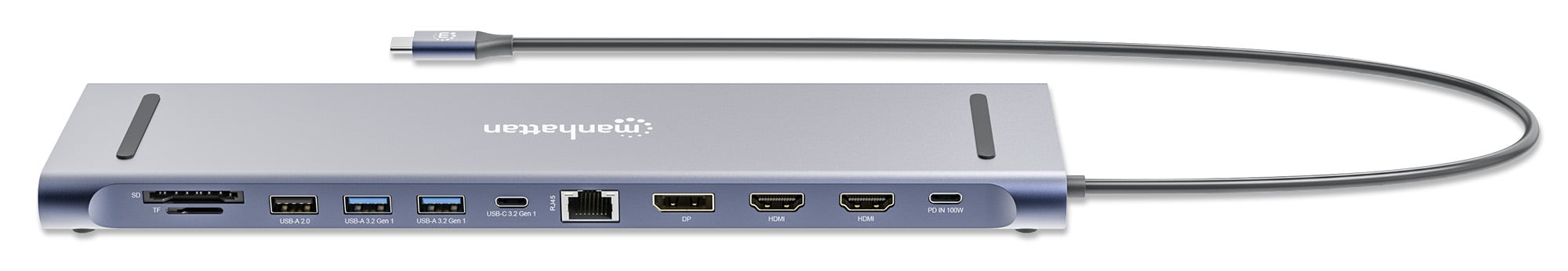

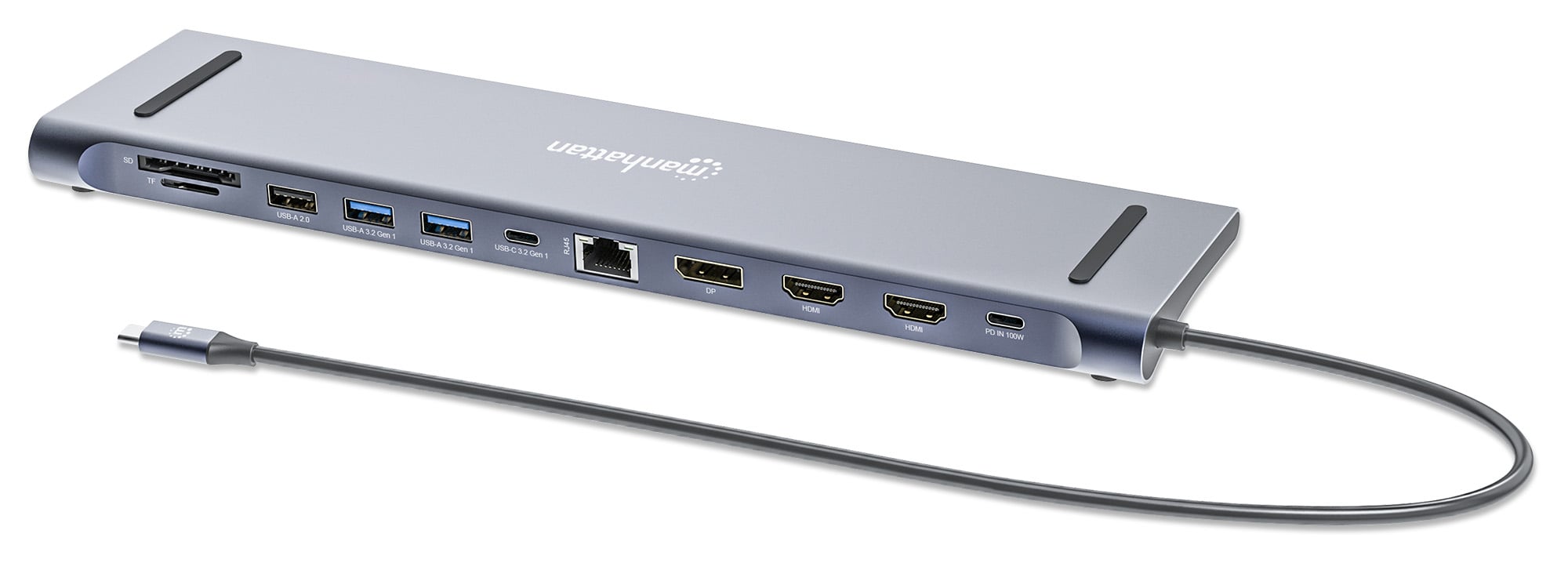

Name: USB-C Docking Station 12-in-1 4K Triple Monitor MST - Manhattan IADAP USB31-MULTI6
Brand: MANHATTAN
SKU: IADAP USB31-MULTI6
Price: 96.01 EUR
Availability: InStock

€96.01

Tax included

USB-C 12-in-1 docking station with triple video output (2x HDMI, 1x DP) up to 4K. Supports MST for mirror or extended mode on Windows and Mac. Includes Gigabit Ethernet, USB Power Delivery up to 100W, USB 3.2 Gen 1 ports and SD/microSD slot.

Return policy

Delivery policy

Direct contact for info

Secure Payment

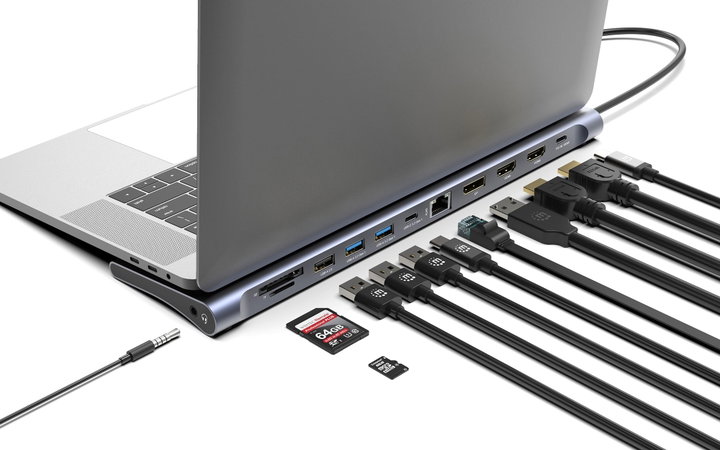

Connect your laptop to screens, network, and other peripherals while charging your devices
Resolution on single and dual video output up to 4K@60Hz or on triple output up to 4K@30Hz
Two HDMI ports with resolution up to 4K@60Hz UHD (3840 x 2160)
One DisplayPort (DP) port with resolution up to 4K@60 UHD (3840 x 2160)

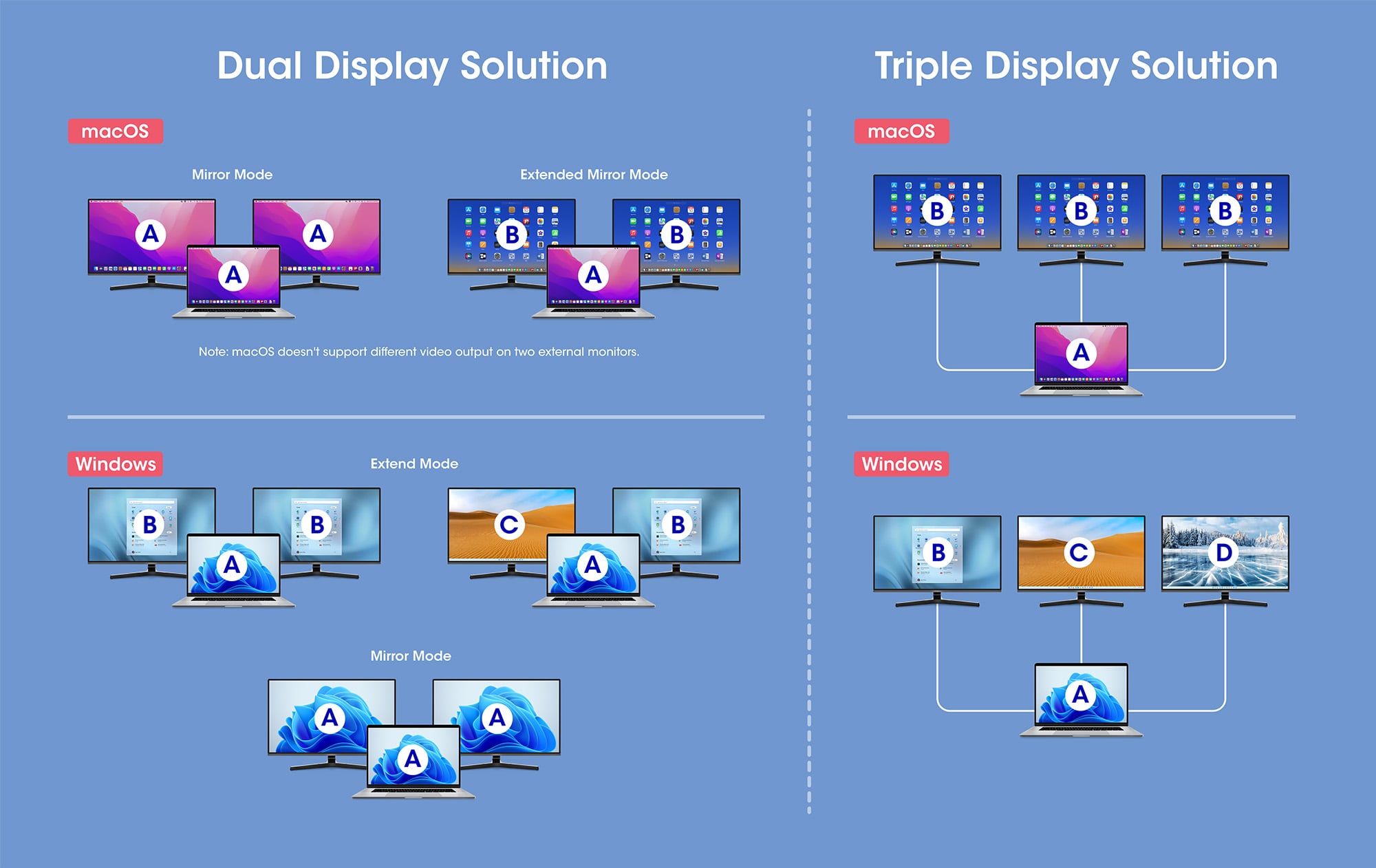

Uses Multi-Stream Transport (MST) for display modes on Windows® (Mirror or Fully Extended) and Mac® (Mirror or Extended Mirror only)
One Gigabit Ethernet port (10/100/1000) for faster downloads, multimedia streaming and gaming

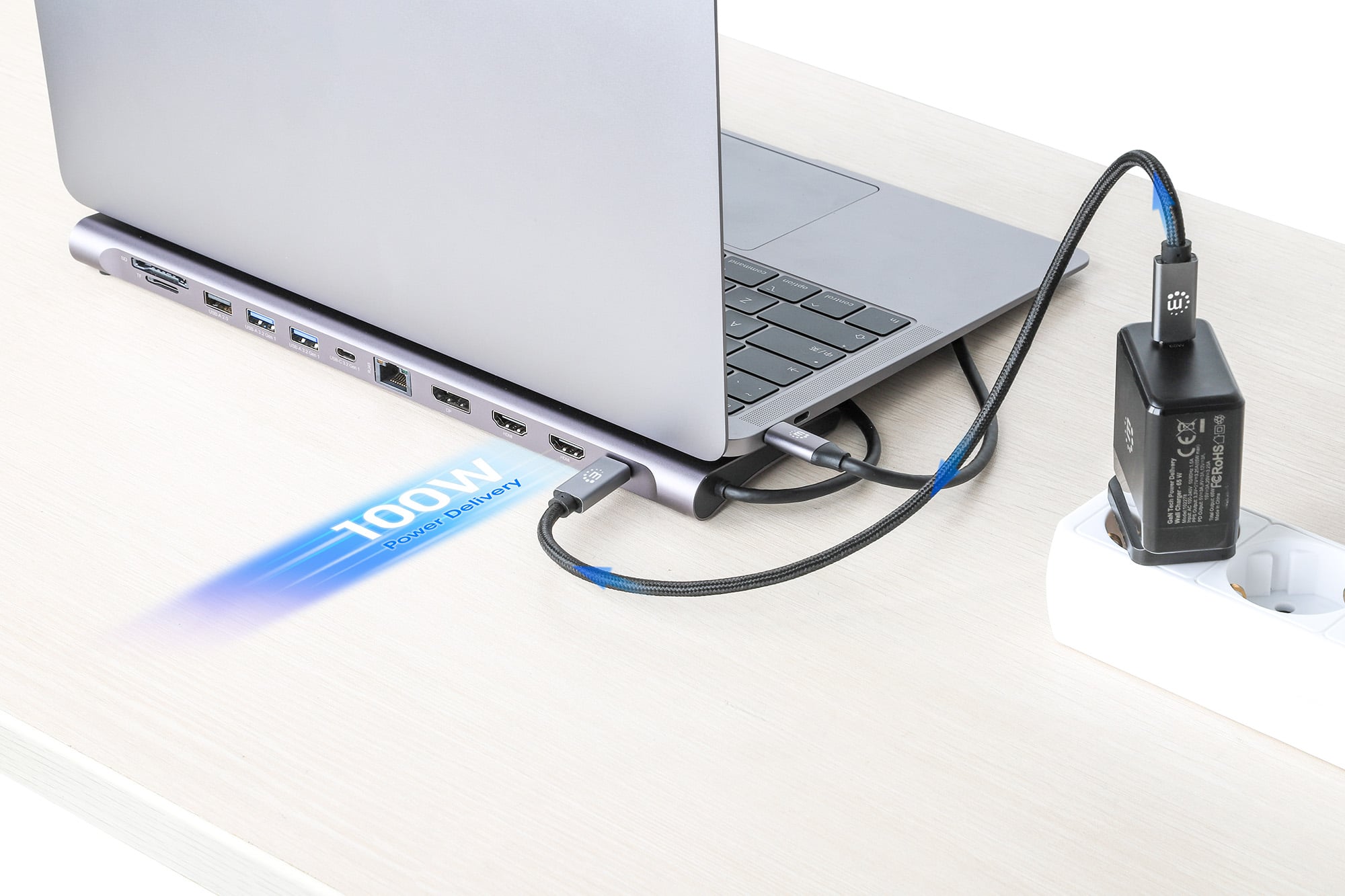

Charge your laptop via USB Power Delivery (PD) up to 100W; requires an external PD charger - available in the Manhattan line
Two USB 3.2 Gen 1 (formerly USB 3.0) Type-A ports with SuperSpeed transfer speeds up to 5 Gbps and charging up to 4.5 W (5 V / 0.9 A)
One USB 2.0 Type A port with transfer speed up to 480 Mbps and charging up to 2.5 W (5 V / 0.5 A)
USB-A ports for connecting mice, keyboards, USB flash drives, etc. or for charging and syncing mobile devices
One USB 3.2 Gen 1 Type-C data-only port with transfer speeds up to 5 Gbps, ideal for syncing mobile devices
SD and microSD card slots with read and write function; the slots support cards up to 2 TB and transfer speeds up to 480 Mbps
3.5 mm jack for di alta qualità stereo audio; supports both microphone (audio input) and headphones (audio output)
Compatible with all USB-C™ desktops, notebooks, and tablets that support DP-Alt-Mode including Apple® MacBook®, Chromebook™, Pixel™, and many others
Compatible with DisplayPort 1.4 Alternate Mode (DP Alt Mode)
Allows your smartphone to function as a desktop PC while charging (desktop setup requires devices with Android 9 or later that offer video output on USB-C™)
Plug and Play installation; compatible with Windows®, macOS®, Chrome OS™ and Android™

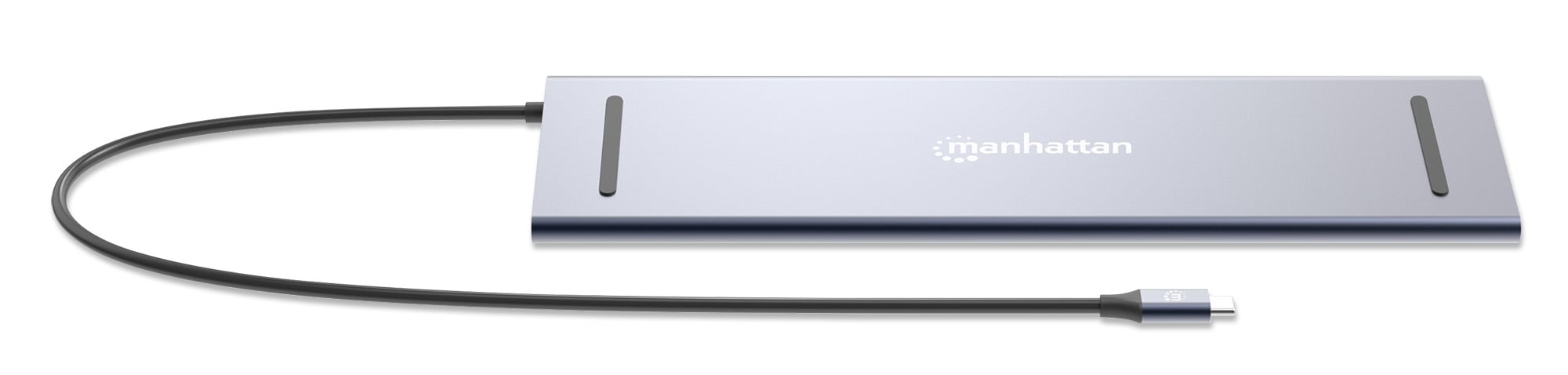

It can be placed under the laptop, requiring no extra desk space
Extra-long integrated cable of 0,5 m with aluminum connector cover for convenient positioning when connected to any laptop port

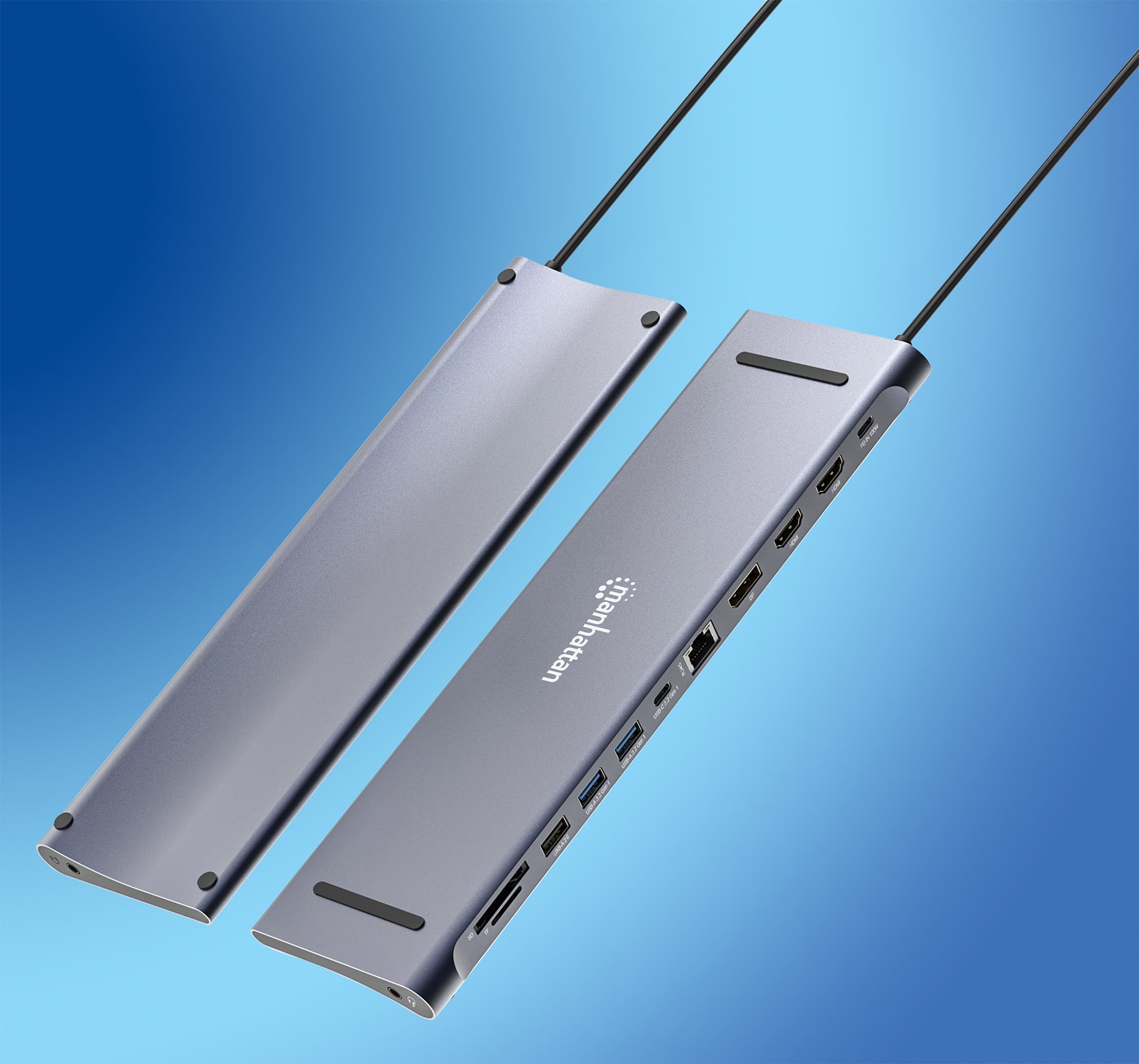

Robust and elegant aluminum housing, great for both desktop and on-the-go
Rubber feet to prevent slipping and protect the desk from scratches
Compatible with USB4® and Thunderbolt™ 3 / 4 interfaces
Fully HDCP 2.3 compliant, backward compatible

Standards and certifications

DP 1.4 Alt Mode on USB-C™
USB 3.2 Gen 1
HDMI 2.0
HDCP 2.3
CE
FCC
RoHS
REACH
UKCA

General information:

Video:

- Available resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz, 4K@60Hz

- If one or two video ports are used simultaneously, the maximum resolution is 4K (3840 x 2160 pixels) at 60 Hz

- If three video ports are used simultaneously, the maximum resolution is 4K (3840 x 2160 pixels) at 30 Hz

USB-A port transfer speed: 5 Gbps
Bus-powered operation (except for charging functions)
Charging on standard USB-A ports USB 3.2 Gen 1: 4.5 W (5.0 V at 0.9 A) max
Charging on standard USB-A port USB 2.0: 2.5 W (5.0 V at 0.5 A) max
USB-C™ PD charging port: 100.0 W (20.0 V at 5.0 A) max

- Voltage/current setting (maximum):

- 5.0 V / 5.0 A

- 9.0 V / 5.0 A

- 12.0 V / 5.0 A

- 15.0 V / 5.0 A

- 19.0 V / 5.0 A

- 20.0 V / 5.0 A
