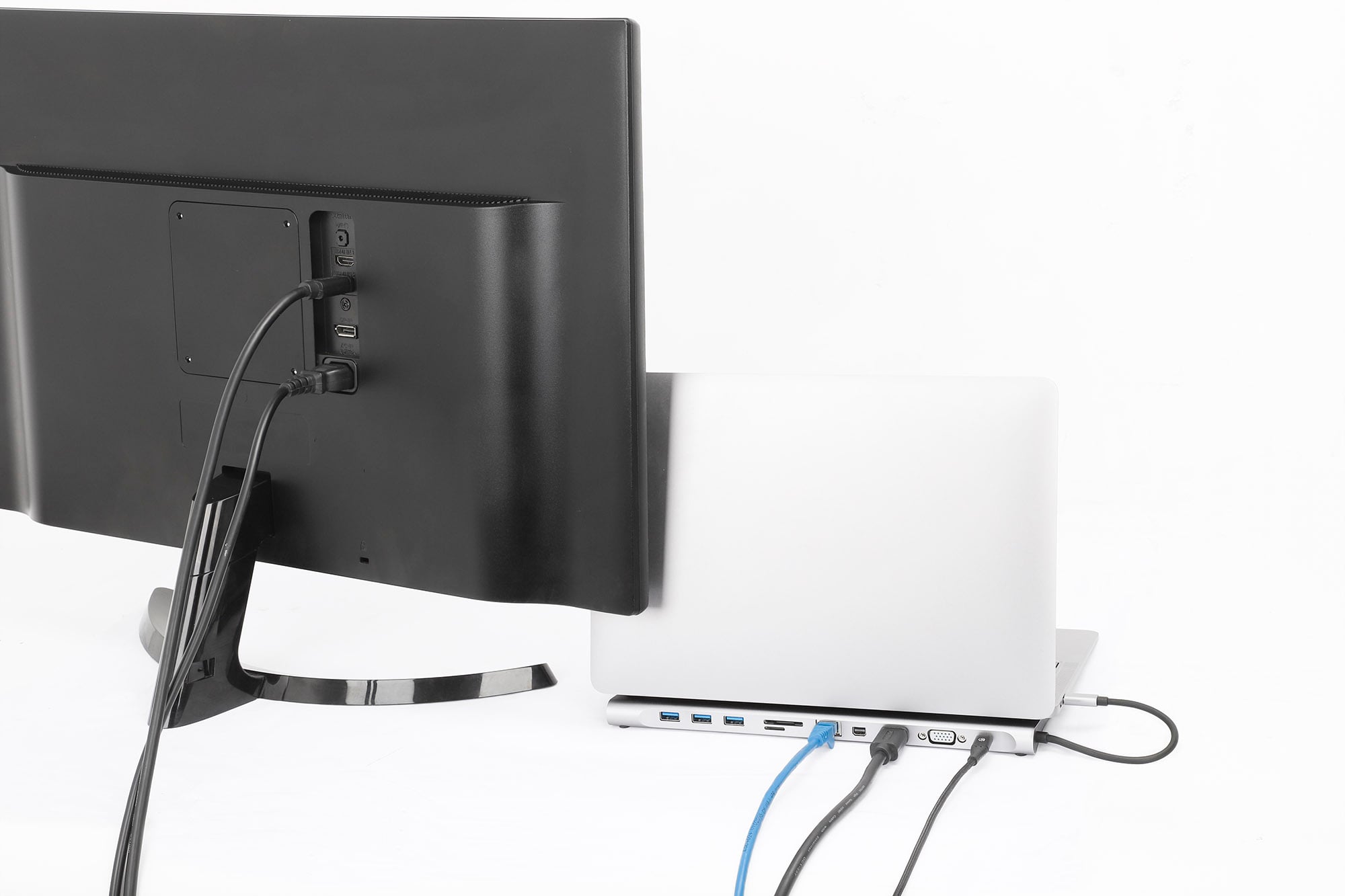

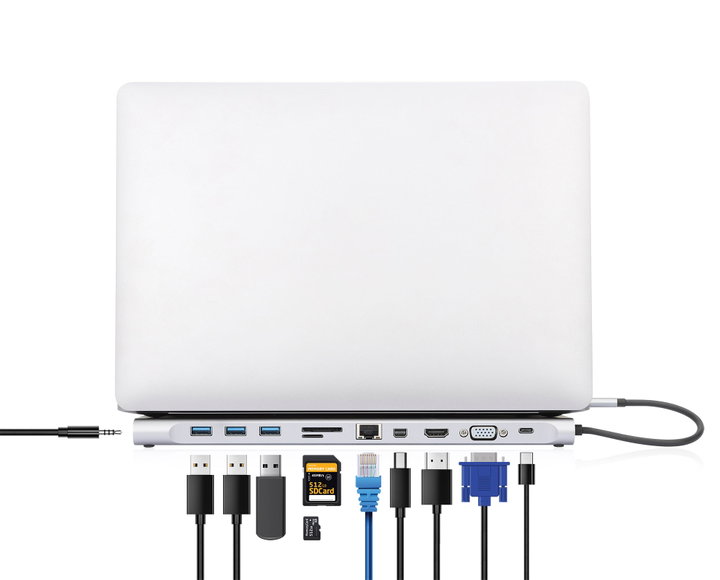

- Create a multi-screen setup, charge your devices and connect all your peripherals
- Dual video output with resolution up to 4K@30Hz, or triple video output with resolution up to 1080p@60Hz
- Up to 4K@30Hz UHD (3840 x 2160) resolution on the HDMI connection
- Up to 4K@30Hz UHD (3840 x 2160) resolution on the Mini DisplayPort connection
- Up to 1080p@60Hz Full HD (1920 x 1080) resolution on the VGA connection
- Uses Multi-Stream Transport (MST) for display modes on Windows® (Mirror or Fully Extended) and Mac® (Mirror only)
- One Gigabit Ethernet port (10/100/1000) for faster downloads, multimedia streaming and gaming
- Three USB 3.2 Gen 1 Type A ports with SuperSpeed data transfer up to 5 Gbps and charging up to 7.5 W (5 V / 1.5 A)
- USB-A ports for connecting mice, keyboards, USB drives, etc. or for charging and syncing mobile devices
- SD and micro SD card slots with read and write function; the slots support cards up to 2 TB and transfer speeds up to 832 Mbps

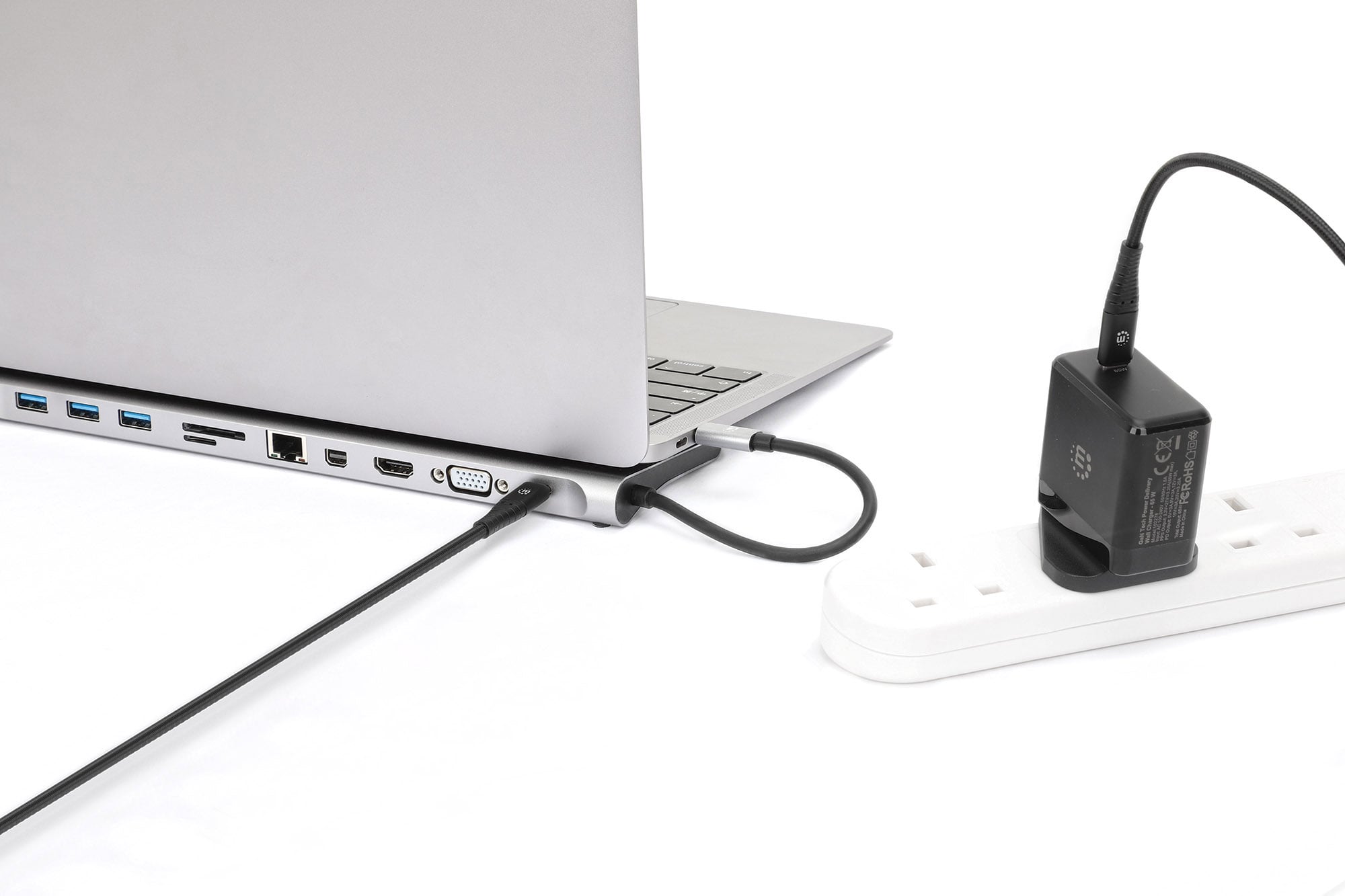

- Supports USB Power Delivery (PD) function up to 100 W; requires an external PD charger - available among Manhattan products
- 3.5 mm jack for di alta qualità stereo audio; supports both microphone (audio input) and headphones (audio output)
- Compatible with all USB-C™ desktops, notebooks, and tablets that support DP-Alt-Mode including Apple® MacBook®, Chromebook™, Pixel™, and many others
- Compatible with DisplayPort 1.2 alternate mode (DP Alt Mode)
- Allows your smartphone to function as a desktop PC while charging (desktop setup requires devices with Android 9 or later that offer video output on USB-C™)

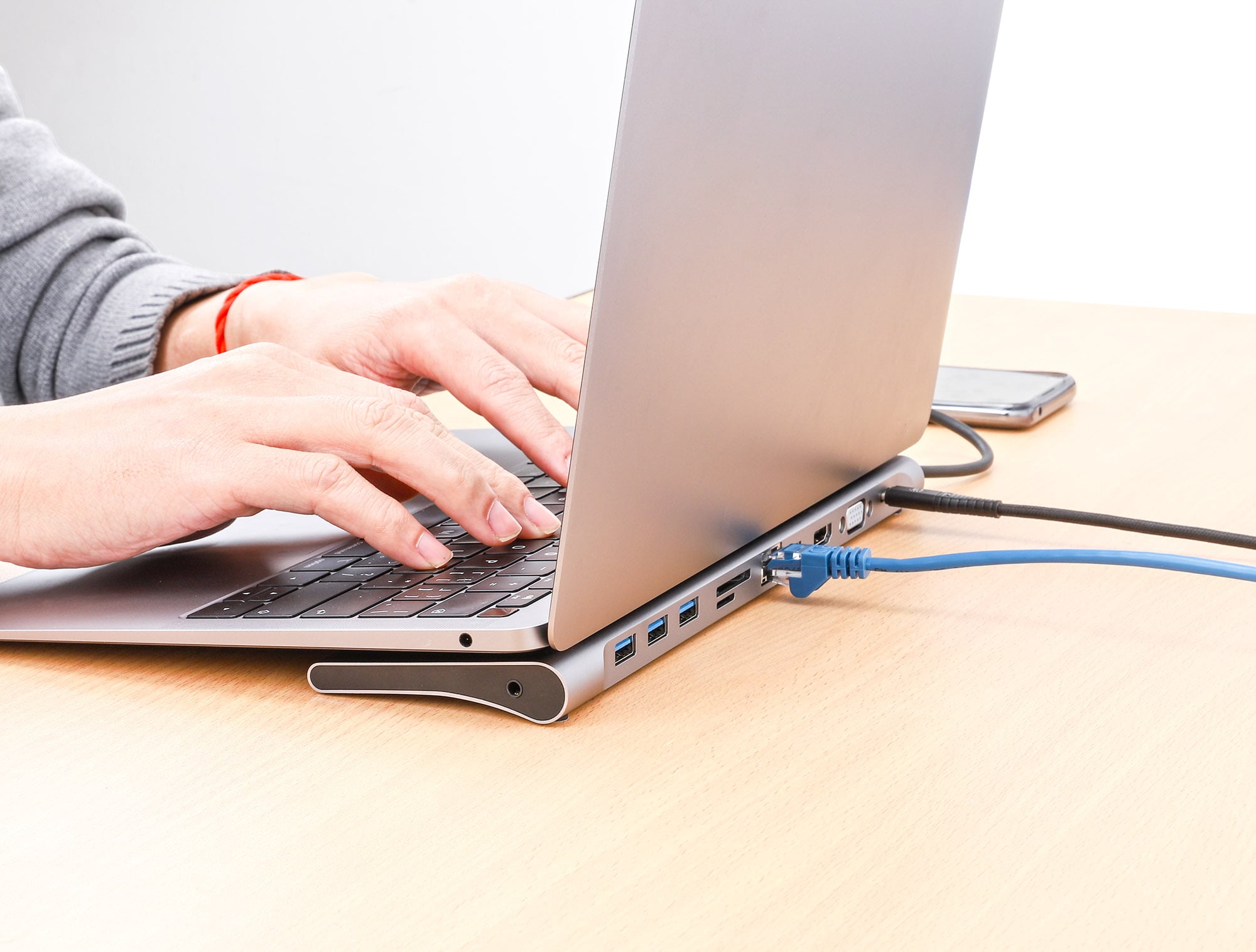

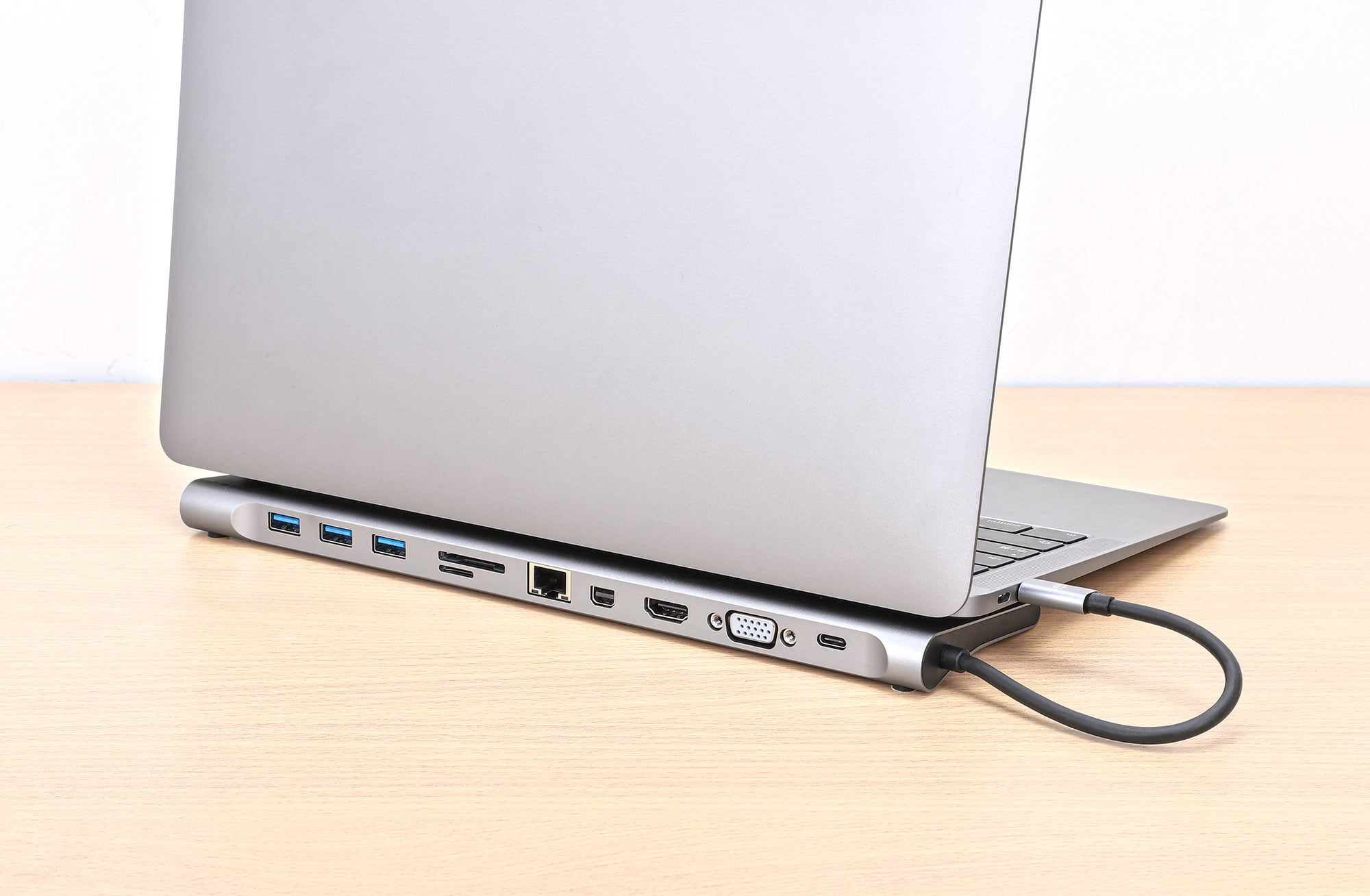

- Can be placed under the laptop, does not require extra desk space
- With robust integrated cable of 18 cm with aluminum-clad connector, perfect for notebooks with USB-C™ port on the left side

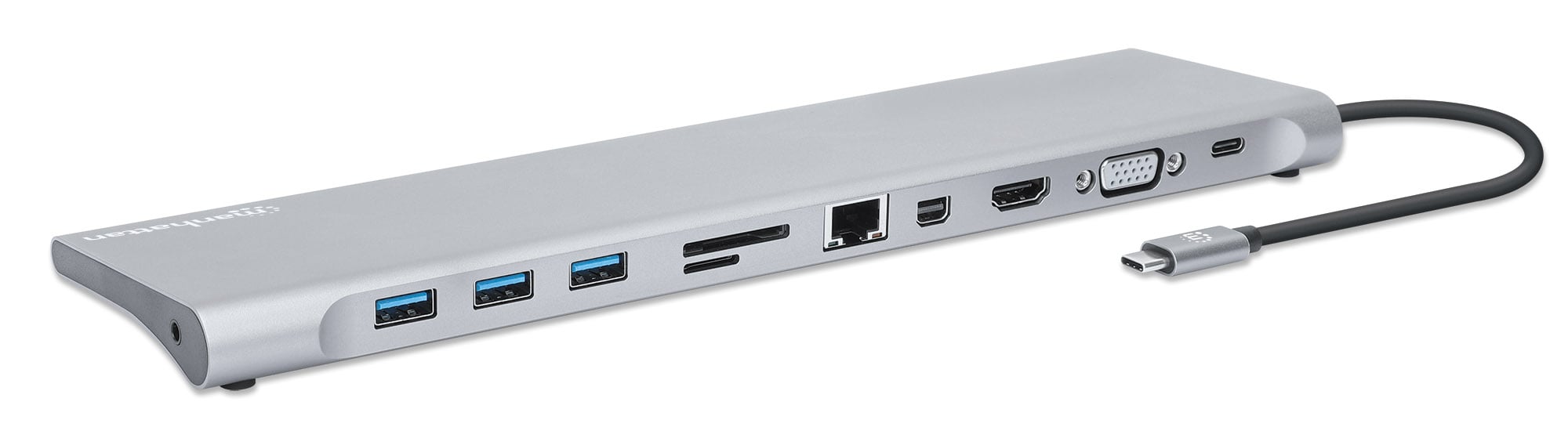

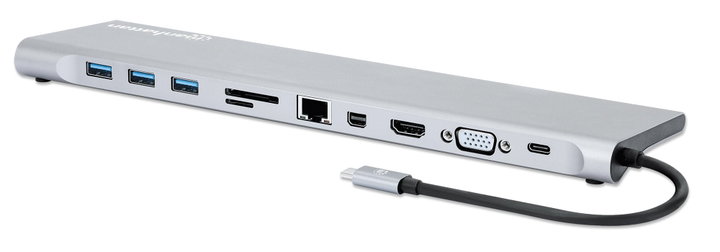

- Robust and elegant aluminum housing, great for both desk and travel
- Rubber feet to prevent slipping and protect the desk from scratches
- Plug-and-play installation; compatible with Windows®, Mac®, Linux®, and Chrome OS™
Standards and Certifications- DP 1.2 Alt mode over USB-C™
- USB 3.2 Gen 1
- HDMI 1.4
- HDCP 1.4
- CE
- FCC
- RoHS
- UKCA
General information:- Maximum video resolution:
- HDMI: 4K@30Hz
- Mini DisplayPort: 4K@30Hz
- VGA: 1080p@60Hz
- If two video ports are used simultaneously, the maximum resolution is 4K@30Hz
- If all three video ports are used simultaneously, the resolution is 1080p@60Hz
- Transfer speed for USB-A ports: 5 Gbps
- Supported memory cards: micro SD, SD, SDHC and SDXC up to 2TB
- Bus-powered operation (except charging functions)
- USB-C™ PD charging port: maximum 100.0 W (20.0 V at 5.0 A)
- USB-A charging: maximum 7.5 W (5 V at 1.5 A)
- Supported audio output: 48 kHz, 16-bit stereo

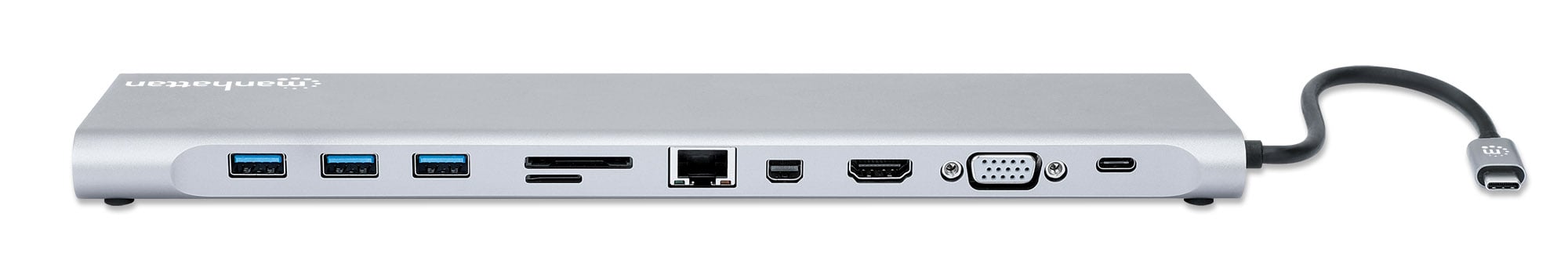

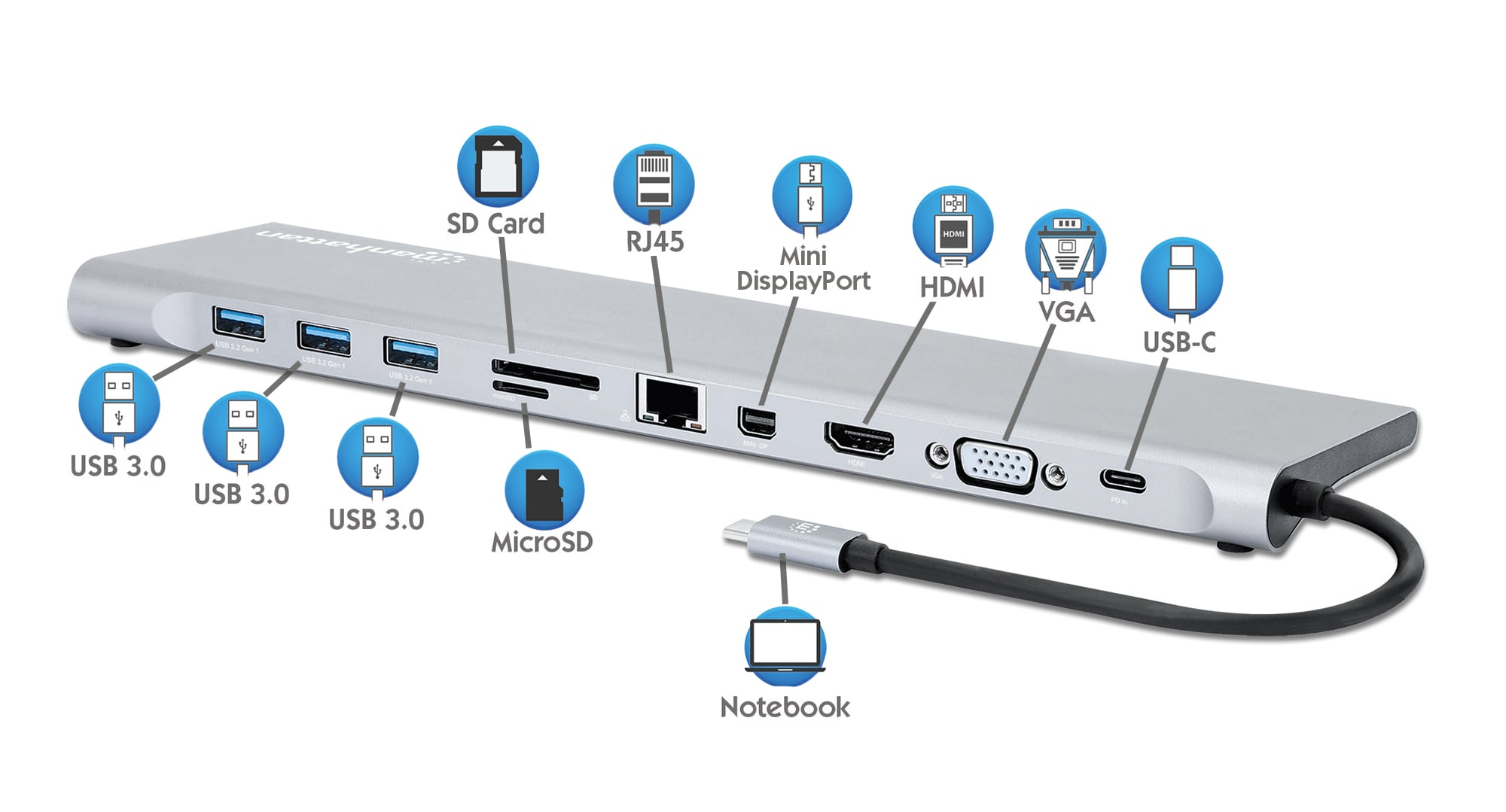

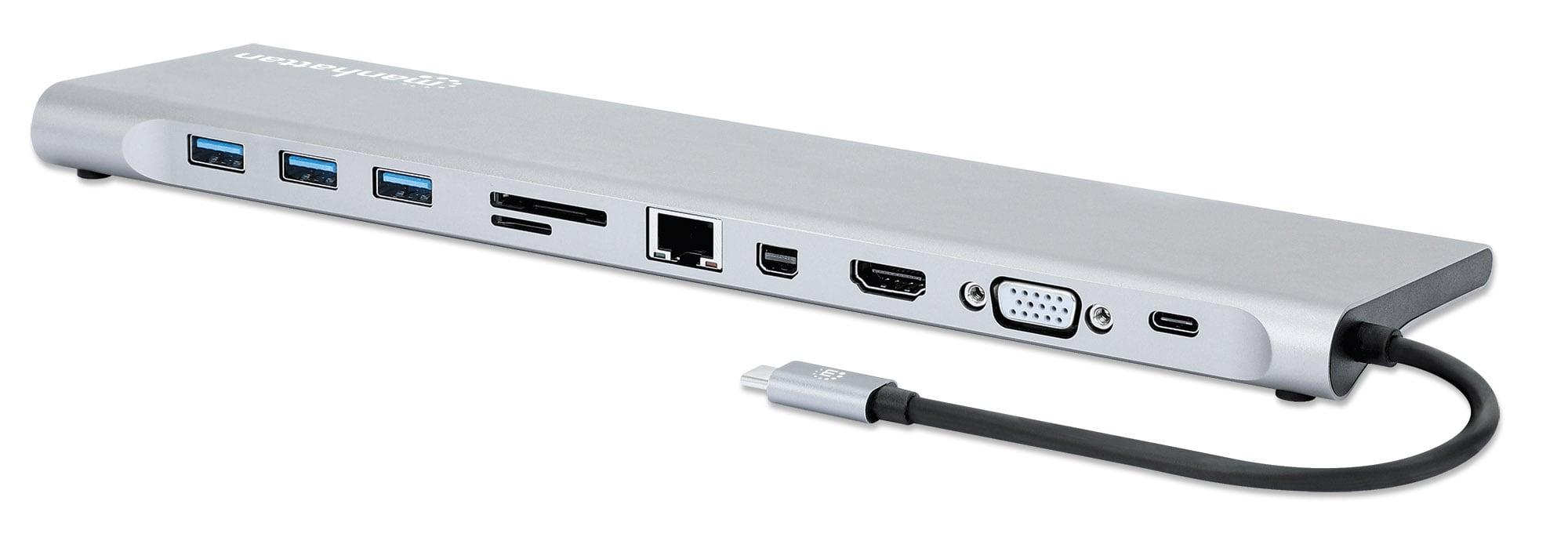

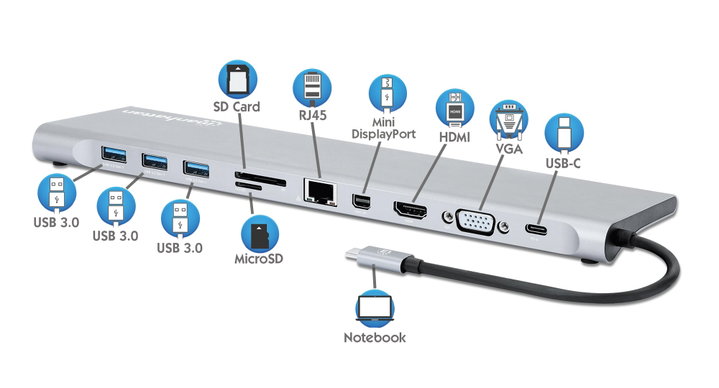

Connections- A USB-C™ 24-pin, male
- One HDMI 19-pin, female
- One Mini DisplayPort 20-pin, female
- One VGA 15-pin, female
- One RJ45 10/100/1000 Mbps, female
- Three USB-A 4-pin, female
- One SD memory card slot
- One micro SD memory slot
- One USB-C™ 24-pin, Power Delivery, female
- One 3.5 mm stereo audio jack, female
Physical characteristics- Aluminum structure
- Dimensions (D x W x H): 80 x 280 x 17 mm
- Net weight: 245 g
- Gross weight: 355 g
- Cable length: 18 cm
- Cable diameter: 34 AWG
Environmental information- Operating temperature: from 0° to 45°C
- Storage temperature: from -10 to 70°C
- Humidity (non-condensing): 5 - 90% RH
Required systems:- Windows
- Linux
- Chrome OS
- macOS
Package contents- Docking Station USB-C™ 11-in-1 triple monitor with MST
- Instruction manual
