UPS 3000 VA 2400 W Line Interactive sinusoidal wave - Techly Professional IUPS- 3000 -S 30

€571.24
Tax included €468.20 excl. VAT

UPS Line Interactive 3000 VA/ 2400 W with AVR, pure sinusoidal waveform. Equipped with 3 batteries 9 Ah, switching time ≤ 8 ms. Ideal for computer equipment and security systems.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Group of continuousà compact, economical, silent, excellent alternative for applications that do not require the transition to ONLINE technology.

Ideal for powering all computer equipment, è also suitable for protecting equipment, LED lamps, electric gates, telephones, security systems and video surveillance.

Also suitable for domestic users and pellet stoves.



Features

  • Rated power 3000 VA Line Interactive with AVR

  • Power factor 0.8

  • 100 output waveform % sinusoidal

  • Equipped with 3 batteries 9 Ah, guarantee an autonomy of about 5



Specifications

  • Rated input voltage: 175 - 290 Vac (network operation), 0 - 300 Vac (by pass operation)

  • Frequency: 50 / 60 Hz self-detecting

  • Rated output voltage: 199 - 254 Vac (network operation), 0 - 300 Vac (by pass operation), 230 Vac (battery operation)

  • Waveform: pure sinusoidal

  • Switching time: ≤ 8 ms

  • Digital control DSP

  • AVR voltage stabilizer

  • Wide Range Input function - wide tolerance on input voltage without battery intervention

  • Automatic frequency detection and frequency selection output (50 - 60 Hz)

  • Possible operation with generator power

  • Auto Switching function - automatic ignition in the presence of electric current (sectable)

  • Auto Restart function - automatic reset to network return (sectable)

  • Cold Start function - battery ignition possible

  • Current battery charging setup and end-of-load voltage possible

  • Set voltage end discharge batteries (power reserve)

  • Battery charging also from off UPS

  • Energy saving function possible à setup mode à battery with load < 3% (settabile)

  • Load shut down function, possibility of setting in mode; battery with load < 3% (settabile)

  • Automatic silent and manual acoustic alarm

  • Protections:


- short circuit

- overloaded

- under voltage / overload batteries

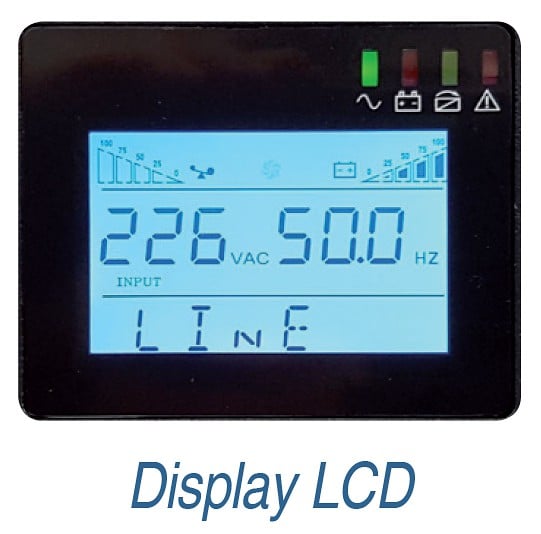

  • LED and LCD front panel (input voltage/frequency, voltage/percentage battery level, voltage/frequency output, W/VA load measurements, temperature)

  • Telephone network protection via RJ 45 connector

  • USB port and slots for SNMP or AS 400 cards (optional)

  • Small weight and size

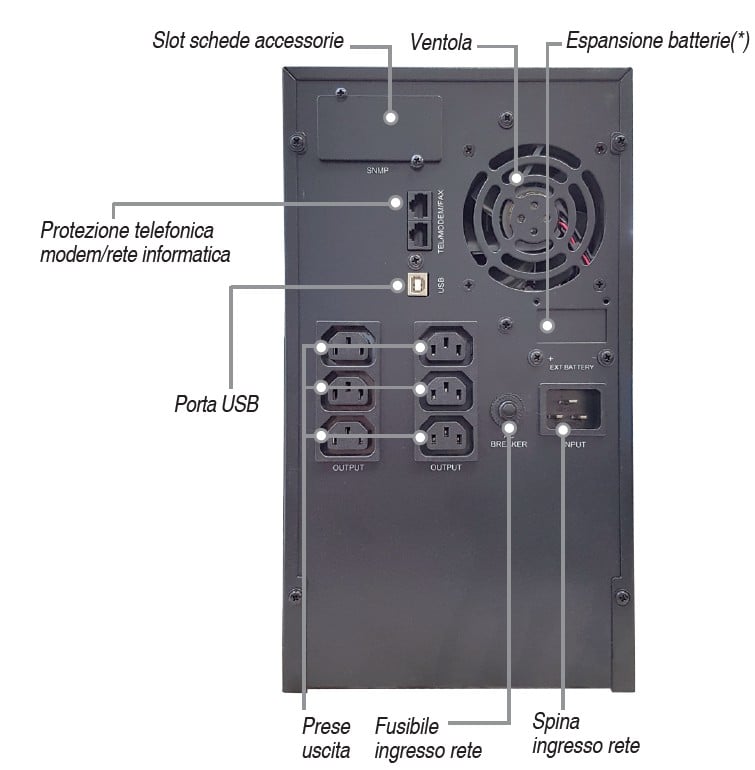

Connections

  • Input plug: 1 x IEC 320 C 20

  • Output socket: 6 x IEC 320 C 13



Dimensions

  • Width: 190 mm

  • Depthà: 470 mm

  • Height: 335 mm



Package size:

  • 1 Continuity Group; Tower 3000 VA

  • 1 input cable 10 A

  • 1 output cable 10 A

  • 1 USB cable

  • 1 Software CD

  • Brand
  • Reference
    IUPS-3000-S30
  • In stock
    9 Items
  • EAN13
    8051128105223
