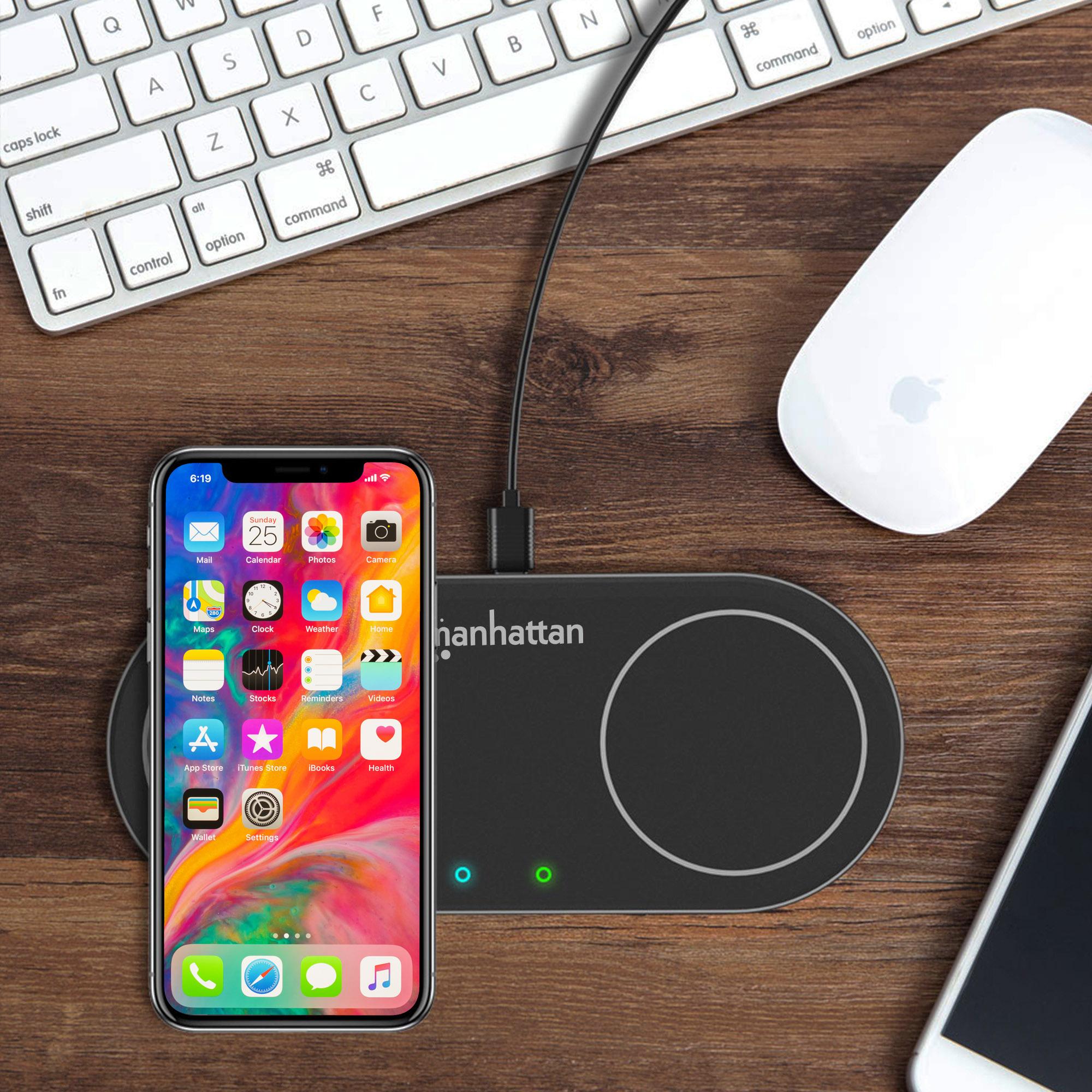

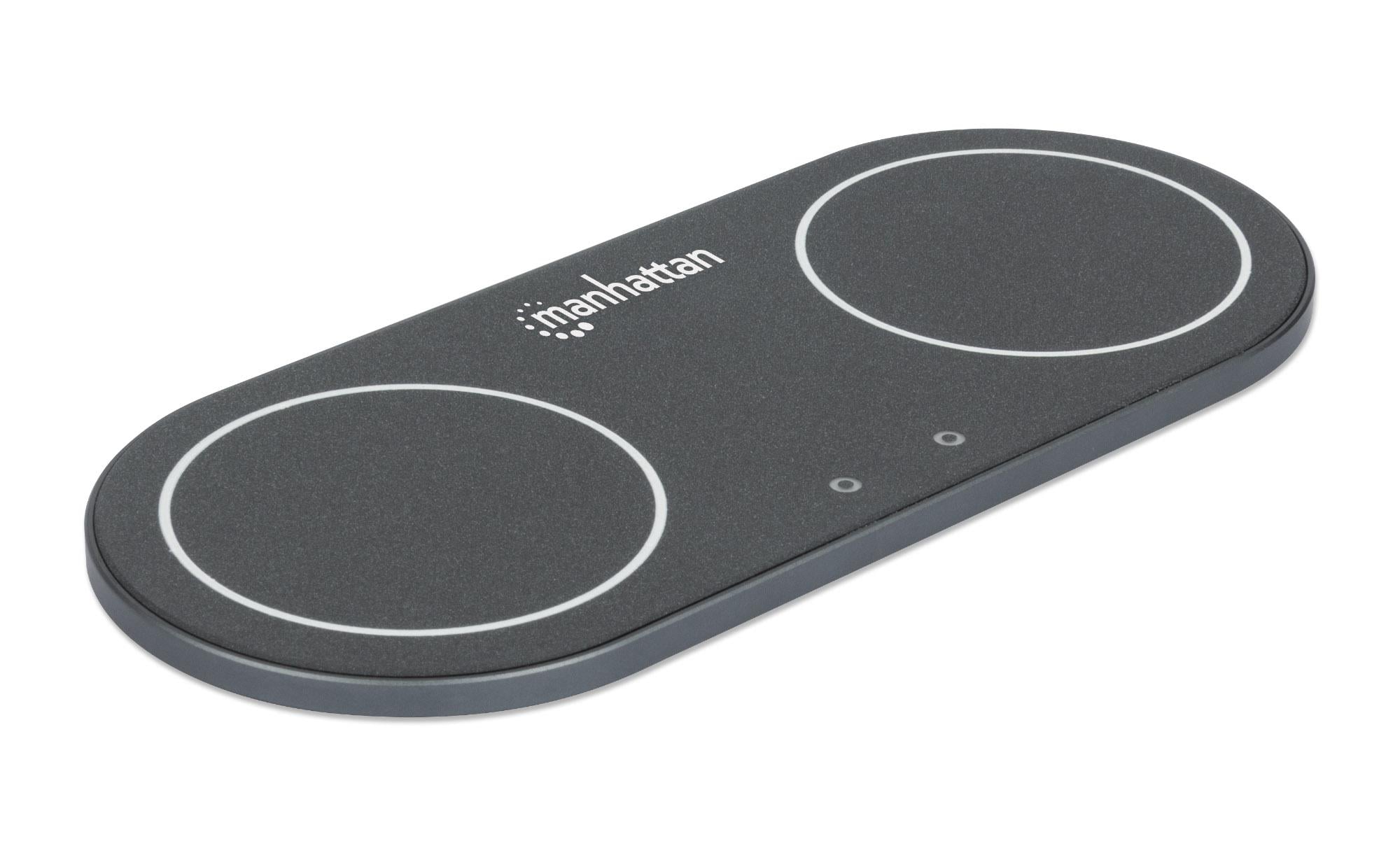

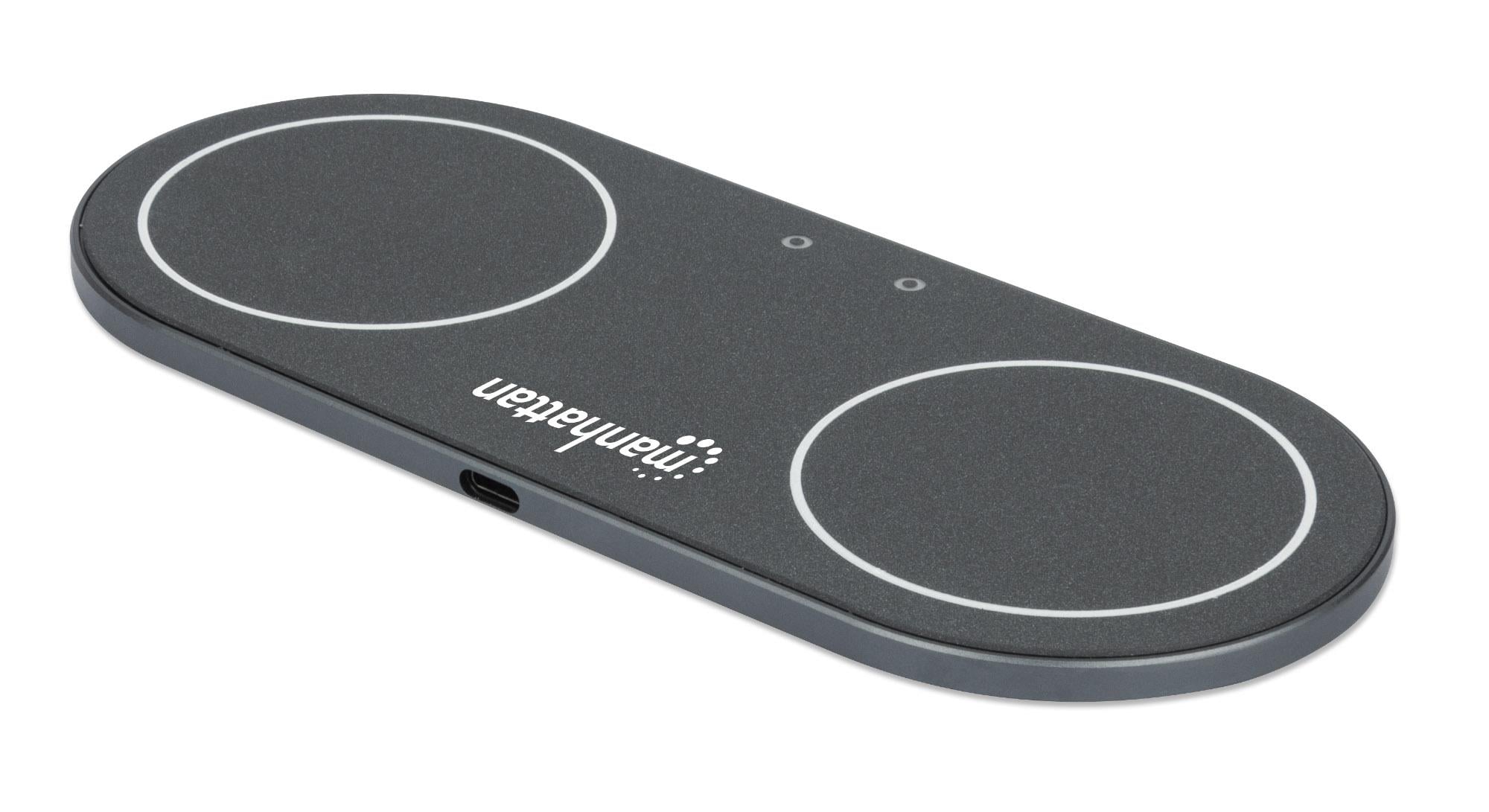

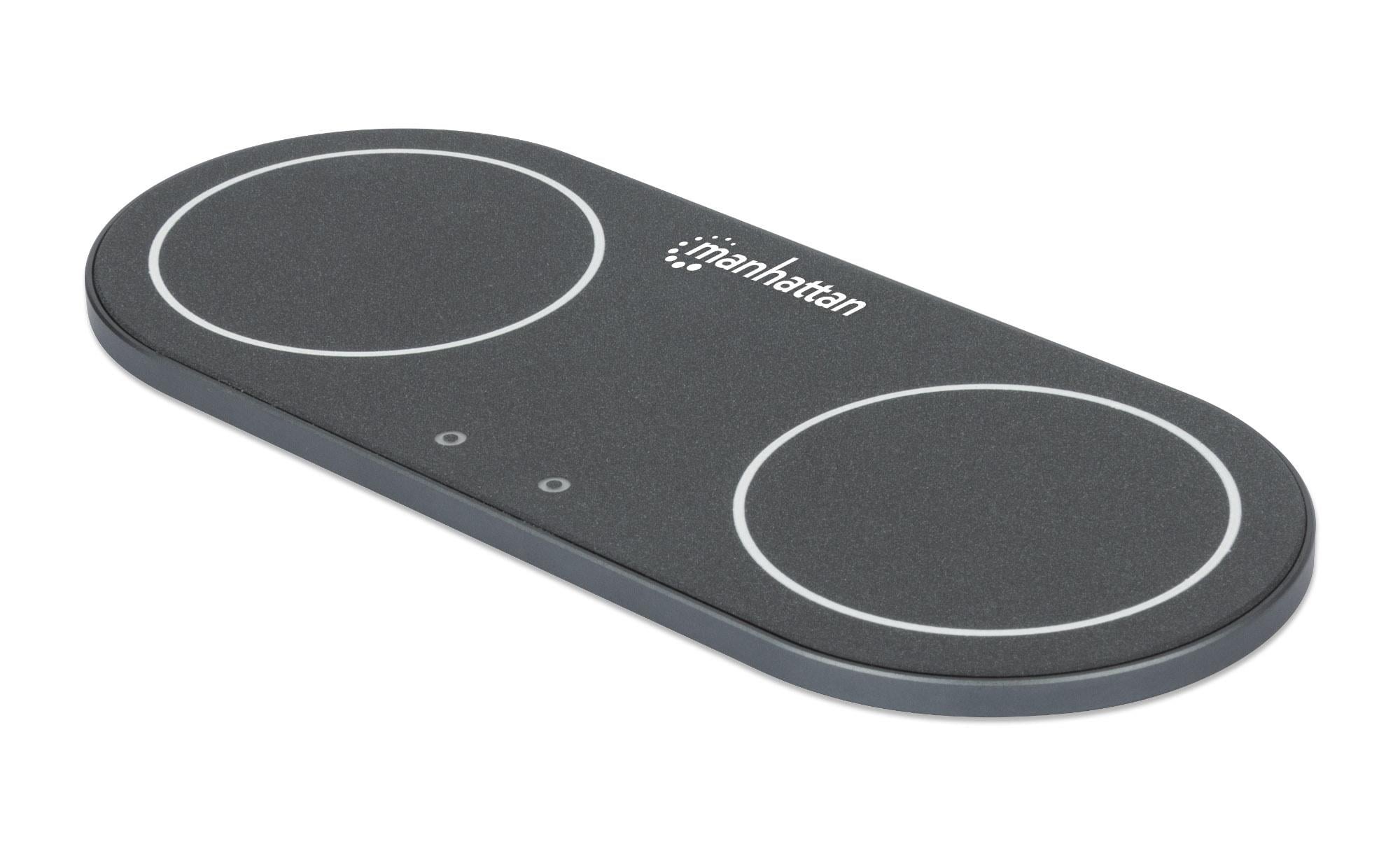

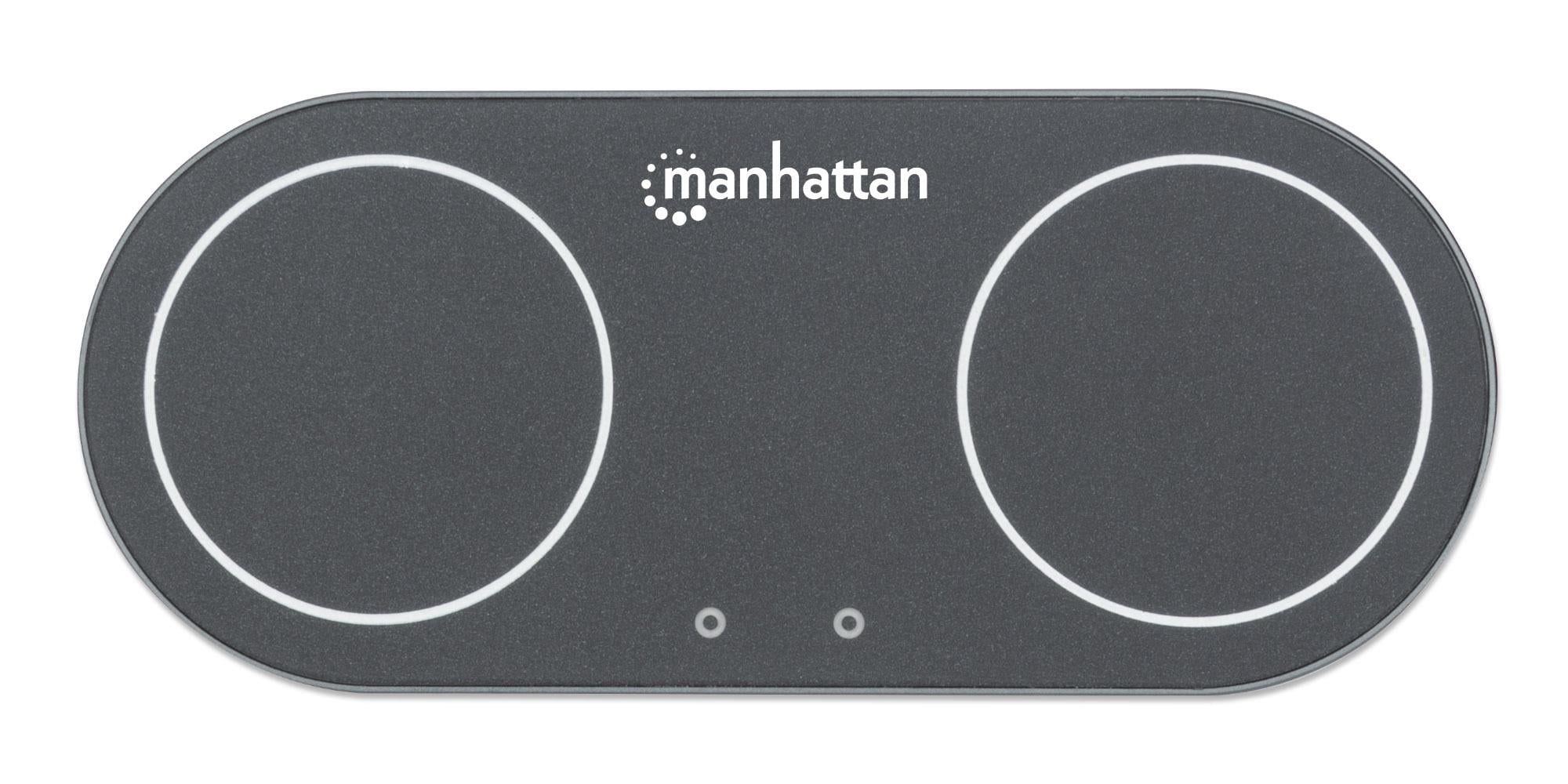

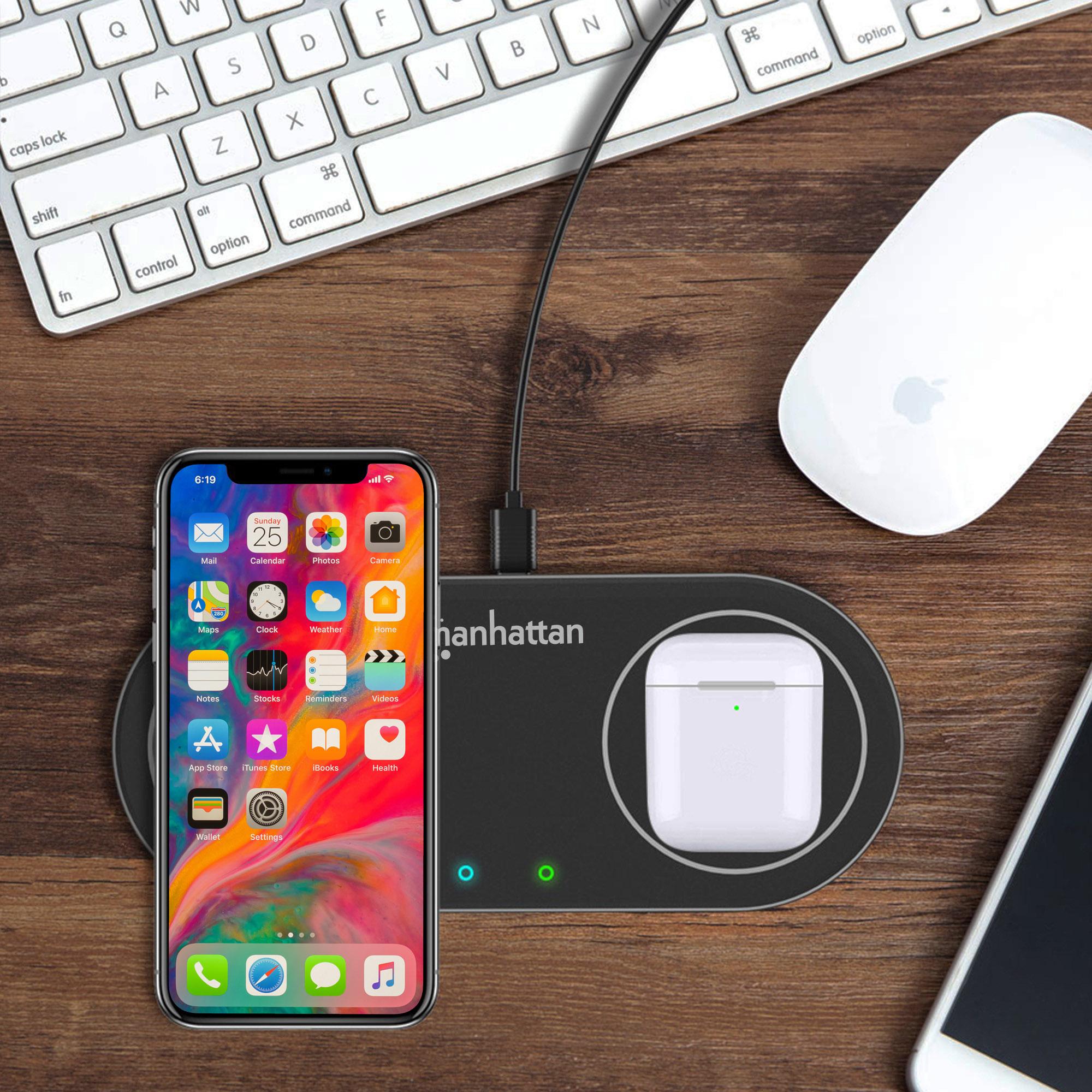

Double Wireless Recharge Station 30 W - Manhattan I-CHARGE-WRDUA

• Complying with Quick Charge standards to ensure safe charging for both the user and equipment


• Double charging base that supports up to 15 W for super fast charging of compatible devices such as Samsung smartphones, Apple®, LG, Sony and many others, as well as cases for wireless charging phones and wireless earphones


• Led indicators for simple status monitoring


• Includes a Power Delivery 30 W wall charger


• Integrated safety technology that interrupts the current output when a metal is detected to prevent interference or damage to the device


• Overcurrent, overvoltage and overheating protection


• Effective wireless charging via phone cases up to 3 mm thick*


• Compact design, portable and elegant ideal even on the road


• * External metal accessories (such as credit cards, magnets, handles and phone cases) will interfere with charging technology



Standards and certifications

• Quick Charge Conforms


• CE


• RoHS


• FCC


• RAEE


• Power Delivery 3.0



Double Wireless charging base - 30 W

General information

• USB-C input: DC 5 V / 3 A - 9 V / 3 A / 12 V / 2.5 A


• Total wireless output power: 30 W


• Wireless output power:



- Input to 5 V / 3 A: 5 W for each coil

- Input to 9 V / 3 A: up to 10 W for each coil

- Input to 12 V / 2.5 A: up to 15 W for each coil

• Power settings (maximum):



- 5 W / 7.5 W / 10 W / 15 W each coil

• Recharged distance: ≤ 10 mm


• Charging efficiency: ≤ 80 %



Protection features

• Short circuit (SCP) with automatic recovery mode


• Overvoltage (OVP) with automatic recovery mode


• Overcurrent (OCP) - current limit: 150% (max)


• Overtemperature (OTP)



Physical information

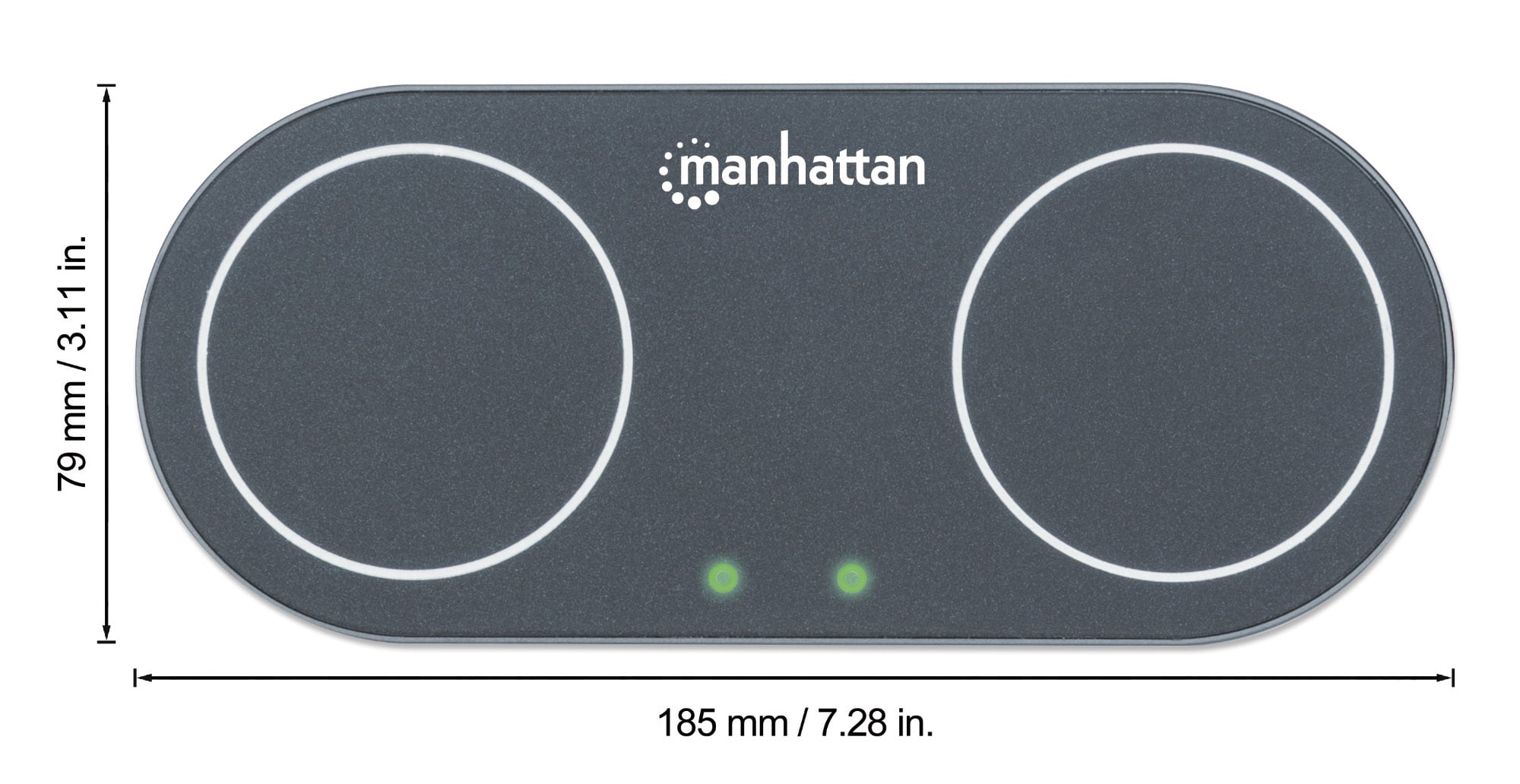

• Dimensions: 185 x 79 x 7 mm


• Weight: 0.116 kg


• Housing: aluminium



Compatibilityà

• Modelità super-fast charging 15 W



- Samsung Galaxy 10 / 10 + or higher

- Samsung Note 10 / 10 + or higher

- LG V 30 / V 40

• Modelità fast charging 10 W



- Samsung Galaxy S 7 / S 7 Edge / S 8 / S 8 + / S 9 / S 9 + / S 10 or higher

- Samsung Note 8 / 9 / 10 or higher

• Modelità 7.5 W charging



- Apple® iPhone® 8 / 8 Plus / X / XR / XS / XS Max or higher

• Modelità 5 W charging



- All other Quick Charge enabled devices



Systems required:

• Up to 15 W output per coil:



- 30 W Power Delivery Charger

• 5 W output per coil:



- 5 V / 3 A charger



Environmental information

• Operating temperature: 0 - 30 °C


• Storage temperature: - 20 - 65 °C


• Humidità (without condensation): 10 - 90 %



30 W Power Delivery Charger

Doors

• A USB-C Power Delivery port (PD 3.0)



Input characteristics

• Rated AC voltage: 100 - 240 V


• Frequency range: 50 - 60 Hz (± 1 Hz)


• Current: ≤ 1 A a 100 VAC 60 HZ



Output characteristics

• Voltage/current settings (maximum):



- USB-C:

- 5 V / 3 A

- 9 V / 3 A

- 12 V / 2.5 A

• Rated power: 30 watt maximum


• Overvoltage: ≤ 5 %



Protection features

• Short circuit (SCP) with automatic recovery mode


• Overvoltage (OVP) with automatic recovery mode


• Overcurrent (OCP) - current limit: 150% (max)


• Overtemperature (OTP)



Environmental information

• Operating temperature: 0 - 30 °C


• Storage temperature: - 20 - 65 °C


• Humidità (without condensation): 10 - 90 %

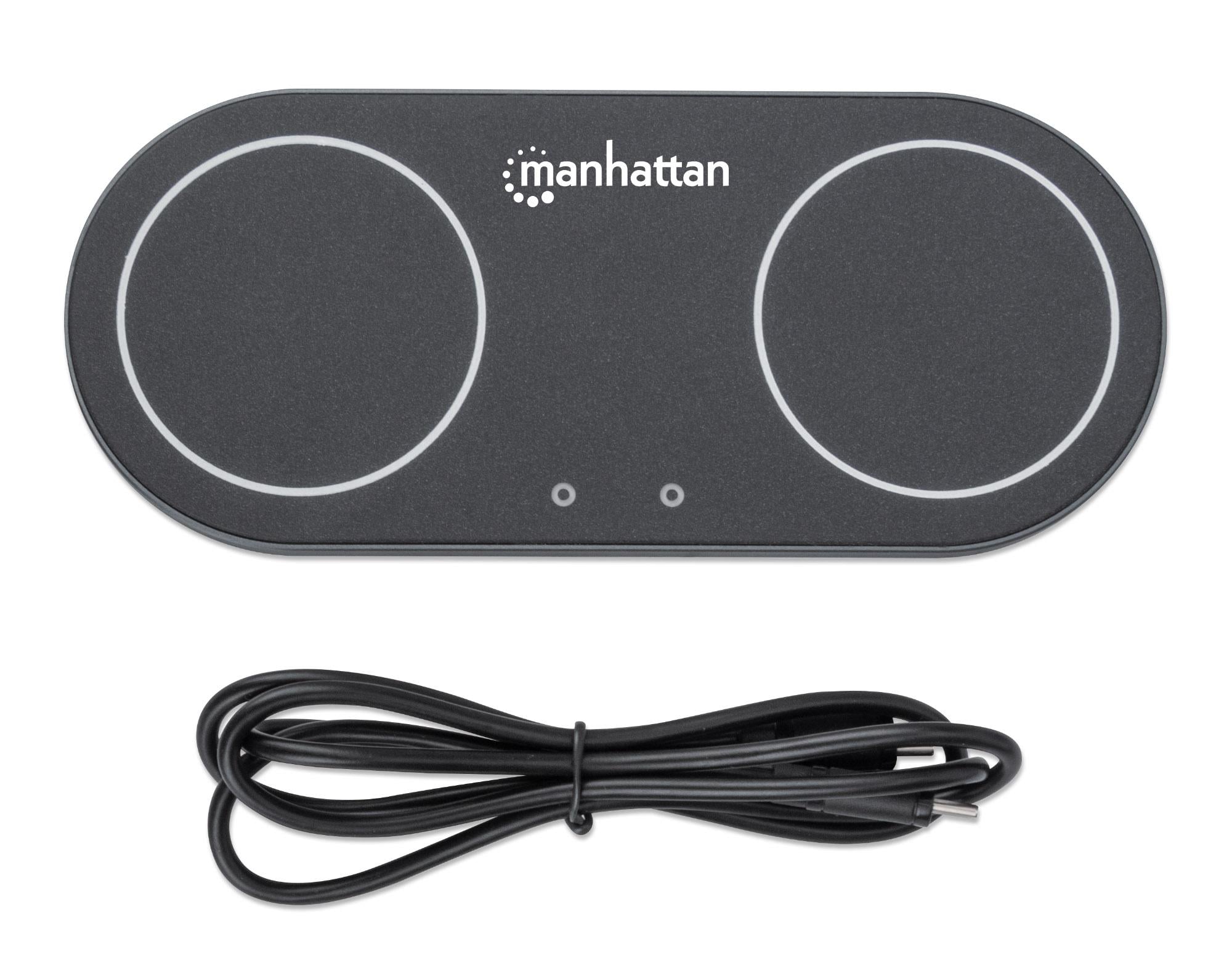

Package contents

• Double Wireless charging station - 30 W


• Wall Charger 30 W Power Delivery


• USB-C 1 power cable m


• Quick Guide
