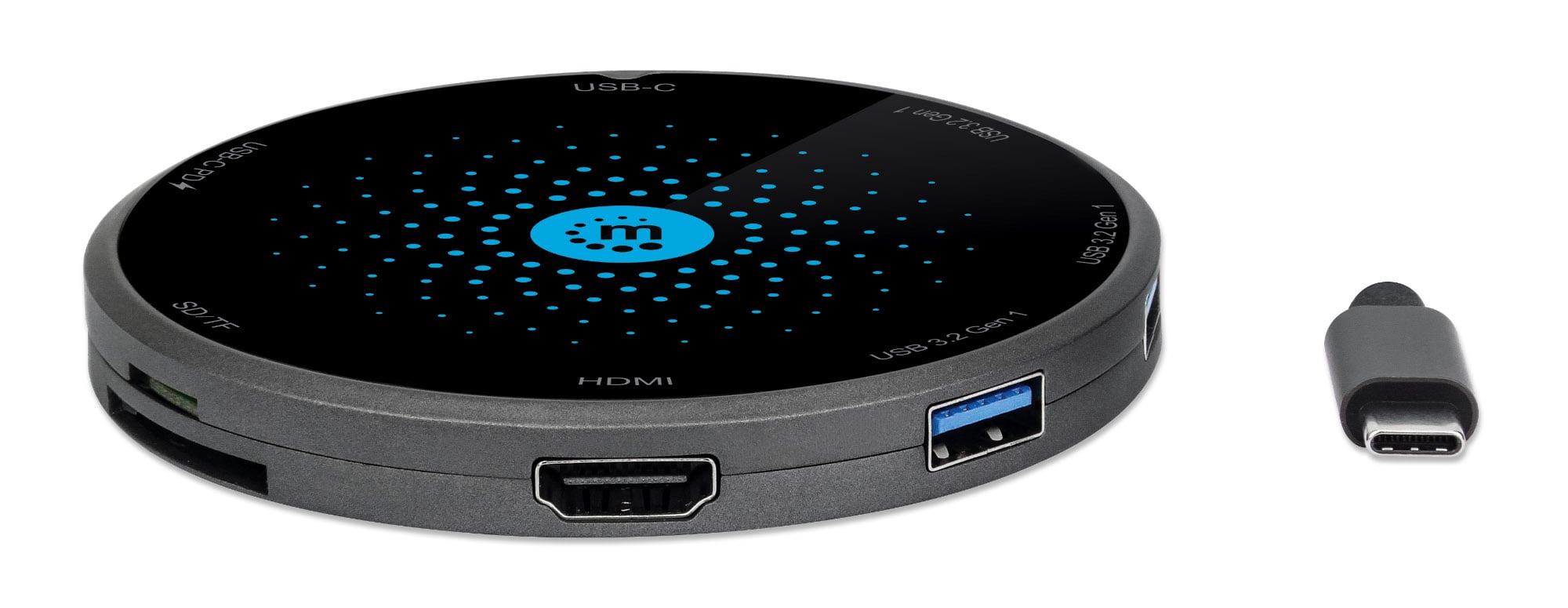

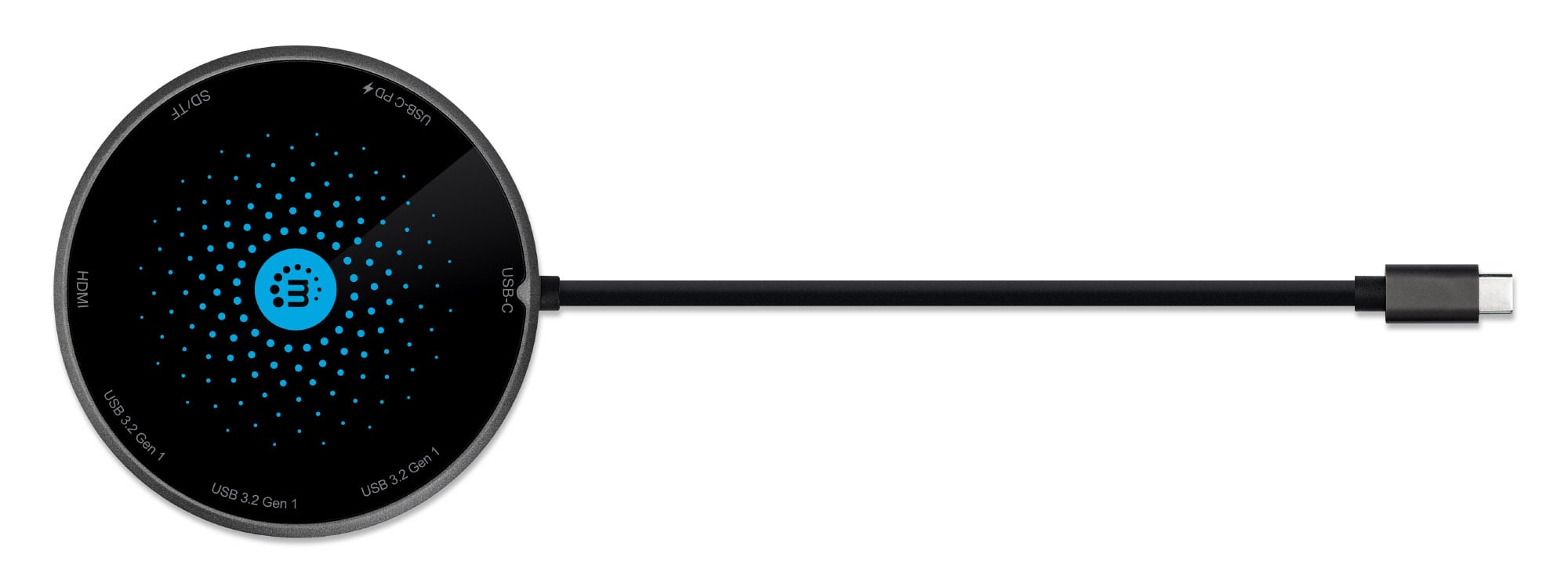

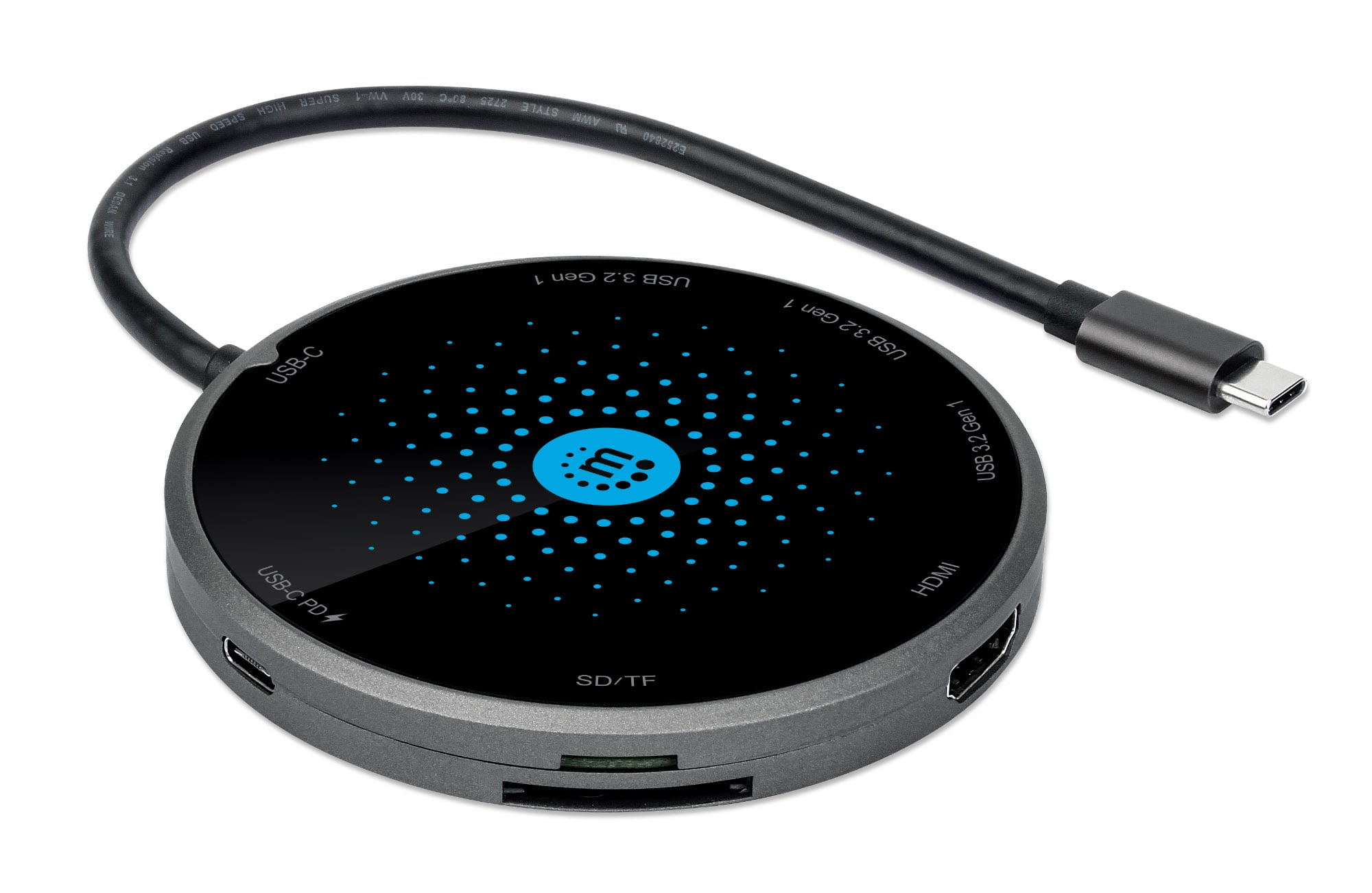

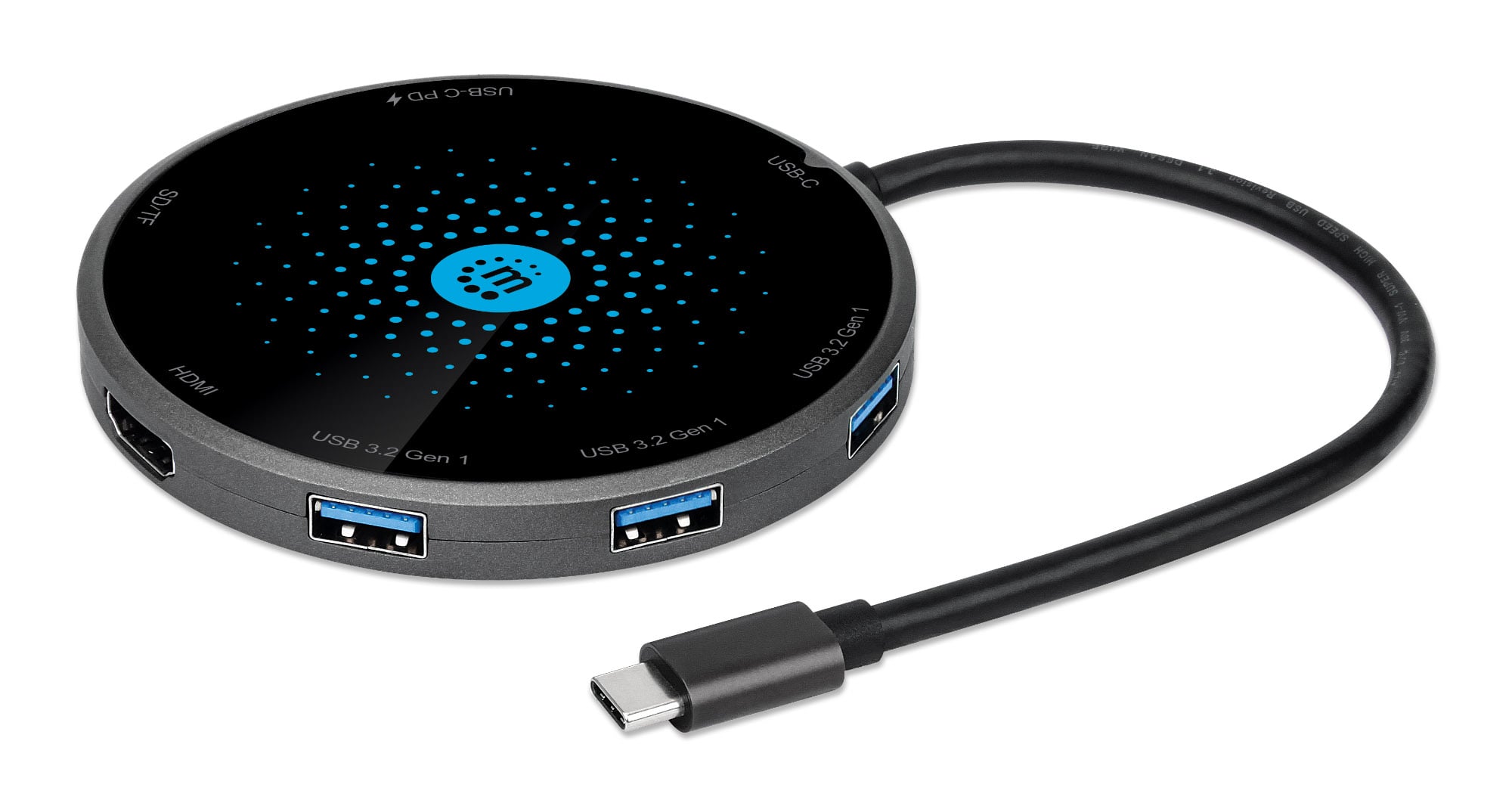

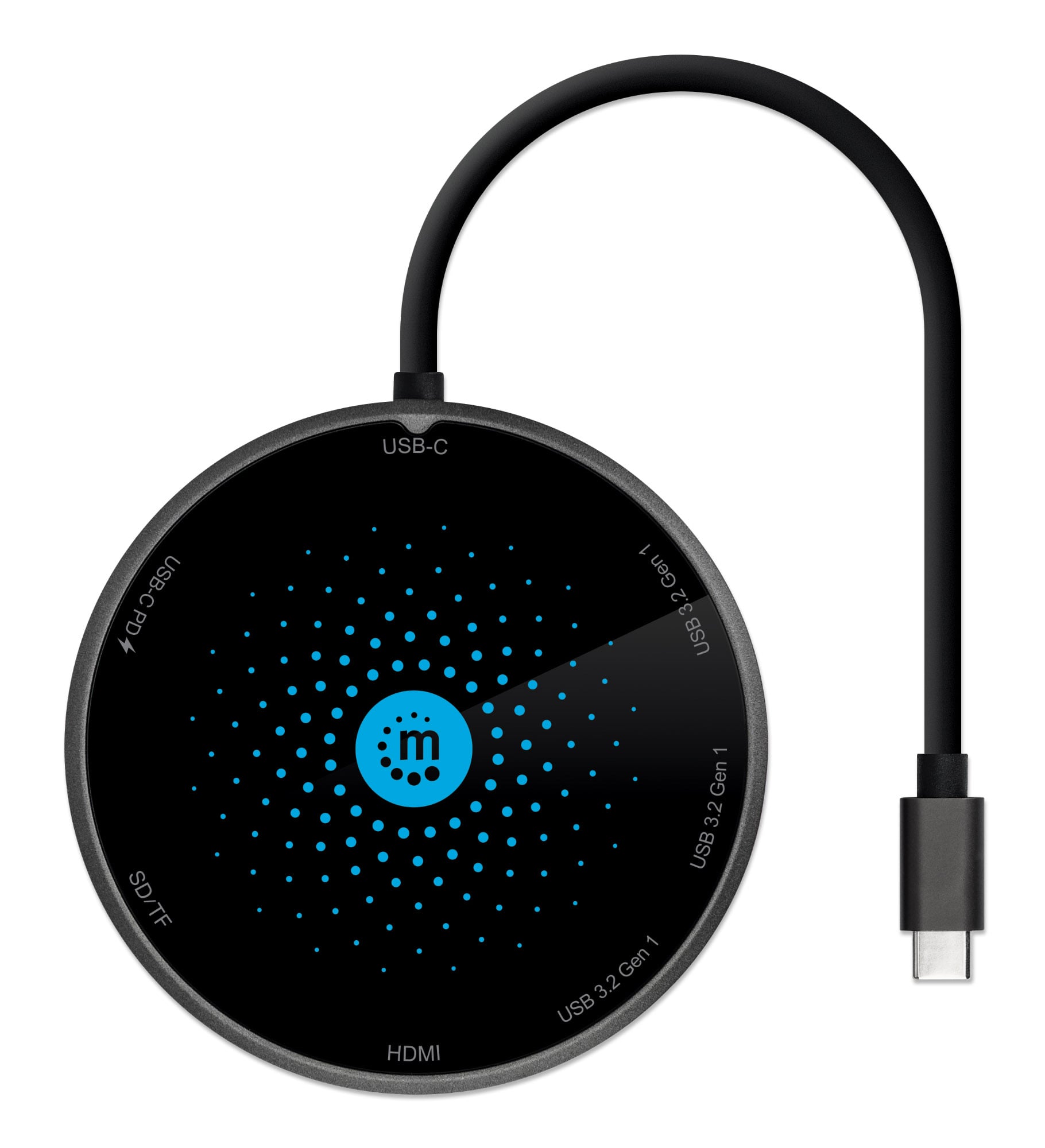

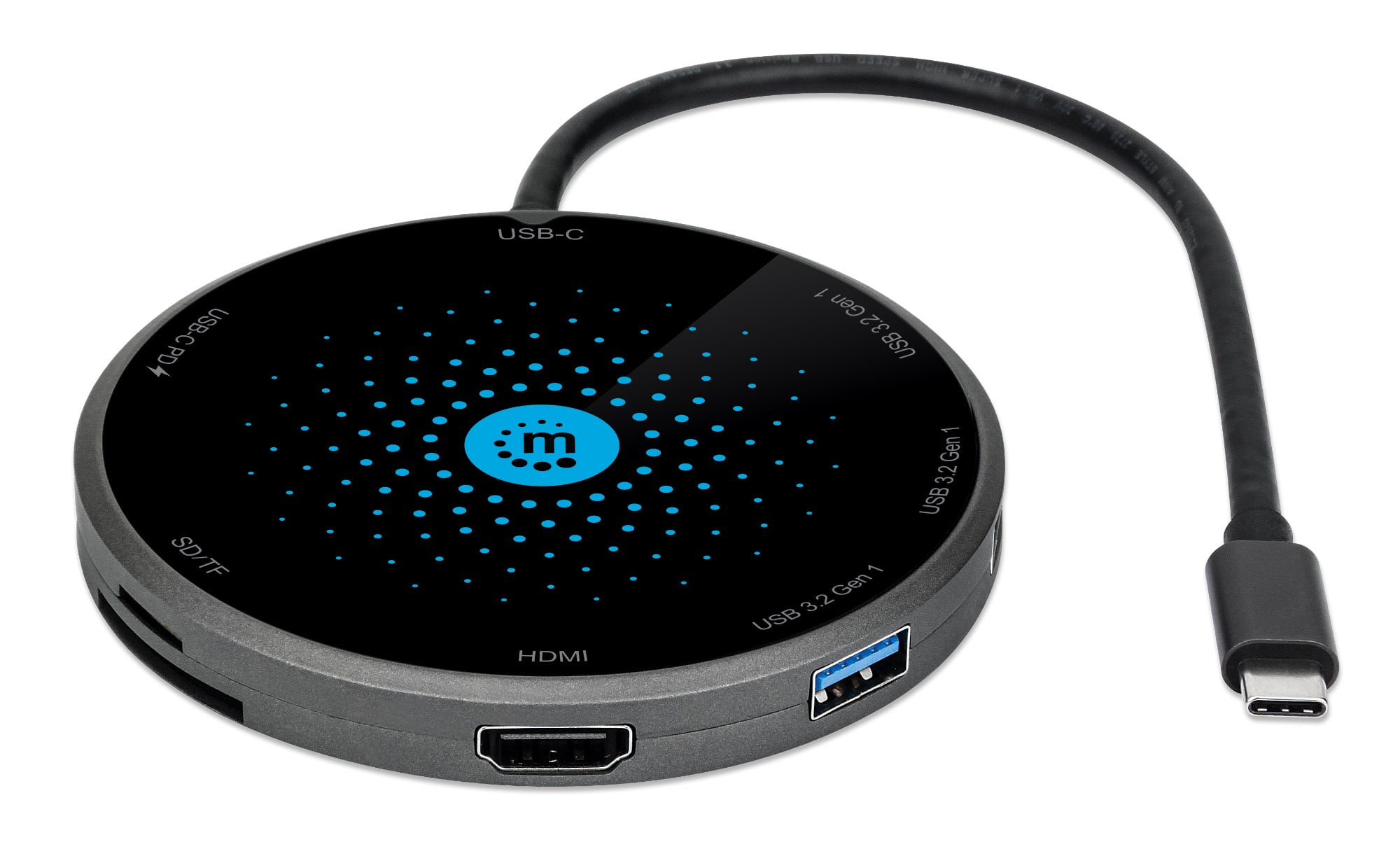

USB-C 8-in-1 Docking Station with Wireless Charging Pad - Manhattan IADAP USB32-DOCKMH

• Wireless charging of compatible devices such as phones, earphones and much more, with power up to 10W


• Qi™ certified - to ensure safe charging for the user and for devices


• Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger - available from Manhattan


• USB-C™ PD port provides up to 60 W to charge notebooks, laptops, Ultrabook®, tablets or other USB-C™ powered devices


• Resolution up to 4K@30Hz (UHD) for HDMI connection


• Three USB 3.2 Gen 1 Type-A ports with data transfer up to 5 Gbps


• Three USB 3.2 Gen 1 Type-A ports for connecting mice, keyboards, memory cards and much more, or for charging and syncing mobile devices


• The SuperSpeed USB-A ports offer data transfer speeds up to 5 Gbps and charging up to 7.5 W (5V / 1.5A)


• Micro SD and SD memory card slot with transfer speed up to 480 Mbps


• Charge different devices simultaneously with optimized power allocation


• Plug and play for simple and quick setup - no need to download a driver


• Overload, overcurrent and overheat protection


• Ultra-compact, portable and lightweight design, easy to carry on the go.


• High quality material with zinc alloy and tempered glass



Standards and certifications:

• USB 3.2 Gen 1


• HDMI 1.4


• HDCP 2.2


• CE


• FCC


• RoHS



General:

• Video resolutions: 640x480, 800x600, 1024x768, 1920x1200, 1920x1080, 3840x2160


• USB-A ports transfer speed: up to 5 Gbps


• Supported memory cards: SD / microSD / TransFlash, microSDHC / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile


• Bus powered


• USB-C™ PD charging port: 60 W (5 - 20 V; maximum 3 A)


• Dielectric strength: 300 VDC


• Insulation resistance: 10 MOhms


• Conductive resistance: 2 Ohms


• Voltage / current setting (maximum):



- USB-C™:

-- 5 V / 3 A

-- 9 V / 3 A

-- 12 V / 3 A

-- 15 V / 3 A

-- 19 V / 3 A

-- 20 V / 3 A

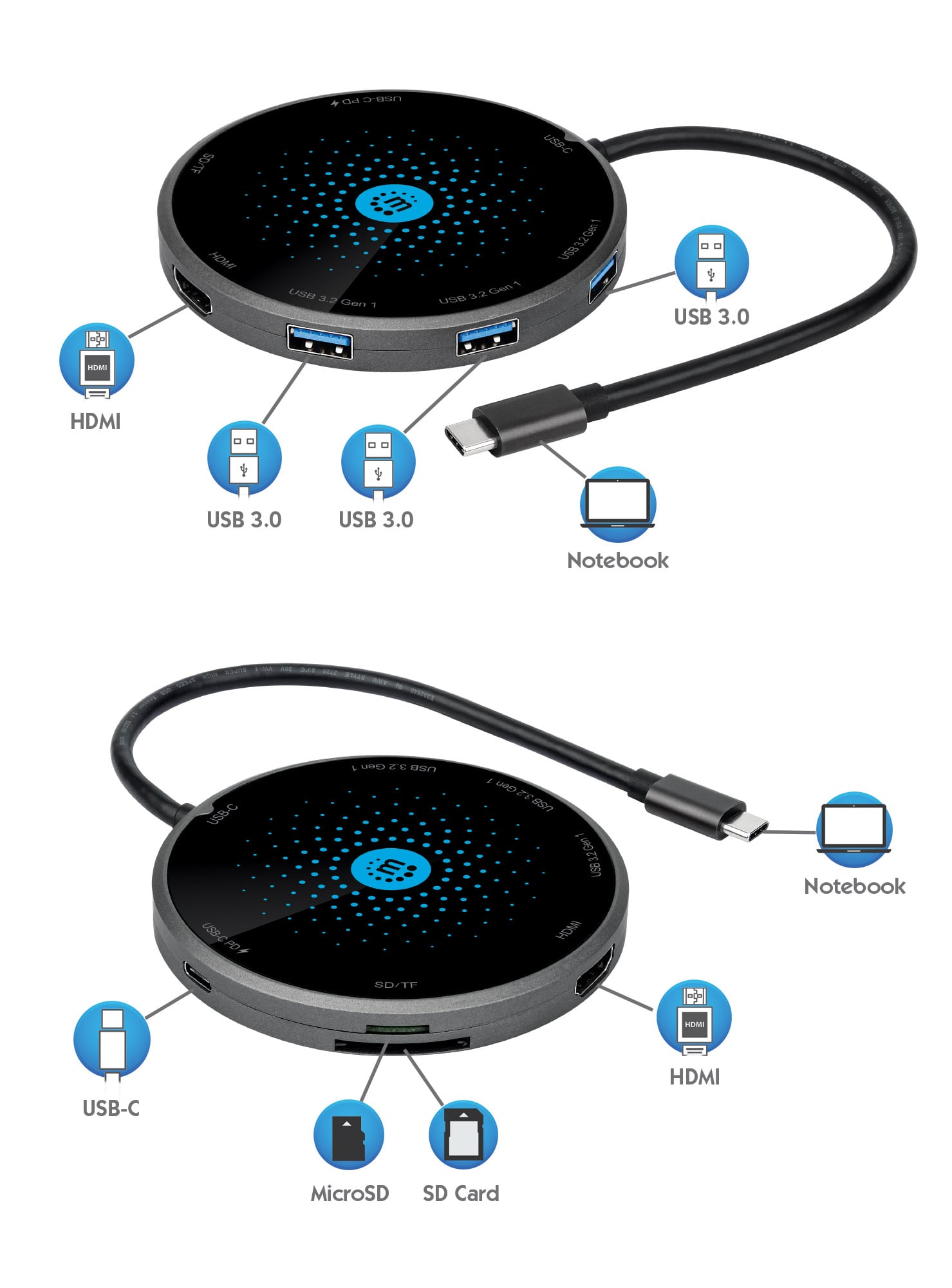

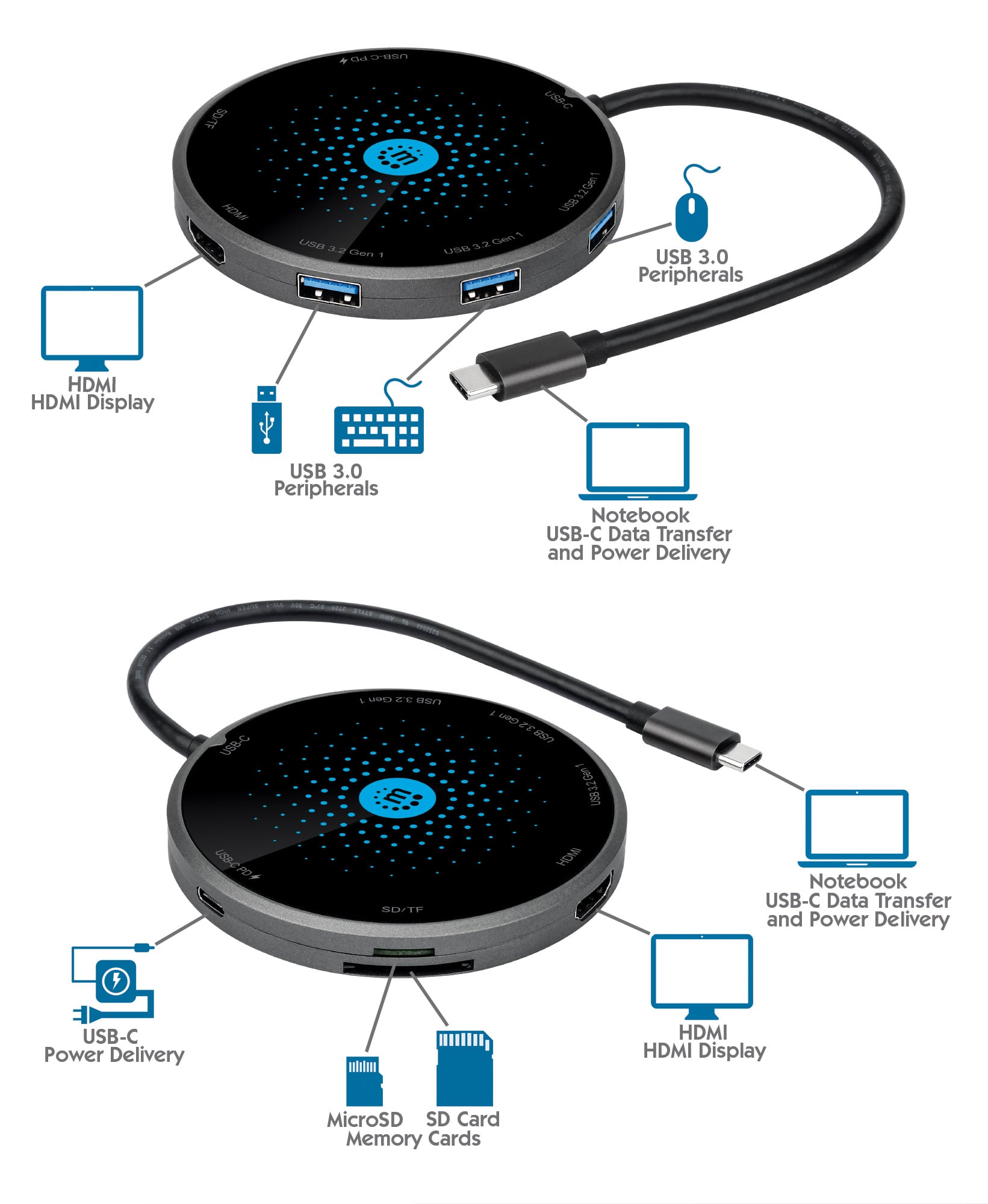

Connections:

• A USB-C™ 24-pin, male


• One HDMI port with 19 pins, female


• Three USB-A 9-pin, female


• One SD memory card slot


• One Micro SD (TF) memory card slot


• One USB-C™ 24-pin female



Protection features:

• Short circuit (SCP) with automatic recovery mode


• Overvoltage (OVP) with automatic recovery mode


• Overcurrent (OCP) - current limit: 150% (max)


• Over-temperature (OTP)



Compatibility - wireless charging pad

• Fast charging mode 10 W



- Samsung Galaxy S7 / S7 Edge / S8 / S8+ / S9 / S9+ / S10 or higher

- Huawei Mate20 Pro, Mate20 RS, P20 Pro, P30 Pro or above

- Samsung Note 8 / 9 / 10 and above

• Mode 7.5 W



- Apple iPhone 8 / 8 Plus / X / XR / XS / XS Max / 11 / 11 Pro / 11 Pro Max or above

• Mode 5 W:



- All other Qi™ enabled devices



System requirements - wireless charging pad

• Output up to 10 W



- Quick Charge® charger 2.0 / 3.0

- Power Delivery 18 W charger

• 5W



- Charger 5 V / 2



Physical information

• Housing: 94 x 94 x 12 mm


• Cable length: 20 cm


• Weight: 154 g


• Housing: zinc alloy


• Pad surface: tempered glass



Environmental information

• Operating temperature: 0°C - 50°C


• Storage temperature: -10°C - 70°C


• Humidity (non-condensing): 5 - 90% RH



System requirements

• Windows


• Linux


• Mac OS


• Chrome OS



Package contents:

• USB-C™ docking station 8-in-1 with Qi™ Wireless charging pad


• User manual
