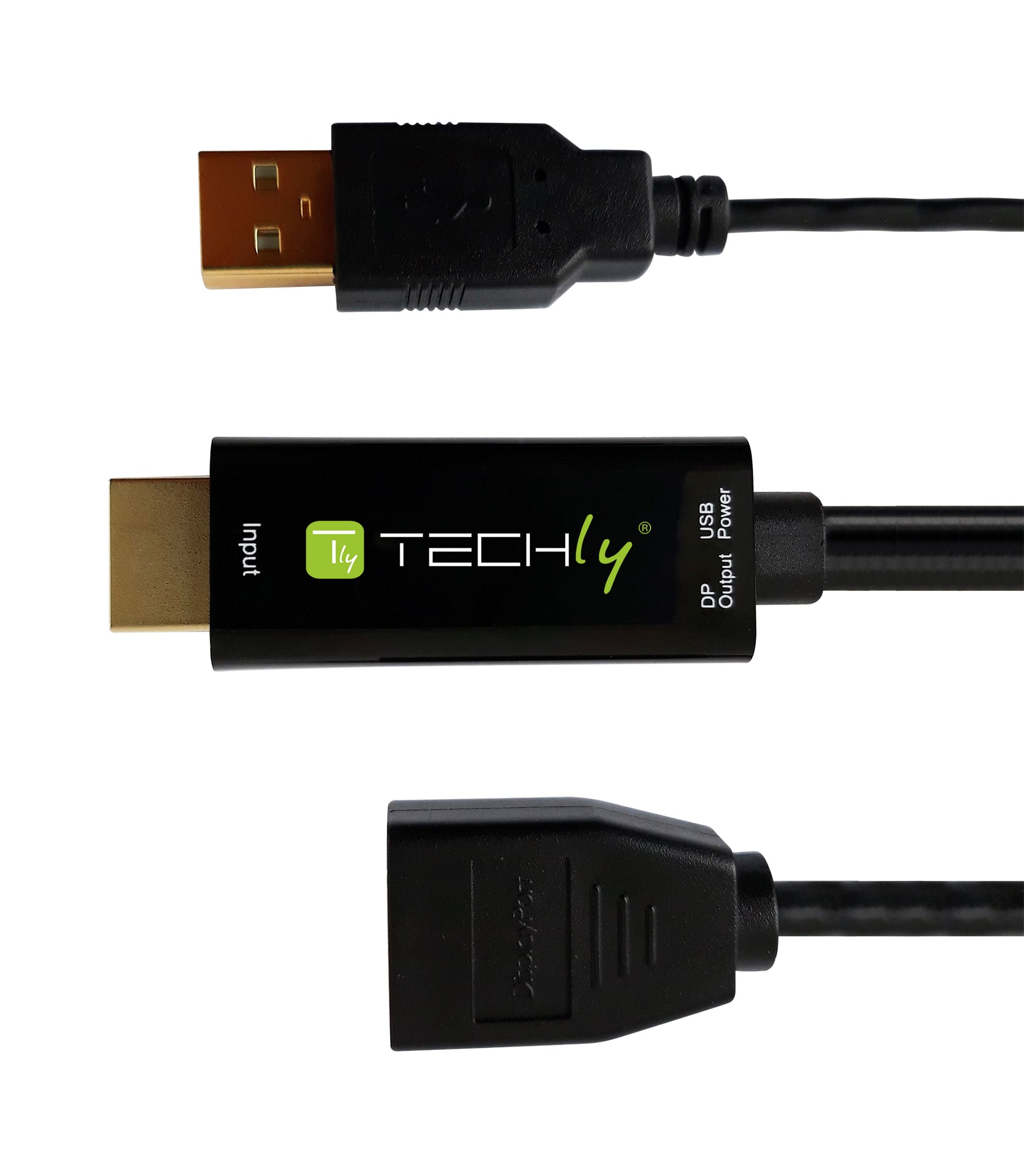

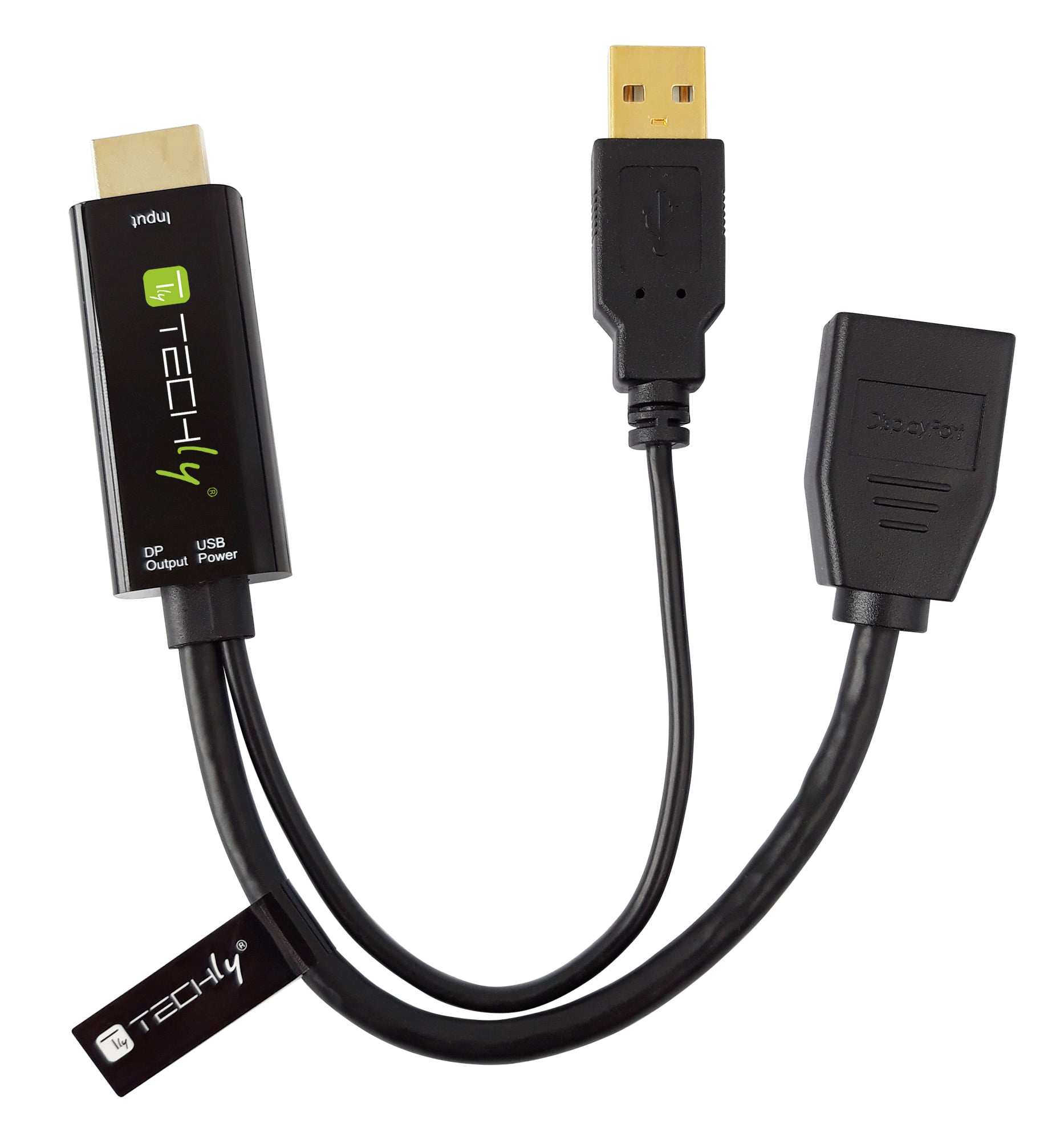

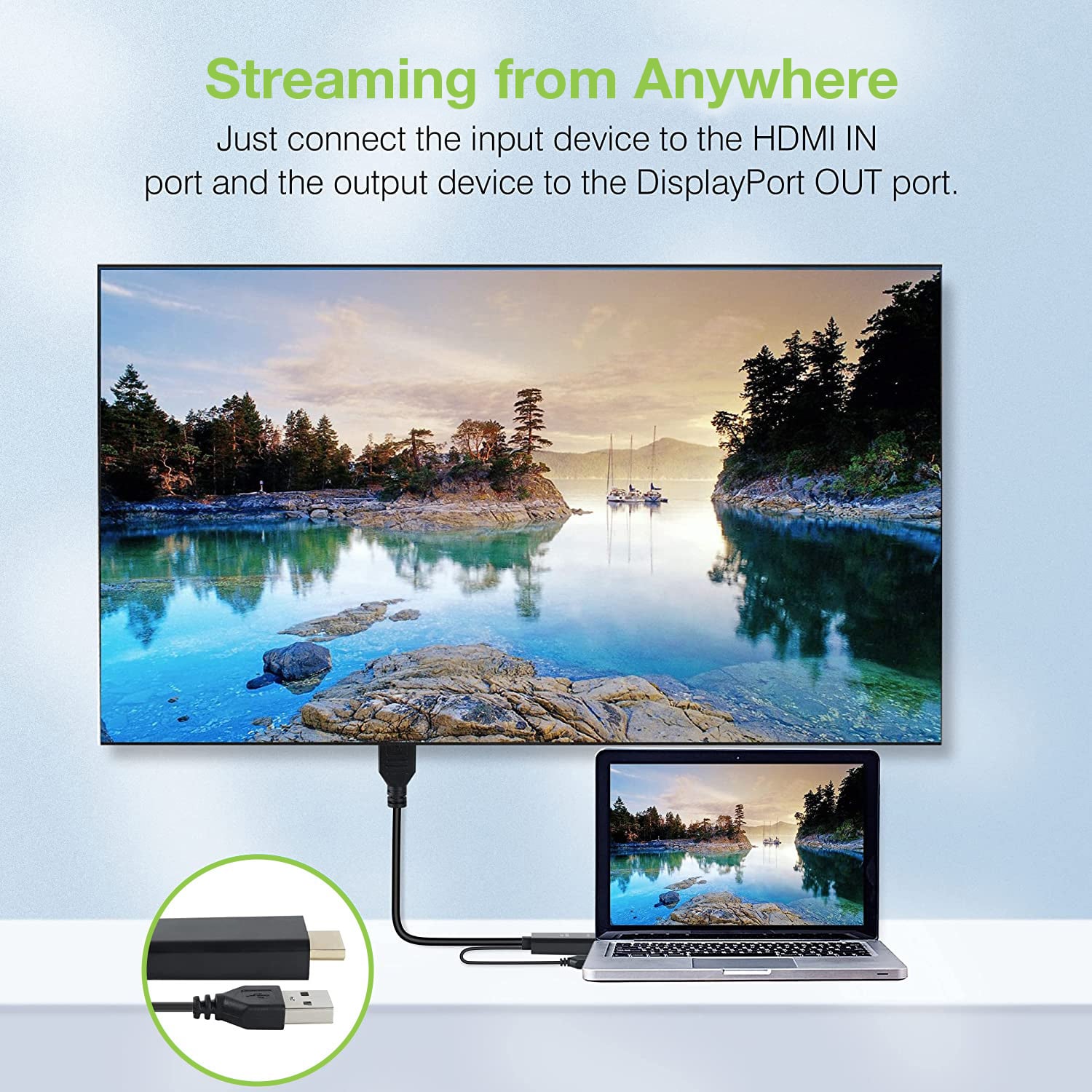

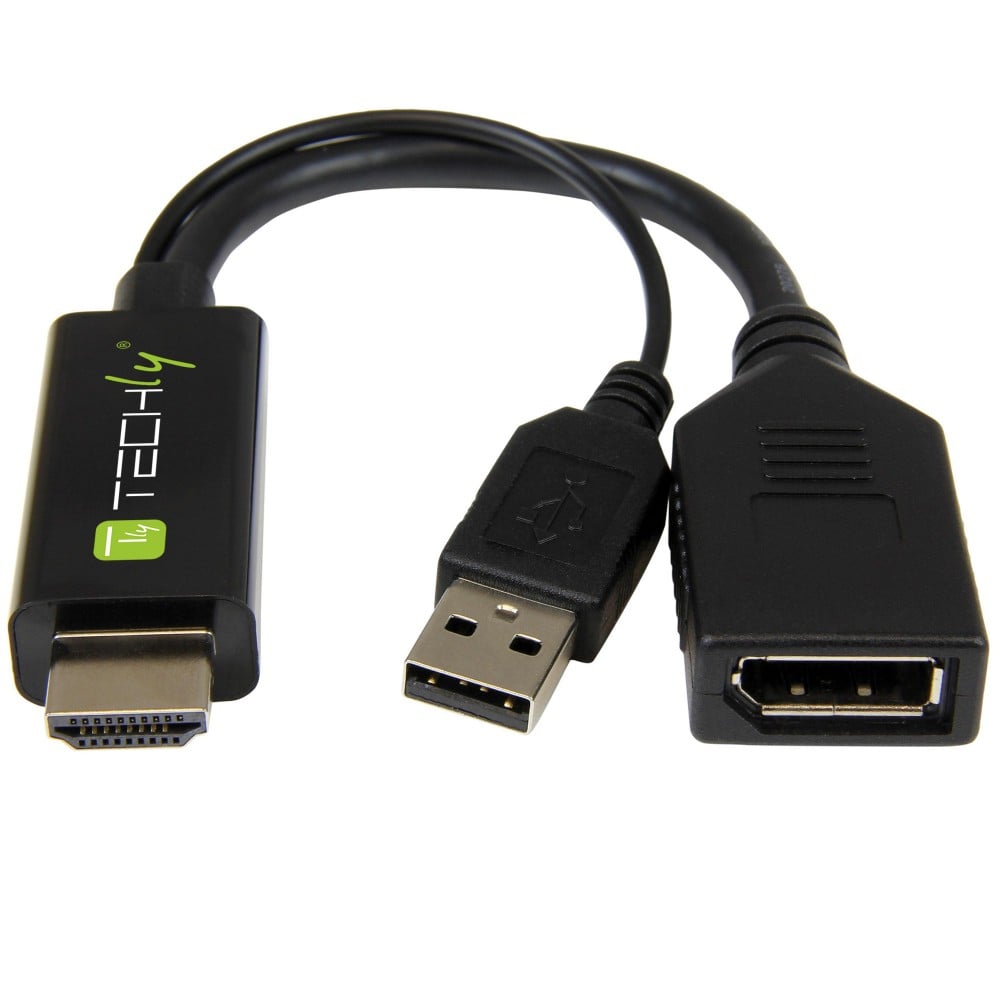

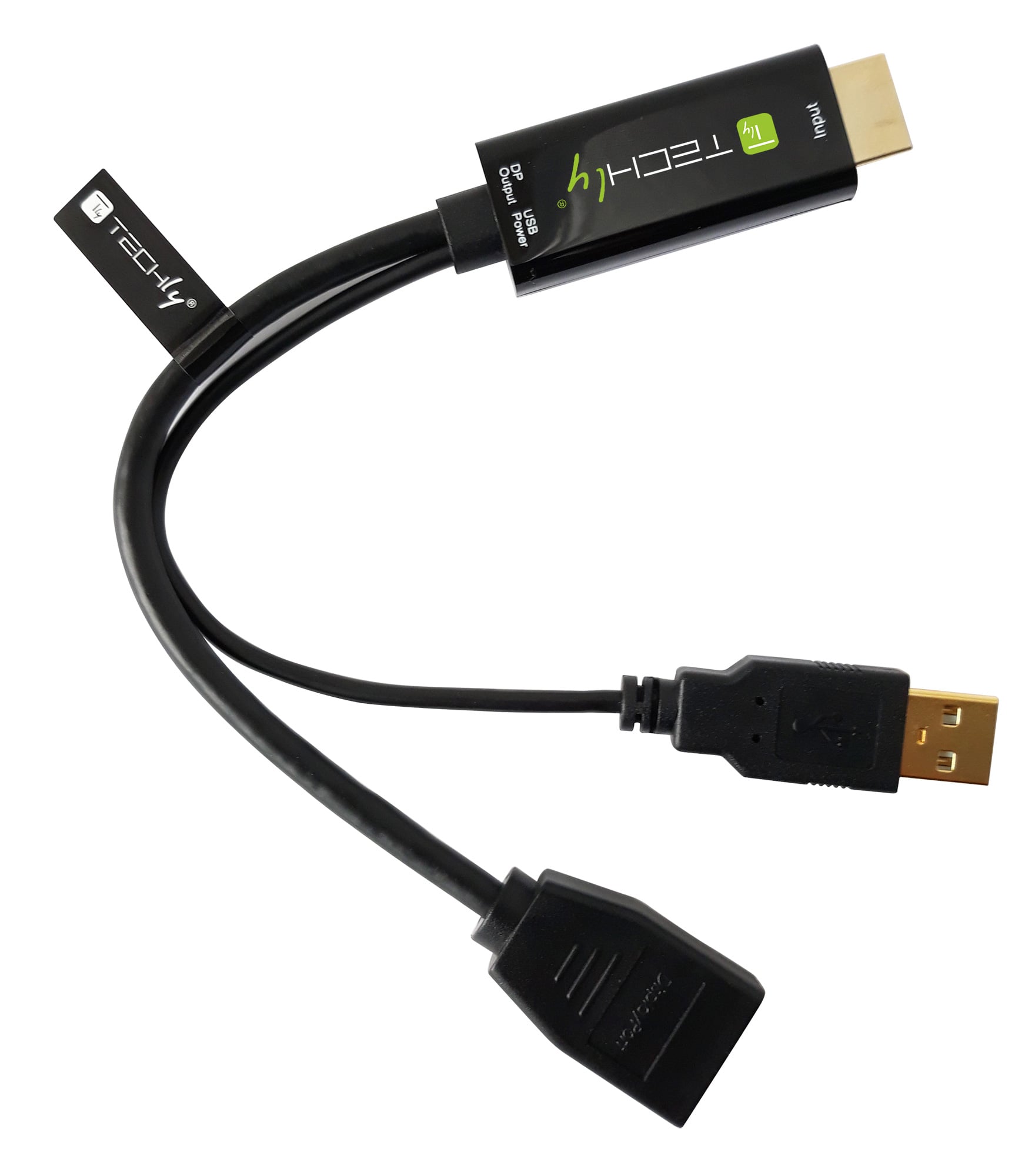

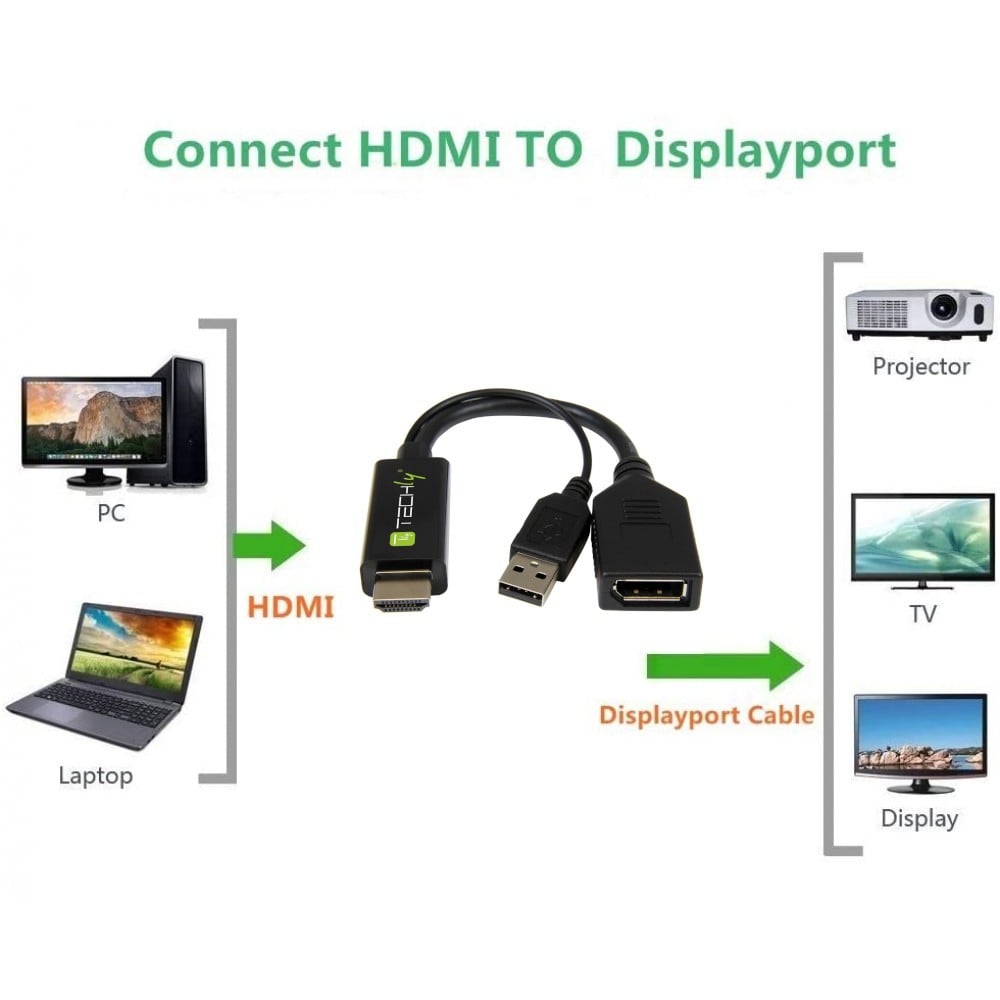

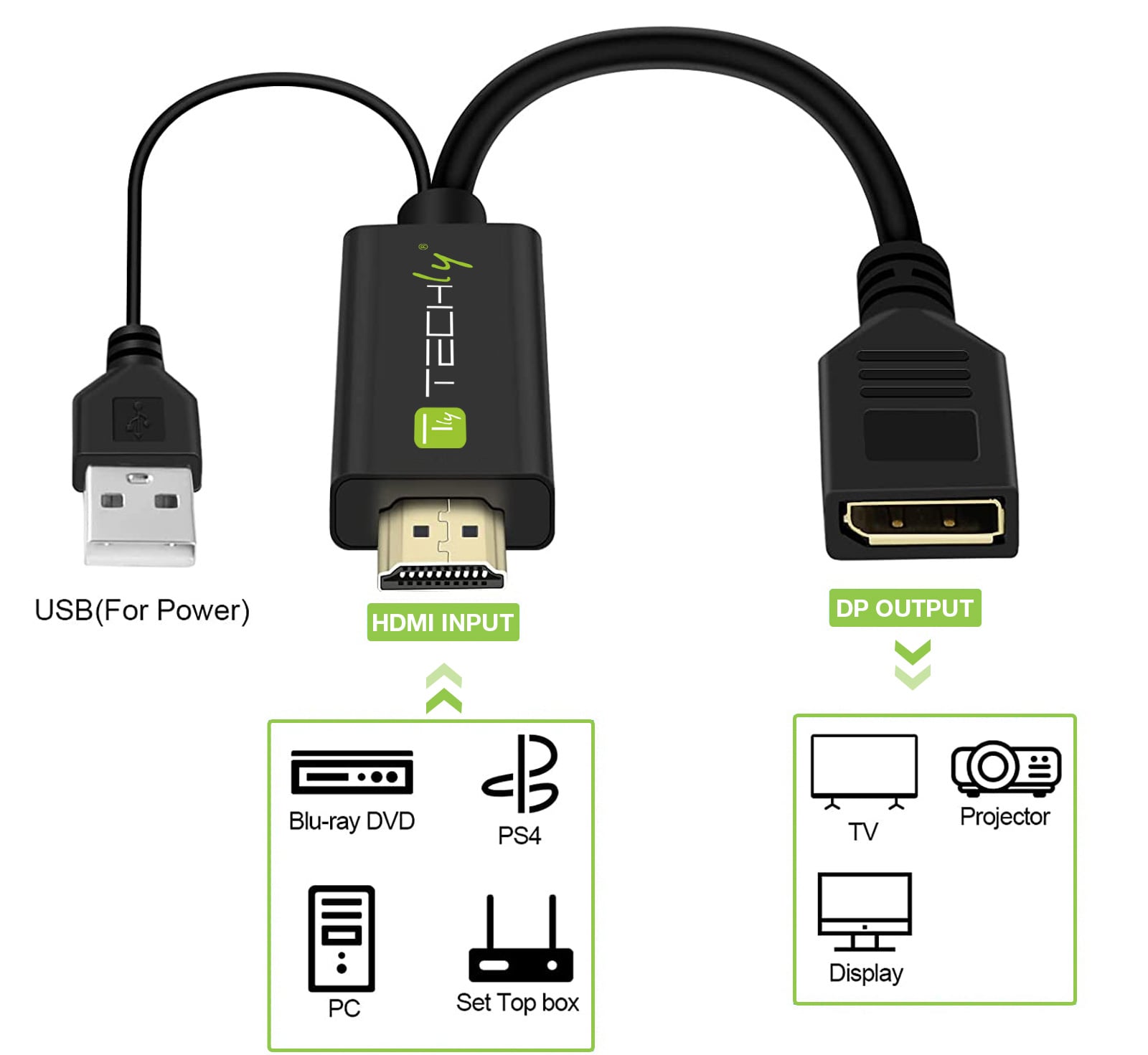

ICOC HDMI-DP 12 A è an adapter from HDMI™ to DisplayPort that allows you to transmit the HDMI™ signal to the DP++ signal. It supports 1.2 DP specifications with resolution up to 4096 x 2160 to 30 Hz. In addition, è equipped with USB-A port to provide power in case there is not enough power from the HDMI™ source.
Features- Supports HDMI & trade; input, DisplayPort output with USB-A port for power supply
- Support HDMI™: speed à connection up to 2,97 Gbps / data pair; deep color up to 48 bit; video time 3 D
- DisplayPort support: DP ++; 1.2 compliant to and previous versions; speed à connection HBR 2 / HBR / RBR; AUX CH 1 Mbps; supports eDP; HDMI™ / DVI operation with level translator; maximum resolution up to 4 KX 2 K at 30 Hz
- Supports video conversion: RGB / YCC (4: 4: 4) - color to 16 bit; YCC (4: 2: 2) - color to 16 bit; color space conversion - YUV to RGB and RGB to YUV
- Supports video resolution: video resolution up to 4 K x 2 K at 30 Hz; video resolution up to 1920 x 1080 at 120 Hz
- Supports audio: sampling frequency 7.1 Ch up to 192 kHz
- Conformityà HDCP 1.4

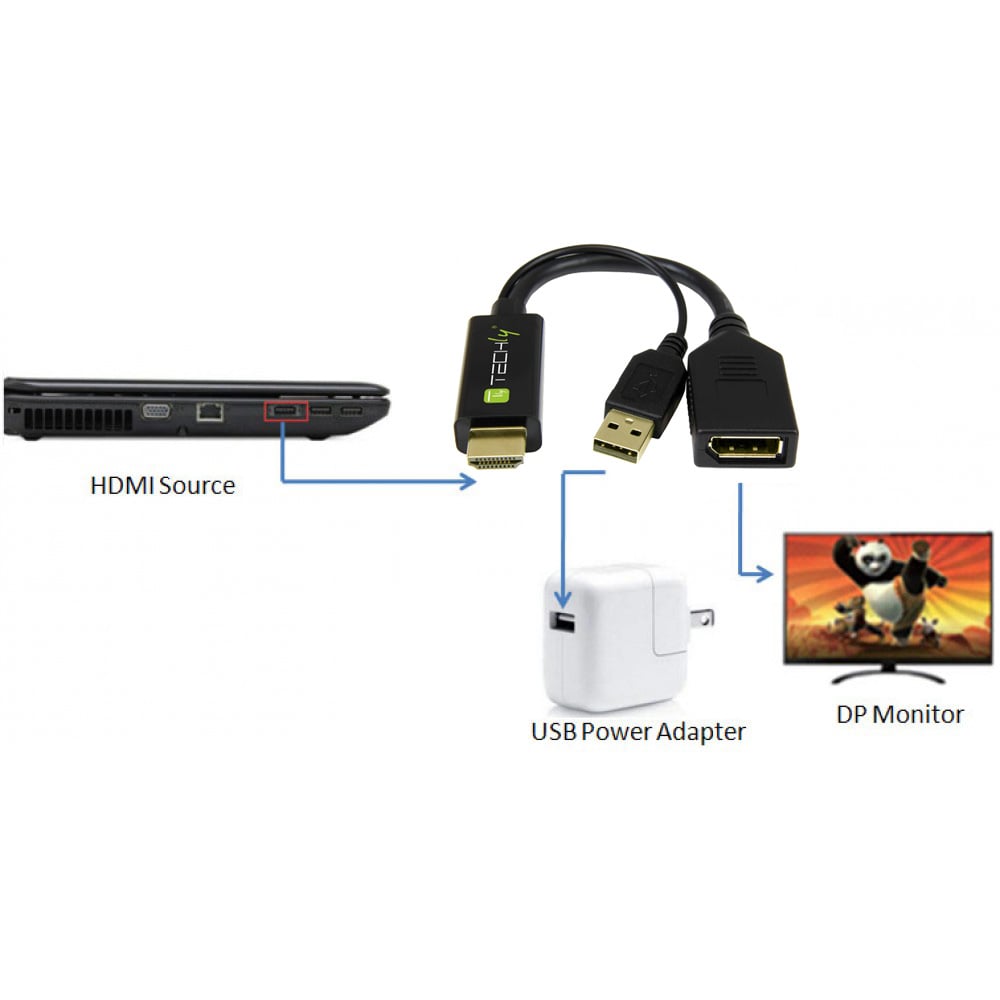

- Energy-efficient design: the HDMI & trade; source can provide sufficient energy for this product in most cases, the USB-A è port connected only when there is not enough energy

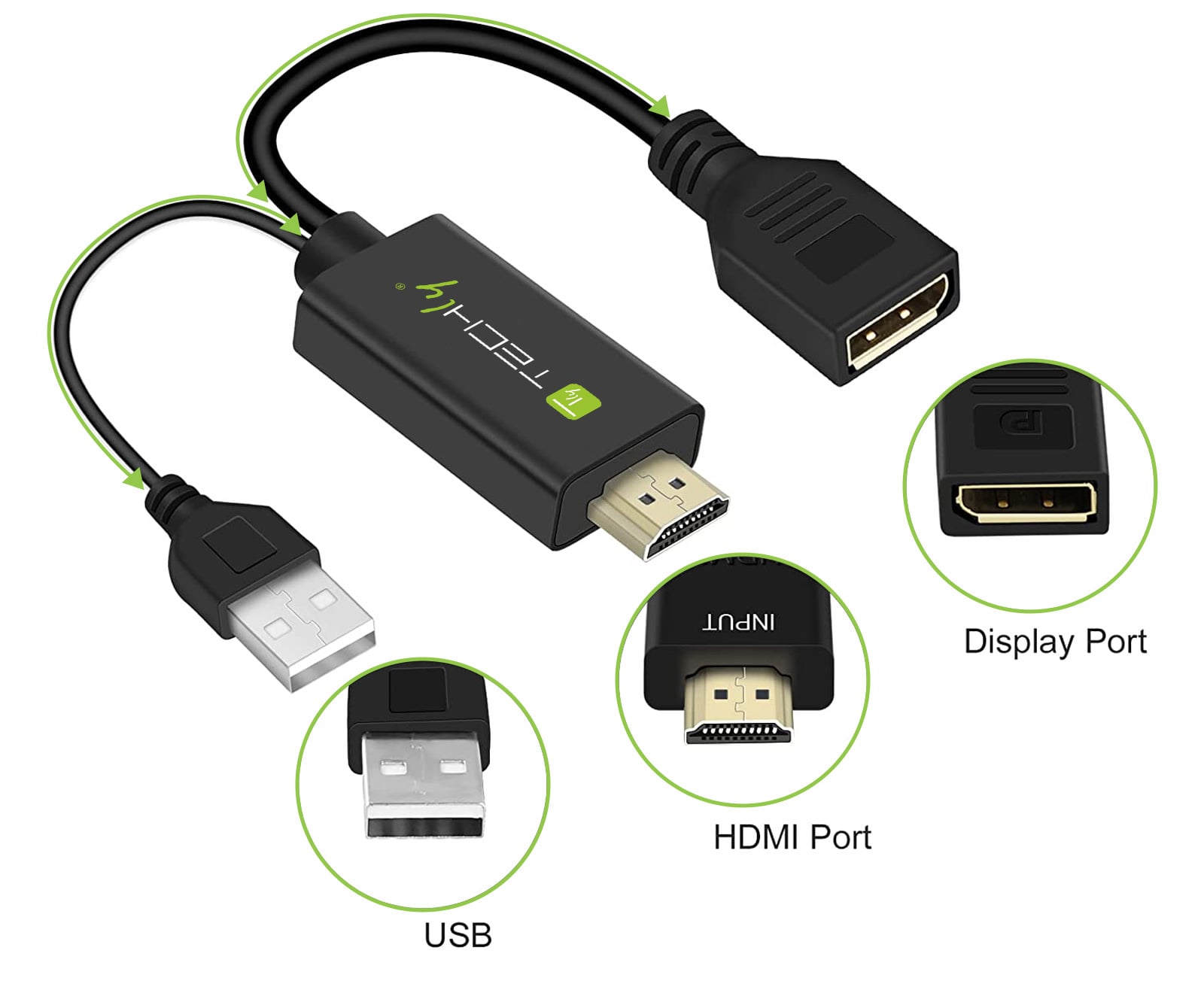

Technical specifications- Connectors: input 1 HDMI™ male; output 1 DisplayPort Female; additional port USB-A male (for power supply)
- Resolution: DisplayPort Max 4096 x 2160 at 30 Hz
- Dimensions: 20,8 x 11 x 245 mm
- External USB-A power supply
- Additional HDMI feed source & trade;
environmental characteristics- Operating temperature 0 ° C ~ 45 ° C
- Operating humidità 10 % ~ 85 % RH (without condensation)
- Storage temperature - 10 ° C ~ 80 ° C
- Humidità storage 5 % ~ 90 % RH (without condensation)
Certifications Package contents- Adapter from HDMI & trade; to Displayport
- User manual
