Adapter HDMI Converter to DisplayPort 4 K 60 Hz USB - Techly ICOC HDMI-DP 12 A 60

Adapter from HDMI™ to DisplayPort that allows you to transmit the signal from an HDMI™ source (DVI, tablet, PC, etc.) to a DisplayPort monitor.

Use a USB port for power supply, thus avoiding the need for an additional power supply.

It has a compact design and is very comfortable to carry with s´ everywhere.

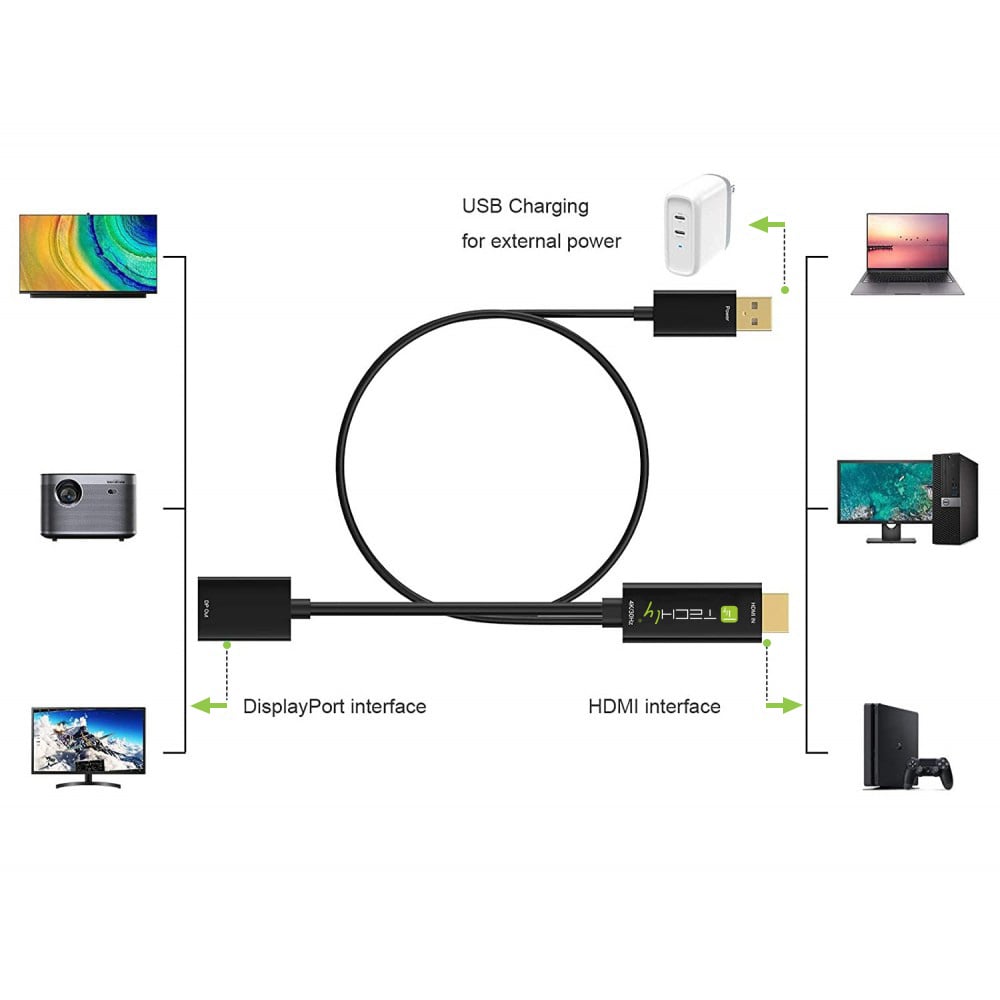

The converter from HDMI & trade; to DP allows you to add a second monitor to the laptop, allowing you to view documents, spreadsheets or web pages on more ù screens.

Thanks to the resolution video 4 K, it gives pleasant sharp and realistic images.



Features

• Supports HDMI & trade; input, DisplayPort output with additional USB-A port for power supply



HDMI:

• Supports deep color 8 / 10 / 12 bit


• Supports HDCP 1.4 / 2.2


• Support HDR


• Supports SCDC


• Supports resolution up to 4 Kx 2 K @ 60 Hz for 4 format : 4 : 4



DisplayPort:

• DP 1.2 to


• Supports resolution up to 4 Kx 2 K at 60 Hz


• Supports speed à 1,62 Gbps (RBR), 2,7 Gbps (HBR) or 5,4 Gbps (HBR 2) data


• Supports resolution up to 4 Kx 2 K @ 60 Hz for 4 format : 4 : 4


• Supports Deep Color to 8 / 10 / 12 bit


• Hot-plug detection support

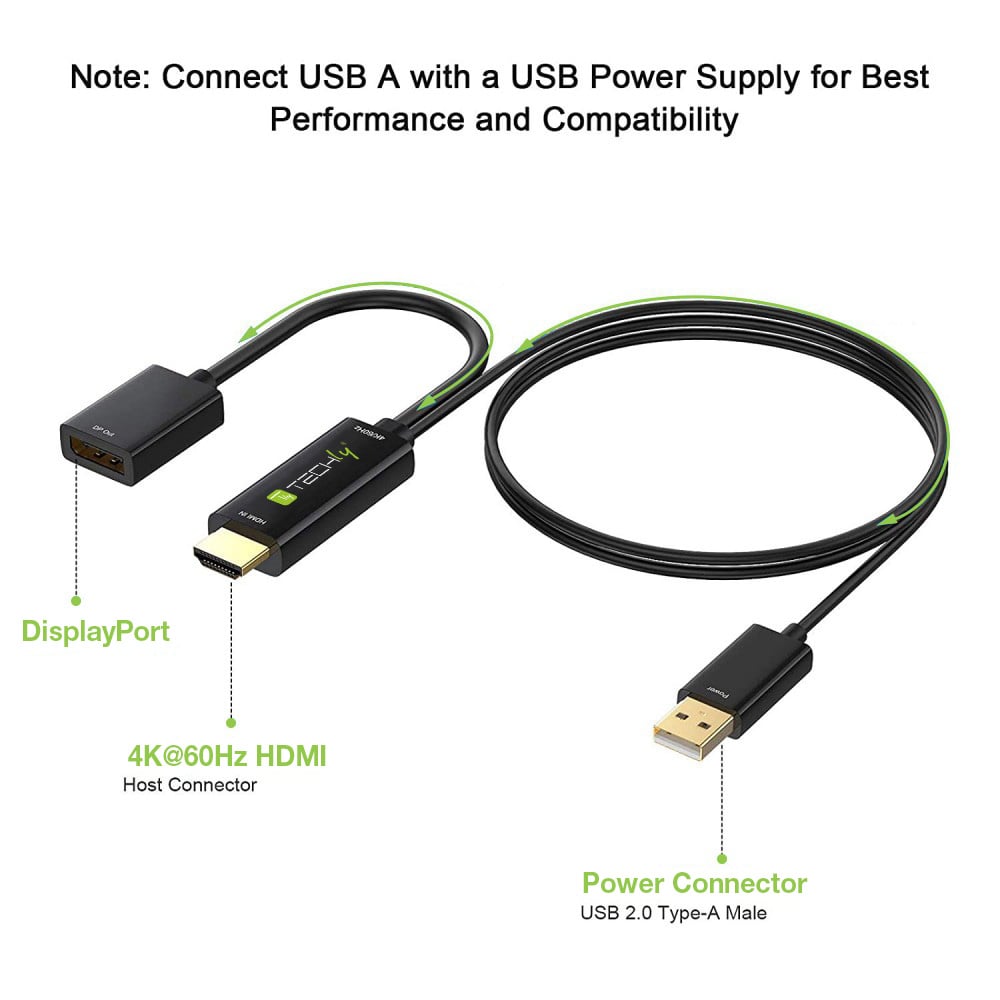

USB-A:

• Connect this port to the source with the female USB-A port or USB power supply to provide power to the converter in case the HDMI source is unable to provide sufficient energy.



Note: When the HDMI source provides less power than 300 mA, connect the external power supply to the female USB-A port to ensure normal operation.



Technical specifications

• male HDMI input


• Exit DisplayPort female


• Supports HDMI resolution up to 4 Kx 2 K @ 60 Hz for 4 format : 4 : 4


• Supports DisplayPort resolution up to 4 Kx 2 K to 60 Hz for 4 format: 4 : 4


• DP 1.2 to



environmental characteristics

• Operating temperature 0 ° C ~ 45 ° C


• Operating humidità 10 % ~ 85 % RH (without condensation)


• Storage temperature - 10 ° C ~ 80 ° C


• Humidità storage 5 % ~ 90 % RH (without condensation)



Certifications

• CE



Package contents

• Adapter from HDMI & trade; to Displayport


• User manual
