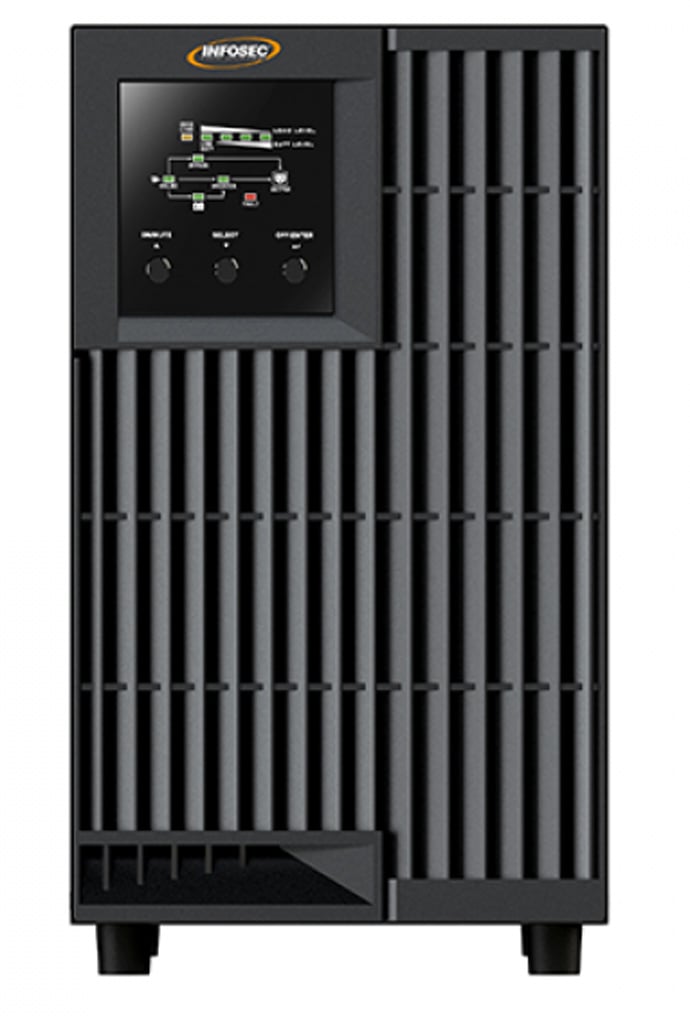

UPS AND 4 VALUE Display LED 3000 VA On Line Double Conversion - Infosec ICUE 4 VALUE 3000

Equipped with the microprocessor-controlled dual conversion technology online, the E 4 VALUE inverter range provides the connected equipment with efficient protection of the electrical network. The E 4 VALUE è range is the cost-effective and reliable solution for low budget essential applications. It comes in power from 1 to 10 kva.

In addition to being equipped with intelligent functions (microprocessor control, mode & agrave; running Eco or cold start), the range E 4 VALUE offers RS 232 communication ports to communicate with various protected devices.

Designed for easy use, the E 4 VALUE inverters offer an LED display that allows for an immediate view of the inverter status from the front panel (on & stop, set the operating mode, etc.).



Technical specifications

• Technology: double online conversion


• Power: 3000 VA


• Power factor: 0,8

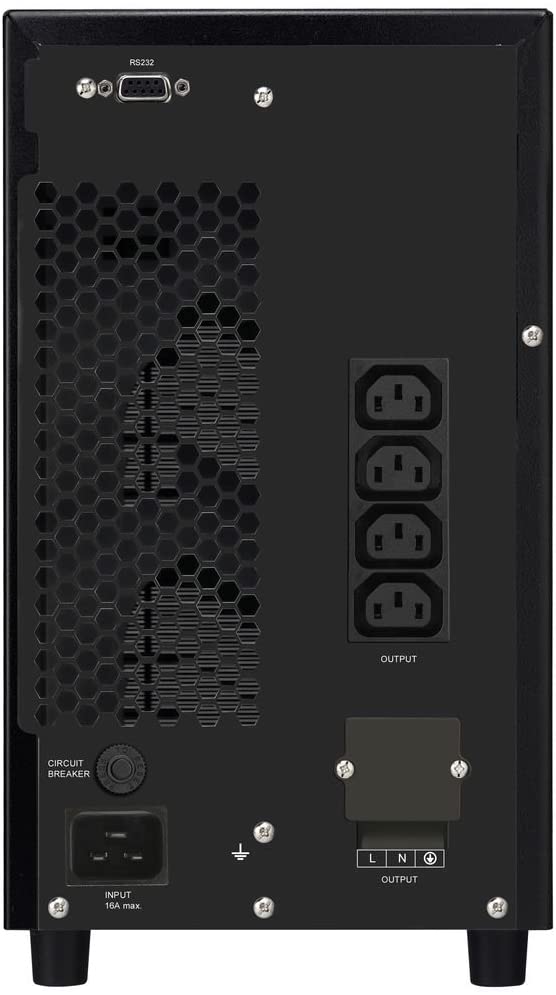

• Number of exits: 4 IEC sockets



Input

• Voltage: [ 100 / 110 / 115 / 120 / 127 VAC] or [ 200 / 208 / 220 / 230 / 240 VAC]


• Frequency: 40 Hz ~ 70 Hz


• Power factor: > 0,99 @ 100 % charge



Output

• Voltage: [ 100 / 110 / 115 / 120 / 127 VAC] or [ 200 / 208 / 220 / 230 / 240 VAC]


• Frequency: 47 ~ 53 Hz or 57 ~ 63 Hz


• Waveform: pure sinusoidal wave



Battery

• Battery type: 12 V / 9 Ah


• Number of batteries: 6


• Charging time: 4 hours at 90 % after full discharge


• Backup time: from 5 to 30 minutes depending on the load connected



Dimensions

• Depthà: 335 mm


• Width: 190 mm


• Height: 421 mm



Certifications

• CE


• RoHS



Package contents

• 1 continuità EUCI 4 VALUE 3000


• 1 input cable


• 2 IEC output cables


• 1 RS cable 232


• 1 USB cable (for models> 3 kVA)


• 1 Infopower software CD


• 1 User manual
