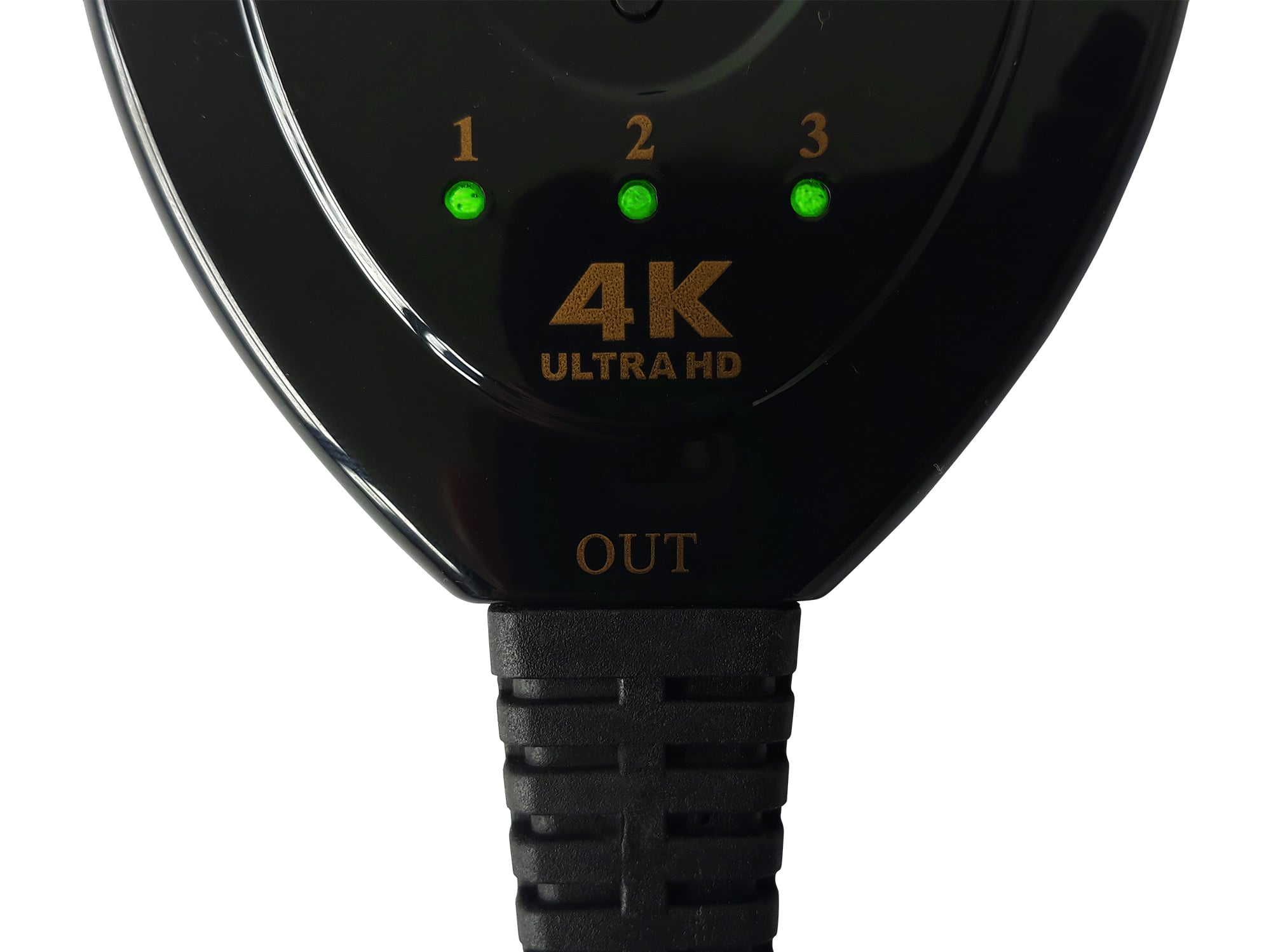

Switch HDMI 3 x 1 Pigtail 4 Kx 2 K 3 In 1 Out Compact - Techly IDATA HDMI- 3 F 30

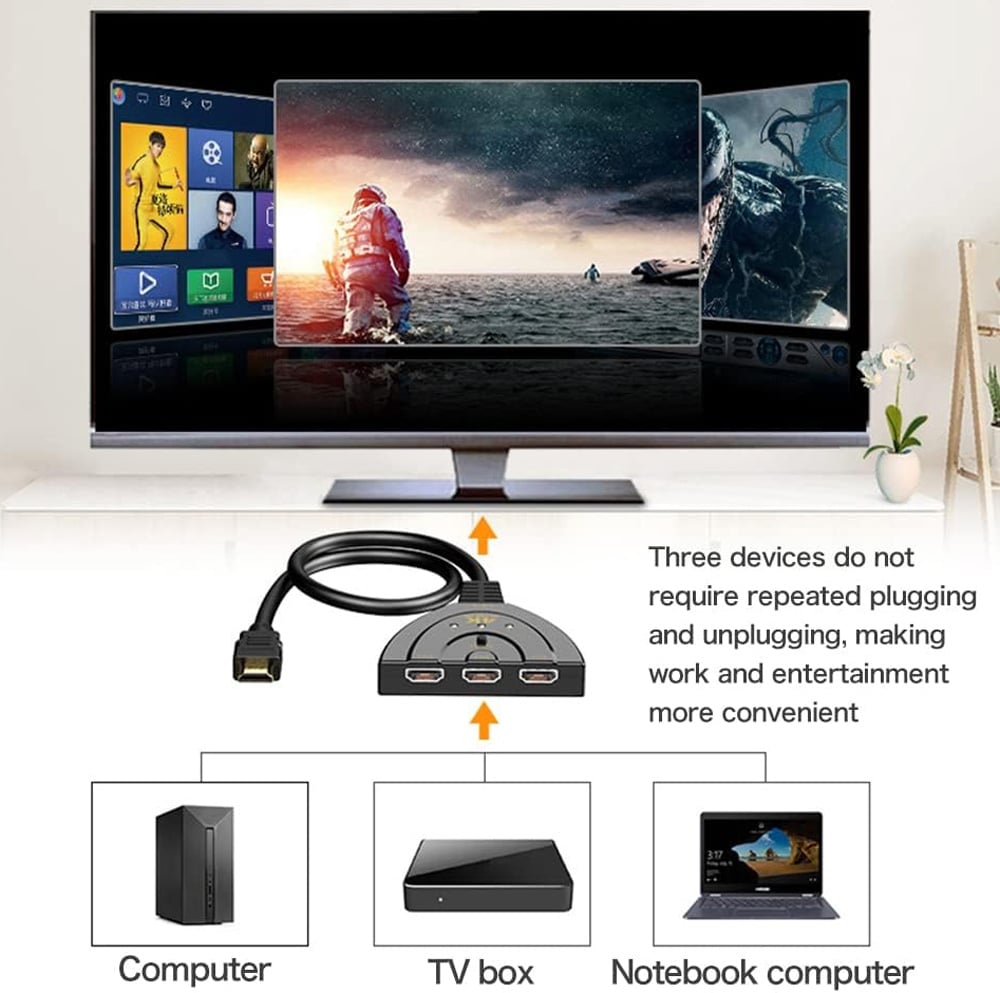

High-performance HD switches can switch three sources on a single screen.

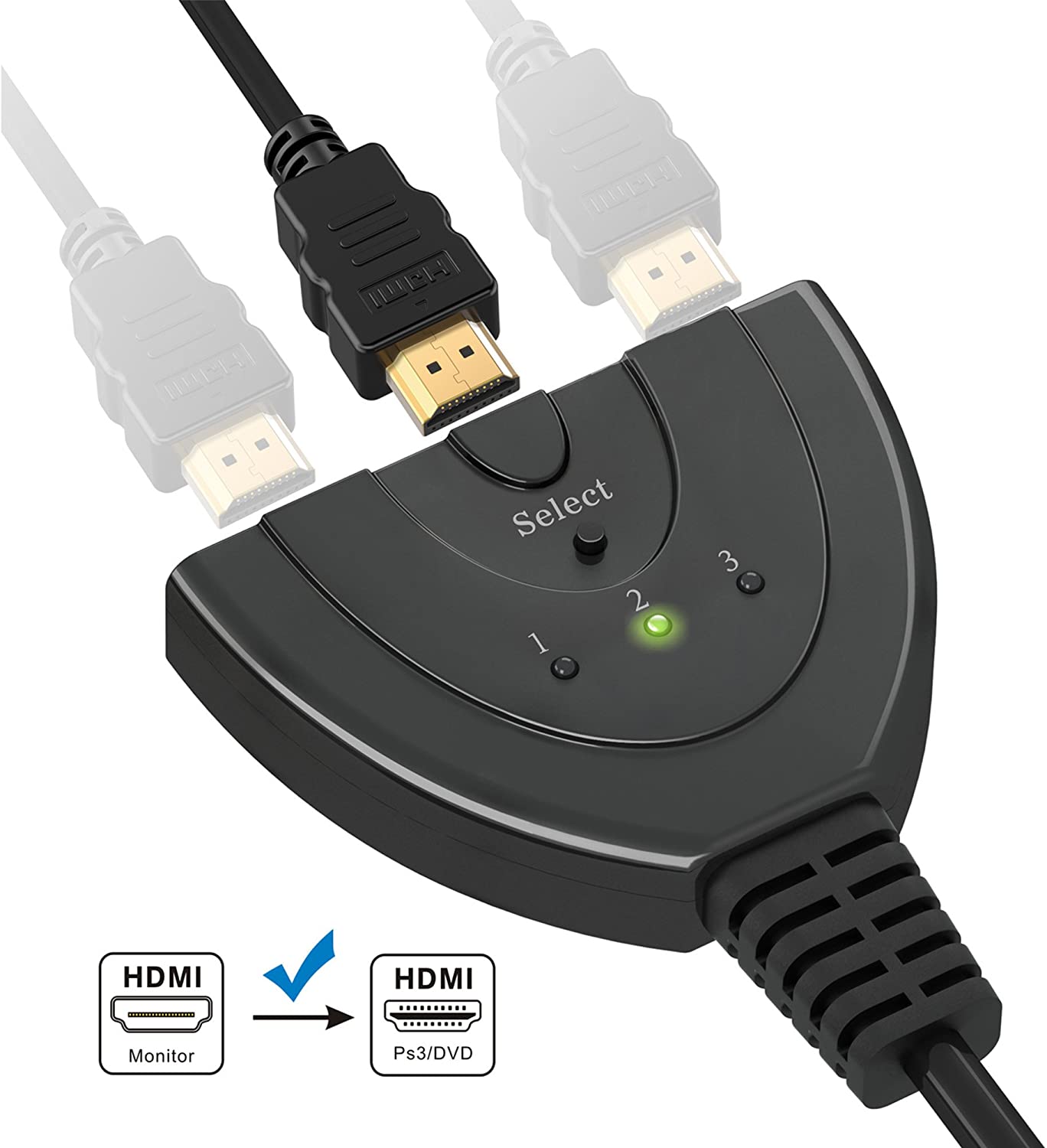

This switching function is not only performed through the pressure of the keys on the device, but also through an intelligent function.

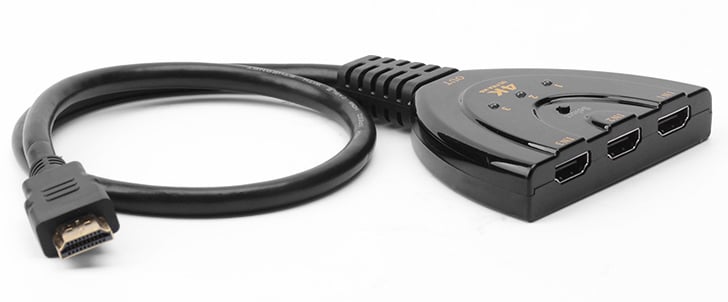

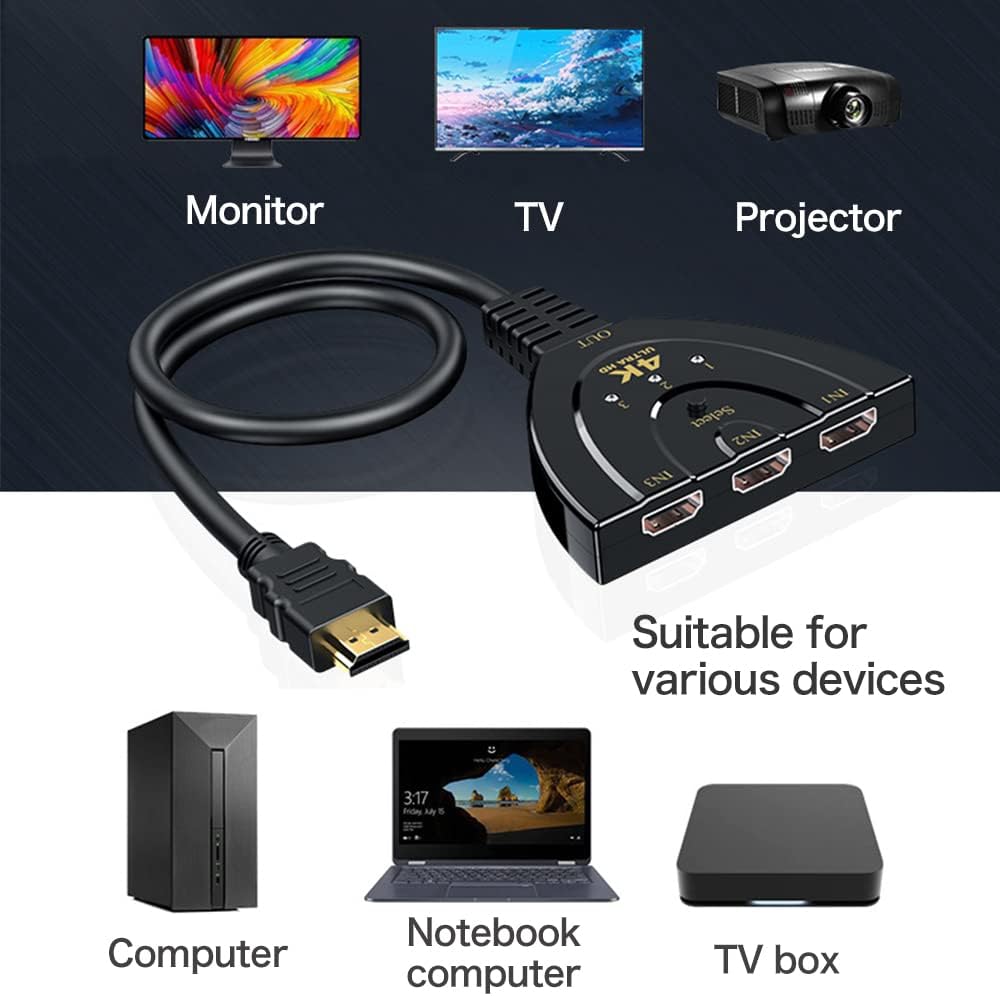

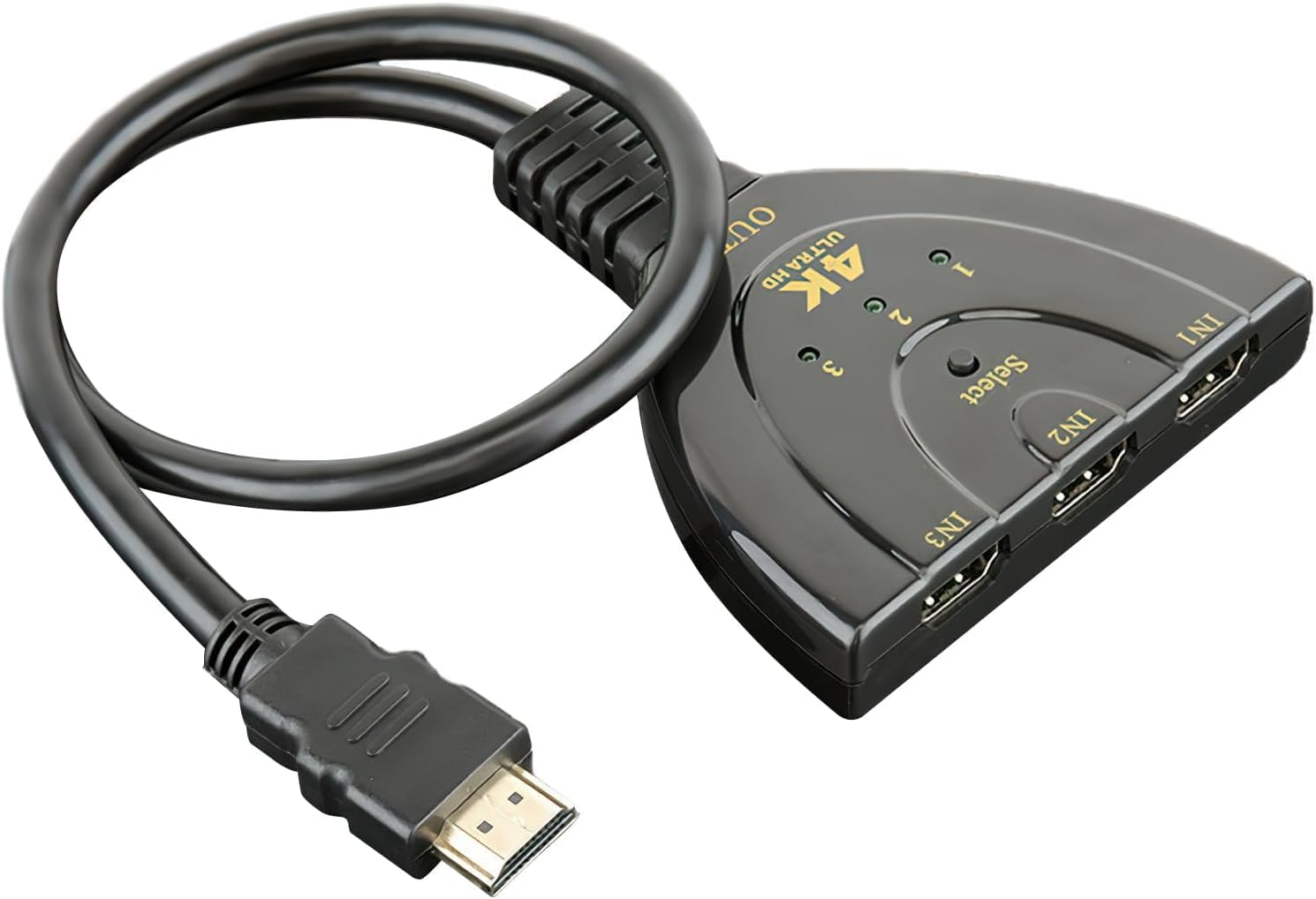

The built-in cable (pigtail) not only reduces costs but also saves users time. High-definition video route (with multiple resolutions up to 4 Kx 2 K to 30 Hz) and digital audio from one of the three high-definition video sources, also compatible with HD-DVD, SKY-STB, PS 3, XBOX, etc. The output sends audio/video signals in high definition to a high-definition monitor.



Features

• Multi-function switching: Intelligent or mechanical


• Supports HDMI 1.4 b


• Supports maximum video resolution up to 4 Kx 2 K@ 30 Hz


• Supports bandwidth of 340 MHz/ 3.4 Gbps per channel (10.2 Gbps all channels)


• Supports deep color 12 bits per channel (36 bits all channels)


• HDCP pass-through


• Supports uncompressed audio like LPCM


• Supports compressed audio like DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)



Input and output signal

• DDC signal input 5 volts p-p (TTL)


• Maximum Single Link range 4 Kx 2 K@ 30 Hz


• Video output HDMI 1.4 b



Operating frequency

• Video frequency range 50 / 60 Hz


• Video bandwidth 3.4 Gbps/ 340 MHz



Resolution (HDTV)

• Interlaced (50 & 60 Hz) 4 Kx 2 K


• Progressive (50 & 60 Hz) 4 Kx 2 K



Environmental features

• Operating temperature from 0 °C to + 70 °C


• Humidità operating from 10 % to 85 % (without condensation)


• Storage temperature from 5 % to 90 % RH (without condensation)



Package contents

• HDMI Switch & trade; 3 x 1 Pigtail


• User manual
