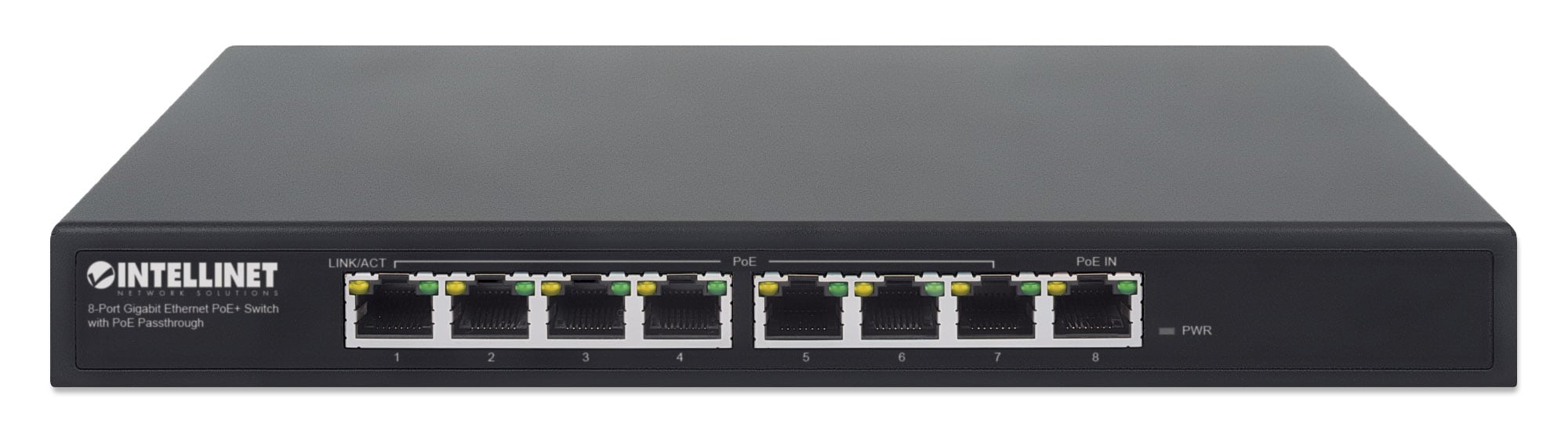

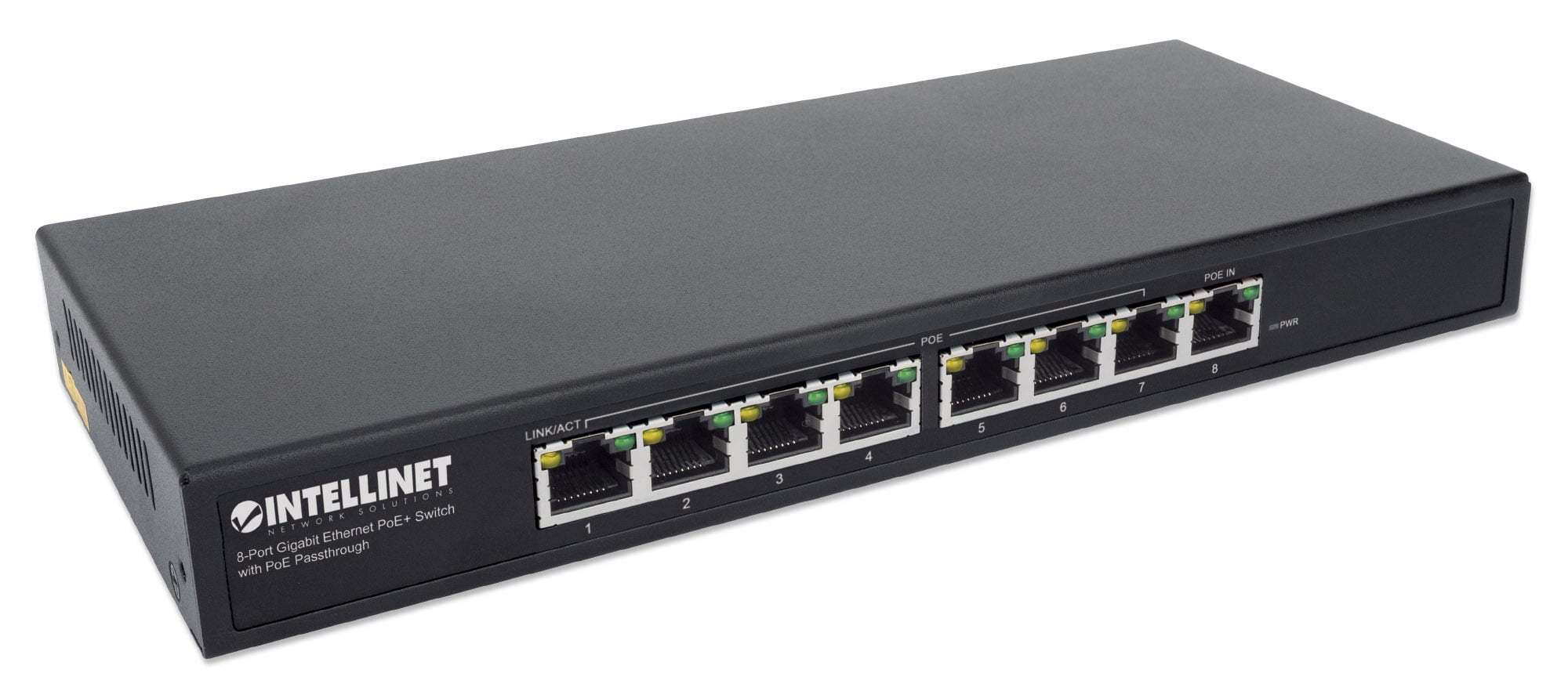

PoE+ Gigabit Ethernet Switch with 8 ports and PoE passthrough - Intellinet I-SWHUB 90W7POE

• Supports up to 90 W of input power from a PoE injector or switch


• Provides power and data to up to seven PoE network devices


• Doubles the connection distance between the PoE source and the device from 100 m to 200 m


• PoE power budget of 85 W with input power of 90 W via IEEE 802.3bt connection


• PoE power budget of 20 W via IEEE 802.3at connection and 10 W via IEEE 802.3af connection


• Powered only via PoE


• Allows reducing installation costs by transmitting data and power over existing network cables


• Compatible with IEEE 802.3at/af RJ45 PoE/PoE+ on output ports


• Output power up to 30 watts per port

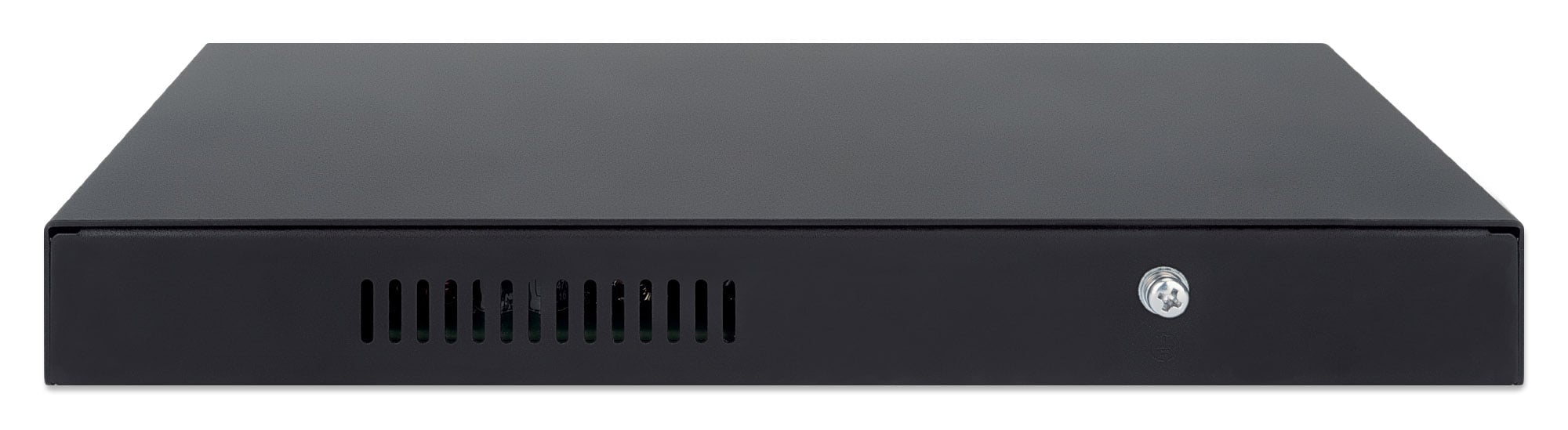

• Grounding point to protect equipment from external electrical surges


• Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (wireless access points, VoIP phones, IP cameras)


• Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection


• Automatic speed detection of ports 10/100/1000 Mbps


• Switch fabric of 16 Gbps


• Energy-saving technology allows unused ports to be disabled and adjusts power levels according to cable length


• All RJ45 ports support Auto-MDIX (auto uplink)


• Supports 2k MAC address entries with auto-learning and automatic aging


• Store and forward switching architecture


• Supports IEEE 802.3x for flow control on full duplex and backpressure on half duplex


• LEDs for power, link/activity, and PoE


• Fanless design ideal for silent operation



Standards

• IEEE 802.3i (10Base-T Ethernet)


• IEEE 802.3u (100Base-TX Fast Ethernet)


• IEEE 802.3ab (Twisted-pair Gigabit Ethernet)


• IEEE 802.3af (Power over Ethernet 802.3at Type 1)


• IEEE 802.3at (Power over Ethernet 802.3at Type 2)


• IEEE 802.3bt (Ultra PoE Power over Ethernet)


• IEEE 802.3az (Energy Efficient Ethernet [EEE])


• IEEE 802.3x (flow control for full-duplex mode)



General information

• Media support:



- 10Base-T Cat5e UTP/STP RJ45, 8 pin

- 100Base-TX Cat5e UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

• Packet filter/forwarding rate:



- 1,488,000 pps (1,000 Mbps)

- 148,800 pps (100 Mbps)

- 14,880 pps (10 Mbps)

• MAC address table: 2.000 entries


• Backplane speed: 16 Gbps


• Switch architecture: store and forward


• Certifications: FCC Class B, CE, RoHS



LED

• PoE


• Power


• Activity/Connection



Input port pinout RJ45:

- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 4: DC (+)

- Pin 5: DC (+)

- Pin 6: DC (+)

- Pin 7: DC (-)

- Pin 8: DC (-)



Output port pinout RJ45:

- Pin 1: DC (-)

- Pin 2: DC (-)

- Pin 3: DC (+)

- Pin 6: DC (+)



Power

• Via PD port (port 8)



- Input: compliant with IEEE802.3af/at/bt

- PoE Budget: 85 watt (maximum)

- Input: 48 - 57 V DC; up to 90 watt

- Output: 44-57 V DC; up to 30 watt per port

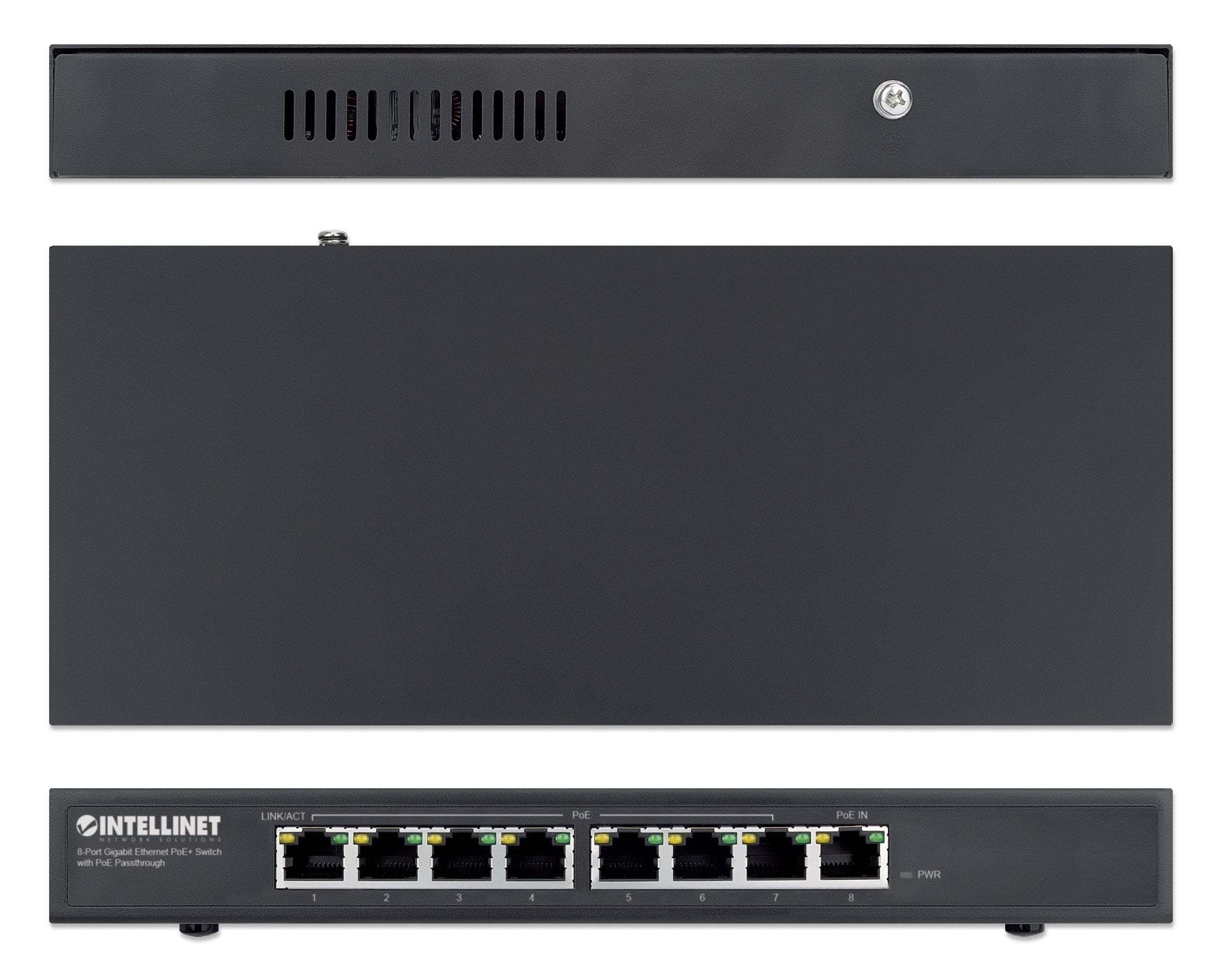

Physical information

• Metal housing


• Dimensions: 104 x 240 x 29 mm


• Weight: 660 g


• Operating temperature: 0 - 40 °C


• Storage temperature: -20 - 70 °C


• Operating humidity: 10 - 90% relative humidity, non-condensing


• Storage humidity: 5 - 95% relative humidity, non-condensing



Package contents

• 8-port PoE+ Gigabit Ethernet switch with PoE passthrough


• Instructions
