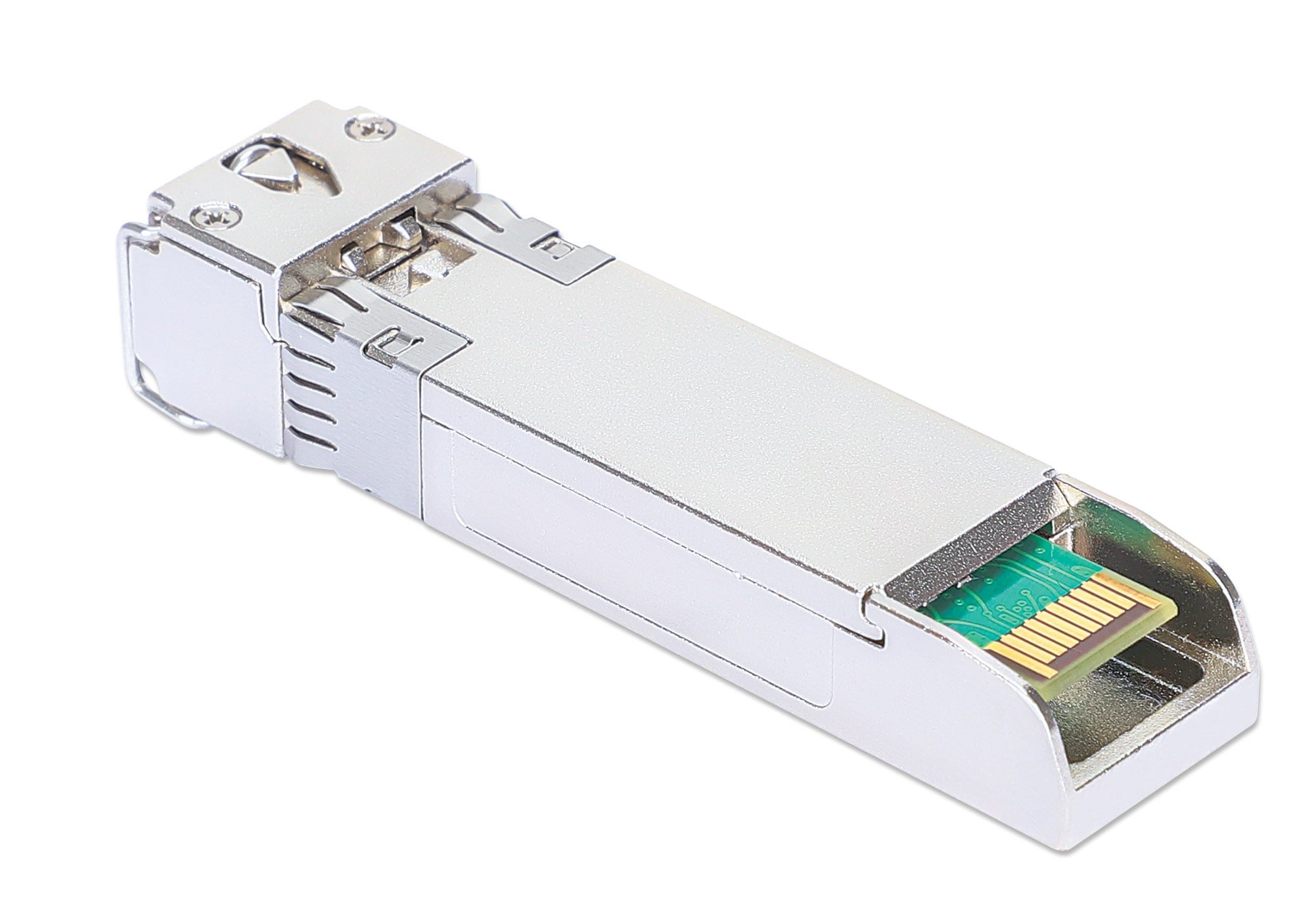

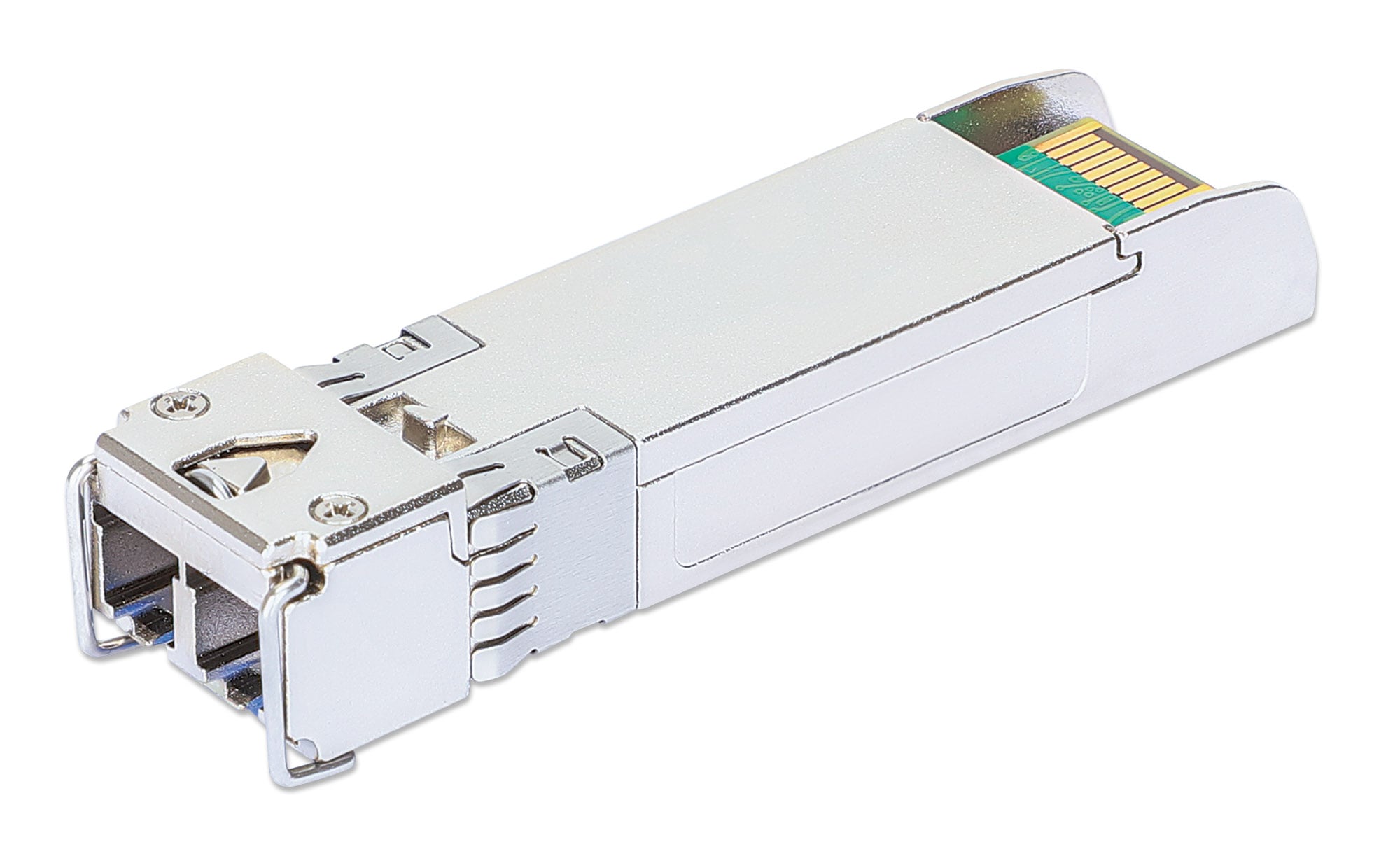

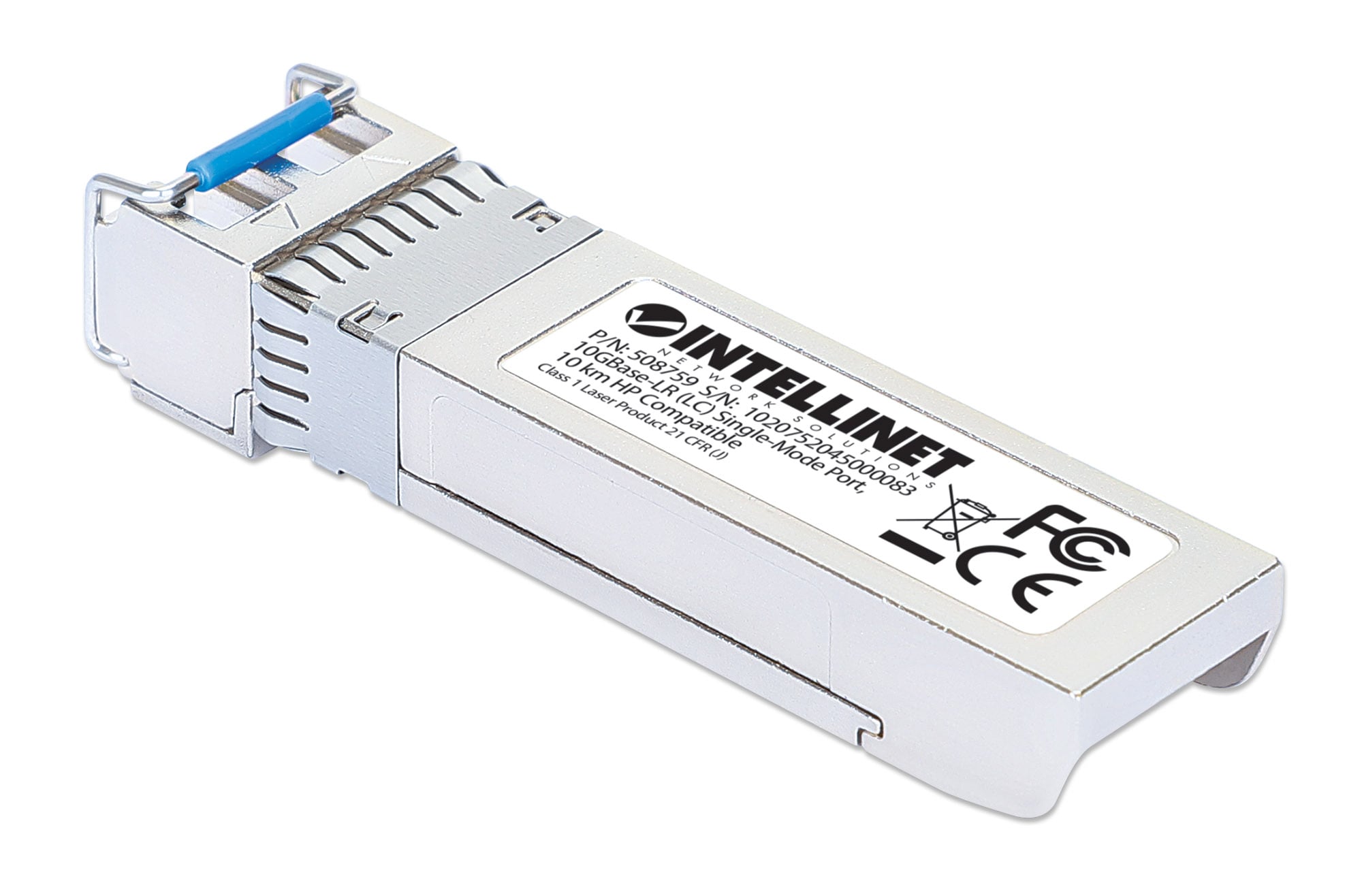

Transceiver 10 Gigabit Optical Fiber LC Duplex SFP+ - Intellinet I-TX-MGBIC10GSH

€50.43
Tax included €41.30 excl. VAT

SFP+ module 10GBase-LR for single-mode fiber 9/125 µm with LC duplex connector. Supports distances up to 10 km with wavelength 1310 nm and DDM diagnostics.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Compatible with HPE (Hewlett Packard Enterprise) switches and routers

  • Data transfer speed: 10 Gbps

  • One 10GBase-LR single-mode fiber LC duplex port

  • Supported fiber distance: up to 10 km

  • Wavelength: 1310 nm

  • Equivalent to HPE J9151A / J9151D / JD094A / JD094B transceiver

  • Standard SFP+ form factor

  • Supports Digital Diagnostic Monitoring (DDM)

  • Reduced electromagnetic interference thanks to metal housing

  • Supports hot-plugging



Standard

  • IEEE 802.3z (Gigabit Fiber Optic)

  • IEEE 802.3ae (Fiber optic 10 Gigabit Ethernet)



General

  • Media support: 10GBase-LR single-mode fiber

  • Connection: LC duplex fiber optic port

  • Distance: 10 km with 9/125 µm cable

  • Wavelength: 1310 nm

  • Fiber optic power:


- Maximum TX power: 0 dB

- Minimum TX power: -5 dB

- Sensitivity: -13 dB

- Power budget: 8 dB

  • Design: SFP+ (enhanced small form-factor plug-in)

  • SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers



Certifications

  • FCC Class B,

  • CE

  • IEC-60825

  • RoHS



Power

  • Required power: 3.3 V

  • Power consumption: 1.0 Watt (maximum)



Dimensions

  • Width: 57 mm

  • Depth: 14 mm

  • Height: 12 mm

  • Weight: 20 g



Environmental Features

  • Operating temperature: 0 – 70°C

  • Operating humidity: 10 – 85% RH, non-condensing

  • Storage temperature: -40 – 85°C



Package contents

  • Transceiver Module 10 Gigabit Fiber Optic SFP+

  • Brand
  • Reference
    I-TX-MGBIC10GSH
  • In stock
    6 Items
  • EAN13
    0766623508759
