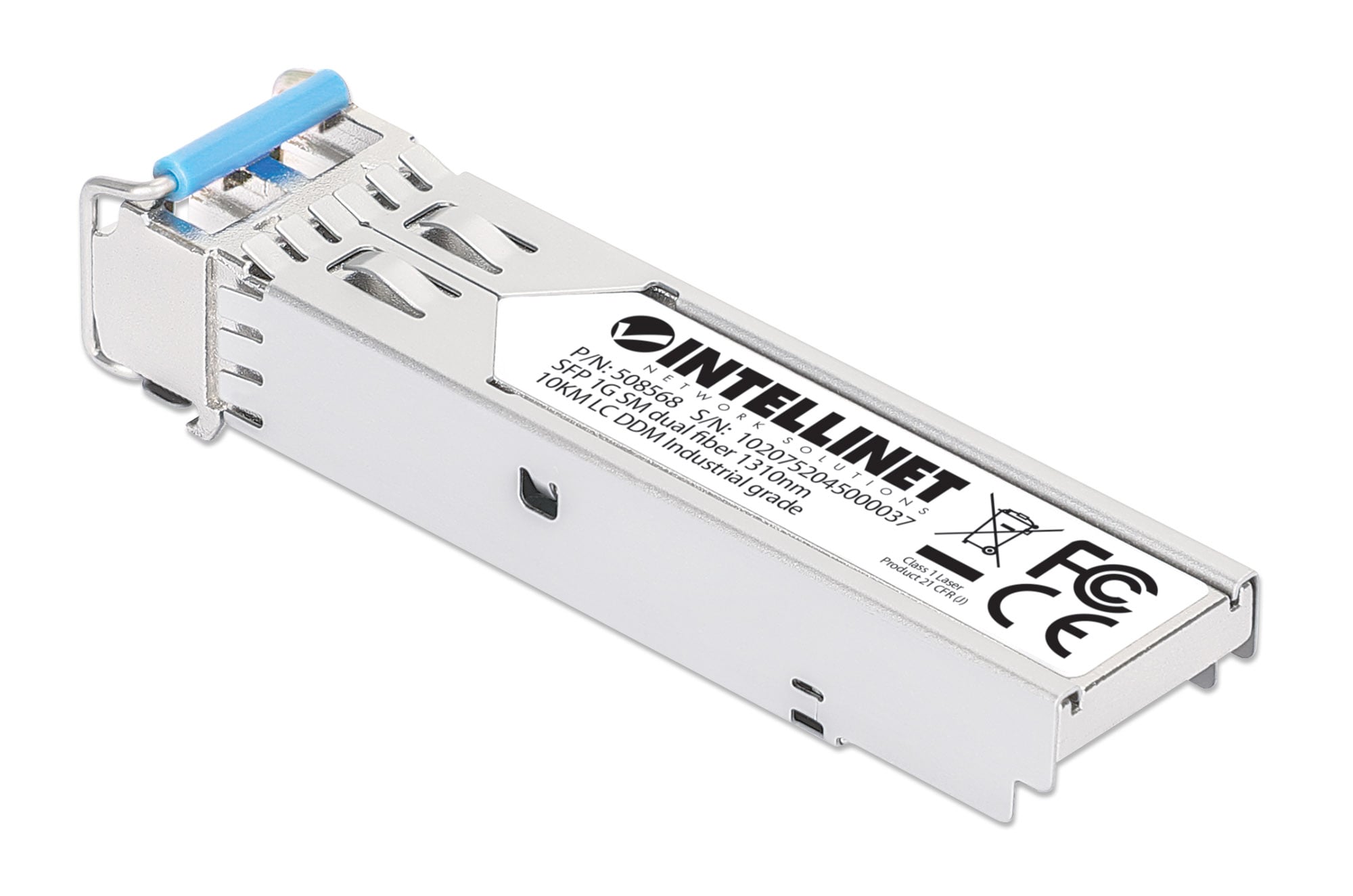

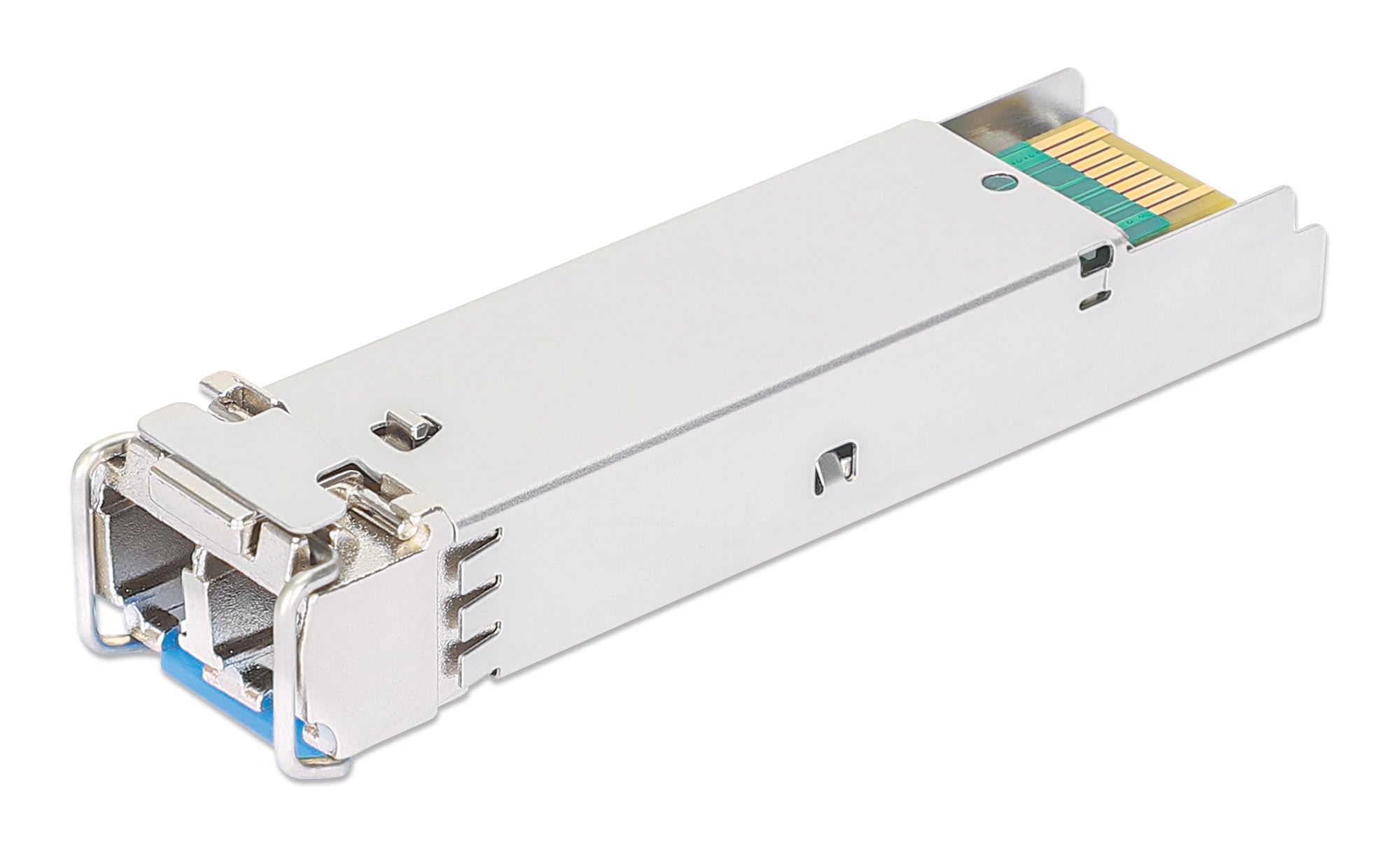

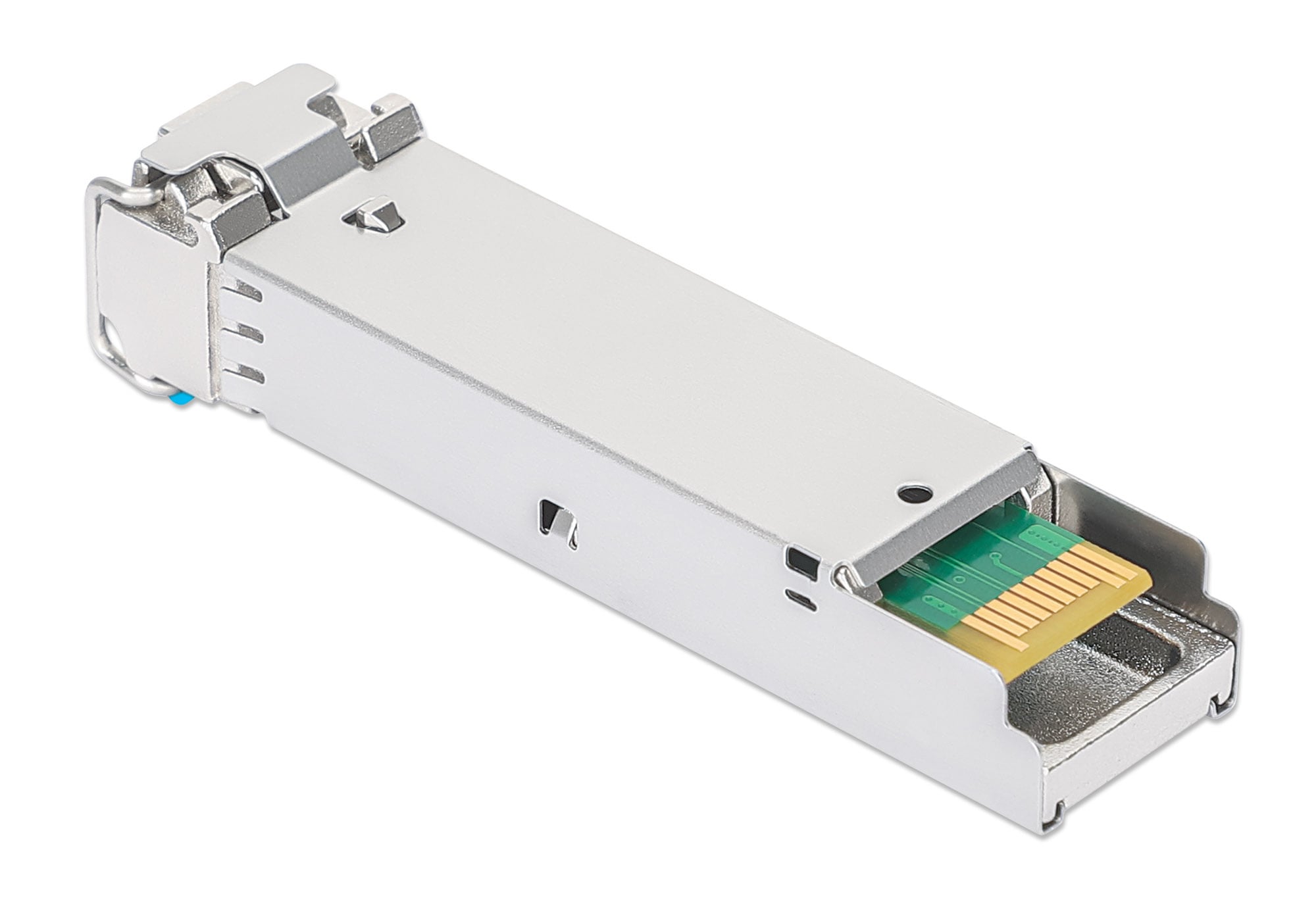

- Compliant with MSA for compatibility with major switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and others (see specifications)
- Data transfer rate: 1000 Mbps
- One 1000Base-LX single-mode LC duplex fiber port
- Supported fiber distance: up to 10 km
- Wavelength: 1310 nm
- Equivalent to the Cisco GLC-LH-SM transceiver
- Standard SFP form factor
- Supports Digital Diagnostic Monitoring (DDM)
- Wide operating temperature: -40 - 75 °C
- Reduced electromagnetic interference thanks to metal housing
- Supports hot-plugging
Standard- IEEE 802.3z (Gigabit Fiber Optic)
General- Supports: 1000Base-LX single-mode fiber 9/125 µm
- Connector: LC duplex fiber port, 1000Base-LX
- Distance: 10 km
- Wavelength: 1310 nm
- Fiber optic power
- Maximum transmission power: -3 dB
- Minimum transmission power: -9 dB
- Sensitivity: -20 dB
- Power budget: 11 dB
- Design: SFP (small form factor pluggable)
- Certifications: FCC Class B, CE, RoHS
Compatible brands- Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and others
Power- Required power: 3.3 V
- Power consumption: 1.0 Watt (maximum)
Physical Features- Dimensions (L x W x H): 57 x 14 x 12 mm
- Weight: 20 g
Environmental- Storage temperature: -40 to 85°C
- Operating temperature: -40 to 75°C
- Operating humidity: 5 – 95% RH, non-condensing
Package contents- Industrial Gigabit fiber SFP optical transceiver module
