- Compliant with MSA for compatibility with major switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and others (see specifications)
- Must be used with the Gigabit fiber bidirectional WDM SFP optical transceiver module, model Intellinet 508582 or model Cisco GLC-BX40-U
- Data transfer rate: 1000 Mbps
- One single-mode fiber LC port 1000Base-BX
- Fiber distance support up to 40 km
- WDM (Wavelength Division Multiplexing) technology uses a single fiber optic link for data transmission on distinct wavelengths for transmission and reception
- Wavelengths: reception (RX), 1310 nm; transmission (TX), 1550 nm
- Equivalent to Cisco GLC-BX40-D transceiver
- Standard SFP form factor
- Supports Digital Diagnostic Monitoring (DDM)
- Reduced electromagnetic interference thanks to metal housing
- Supports hot-plugging
Standard- IEEE 802.3z (Gigabit Fiber Optic)
General- Media support: single-mode fiber 1000Base-BX 9/125 µm
- Connector: LC fiber port, 1000Base-BX
- Distance: 40 km (25 mi.)
Wavelengths:
- Reception (RX): 1310 nm
- Transmission (TX): 1550 nm
- Maximum TX power: 0 dB
- Minimum TX power: -5 dB
- Sensitivity: -24 dB
- Design: SFP (small form factor pluggable)
- Certifications: FCC Class A, CE, RoHS
Power- Required power: 3.3 V
- Power consumption: 1.0 Watt (maximum)
Environmental- Dimensions (L x W x H): 57 x 14 x 12 mm
- Weight: 20 g
- Operating temperature: 0 – 70°C
- Operating humidity: 10 – 85% RH, non-condensing
- Storage temperature: -40 – 85°C

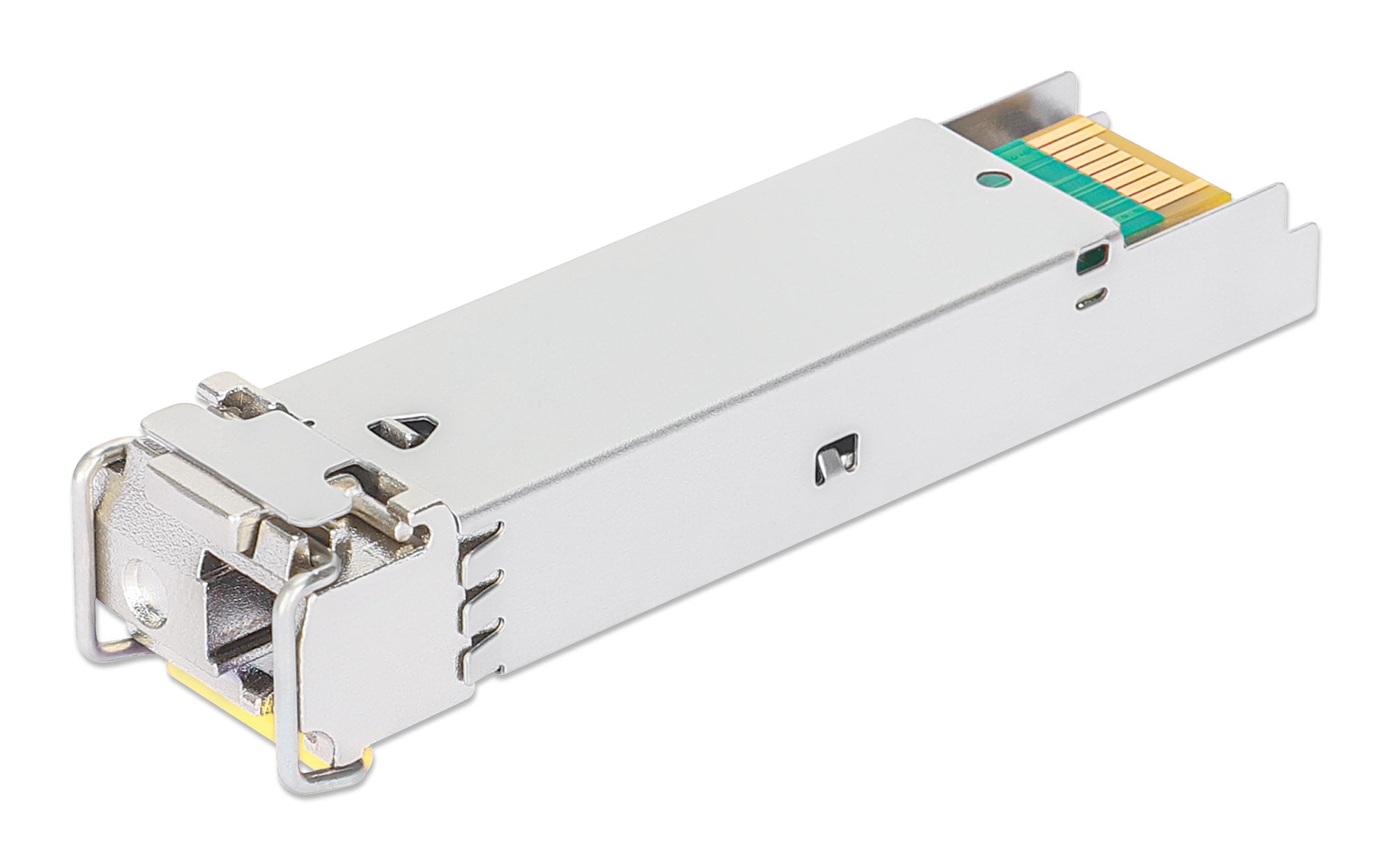

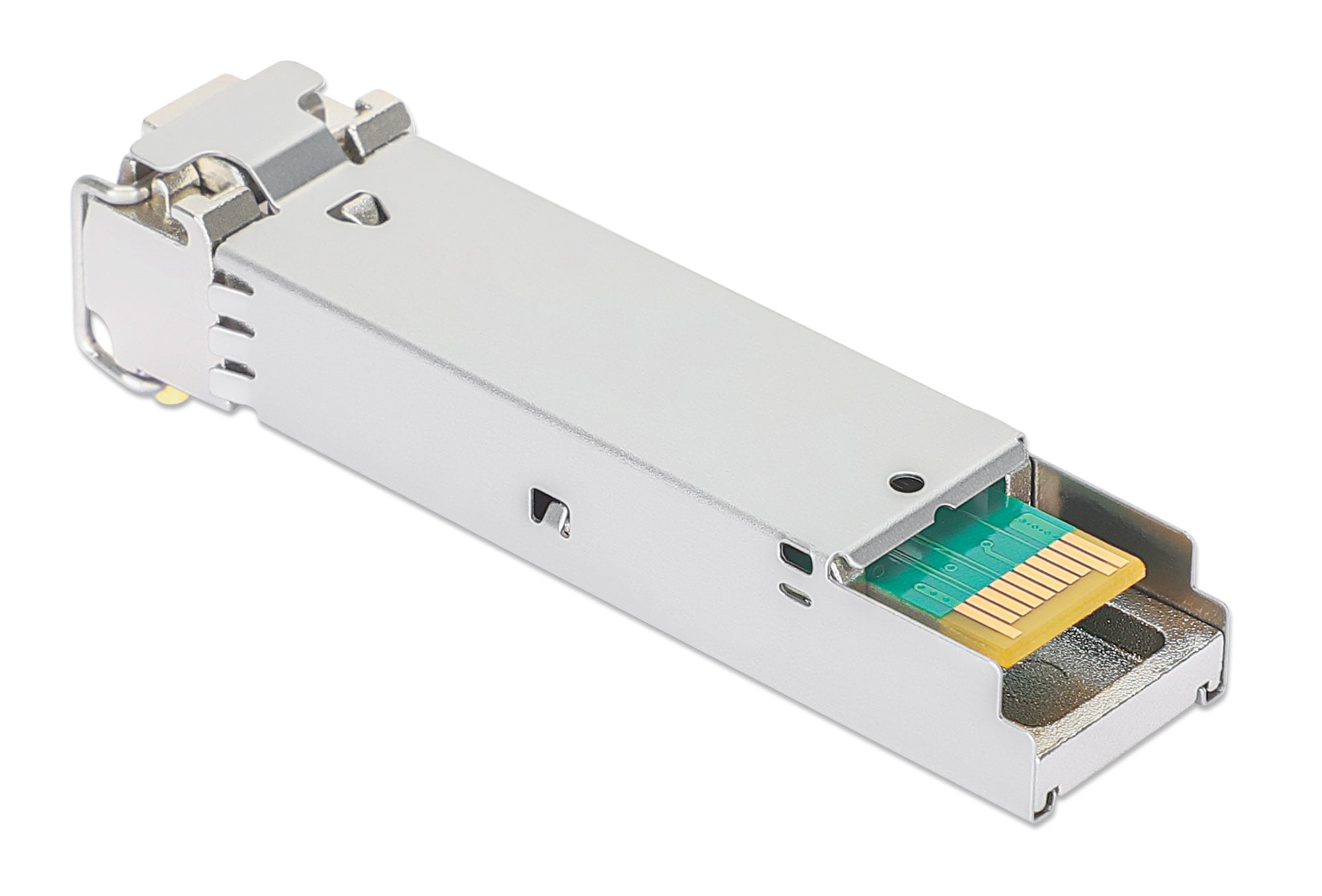

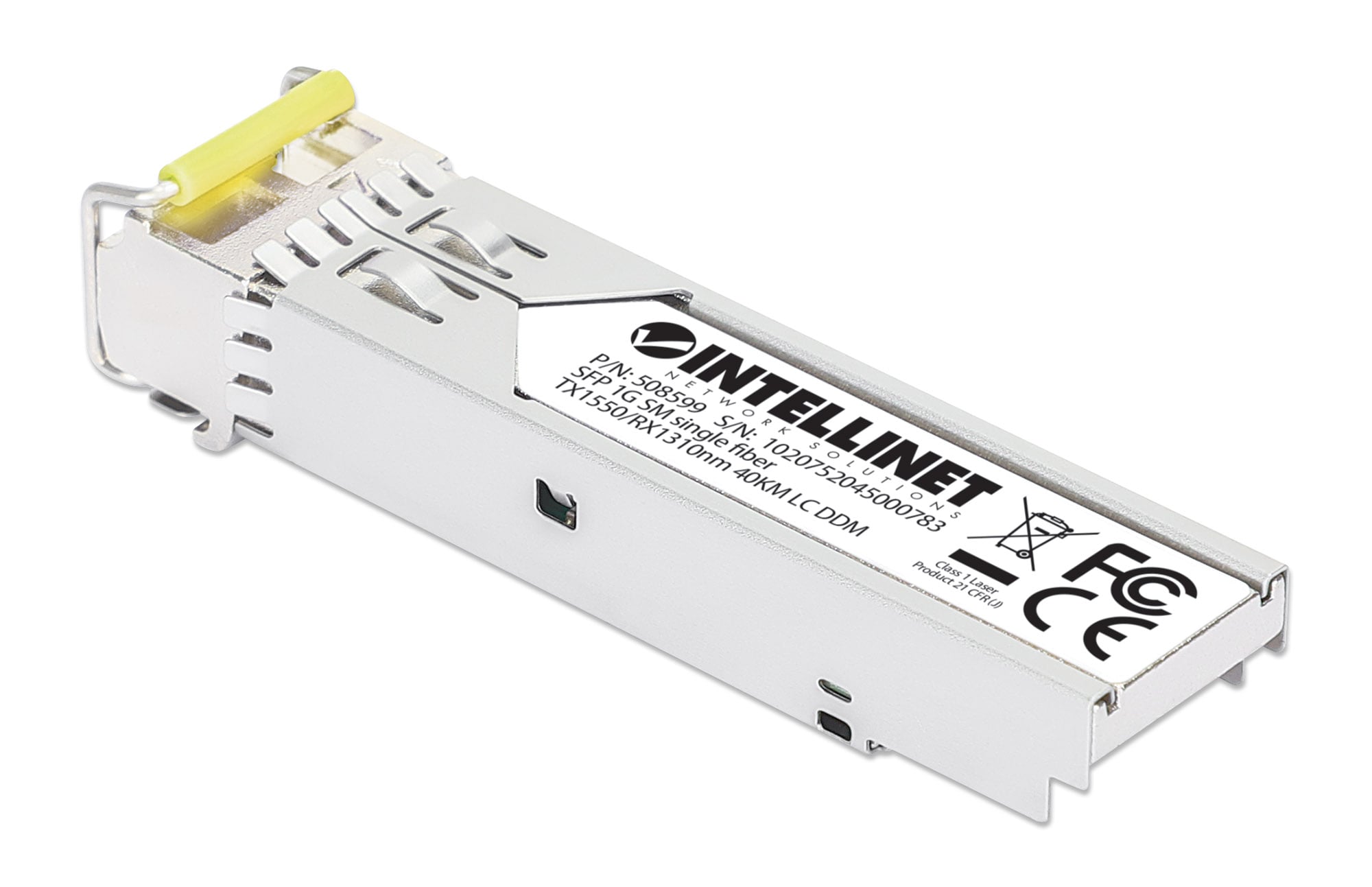

Package contents- Gigabit WDM Bi-Directional SFP Fiber Optic Transceiver Module
