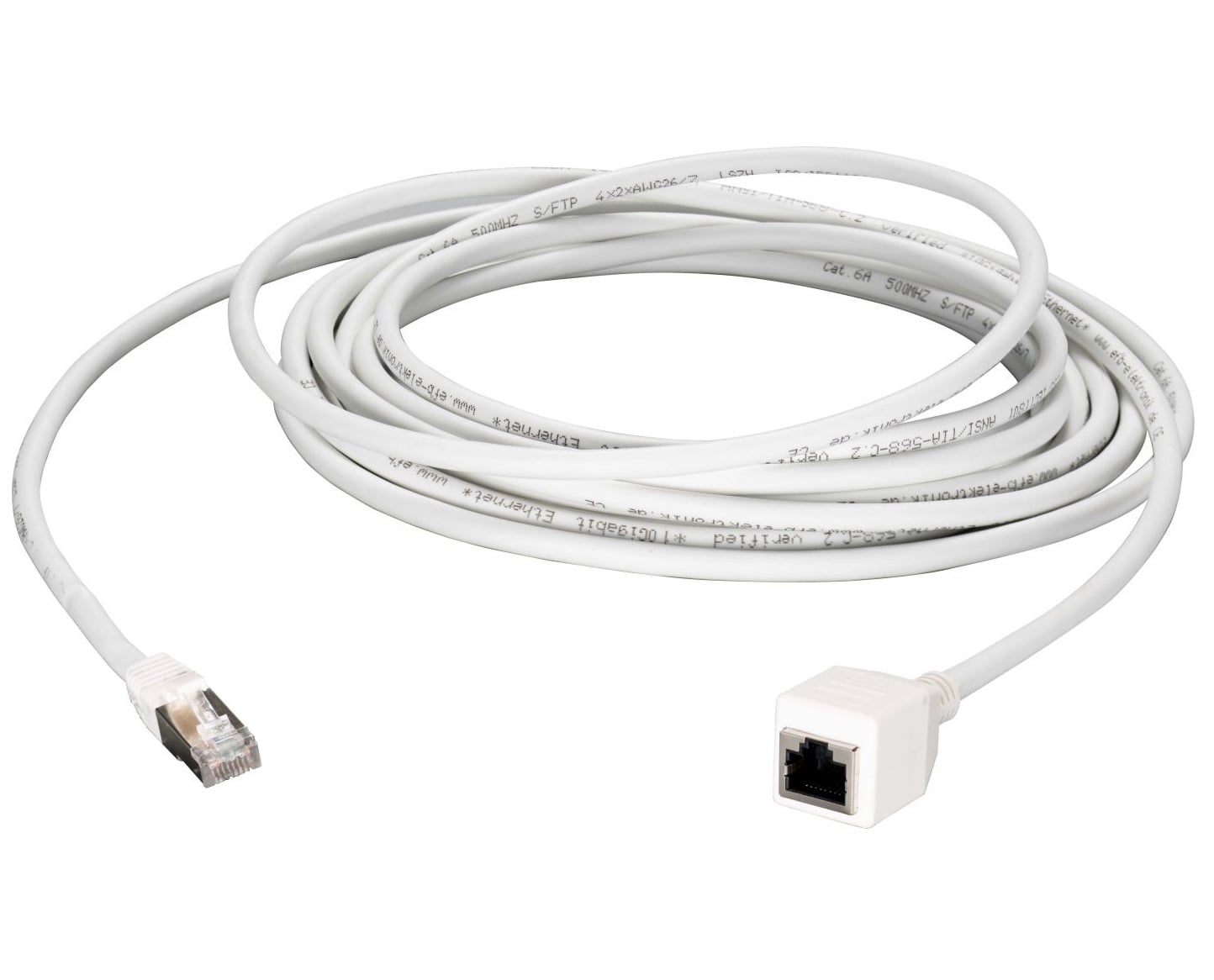

Patch cable RJ 45 by Extension Cat 6 A S/FTP AWG 26 3 m White - ICOC F 6 A- 030 -EXT

Extension patch cable RJ 45 shielded Cat. 6 A for transmissions based on ISO 11801 standard up to 10 Gbit/s.

This cable extends è useful when you are having to connect devices in a room where there was già installed a patch cable, but there is a situation where the patch cable present is no longer sufficient to cover the required length (può occur in case of room/office shift or remodeling). Instead of replacing the entire patch cable (cost-effective solution) è sufficient to connect the patch cable extension RJ 45 of the right length to get to the final device.

In addition, the short version of the patch cable extension can be used to protect device connections. Especially in the home office, with a high frequency of mounting and disassembly of various devices, such as notebooks, the è socket strongly and continuously stressed. This can be solved by interposing the extension of the patch cable, so that the plugging of the extension cable is pushed and not the device is not taken.

The patch cable extension RJ 45 Cat. 6 A can ` be used with any conventional device with RJ 45 interface, such as computers, notebooks, DSL modems, routers, switches, game consoles, televisions and much more.



Features

• Category: 6 A (TIA)

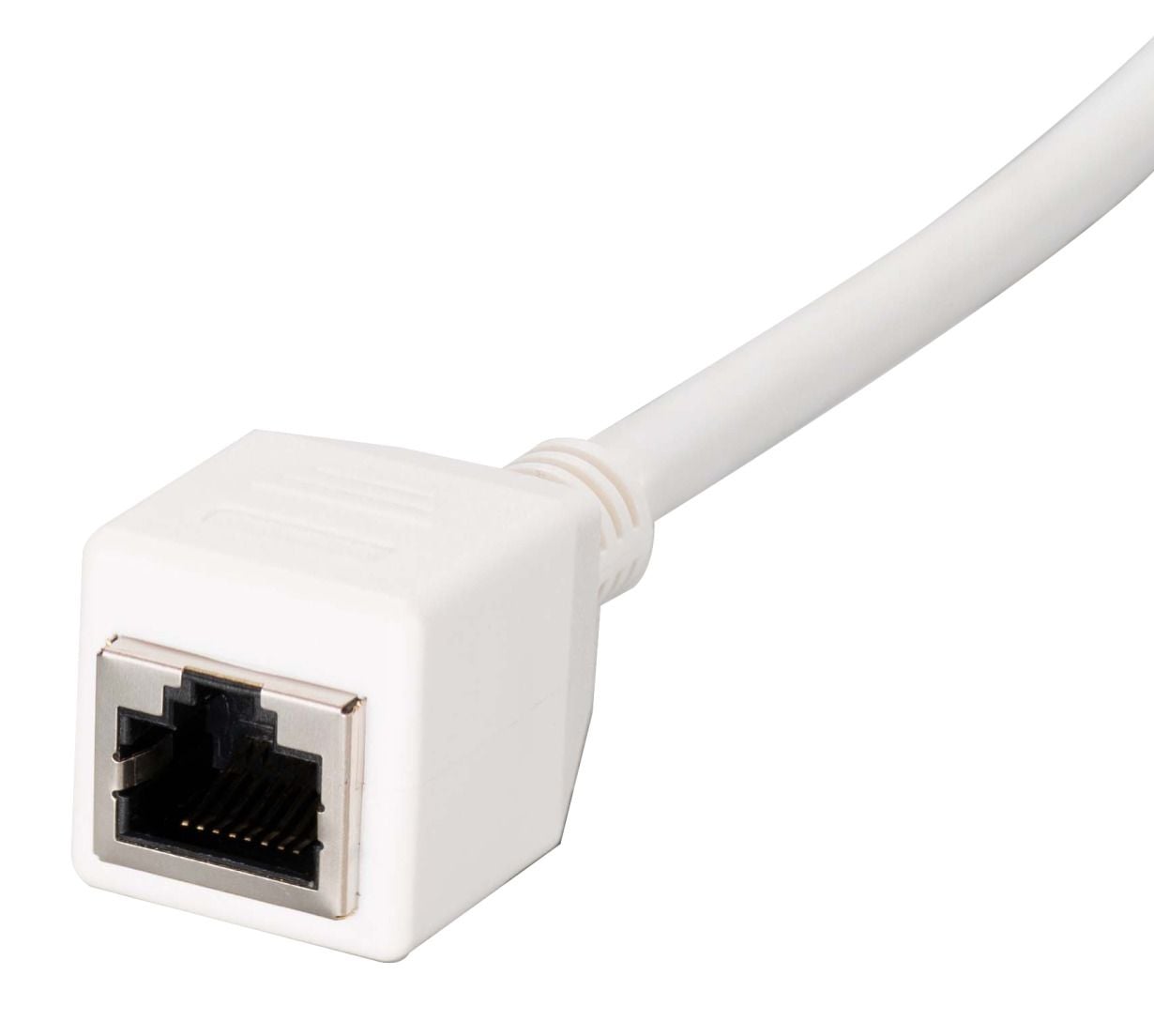

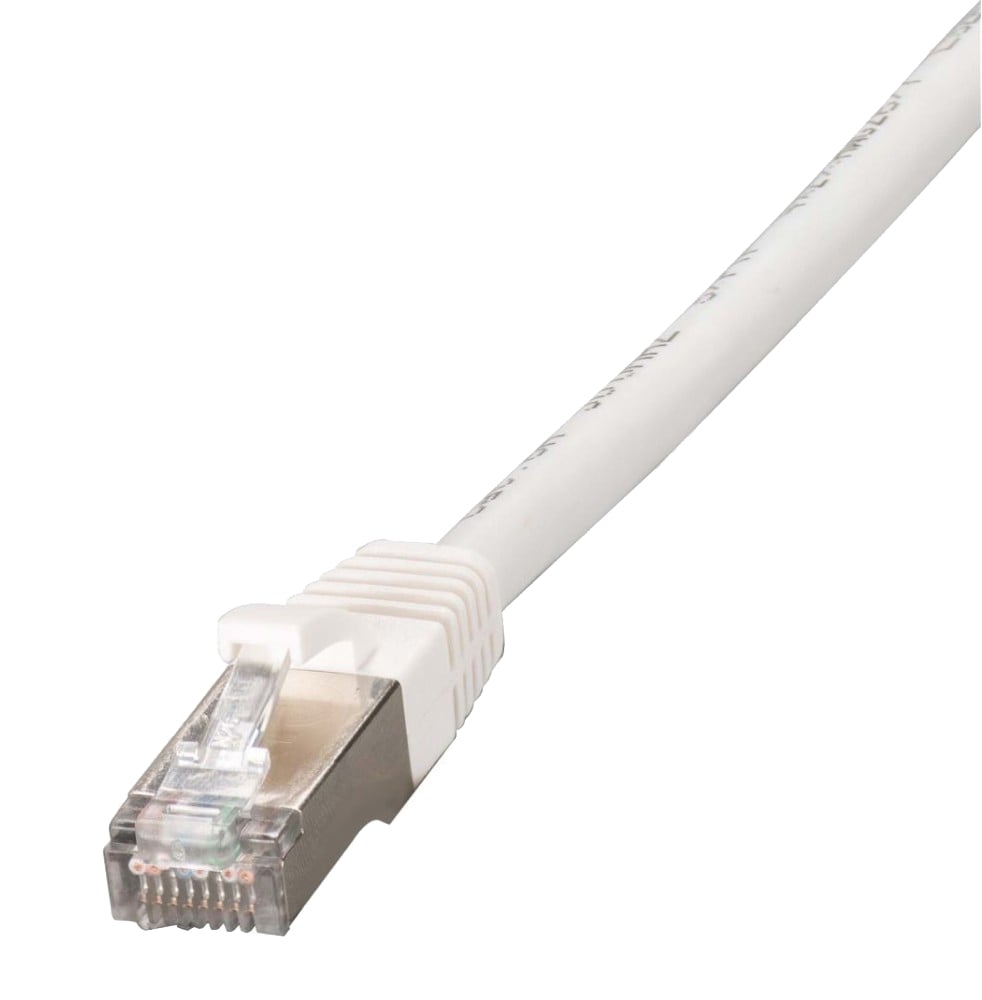

• Connectors: 1 x 1 RJ 45 8 ( 8) male and 1 x 1 RJ 45 8 ( 8) female

• Contacts: gold plated 3 µ

• Assignment Pin 1 : 1

• Allocation: TIA/EIA 568 B

• Shielded cable

• Folding protection: moulded

• Folding protection color: white

• Locking lever

• Length: 3 meters (tolerance ± 5 %)


Mechanical characteristics

• Coupling cycles: 750

• Conductive screen: selected screen contact

• Raw cable: Cat. 6 A

• Cable structure: S/FTP

• Cable construction: 4 x 2

• Measure AWG: 26 / 7

• Conductive material: Copper

• Sheath material: LSZH

• Outer sheath color: white

• External diameter of cable: 6,2 mm


Environmental information

• Operating temperature: from - 15 to 60 °C

• Storage temperature: - 20 to 75 °C


Electrical characteristics

• Insulation resistance 10 MΩ

• Contact resistance 30 mΩ

• POE class: classPoE acc. to IEEE 802.3 af;PoE+ acc. to IEEE 802.3 at; 4 PPOE acc. to IEEE 802.3 bt


Transmission characteristics

• Bandwidth: 500 MHz

• Velocità transmission: 10 Gbit; 2.5 Gbit; 5 Gbit

• Wiring standard: ISO/IEC 11801 ;ANSI/TIA- 568 -B. 2 ;EN 50173

• Connector: IEC 60603 - 7 - 51


Certifications

• CE

• RoHS


Package contents

• Ethernet extension cable Cat. 6 A 3 meters
