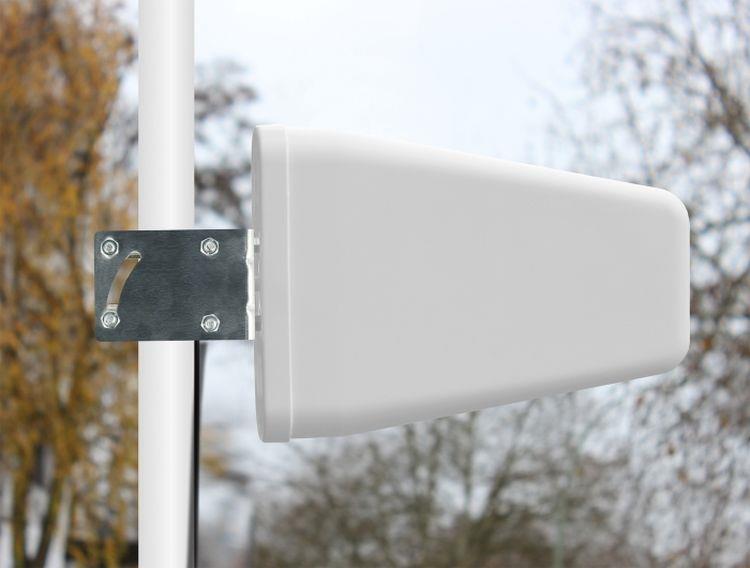

I-WL2-ANT79O is an LTE antenna that allows the use of various LTE bands indoors and outdoors.
It is fully compatible with GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT and Z-Wave.
Technical specifications- Connector: 1 x SMA plug
- Frequency range: 698 - 960 MHz, 1710 - 2700 MHz
- GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
- Antenna gain: 7 - 9 dBi
- Polarization: vertical
- Horizontal beam angle: 90°
- Vertical beam angle: 60°
- Impedance: 50 Ohm
- ROS: 2.0
- Operating temperature: -40 °C ~ 60 °C
- Housing material: UV-resistant ABS
- Color: white
- Dimensions (LxWxH): approx. 290 x 210 x 65 mm
- Cable type: coaxial
- Cable type: RG-58
- Cable color: black
- Cable attenuation: 0,5 dB at 800 MHz per meter
- Cable diameter: approx. 5 mm
- Cable length incl. connectors: approx. 5 m
System requirements- Device with a free SMA jack
Package contents- LTE antenna

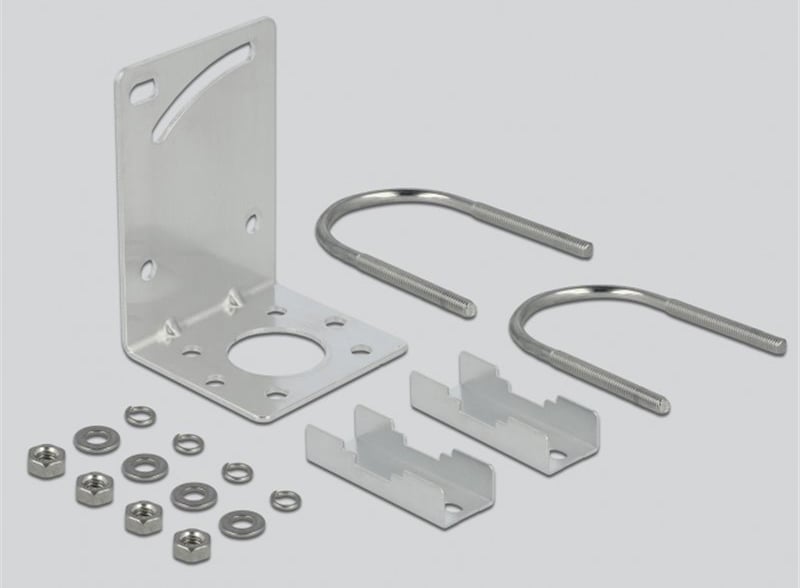

- Pole mount kit
