CPE wireless 5.8 GHz 300 Mbps 15 dBi point-to-point - Techly I-WL-CPE 530

•

• CPE from 5.8 GHz and 300 Mbps designed for surveillance and data transmission for long distance wireless networks

• With dual polarization directional MIMO antenna from 15 dBi integrated, up to 3 km distance for PTP/PTmP

• Supports point-to-point and point-to-multipoint applications for long-distance wireless data transmission

• Supports modeà Wireless AP and Repeater operation

• Supports passive PoE to 24 V, easy to install even without power supply nearby

• Intelligent Dynamic Polling Protocol TDMA, supports ATPC, IPv 6


Features

•

• Frequency: 5 GHz

• Velocità maximum: 300 Mbps

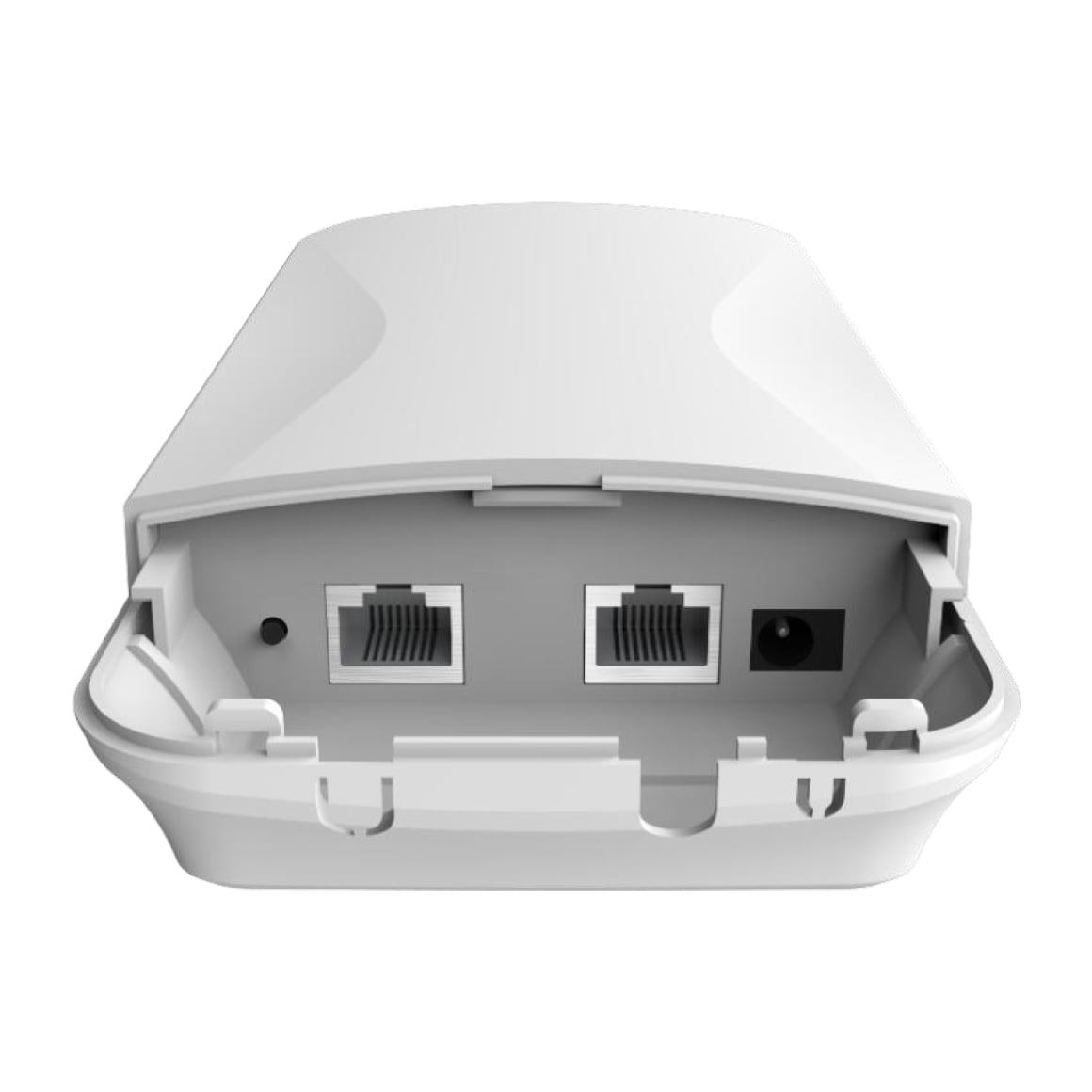

• Interface: 1 door WAN+PoE 10 / 100 Mbps RJ 45 , 1 door LAN 10 / 100 Mbps RJ 45 , 1 door for DC injector, 1 hanging/reset button

• Antenna: antenna panel 15 dBi MIMO integrated

• Modelità Power: DC or PoE Liabilities

• Standard and WiFi protocol 5 G: IEEE 802.11 a/n/ac

• Maximum consumption: < 8 W

• LED indicators: SYS, WAN, LAN, 5 G WIFI, 4 x signal

• Chipset AR 9344


Dimensions

•

• Height: 168 mm

• Width: 68 mm

• Depthà: 42,5 mm


Environmental features

•

• Operating temperature: - 20 °C / 55 °C

• Storage temperature: - 40 °C / 70 °C

• Humidità relative: 5 - 95 % without condensation


Certifications

•

• CE

• RAEE


Package contents

•

• Unità EPC

• PoE passive injector 24 V 12 W

• Cable LAN 1 m

• Fasteners

• User manual
