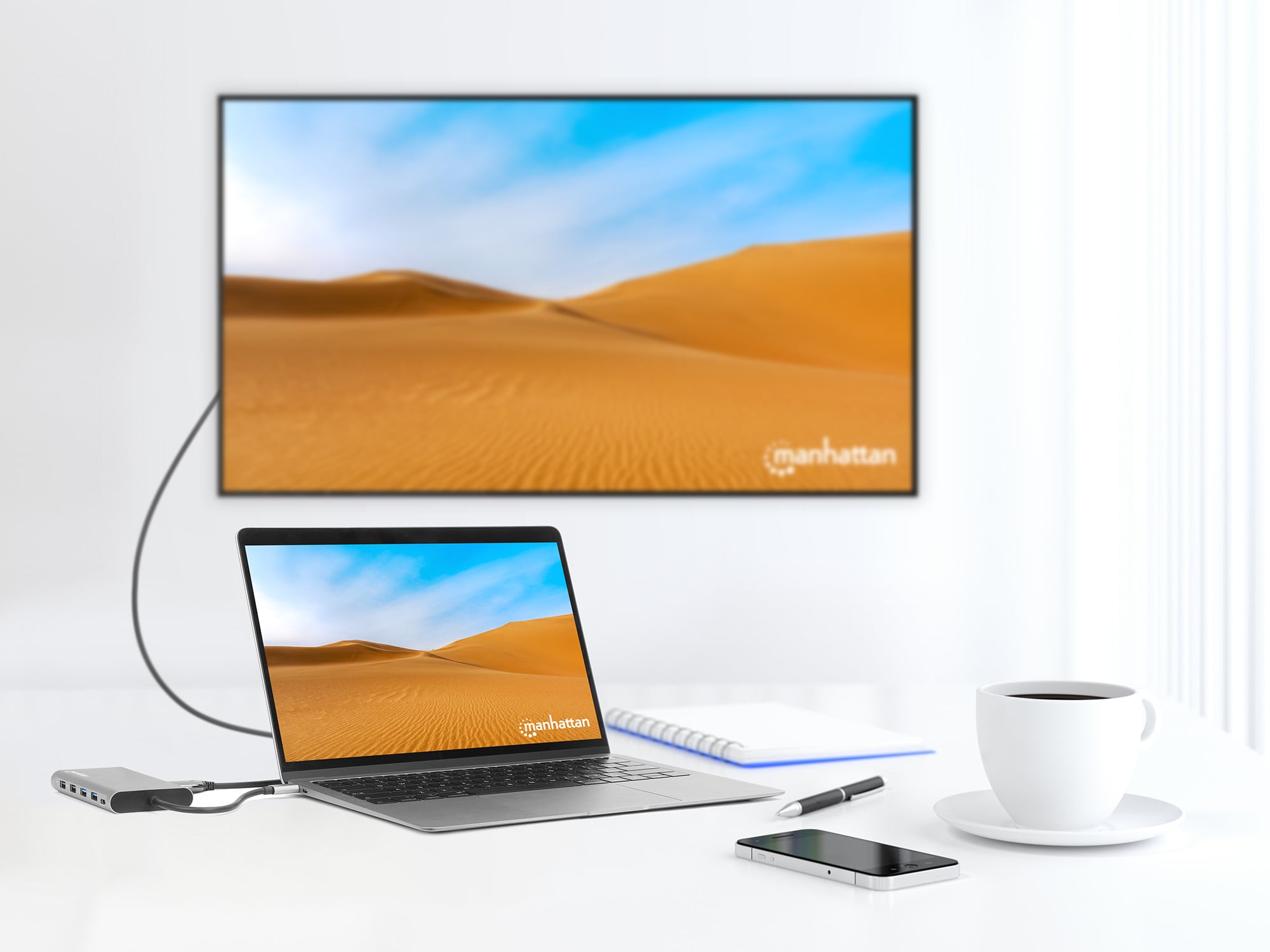

- Create a multi-screen setup, charge your devices and connect all your peripherals

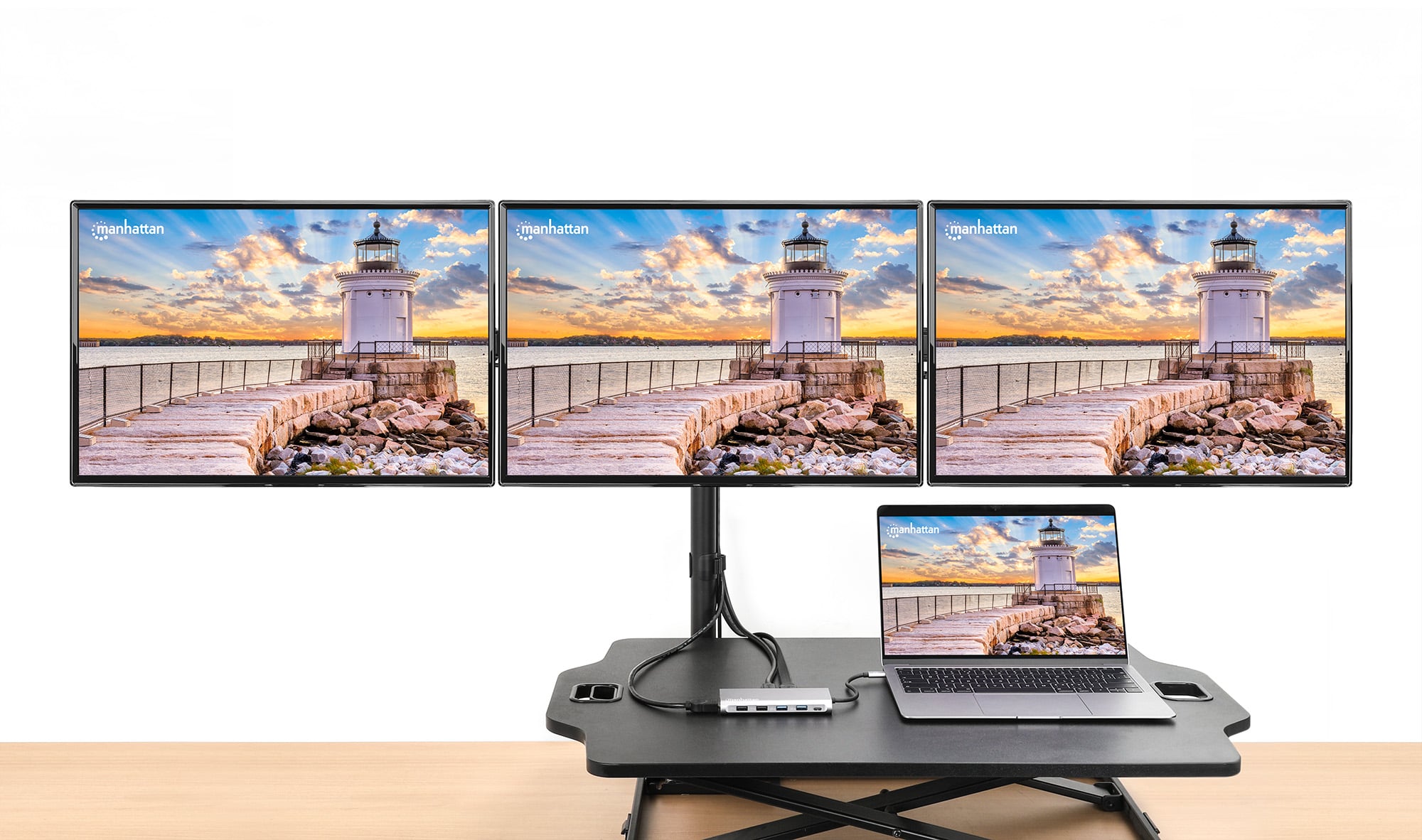

- Supports resolution for single video output up to 4K@60Hz, dual video output up to 4K@30Hz or triple video output up to 1080p@60Hz
- Uses Multi-Stream Transport (MST) for display modes on Windows® (Mirror or Fully Extended) and Mac® (Mirror or Extended Mirror only)
- One Gigabit Ethernet port (10/100/1000) for faster downloads, multimedia streaming and gaming

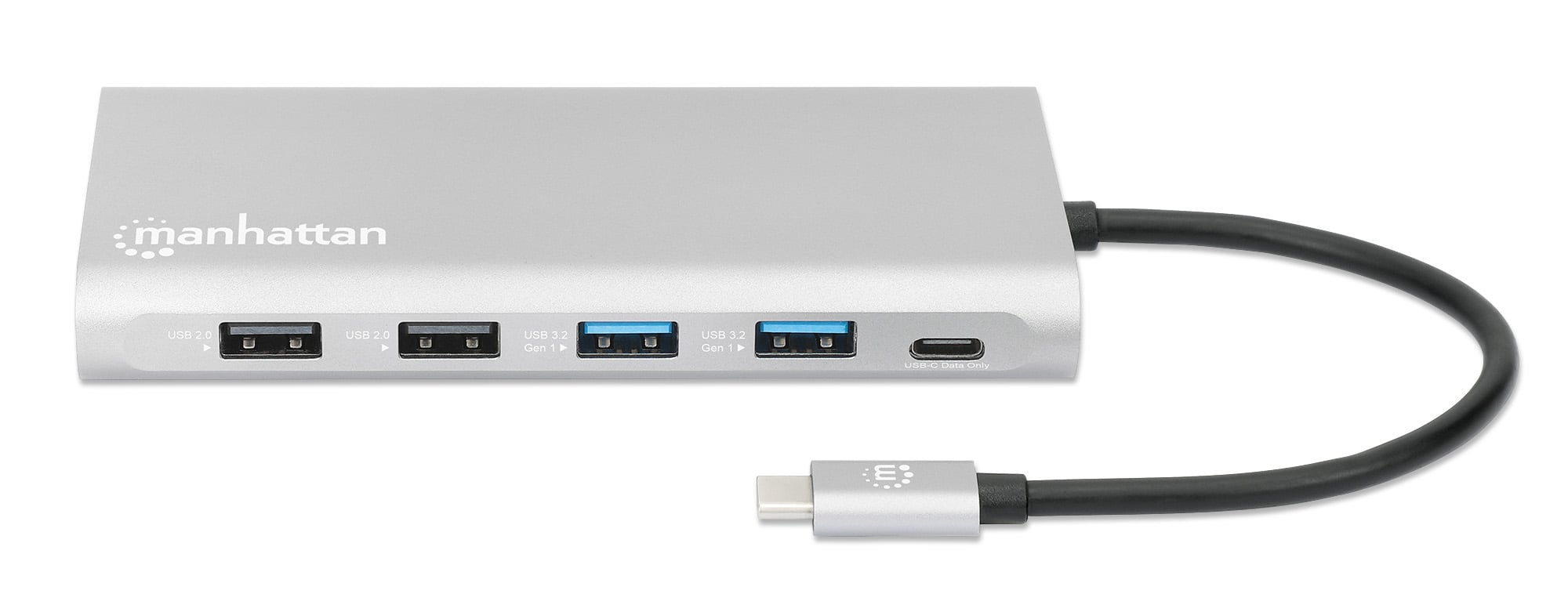

- Two USB 3.2 Gen 1 ports (previously named USB 3.0) with SuperSpeed transfer speed up to 5 Gbps and charging up to 7.5 W (5 V / 1.5 A)
- One USB 3.2 Gen 1 Type-C data-only port with SuperSpeed transfer speed up to 5 Gbps
- Two USB 2.0 Type-A ports with transfer speeds up to 480 Mbps and charging up to 2.5 W (5 V / 0.5 A)
- USB-A ports for connecting mice, keyboards, USB flash drives, etc. or for charging and syncing mobile devices
- USB-C™ port for connecting external hard drives and other devices or for syncing mobile devices
- SD and microSD card slot with read/write function; the slots support cards up to 2 TB and data transfer speeds up to 104 Mbps
- Supports USB Power Delivery (PD) function up to 100 W; requires an external PD charger - available among Manhattan products
- Compatible with all USB-C™ desktops, notebooks, and tablets that support DP-Alt-Mode including Apple® MacBook®, Chromebook™, Pixel™, and many others
- Compatible with DisplayPort 1.4 Alternate Mode (DP Alt Mode)
- Allows your smartphone to function as a desktop PC while charging (desktop setup requires devices with Android 9 or later that offer video output on USB-C™)
- Sturdy built-in 18 cm cable with aluminum connector cover
- Robust and elegant aluminum housing, great for both desk and travel
- Plug and Play installation; compatible with Windows®, macOS®, Chrome OS™ and Android™
- Compatible with HDCP 2.2
Standards and Certifications- USB 3.2 Gen 1
- USB 2.0
- HDMI 2.0
- HDCP 2.2
- CE
- FCC
- RoHS
- REACH
- UKCA
General information- Maximum video resolution:
- If a video output is used, the maximum resolution is 4K@60Hz
- If two video ports are used simultaneously, the maximum resolution is 4K@30Hz
- If all three video ports are used simultaneously, the resolution is 1080p@60Hz
- USB-A ports 1 and 2 - transfer speed: 5 Gbps; charging: 7.5 W (5.0 V 1.5 A) max.
- USB-A ports 3 and 4 - transfer speed: 480 Mbps; charging: 2.5 W (5.0 V / 0.5 A) max.
- USB-C™ port transfer speed: 5 Gbps
- Supported memory cards: microSD, SD, SDHC and SDXC up to 2TB
- Bus-powered (except charging functions)
- USB-C™ PD charging port: up to 100.0 W (20.0 V at 5.0 A) max.

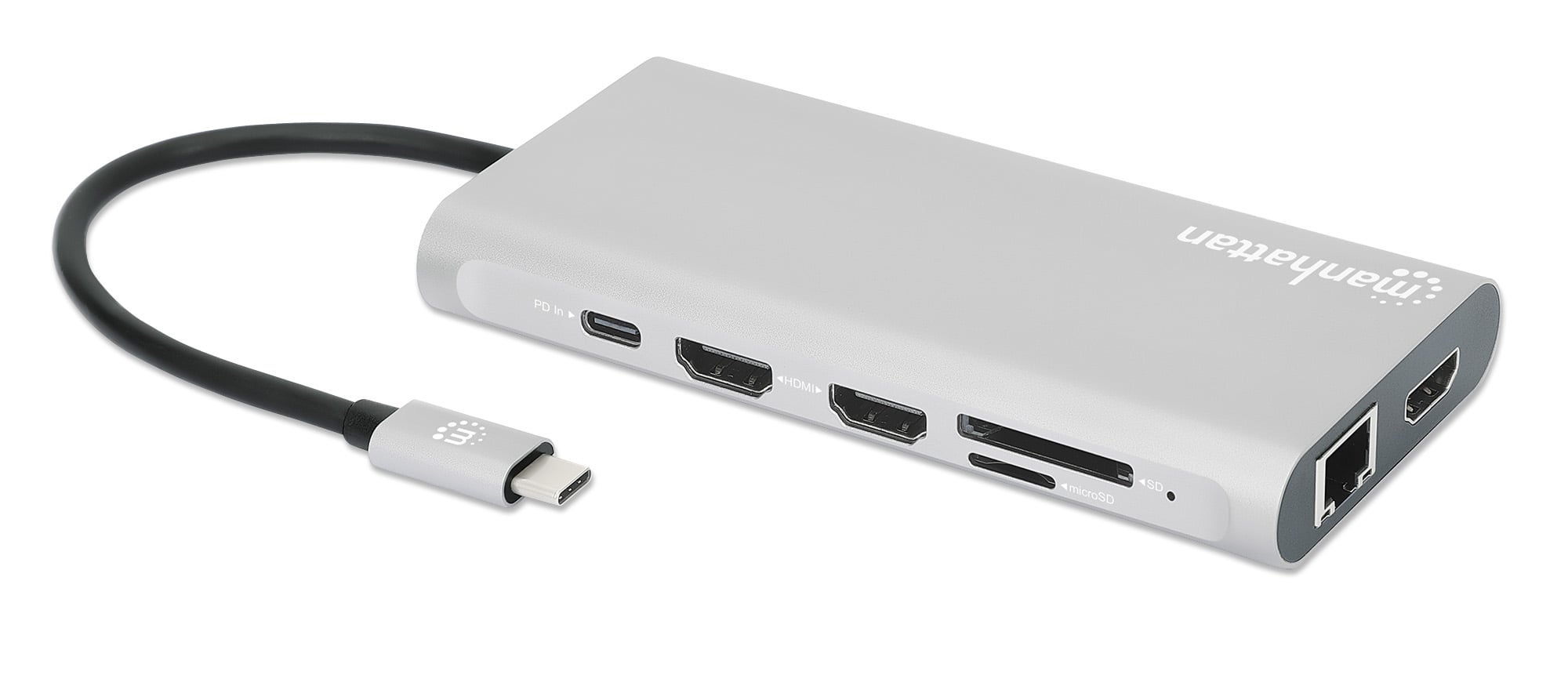

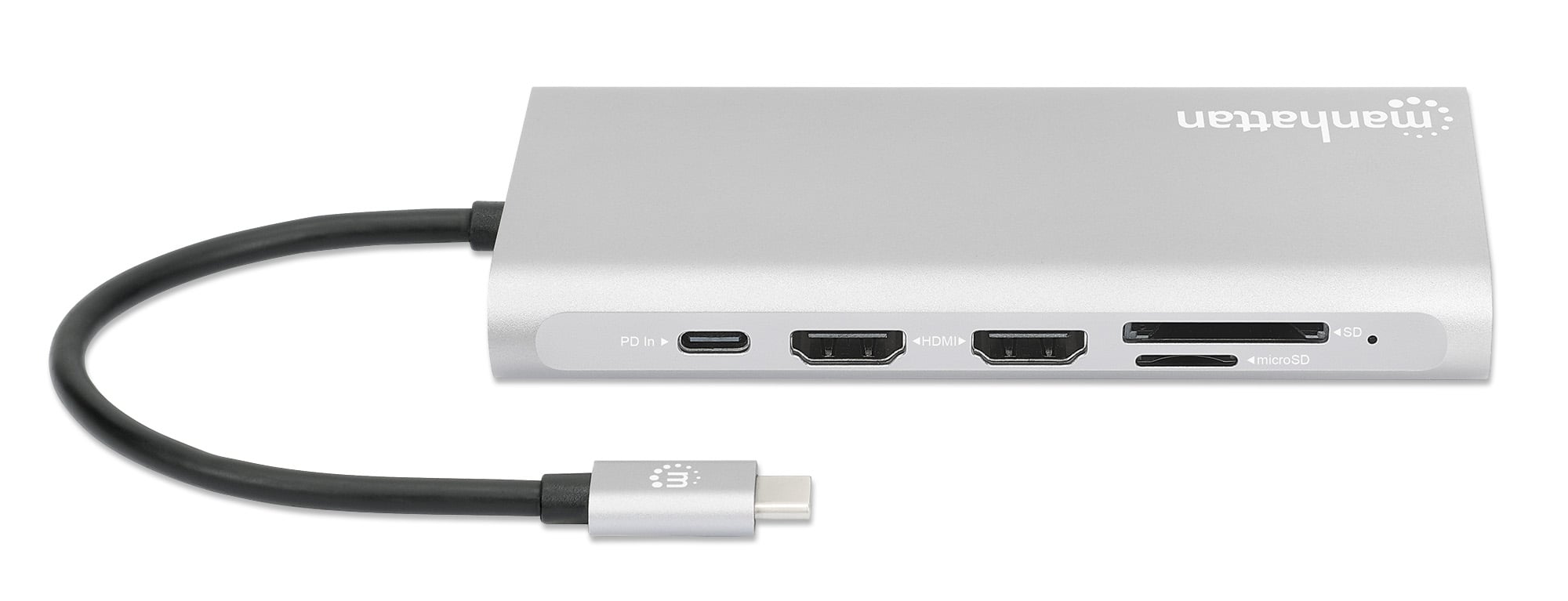

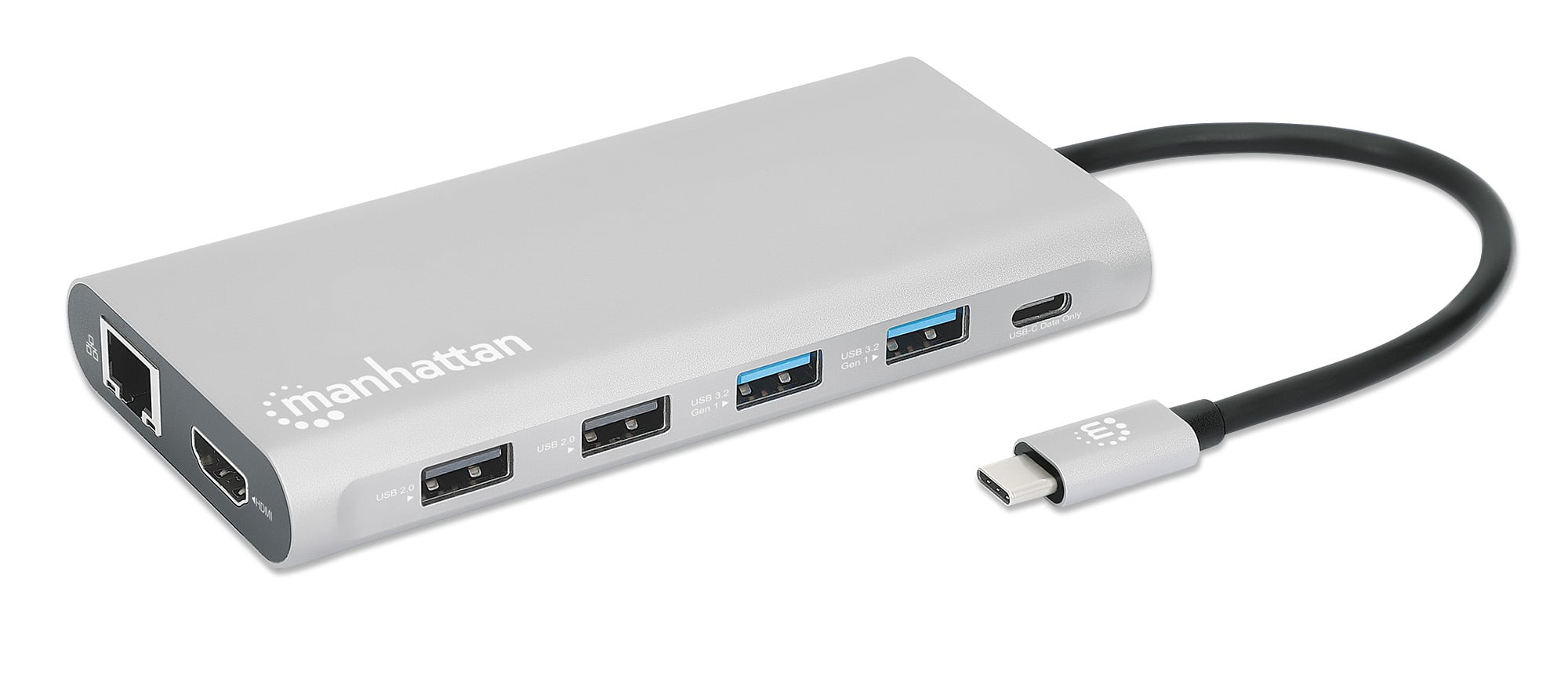

Connections- A USB-C™ 24-pin, male
- Three HDMI 19-pin, female

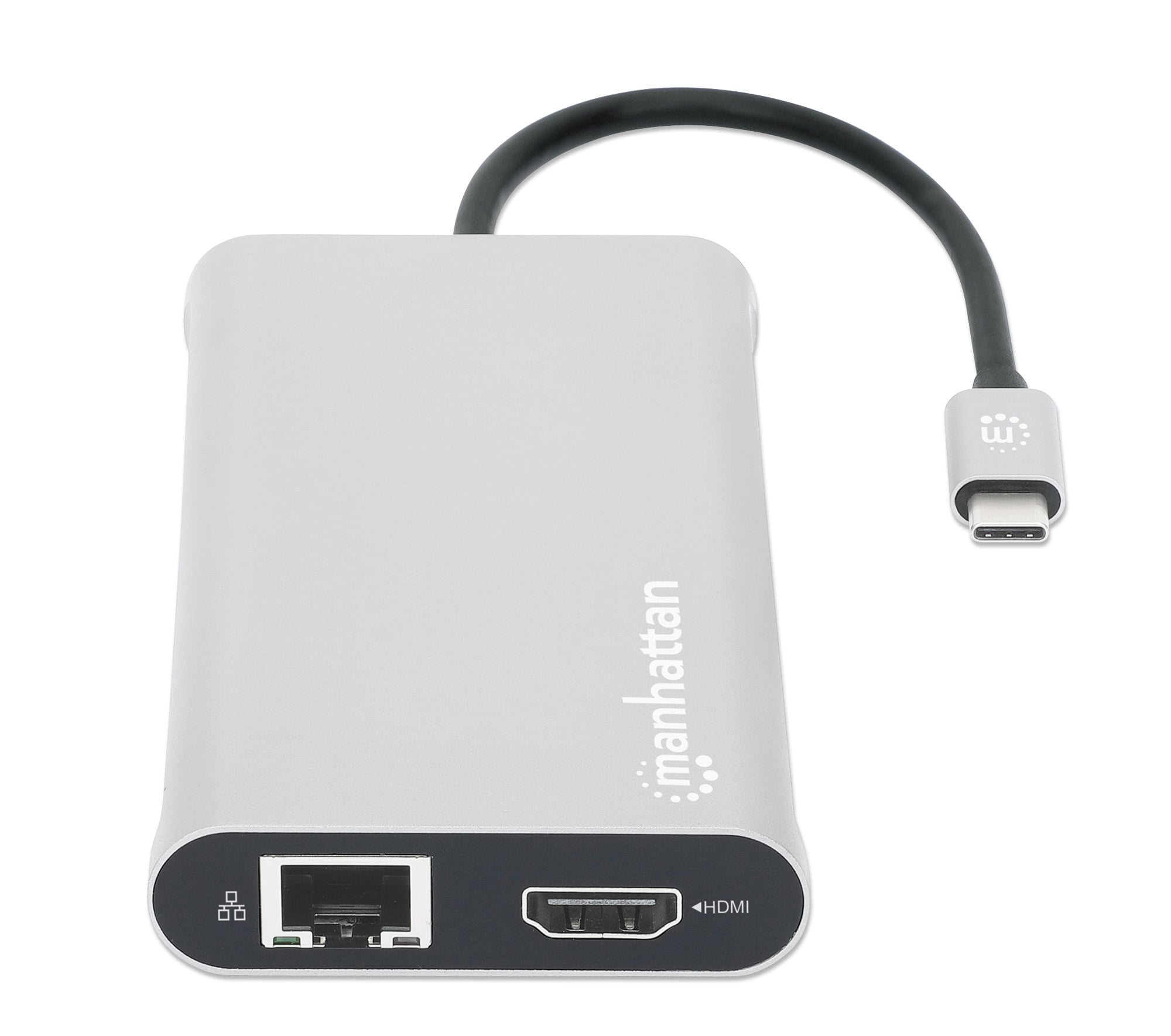

- One RJ45 10/100/1000 Mbps, female
- Four USB-A 4-pin, female
- One SD memory card slot
- One microSD memory slot
- One USB-C™ 24-pin, Power Delivery, female
- One USB-C™ 24-pin, data only, female

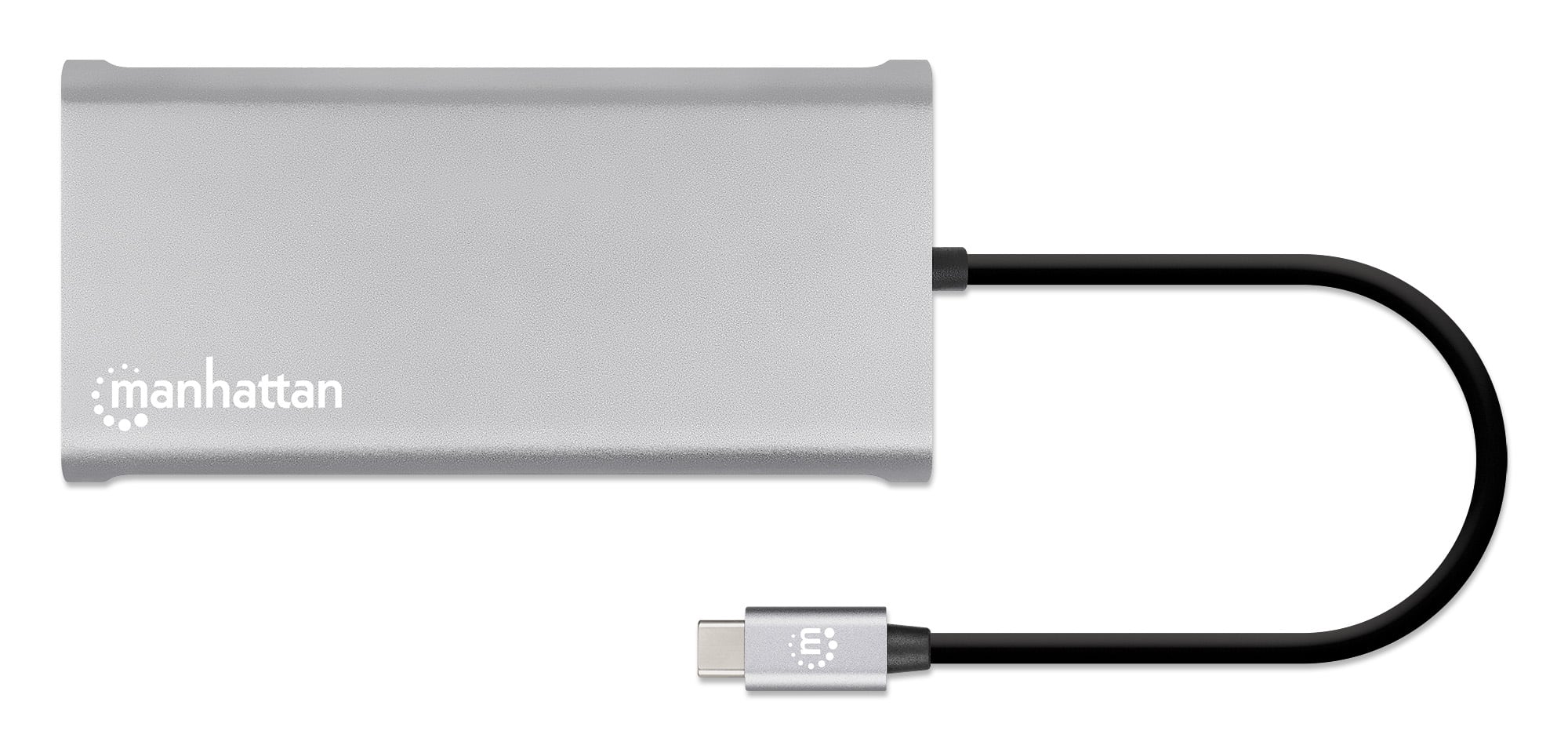

Physical information - Aluminum housing
- Dimensions (D x W x H): 126 x 62 x 17 mm
- Net weight: 112 g
- Gross weight: 172 g
- Cable length: 18 cm
- Cable diameter: 34 AWG
Environmental information - Operating temperature: from 0 to 45°C
- Storage temperature: from -10 to 70°C
- Humidity (non-condensing): 5 - 90% RH
System requirements- Windows
- Chrome OS
- macOS
- Android
Package contents- USB-C™ PD 12-in-1 docking station triple monitor HDMI with MST
- Instructions
