USB adapter Nano Bluetooth 5.0 - Edimax ICE-BT 8500

The USB Bluetooth 5.0 BT- 8500 BQB è certified USB adapter that supports dual modeà (BR/EDR + LE). BT- 8500 with EDR. Supports a speedà maximum data of 3 Mbps and canò be connected up to a distance of 40 meters (4 times Bluetooth 4.2).

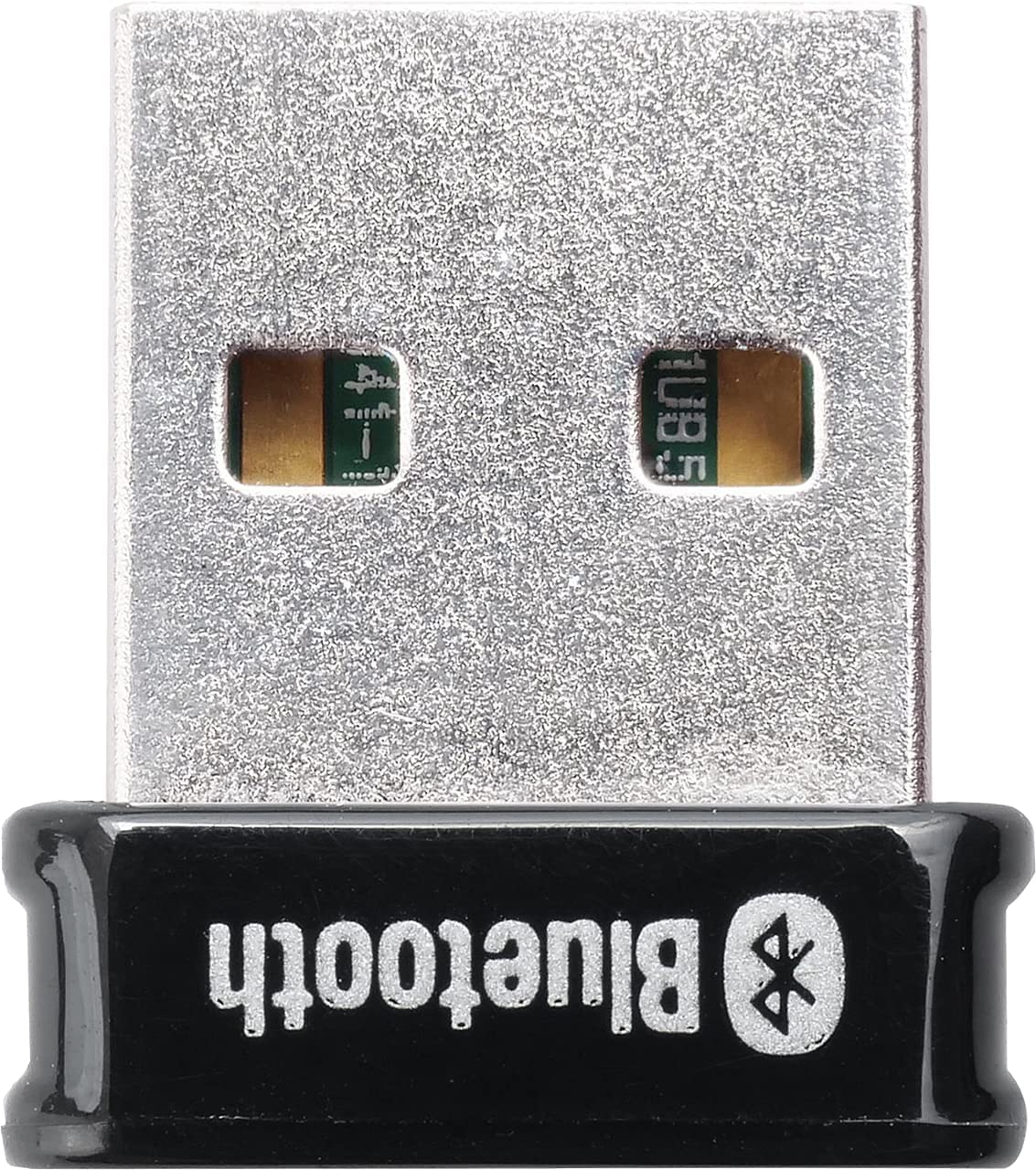

ICE-BT 8500 è a portable USB adapter with ultra-small design, you can connect it to any USB port and enjoy the amazing Bluetooth 5.0 high-speed à, no matter whether you're on the go or at home. This è definitely the most trendy update you can bring to your Bluetooth devices!



Features

• Bluetooth 5.0 + EDR: Velocità maximum up to 3 Mbps; Single chip Bluetooth 5 Controller, combines a Protocol Stack BT



(LM, LL, L 2 CAP, GATT, RFCOMM, SPP and LE), Baseband BT, modem and BT RF in a single chip

• Supports dual mode (BR/EDR + Controller LE), compatible with previous versions, including v 2.1 + LE


• Supports low-power Bluetooth (BLE) - low-energy multiple states


• Supports Classic Bluetooth (BDR/EDR)

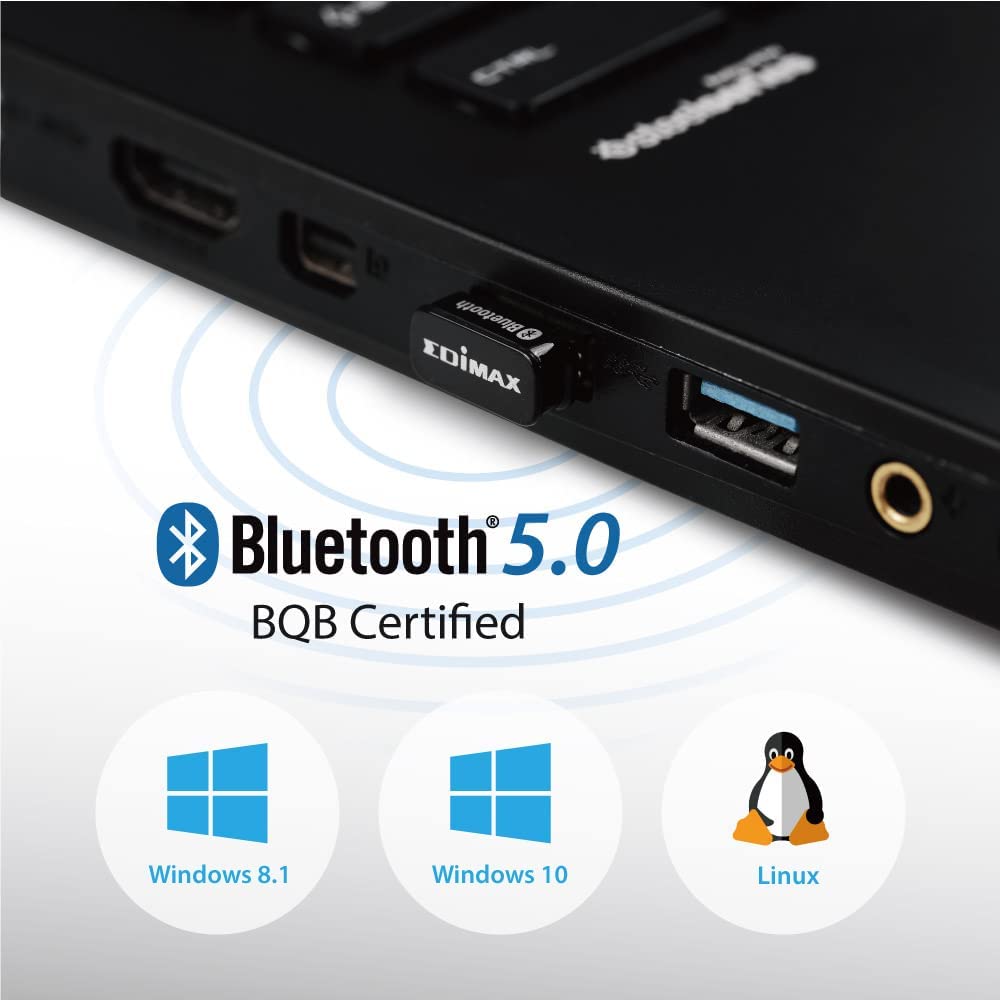

• Supports Windows 8.1 / 10 , Linux: 2.6 kernel . 32 ~ 4.15 , suggested 4.4 (top)



Technical specifications

Interface  

• 1 x USB 2.0 Type A


• 1 internal antenna


• Comply with Bluetooth 5.0 specifications


• Frequency band: 2402 ~ 2480 MHz


• Velocità maximum data transfer: 3 Mbps (class BT-BR/EDR) : 2 Mbps(BLE)


• Output power: 8 dB (max.)


• Sensitivityà receiver: 



94dBm (2Mbps EDR)

87dBm (3Mbps EDR)

98

06dBm (125K BLE long range)

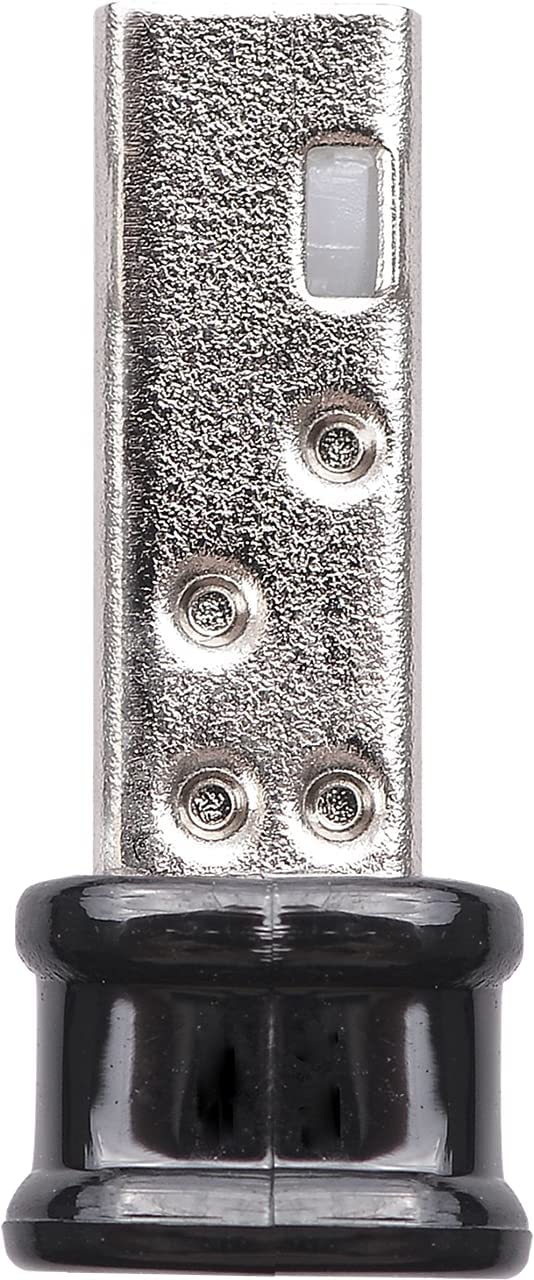

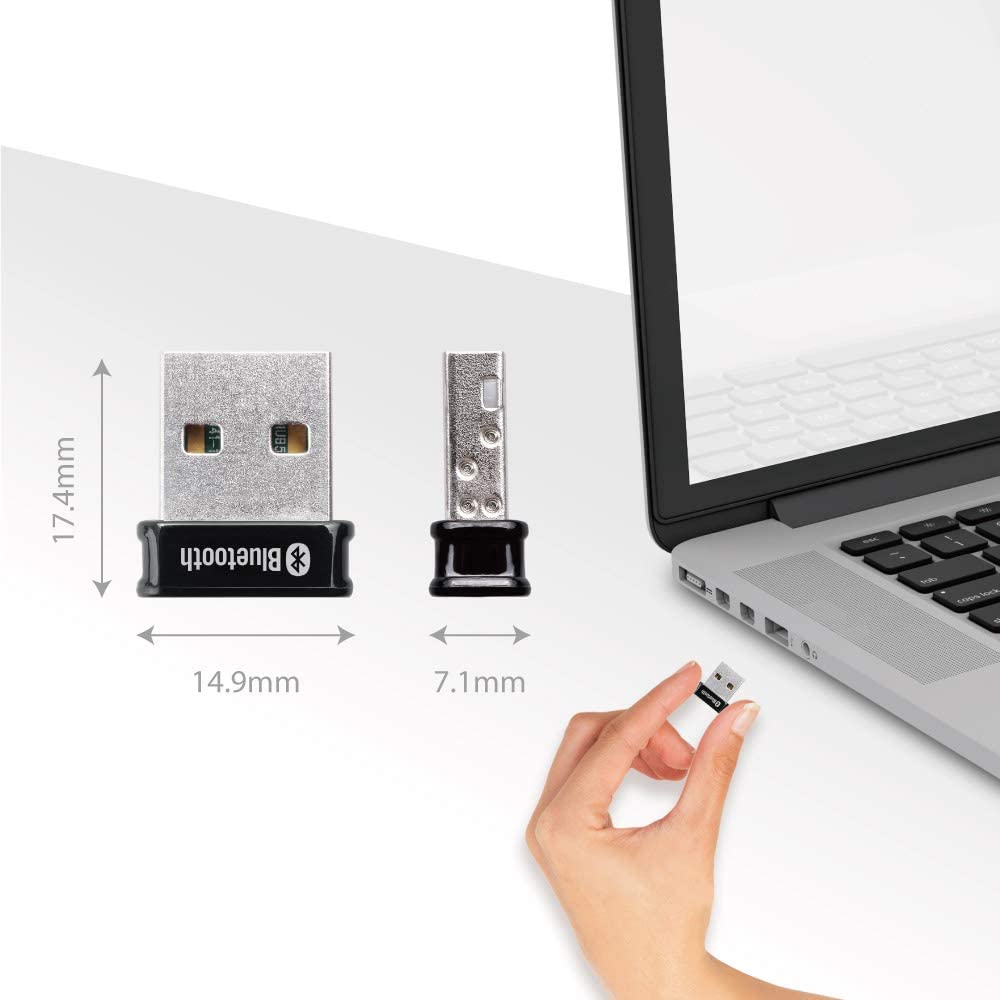

Dimensions

• Width: 14,9 mm


• Depthà: 17,4 mm


• Height: 7,1 mm



Certifications

• CE


• FCC


• NCC


• BSMI


• BQB



Environmental features

• Operating temperature: 0 ~ 40 °C


• Storage temperature: - 20 ~ 60 °C


• Operating Humidità 10 ~ 90 % (without condensation)


• Storage Humidità Maximum 95 % (without condensation)



System requirements

• Windows 8.1 / 10 32 bit/ 64 bit or higher


• Linux: kernel 2.6. 32 ~ 4.15, suggested 4.4 (top)



Package contents

• ICE-BT 8500 adapter


• Quick Guide
