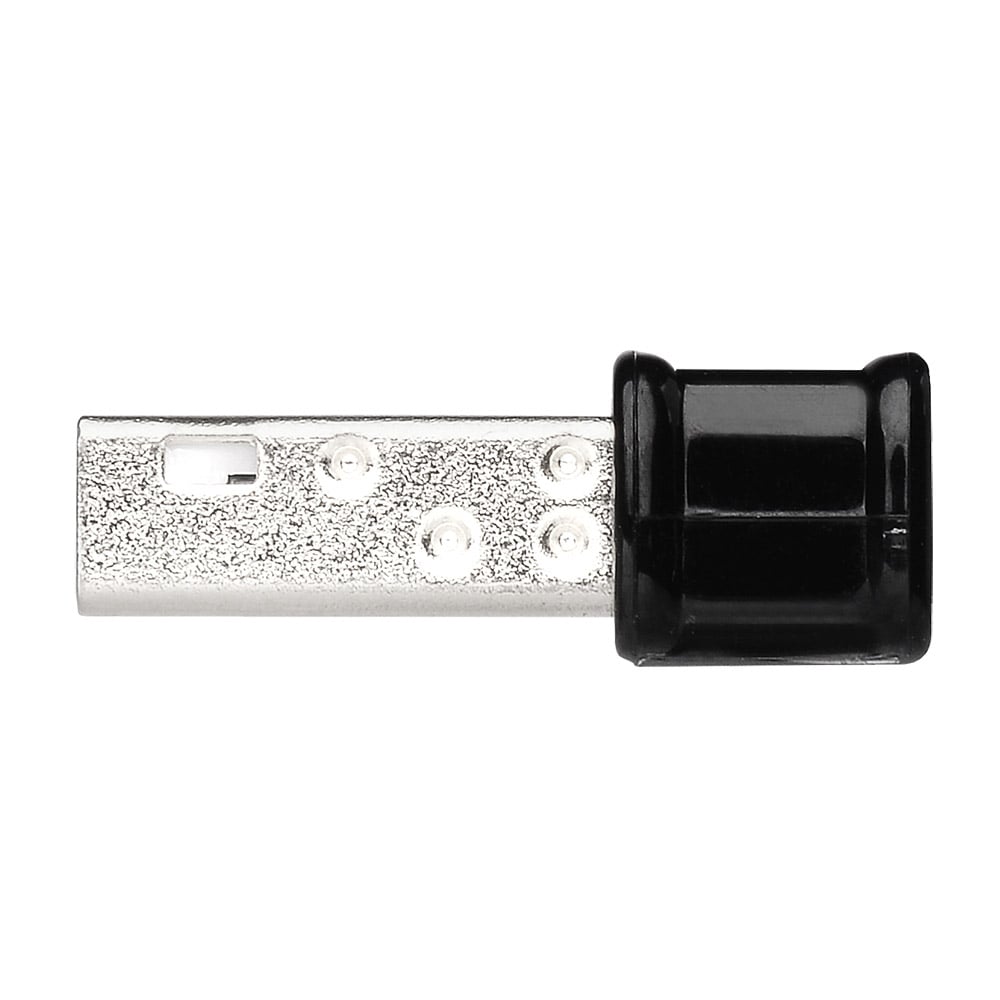

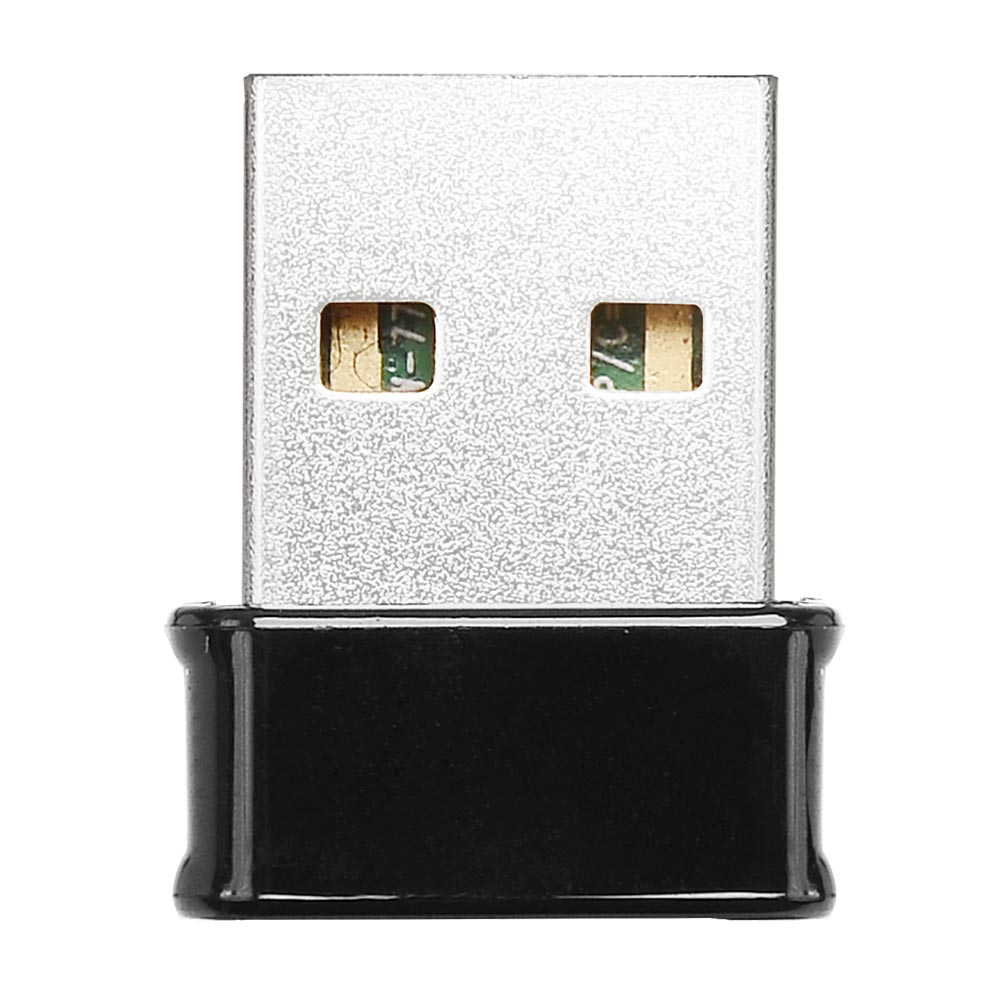

USB 2 adapter in 1 Wi-Fi N 150 and Bluetooth 4.0 compact - Edimax ICE-EW 7611 UL

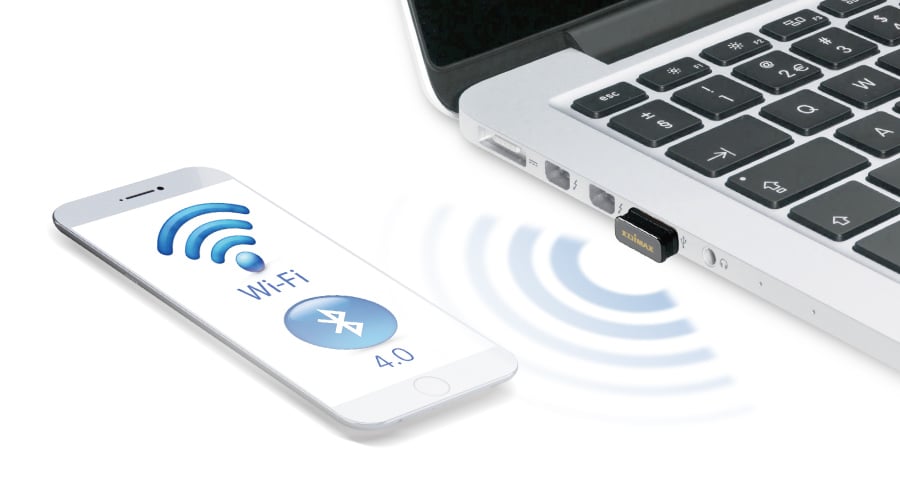

ICE-EW 7611 UL è a WI-Fi USB combo 2 adapter in 1 extremely compact equipped with Bluetooth 4.0 , able to support Wi-Fi up to 150 Mbps and connect to all Bluetooth devices more ù recent. such as mobile phones, tablets, mouse, keyboards, printers etc.Thanks to its ability à to support the più recent Bluetooth version 4.0 with Bluetooth Smart Energy, ICE-EW 7611 UL ensures extremely reduced energy consumption during data transfer and while making connection to other devices through Bluetooth Low Energy (BLE). In addition, its compact design makes it able to connect to an input without blocking the nearby USB ports, so as to get connect to other devices through Bluetooth Low Energy (BLE).

• Velocità Wi-Fi 11 n up to 150 Mbps



Consistent with IEEE 802.11 wireless standards b/g/n for speed & speed; Wi-Fi data transmission up to 150 Mbps, if connected to a 802.11 device n.

• Bluetooth 4.0 and Bluetooth 3.0 +HS (high speed à) up to 24 Mbps



Velocità 8 data transmission times higher up to 24 Mbps, supports Bluetooth 4.0. Fully compatible also with previous versions Bluetooth 3.0 +HS and Bluetooth 2.1 +EDR for wireless communication with mobile phones, tablets, mouse, keyboards, printers etc. enabled to Bluetooth service.

• Energy saving with Wlan green and Bluetooth Low Energy (BLE)



Smart energy control during transmission can adjust output based on the distance and loading level of the CPU to reduce energy consumption when the wireless functionality is not è active. The adapter not only provides the best available wireless technology, but also takes care of the environment, allowing you to save on electricity bills.

• Supports WPS (Wi-Fi Protected Setup)



The Wi-Fi Protected Setup (WPS) è a standard for the easy and secure creation of a wireless network. The adapter supports compatible WPS software configurations, so your wireless network can immediately hook compatible routers and WPS access points.

• Configuration Wizard



The simple multilingual configuration wizard and the user interface (UI) practice will guide you in the configuration of ICE-EW 7611 UL on your network.

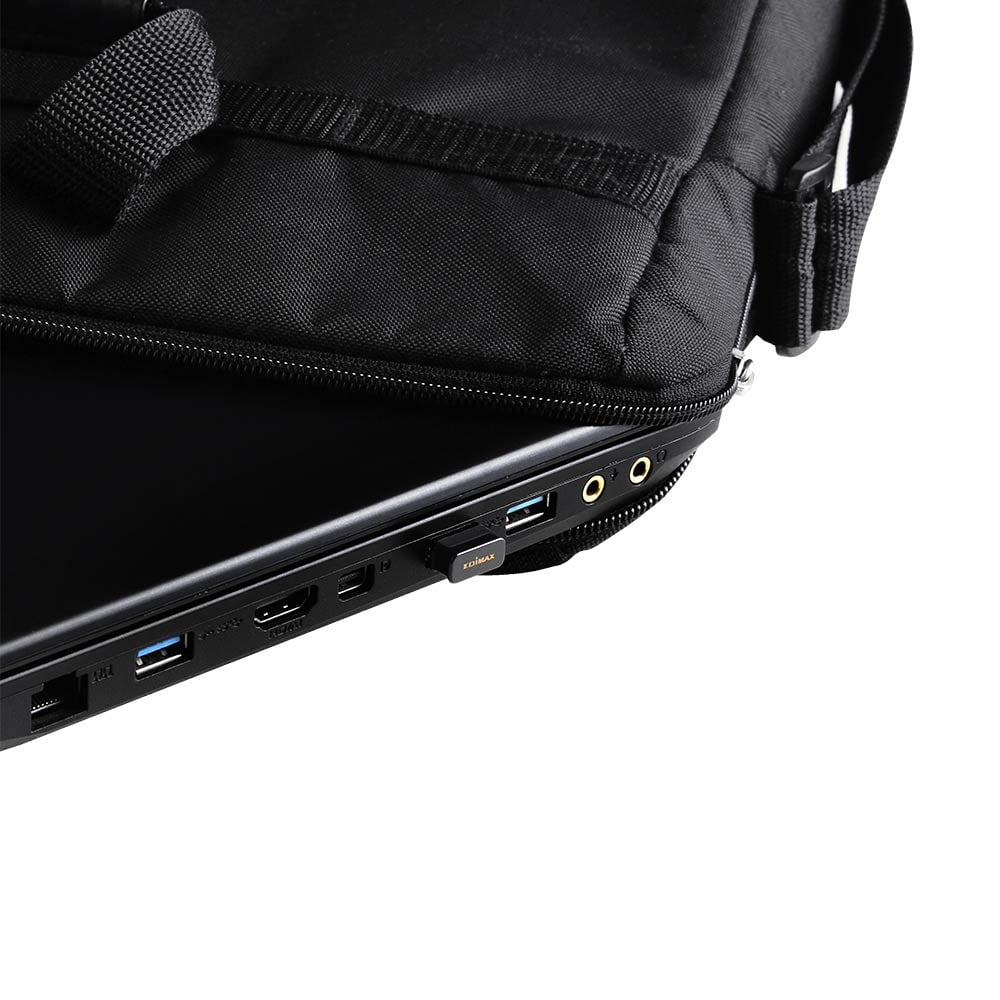

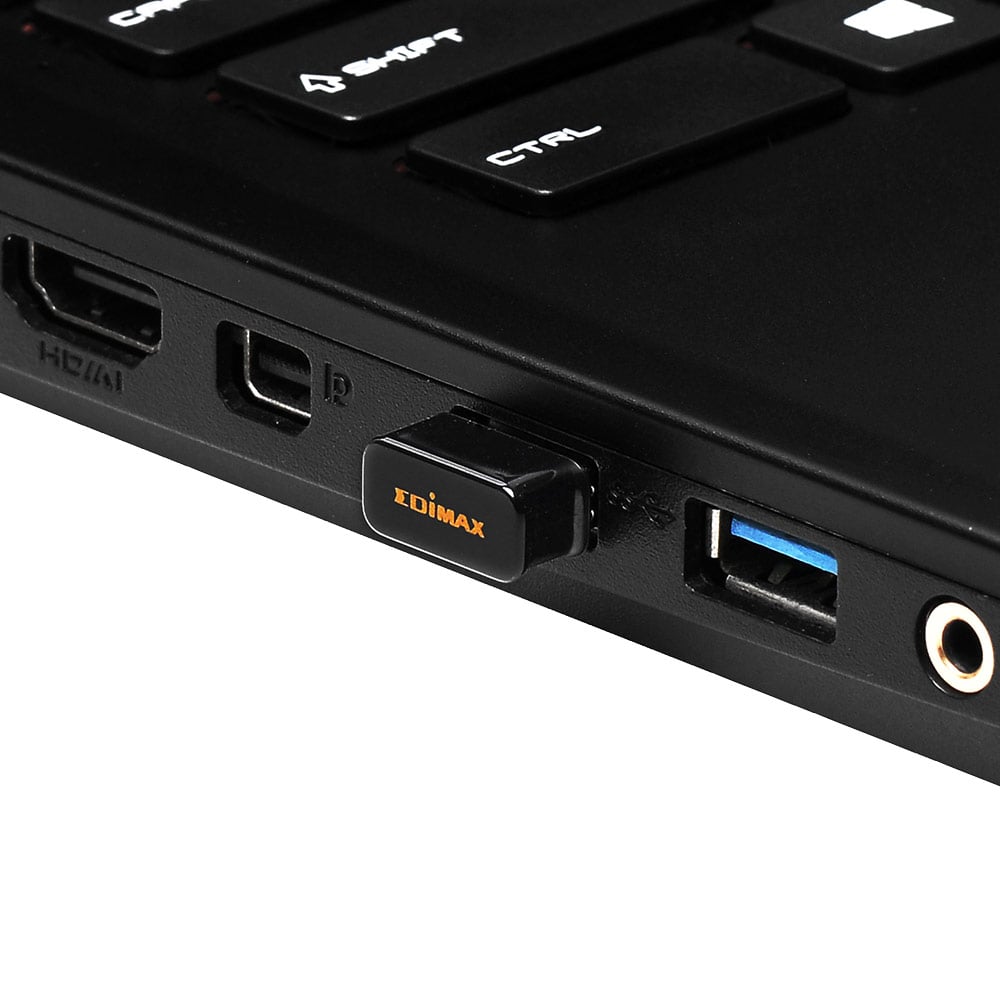

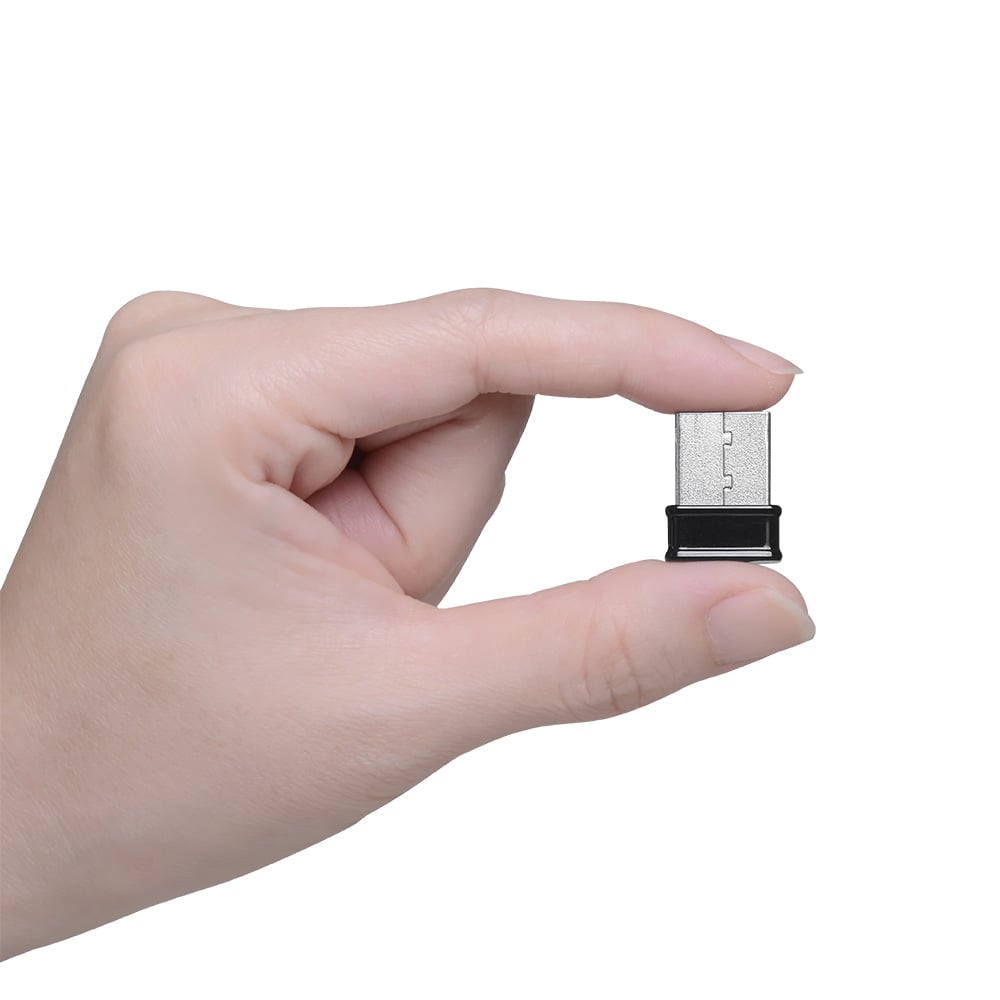

• Compact and portable design



It is the smallest USB combo adapter Wi-Fi and Bluetooth 4.0 currently available on the market. The compact design of ICE-EW 7611 UL makes it easy to transport, while its perfect grip protects it from accidental blows.



Technical Specifications

• Hardware: USB port Type A 1.0 / 2.0 , Internal antenna, connection/activity LED;


• Standard: IEEE 802.11 b, 802.11 g, 802.11 n, Bluetooth 4.0 BLE/ 4.0 Dual Mode, Bluetooth 3.0 +HS, Bluetooth 2.1 and 3.0


• Wi-Fi frequency band: 2.4000 ~ 2.4835 GHz (Banda ISM - Industrial Scientific Medical Band)


• Bluetooth frequency band: 2.4 ~ 2.4835 GHz ISM band not licensed


• Velocità data: 11 b: 1 / 2 / 5.5 / 11 Mbps; 11 g: 6 / 9 / 12 / 24 / 36 / 48 / 54 Mbps; 11 n (20 MHz): MCS 0 - 7 (up to 72 Mbps); 11 n (40 MHz): MCS 0 - 7 (up to 150 Mbps); Bluetooth: up to 24 Mbps


• Output power: 11 b: 16 ± 1.5 dbm; 11 g: 14 ± 1.5 dbm; 11 n: 12 ± 1.5 dbm


• Receiving sensitivity: 11n(20MHz)@MCS7: -64dBm±2dBm; 11n(40MHz)@MCS7: -64dBm±2dBm; 11g@54Mbps: -65dBm±2dBm; 11b@11Mbps: -79dBm±2dBm


• Security: WEP 64 / 128 -bit, WPA, WPA 2 , 802.1 x; WPS Software Configuration


• Humidità: In activityà: 10 ~ 90 % (without condensation); Storage: Max. 95 % (without condensation)


• Temperature: In activityà: 32 ~ 104 °F (0 ~ 40 °C); Storage: - 4 ~ 140 °F (- 20 ~ 60 °C)


• System Requirements: Windows XP/Vista/ 7 / 8 / 8.1 / 10 , Linux and Mac OS


• Certifications: CE, FCC , BQB



Dimensions

• Height: 7,1 mm


• Width: 14,9 mm


• Depthà: 18,5 mm
