Bridge Wi-Fi Universal N 600 Dual Band for Smart TV - Edimax ICE-CV 7438 N

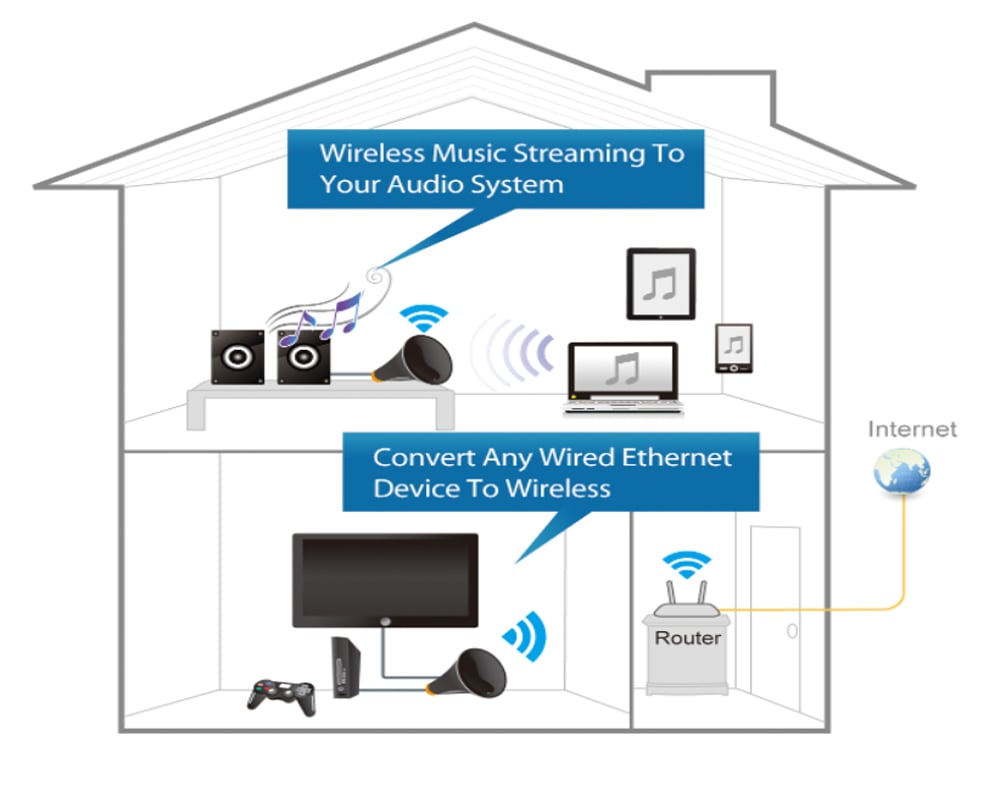

With the explosion of use of videos on the Internet and the continuous growth of products with functionality à wireless, the demand for home networks è higher than ever, especially for home entertainment including HD video display, music transmission and online games. The universal double-band Wi-Fi bridge Edimax CV- 7348 nDM N 600 è the ideal solution for home entertainment, has a wireless connection at high speedà to convert devices with functionalityà Ethernet into wireless devices and a dual band option (radio bands from 2,4 or 5 GHz) to avoid interference with other devices. In addition, CV- 7438 nDM è designed with an audio jack that allows the transmission of music directly via the output of audio speakers from PC or smartphone apps.

It supports two simultaneous connections and works with any Ethernet device, including smart TVs, Blu-ray /DVD players, game consoles, DVRs and set-top boxes.



Upgrade to 5 GHz for HD video transmission

Converts any wireless and è wired LAN device to /b/g/n wirelessly compliant with IEEE 802.11 to /agrave; data transmission up to 300 Mbps (2,4 GHz 300 Mbps or 5 GHz 300 Mbps). The dual-band wireless bridge CV- 7438 nDM è also an ideal solution for upgrading to existing slow and antiquated devices by 54 Mbps 11 b/g to achieve speedà super high by 300 Mbps 802.11 n. Upgrade your PS 3 , Xbox or other game console and connect your existing Wi-Fi router to a stable, robust and high performance wireless connection.



Support for two devices

Equipped with 2 LAN ports to provide connectivityà Wi-Fi for two devices at the same time. Connect smart TV, Blu-ray/DVD players, DVR, PC, set-top box, game console or any Ethernet wired device to the Wi-Fi network. Say goodbye to the uncomfortable and ugly cables to see and enjoy a high quality HD video streaming and digital audio; with style.

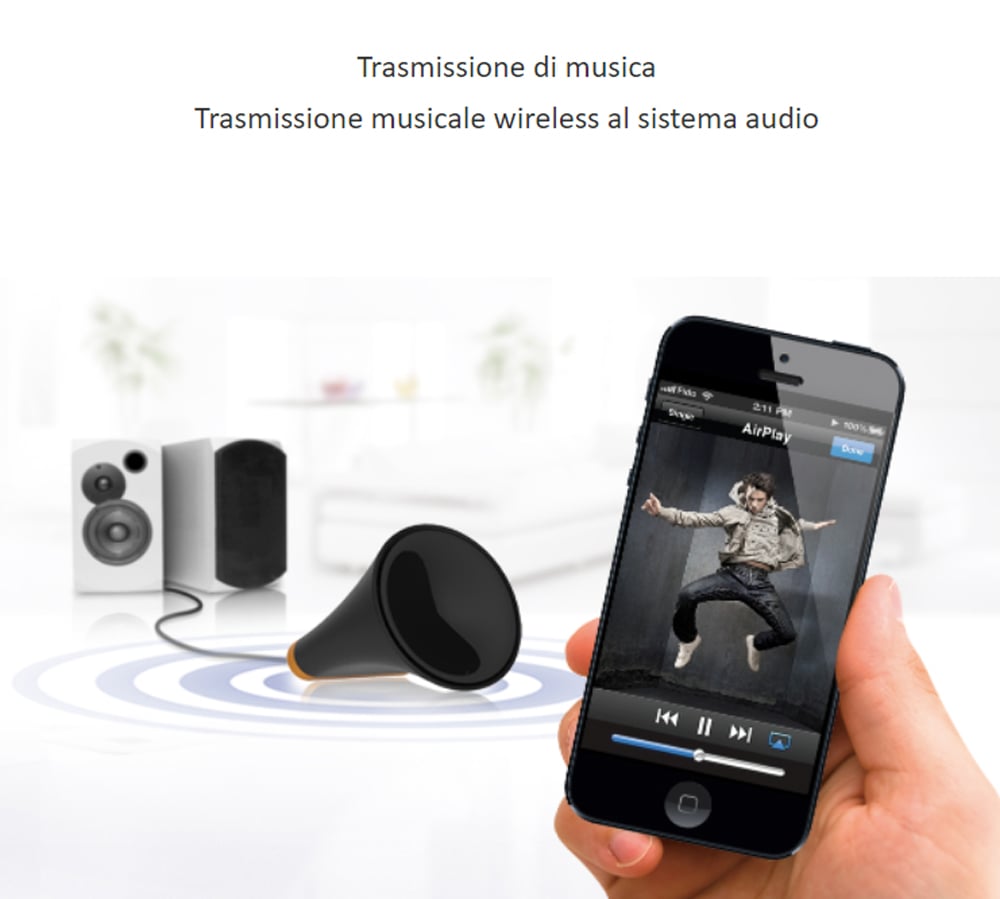

Wireless music transmission to the audio system

It features a standard audio jack from 3,5 mm to connect the speaker system or home theater system - listen to your library on iPhone®, iPad® or iTunes® wirelessly from the comfortà of your living room or from any home audio system.

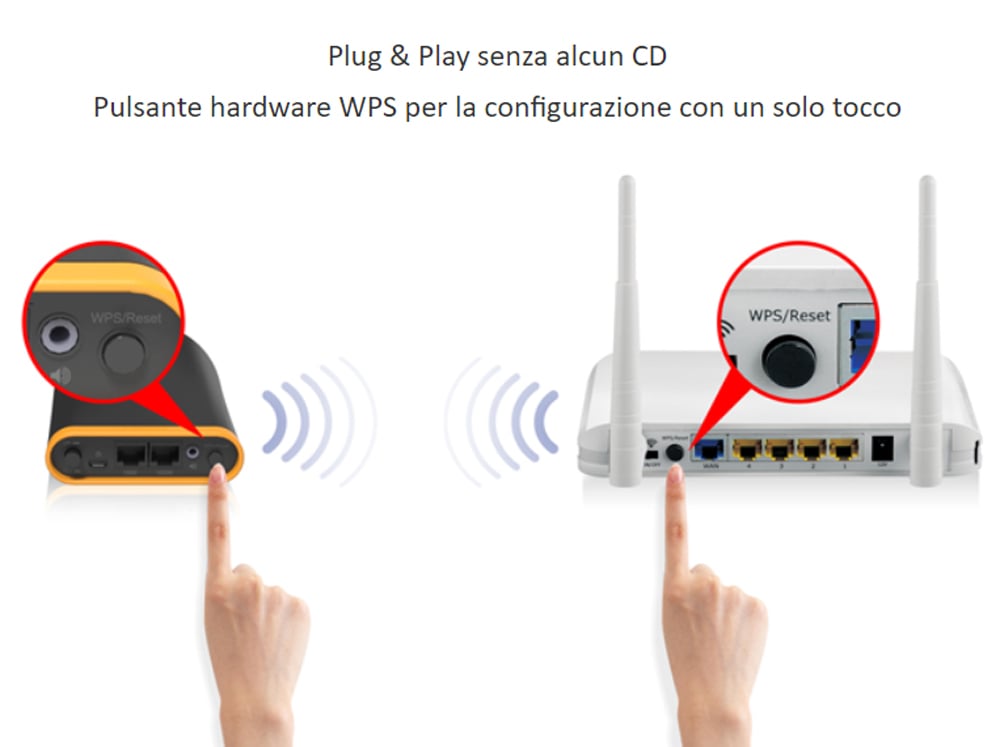

WPS hardware button

A built-in Wi-Fi Protected Setup (WPS) button allows for easy integration into existing wireless home The WPS hardware button (Wi-Fi Protected Setup) allows easy installation in existing home wireless network environments. Simply press the WPS button on both the CV-7428 nDM and the home wireless router to establish a fast, easy and secure connection.



Smart iQ Setup

The configuration could not be more ù simple with our intuitive browser-based iQ Setup. iQ Setup can ` run from any browser on a smartphone, tablet or computer and ensures an intelligent and automated process for efficient operation of your Wi-Fi bridge. Select the network from 2,4 GHz or 5 GHz to which you want to connect and follow the on-screen instructions to complete the configuration with just a few simple clicks.



Energy-saving power-saving power-on/off switch

Turn off the Wi-Fi bridge when not è in use and contribute to a more environmentally friendly environment.



Gigabit Ethernet Port

The CV- 7438 nDM è equipped with a super fast Gigabit Ethernet port (1000 Mbps) to connect to the Gigabit devices for the highest possible wired transfer speeds.



Advanced wireless encryption WPA/WPA 2

It supports various advanced wireless encryption protocols, including WEP 64 / 128 bits, WPA and WPA 2.



Technical specifications

• Functions:



- Wireless music transmission

- HDTV video transmission

- Enjoy online videos, music and games

- Play music everywhere

• Frequency band:



- 2.4 GHz

- 5 GHz

• Wireless standard and data transmission speed à



- IEEE 802.11 a/n (until 300 Mbps)

- IEEE 802.11 b/g/n (until 300 Mbps)

• Audio sampling and resolution frequency:



- Signal-to-Noise Ratio (SNR) DAC up to 100 dB

- Analog reproduction 44,1 K/ 48 K/ 88,2 K/ 96 K/ 176,4 K/ 192 KHz @ audio file 16 -bit/ 24 -bit

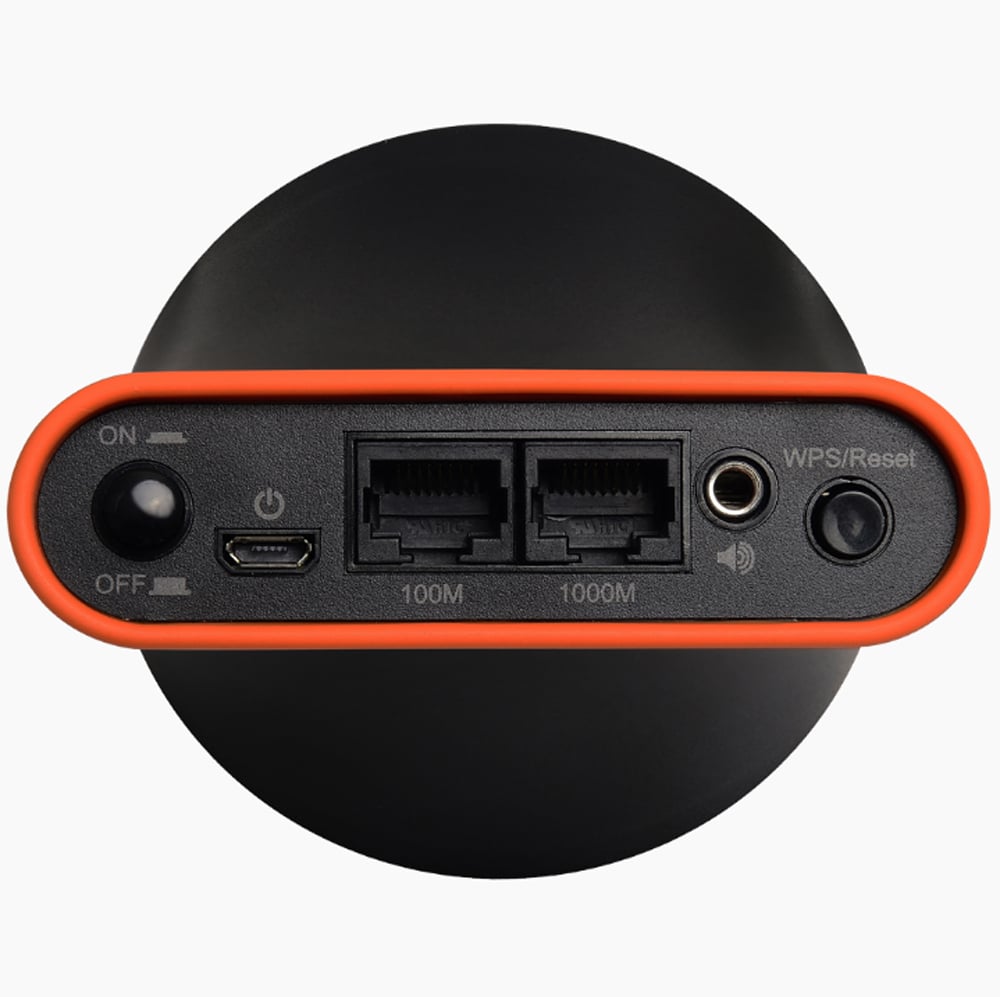

• Hardware Interface:



- 2 x doors RJ- 45 LAN (1 x Gigabit)

- Status LED indicators

- High power internal antenna

- WPS/Reset key

- Jack audio 3,5 mm

- Switch on/off

- Power Jack

• Management:



- User interface in 11 languages

- Updated firmware

• Security:



- WEP encryption from 64 / 128 -bit and WPA-PSK security, WPA 2 -PSK

- Authentication 802.1 x

- WPS (Wi-Fi Protected Setup)

• System requirements:



- Internet/Smart TV or any device with functionality; Ethernet

- Existing wireless home network (2,4 GHz or 5 GHz)

- Device with web browser for software configuration: Microsoft® Internet Explorer® 8.0 , Google Chrome®, Firefox® or Safari®, iOS, Andriod latest version

- Speaker with audio jack from 3,5 mm for music transmission

• 2 x high power internal antennas gain 5 dBi



Environmental features

• Humidità operating: 10 - 90 % (without condensation)


• Operating temperature: 0 - 40 °C



Dimensions

• Height: 95 mm


• Width: 97 mm


• Depthà: 100 mm



Certifications

• CE


• FCC



Package contents

• Device CV- 7438 nDM


• Quick Installation Guide (QIg)


• CD with quick installation guide and multilingual user manual


• An Ethernet RJ 45 cable


• DC power supply 5 V from 1,2 A with power cable


• Tab with login key
