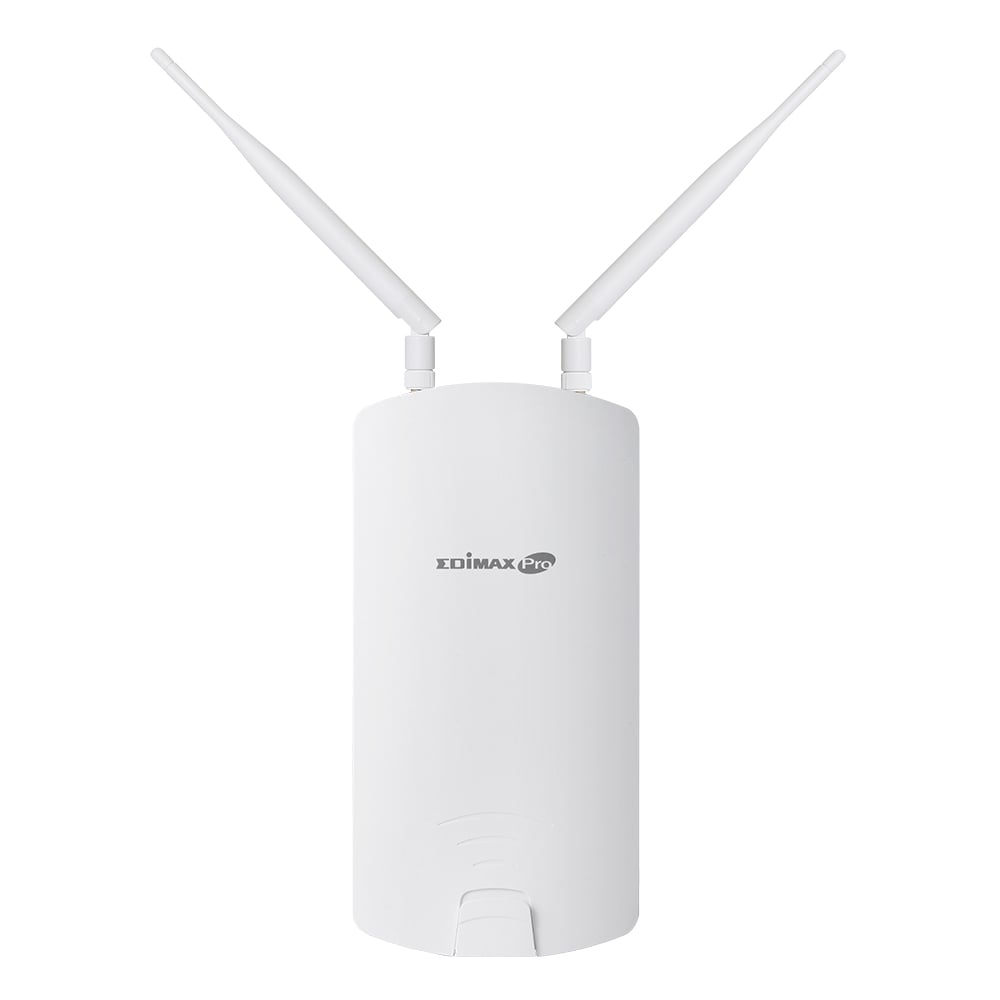

Access Point wireless dual-band 2 x 2 PoE wall/ rod mounting IP 56 - Edimax ICE-OAP 1300

OAP 1300 features a waterproof housing with IP protection class 56 and provides an excellent wireless solution for SMBs that require high network performance. The product uses the new IEEE 802.11 technology ca 2 x 2 that allows you to get speedà wireless up to 1300 Mbps. A design for wall mount or rod mounting and a quality à industrial level combined with a user-friendly operation and a wide range of functionalityà, all ciò makes this product the ideal high performance solution for the daily needs of Wi-Fi and Point-to-Point applications in modern industrial realityà. We talk about applications such as WISP client, Internet sharing, wireless surveillance in the unità multi-tenant (MTU) and multi-dwelling (MDU). assembly.



For companies that require security, flexibility à and speed à, Edimax Pro series products have a wide range of potential applications, from offices to university schools and campuses, from hotels to hospitals. Multiple SSIDs can be configured for different departments or user groups and the built-in RADIUS server allows additional verification through an array architecture of scalable access points, for central management of more ù access points. Thanks to its capacity à support of high-density installationsà with up to 200 simultaneous clients (100 per band), è ideal for workplaces where è allowed to use their own personal devices (BYOD) or other environments with a high volume of clients and wireless devices; also, fast roaming function allows for fast roaming seamless transitions between more ù access points. Power over Ethernet (PoE) è support an intuitive Web-based management interface offer flexible implementation and extensive management options for IT management departments and corporate network administrators.



If performance and safety are crucial elements for your company, you need products specially designed for your industry. Edimax Pro products are designed to support your business à and provide connectivityà on which you rely every day, with guaranteed safety and effectiveness. In particular, OAP 1300 offers the highest level of wireless performance available on the market today.



Key Functions

• Dual-band Wave 2 802.11 ac at high speedà: Two simultaneous frequency bands compliant with IEEE 802.11 ac with speed à 1300 Mbps wireless


• Multi-Device (MU-MIMO): MU-MIMO (Multiple User - Multiple Multiple Input Multiple Output) technology that can simultaneously support more ù devices.


• Simple installation: Wall mount or pole mounting with simple installation kit.


• Robust structure: The IP 56 waterproof housing allows proper operation even in adverse weather conditions.


• Designed for high-density installations à: Supports up to two hundred users simultaneously (hundred bandwidth users), ideal for crowded environments and Wi-Fi connections in BYOE (Bring Your Own Everything) work environments.


• Multiple SSID for security management: Supports up to 32 SSID (16 x 2,4 GHz and 16 x 5 GHz): ideal for corporate departments, user groups, customers or multiple guests.


• Quick Roaming: Roam between access points evenly, without delay or interruption, ensuring excellent performance for video and voice streaming applications.


• Wide coverage and sensitivity; high: Adjustable radio frequency output power and high sensitivity; receiver for wide coverage over large spaces.


• Mobilità without interruptions: Coverage greater than 1,5 times than the typical access points, for a total coverage that ensures a connectivityà no solution of continuityà for Wi-Fi devices present in business environments.


• Power over Ethernet In/Out: Supports PoE IEEE 802.3 at and IEEE 802.3 af PSE, PoE out to power another PoE device like IP cameras or outdoor AP cameras.


• Integrated voltage downloader: It is an integrated device that supports currents up to 10 kA offering your Wi-Fi equipment an effective protection from electrical discharges.


• Embedded RADIUS Server: Allows you to manage up to 256 user account.


• Central management: The Network Management Suite (NMS) Edimax Pro, a suite for simple and intuitive central network management, supports the array architecture of access points.



Technical Specifications Hardware

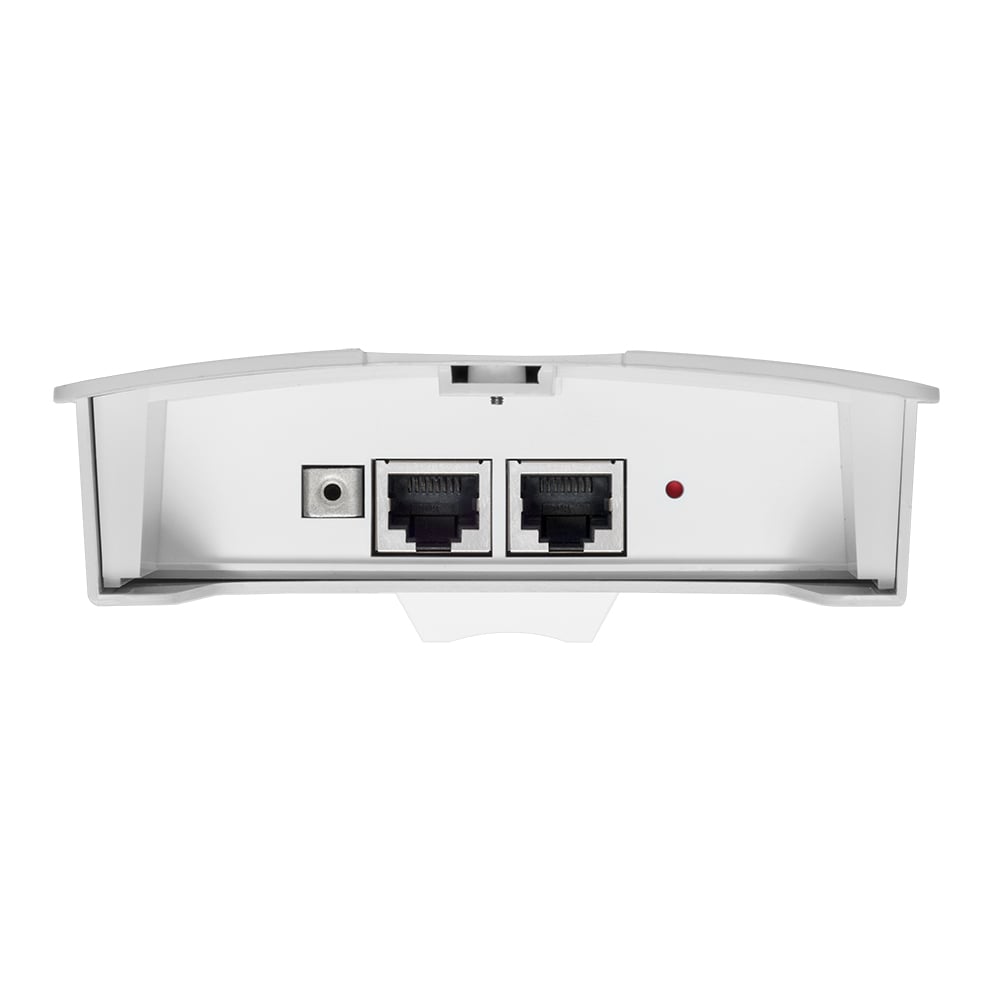

• LAN interface: Giga x 2


• PoE LAN 1 : PoE entrance


• LAN 2 : PoE exit

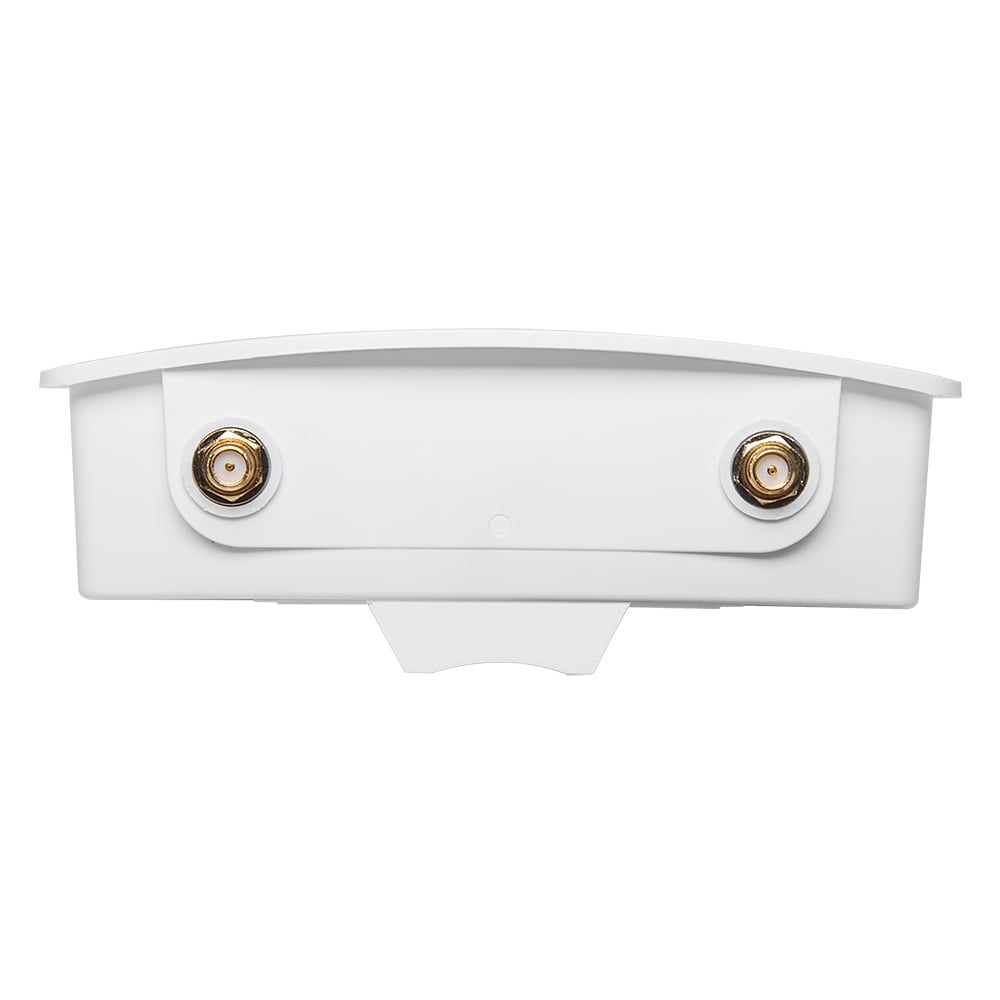

• Antenna: 3 x external type


• External gain: 5 dBi (2,4 GHz), 7 dBi (5 GHz)


• Power supply: 802.3 at (Optional PoE Injector)


• Dimensions (L x P x A)  27.18 x 12.09 x 3.5 cm


• Weight: 592 g


• Power consumption (full load): 11 W


• Assembly: Palo/Muro


• LED indicator: power supply, state, LAN(PD), LAN(PSE), 2,4 G, 5 G


• Operating temperature: From - 40 °C (- 40 °F) to 60 °C (140 °F)


• Operating Humidità 90 % or less


• Energy saving: 802.3 az


• Internal sound indicator: Yes


• Housing: Certified IP 56 for waterproofing à outdoor



Wireless Technical Specifications

• Standard: Two simultaneous frequency bands in compliance with 802.11 a/b/g/n/ac


• No. of radio modules: 2


• Sensitivityà receiver: ≤ - 93


• Certification: CE / FCC


• Fast Roaming: Yes


• Number of SSID: 16 (2.4 GHz) + 16 (5 GHz)



Performance

• Velocità maximum data transfer : 400 + 866 Mbps


• Simultaneous clients: Up to 100 per radio channel
