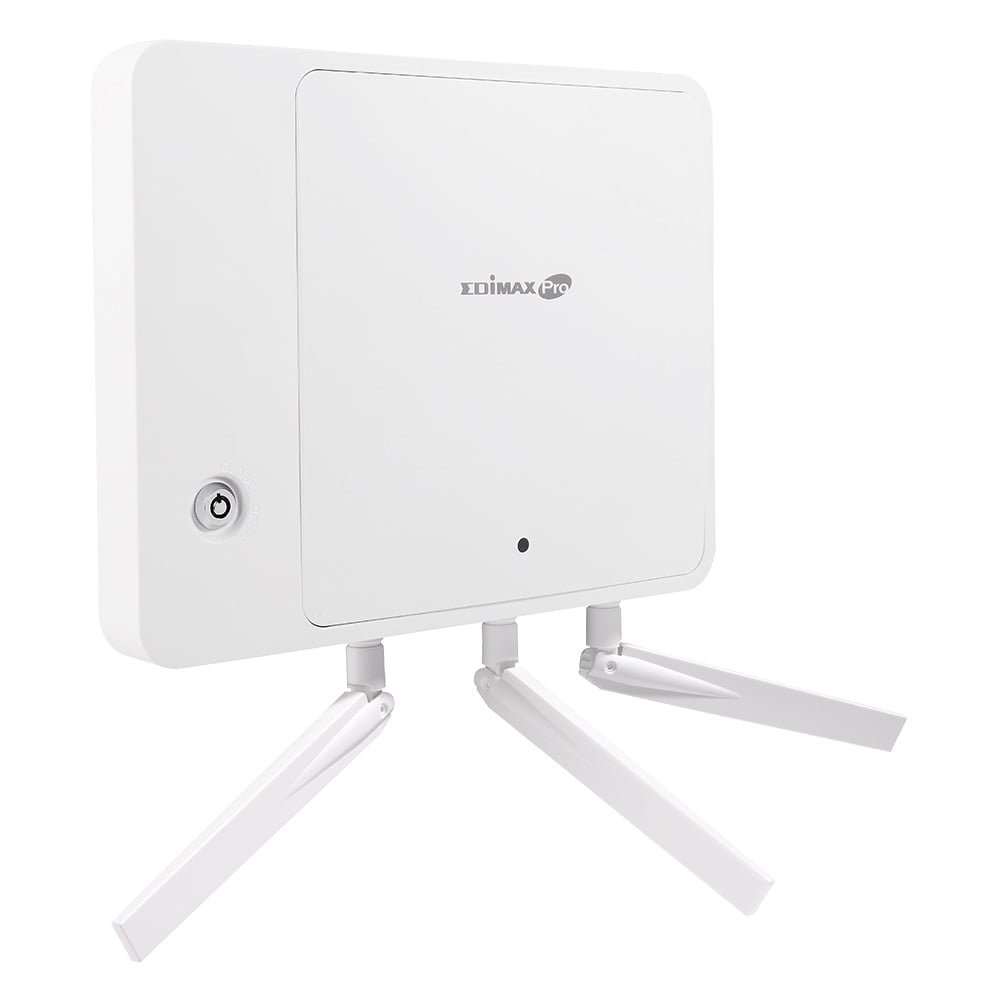

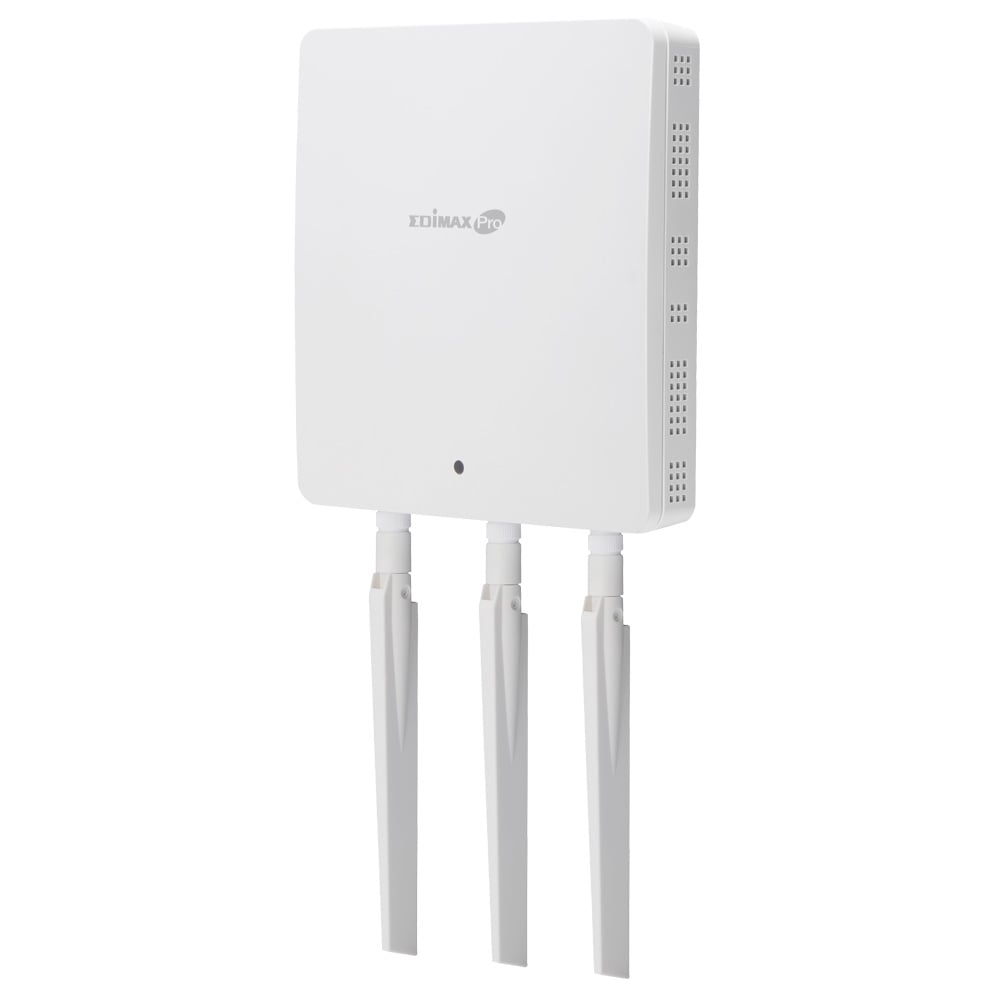

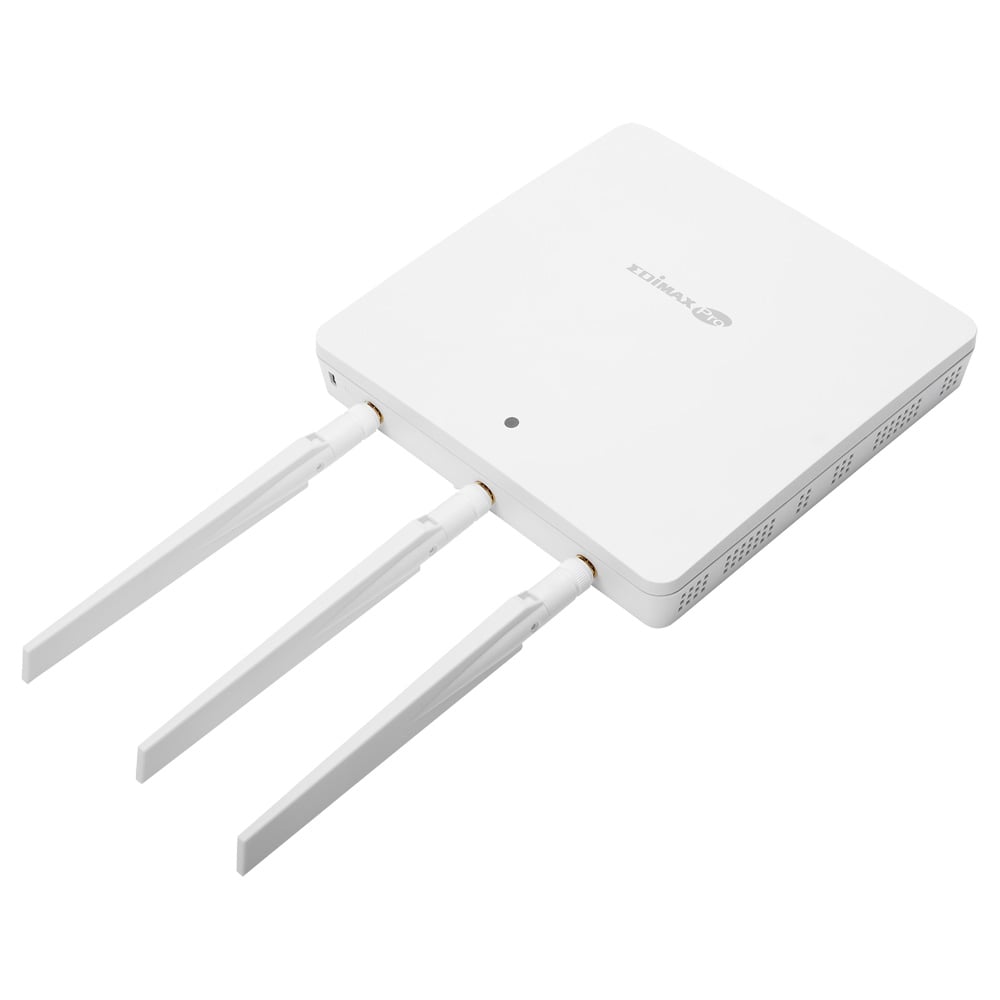

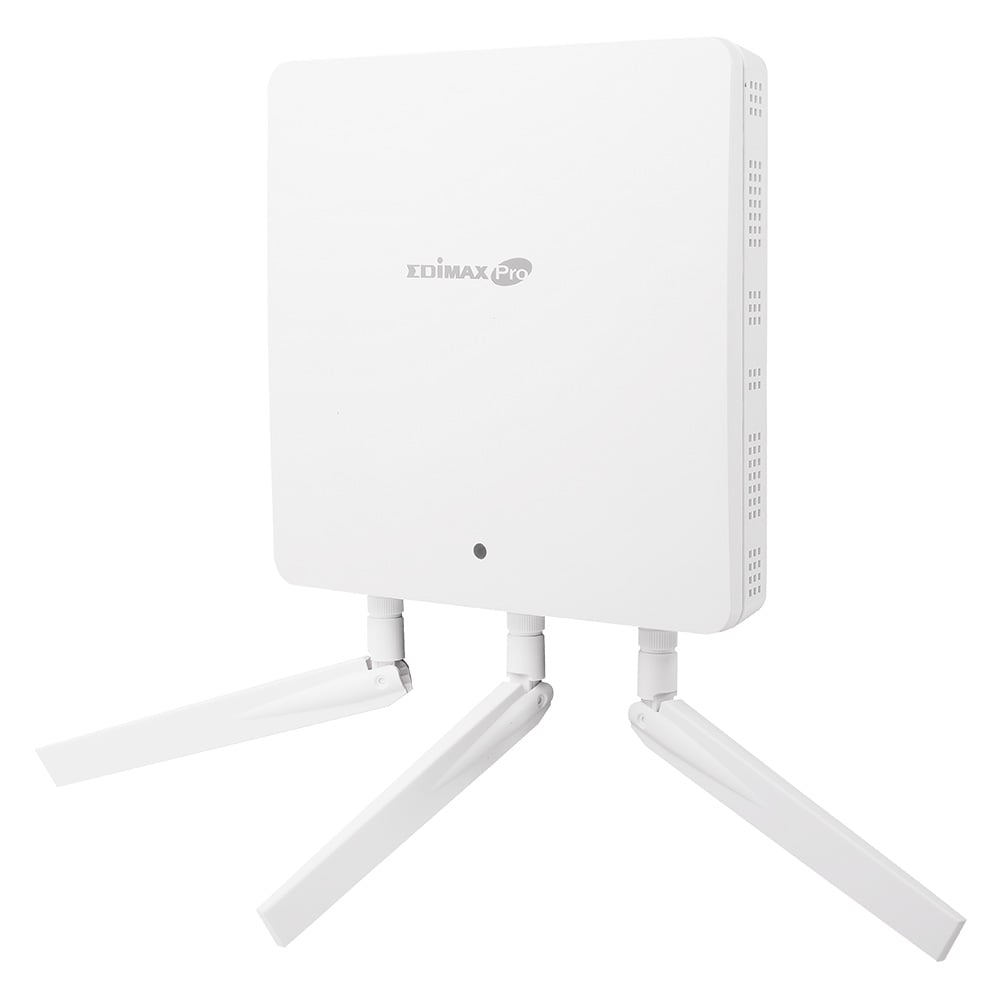

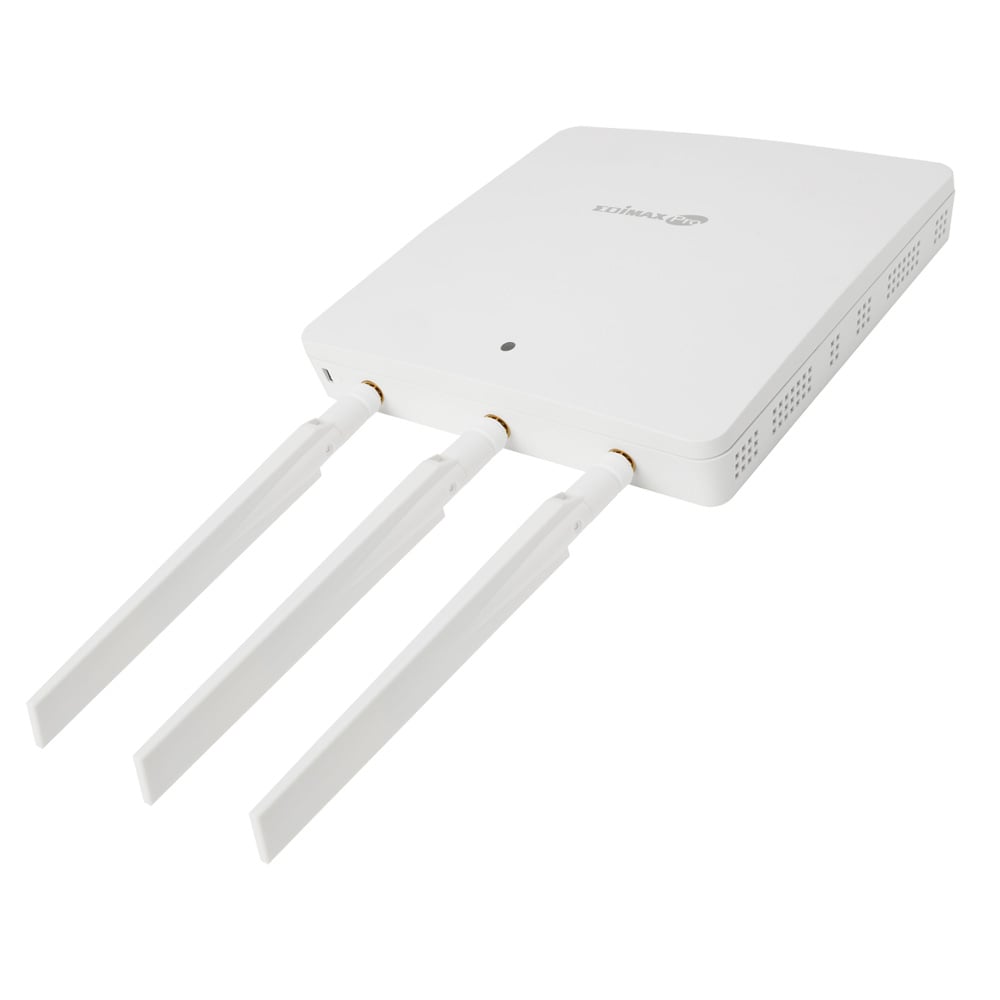

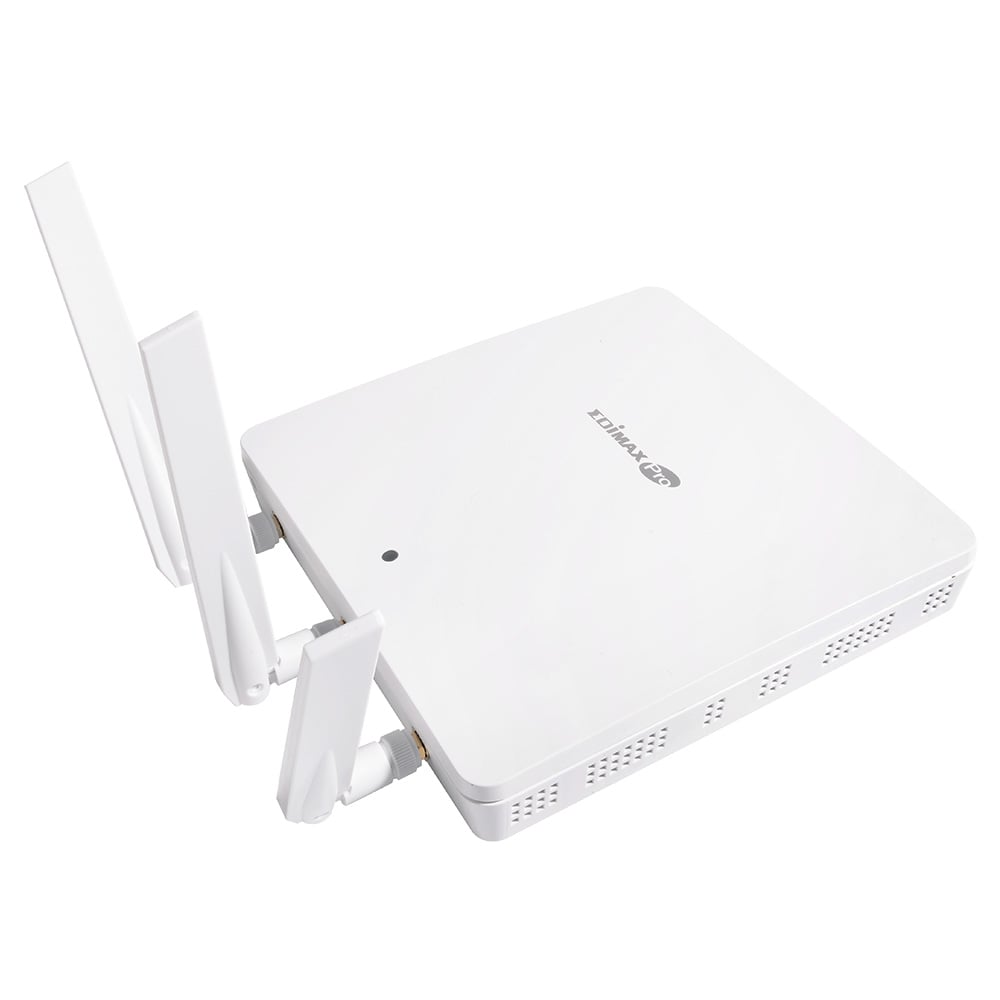

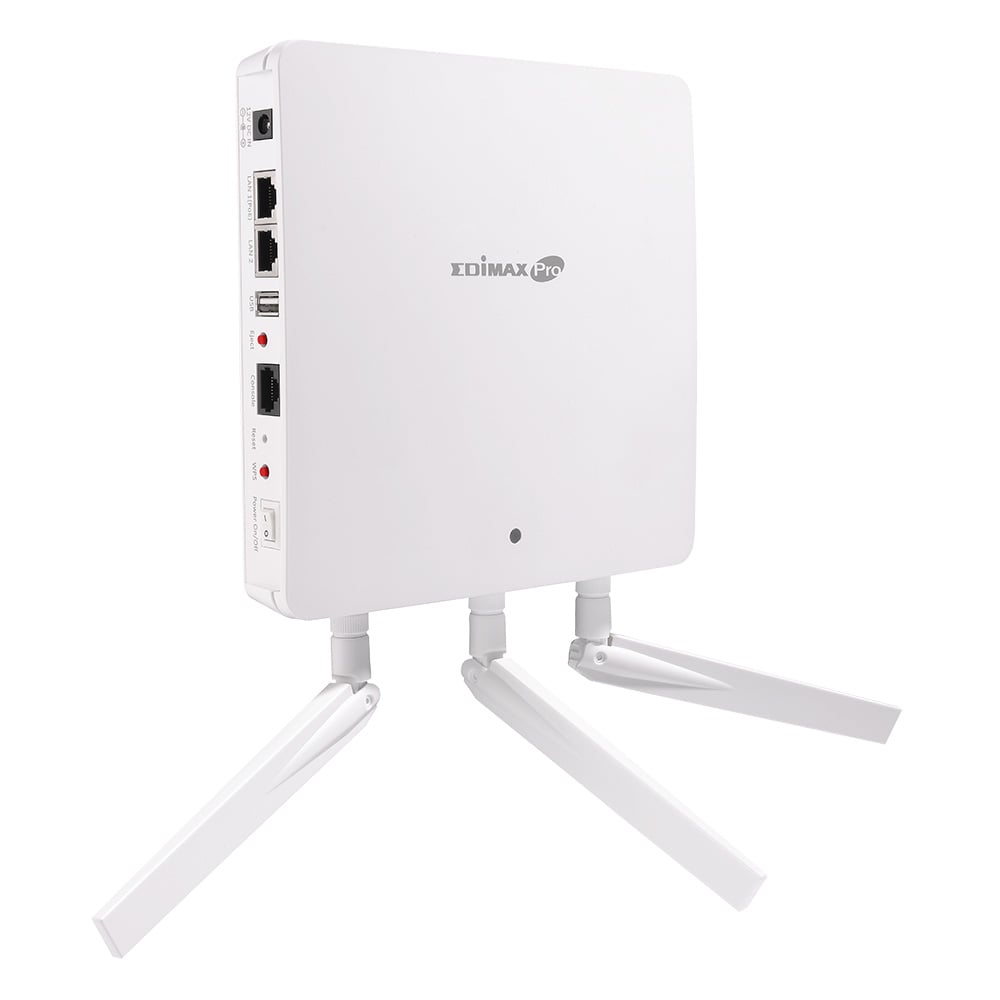

Access Point dual-band 3 x 3 PoE wall mount - Edimax ICE-WAP 1750

ICE-WAP 1750 è a premium-level wireless solution designed for SMBs that require excellent network performance. The product uses the new IEEE 802.11 ac 3 x 3 technology that allows you to obtain speed à wireless on two simultaneous frequency bands up to 1750 Mbps. The design for wall mounting and industrial-level manufacturing qualityà combined with intuitive operation and a wide range of functions, make WAP 1750 a high-performance dual-band solution, ideal for the most demanding daily business operations.



Key Functions

• High speed; dual band 802.11 ac: Two simultaneous frequency bands compliant with IEEE 802.11 ac standard with speed & agrave; 1750 Mbps wireless


• Simple installation: Wall mounting with simple installation kit.


• Designed for high density installations à: Supports up to a hundred simultaneous users: ideal for crowded environments and workplaces where è allowed to use your personal devices (BYOD).


• Multiple SSID for security management: Supports up to 32 SSID (16 x 2,4 GHz and 16 x 5 GHz): ideal for corporate departments, user groups, customers or multiple guests.


• Quick Roaming: Roam between access points evenly, without delay or interruption, ensuring excellent performance for video and voice streaming applications.


• Wide coverage and sensitivity; high: Adjustable radio frequency output power and high sensitivity; receiver for wide coverage over large spaces.


• Mobilità without a solution of continuityà: Coverage greater than 1,5 times than the typical access points, for a total coverage that ensures a connectivityà without a solution of continuityà for Wi-Fi devices present in business environments.


• Power over Ethernet: Supports PoE compliant with IEEE 802.3 at and PSE standard compliant with IEEE 802.3 af standard, as well as the included power adapter.


• Embedded RADIUS Server: Allows you to manage up to 256 user account.


• Business environments: Advanced choice for high-performance applications. Suitable for a wide range of applications, in environments such as offices, hotels, congress halls, schools, university campuses, resorts, shops and others.


• Central management: The Network Management Suite (NMS) Edimax Pro, a suite for simple and intuitive central network management, supports the arrayed architecture of access points.



Technical Specifications Hardware

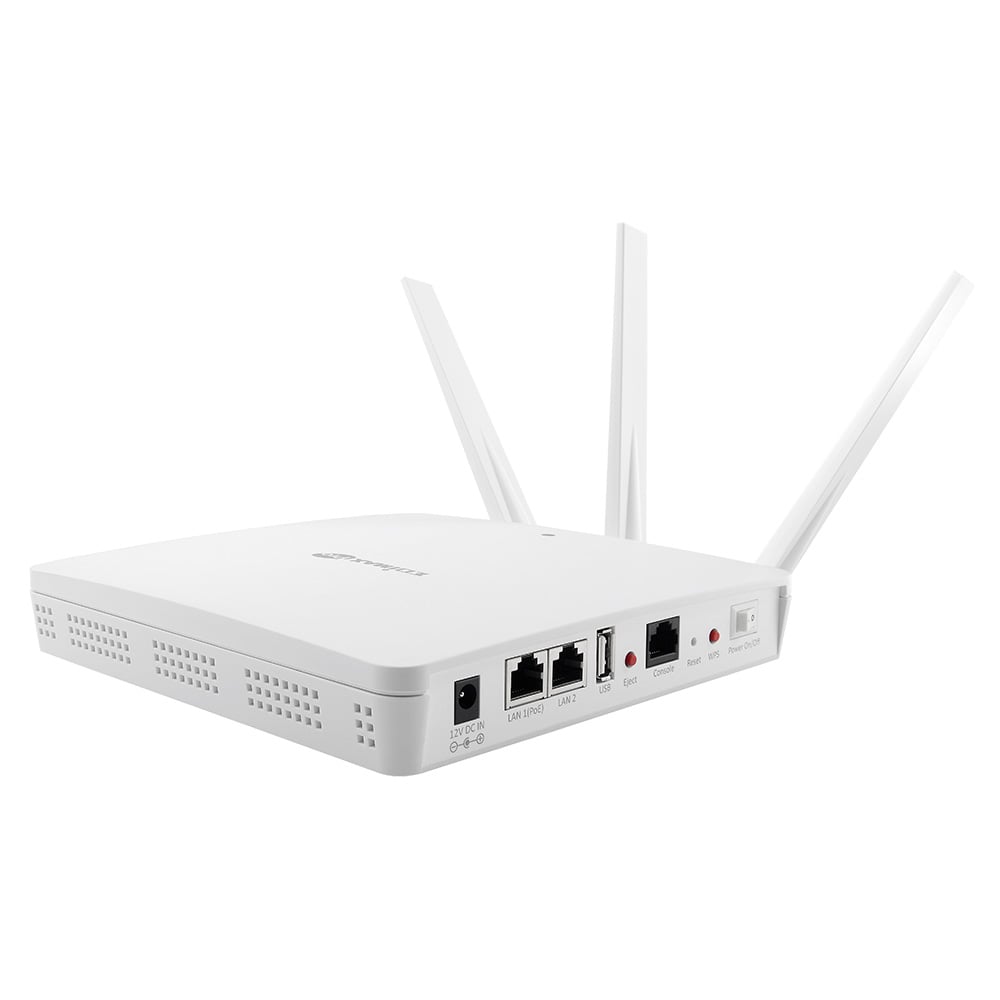

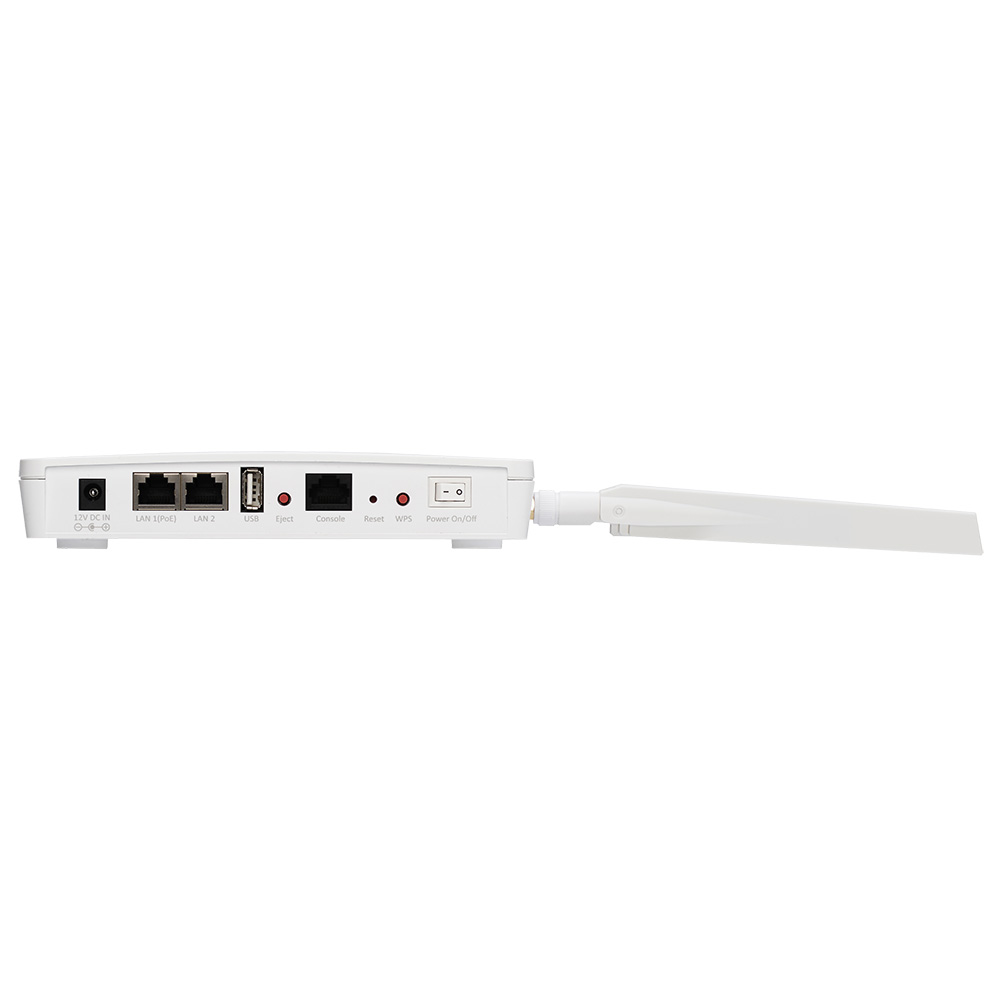

• LAN interface: Giga x 2


• PoE: 802.3 at (in) / 802.3 af (out)


• Antenna: Type 3 x external; Gain: 2 dBi (2,4 GHz), 2 dBi (5 GHz)


• Power supply: CC: 12 V / 4 A; 802.3 at (Optional PoE Injector)


• Dimensions (L x P x A): 18,3 x 18,3 x 3,6 cm


• Weight: 560 g


• Power consumption (full load): 15 W (excluding PoE output)


• Assembly: Wall / On the table


• Console: RJ 45


• WPS/Reset: Sì


• LED indicator: 1 . LED Access; 2 LED Diag


• Use PoE Switch: Operating temperature: 0 °C (32 °F) to 50 °C (122 °F)


• Use Power Adapter: Operating Temperature: 0 °C (32 °F) to 40 °C (104 °F)


• Storage temperature: - 20 °C (- 4 °F) to 60 °C (140 °F)


• Operating Humidità 90 % or less


• Energy saving: 802.3 az


• Internal acoustic signal: Sì


• Protection cover: Sì (optional)



Wireless Technical Specifications

• Standard: Two simultaneous frequency bands in compliance with 802.11 a/b/g/n/ac


• No. of radio modules: 2


• Sensitivityà receiver: ≤ - 94,5


• Certification: CE / FCC


• Quick Roaming: Sì


• Number of SSID: 16 (2,4 GHz) + 16 (5 GHz)



Performance

• Velocità maximum data transfer: 450 + 1300 Mbps


• Simultaneous clients: Up to 50 per radio channel


• Spatial Stream: 3
