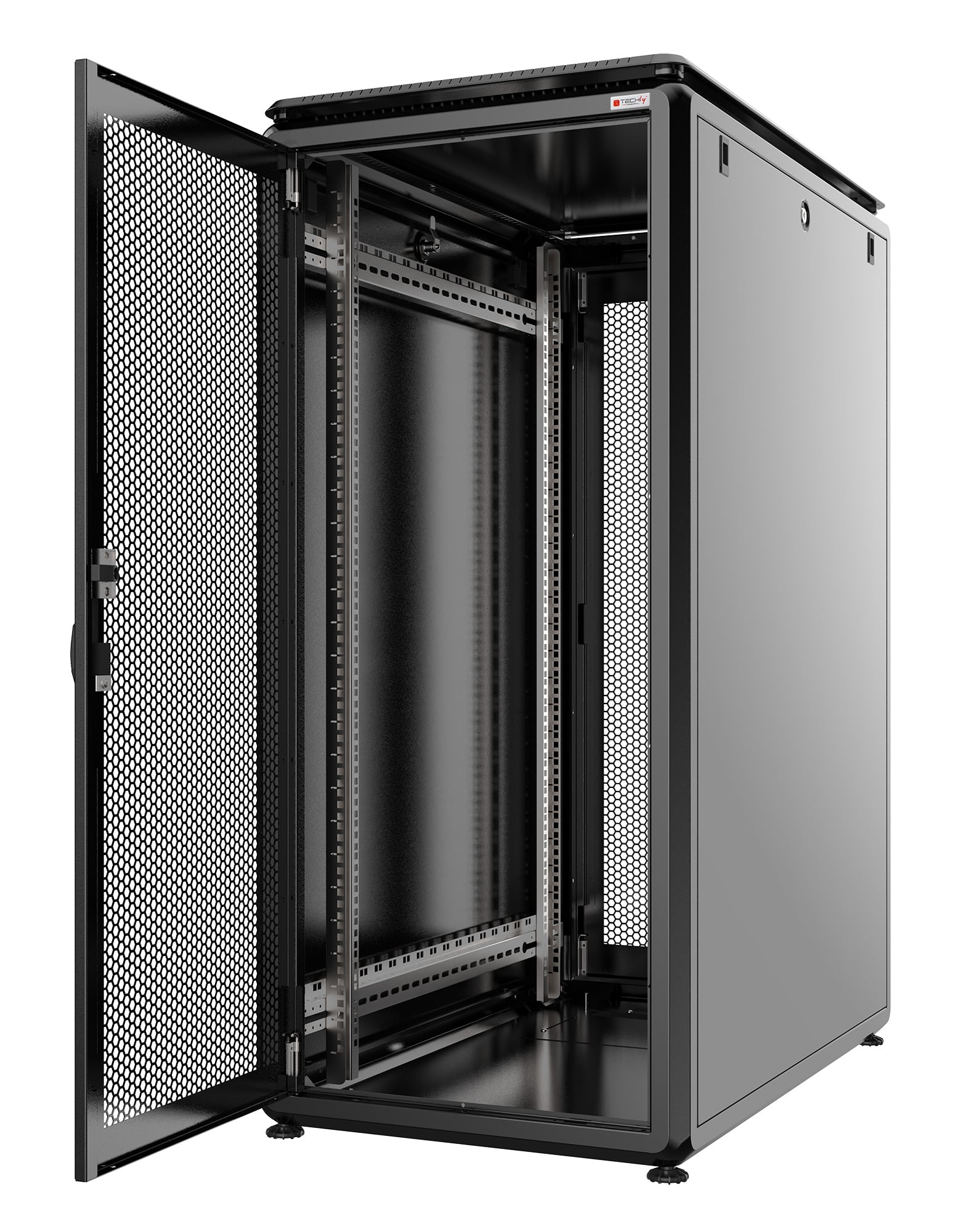

Server Rack Cabinet 19" 800x1200 42U Black Grille Door Evolution series Ventilated - Techly Professional I-CASE EV-42812VBF

Solid floor-standing rack cabinet characterized by a robust structure and manufacturing meeting high quality standards. The sturdiness of the structure is combined with a unique and innovative design, studied in every detail to guarantee maximum versatility, as well as ease and practicality of installation. Quick-release hinges, key locks on panels, reversible door, removable side and rear panels, double pair of numbered mounting rails, provision for cable routing, bottom with sliding plate, roof with a pagoda-like structure to promote air circulation: these are among the main features of the Evolution series. A system of separately purchasable brackets makes the cabinet usable in every space, allowing equipment to be installed even laterally, thus fully exploiting the internal space that would remain unused in the case of shallow devices. Furthermore, the increased depth allows housing and protection of all main types of servers on the market. Finally, thanks to the wide range of accessories offered, these cabinets can meet all installation needs.



Features

• Panels and door easily removable to facilitate equipment installation

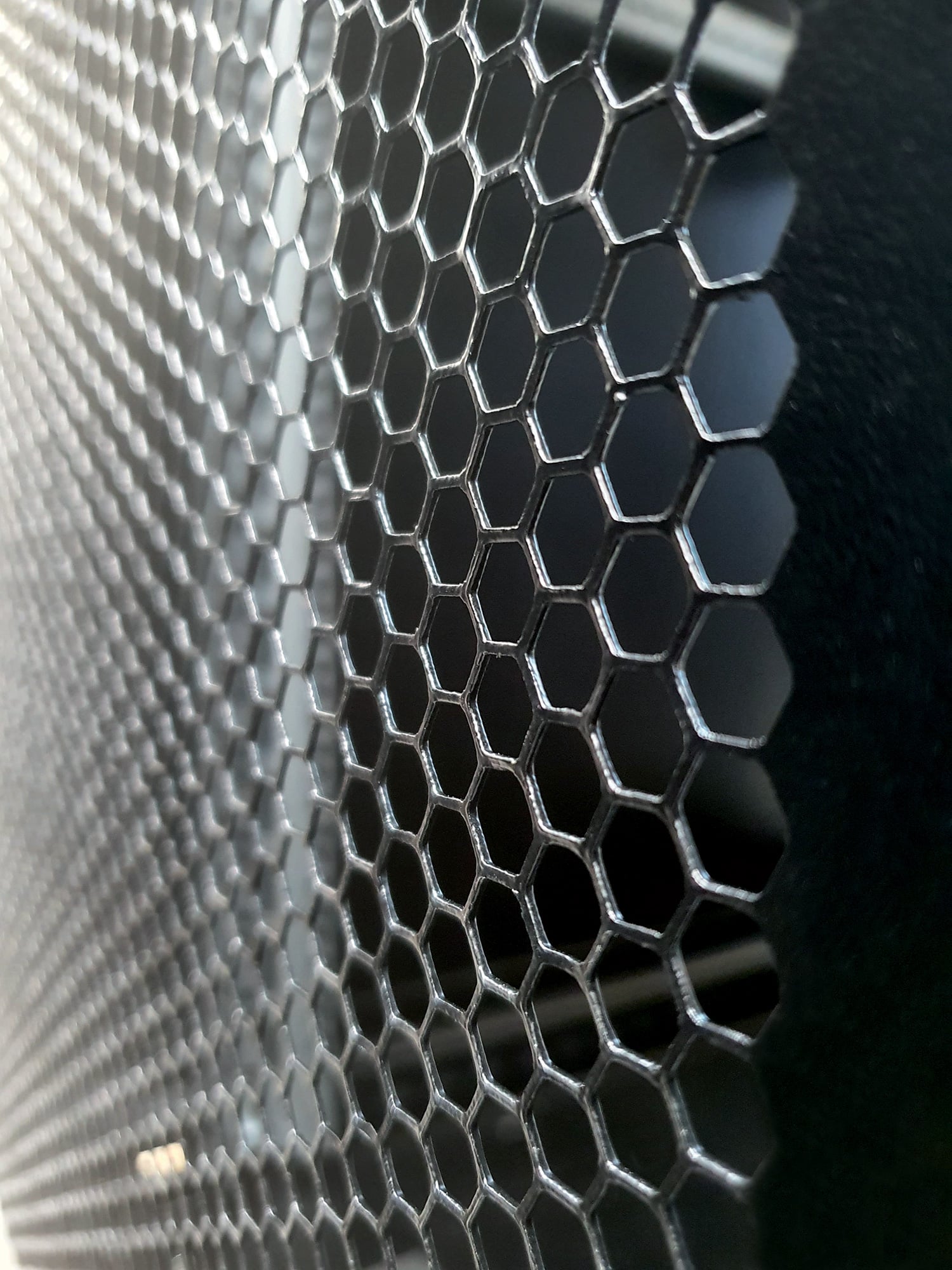

• Reversible metal front door perforated at 80%, with quick-release hinges and lockable handle


• Removable two-section blind side panels with key lock


• Rear door perforated at 80% removable with key lock


• Special pagoda roof installed 10mm from the cabinet structure to facilitate passive ventilation if there are no ventilation units or active ventilation in case of ventilation units installed on the roof; two cable entries located on the left and right sides of the roof complete with brushes


• Base prepared for cable entry and equipped with a sliding panel (300x250 mm) which, when closed, allows placing devices like UPS, when open favors ventilation; on the sides of the sliding panel, two additional cable entries with brushes located on the right and left side of the base (60x300 mm)

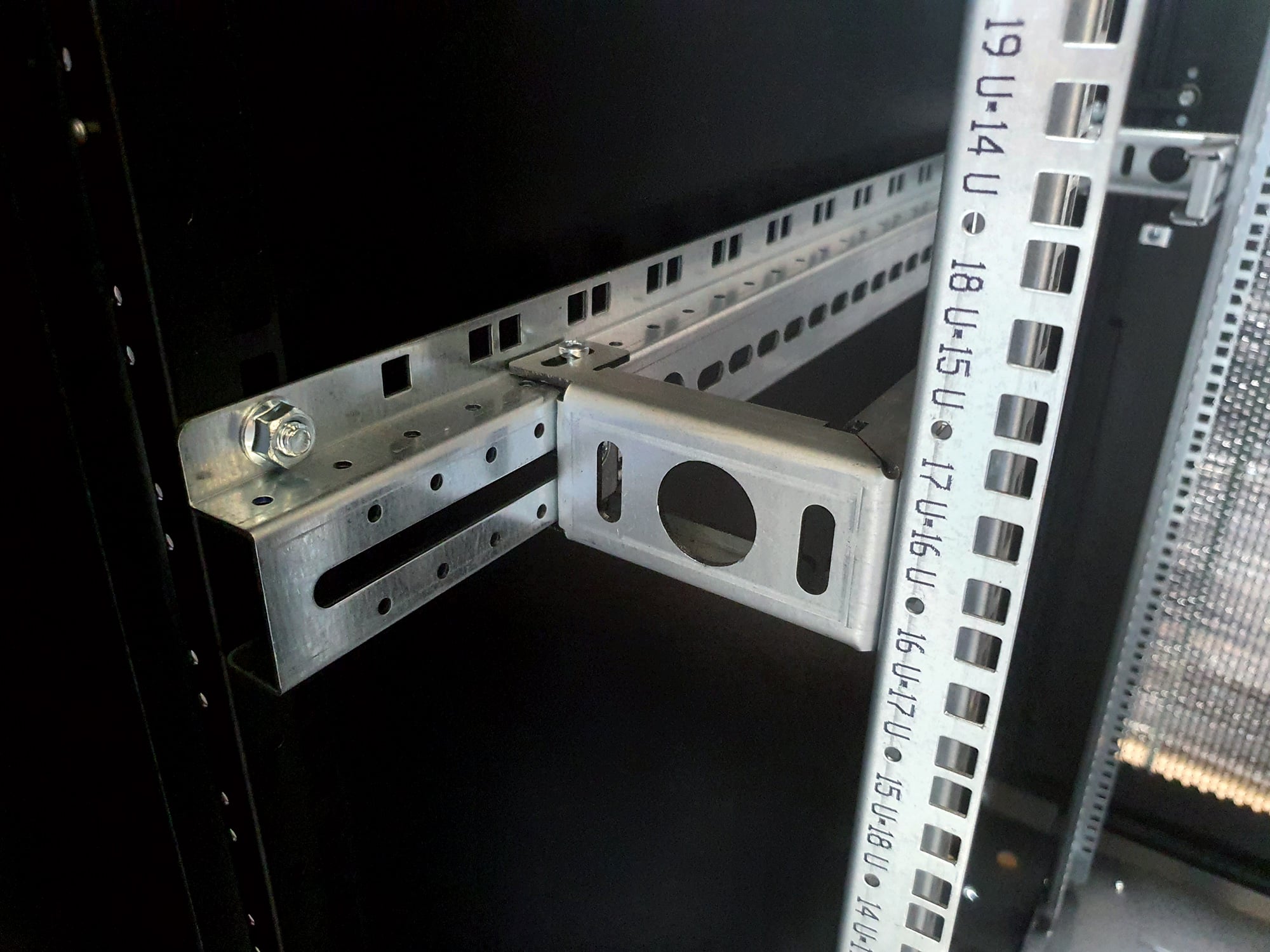

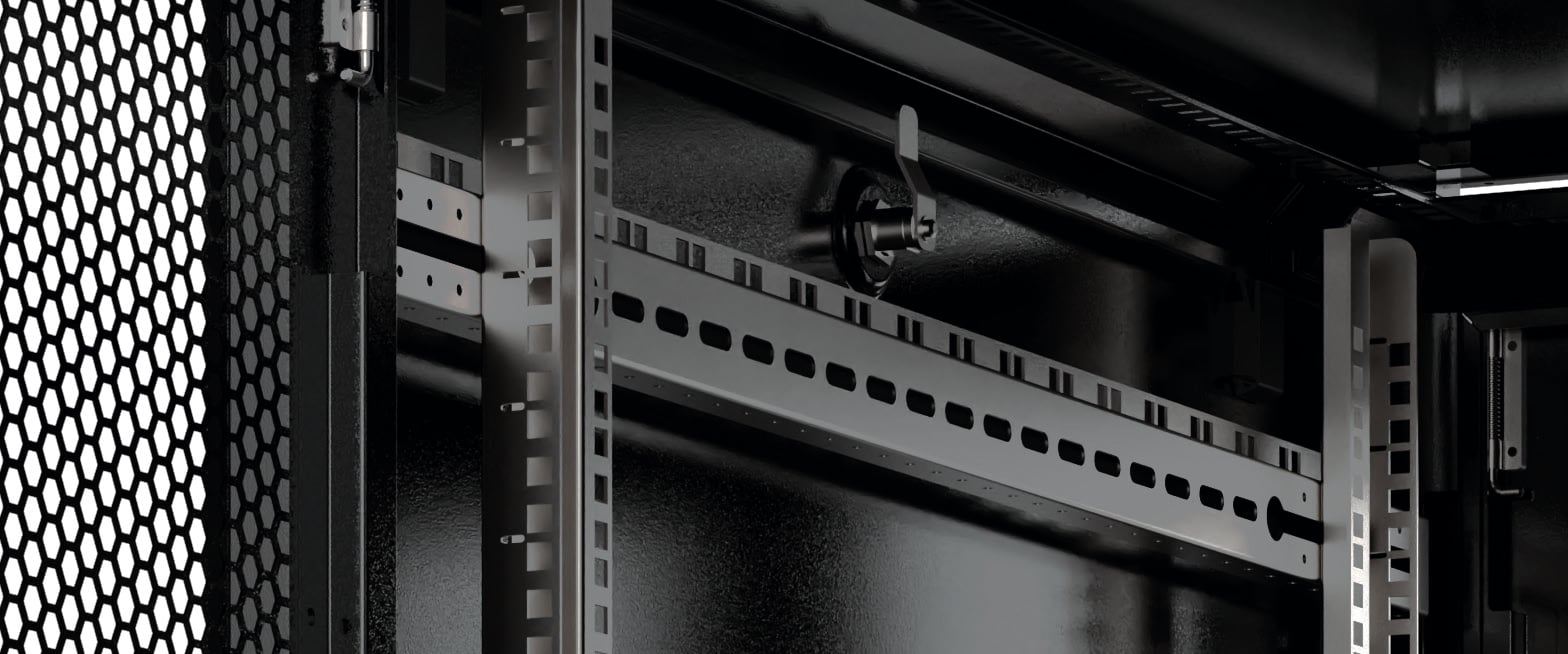

• Supplied with a pair of numbered 19” front and rear mounting rails adjustable in depth


• Supplied with feet


• Includes roof ventilation system with 4 fans


• Static load capacity 2000 kg


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)


• External dimensions: (H x W x D) 2053 x 800 x 1200 mm



Certifications

• CE certification according to EN 62208


• Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN60529; EN12150-1; RoHS II 2001/65/EU
