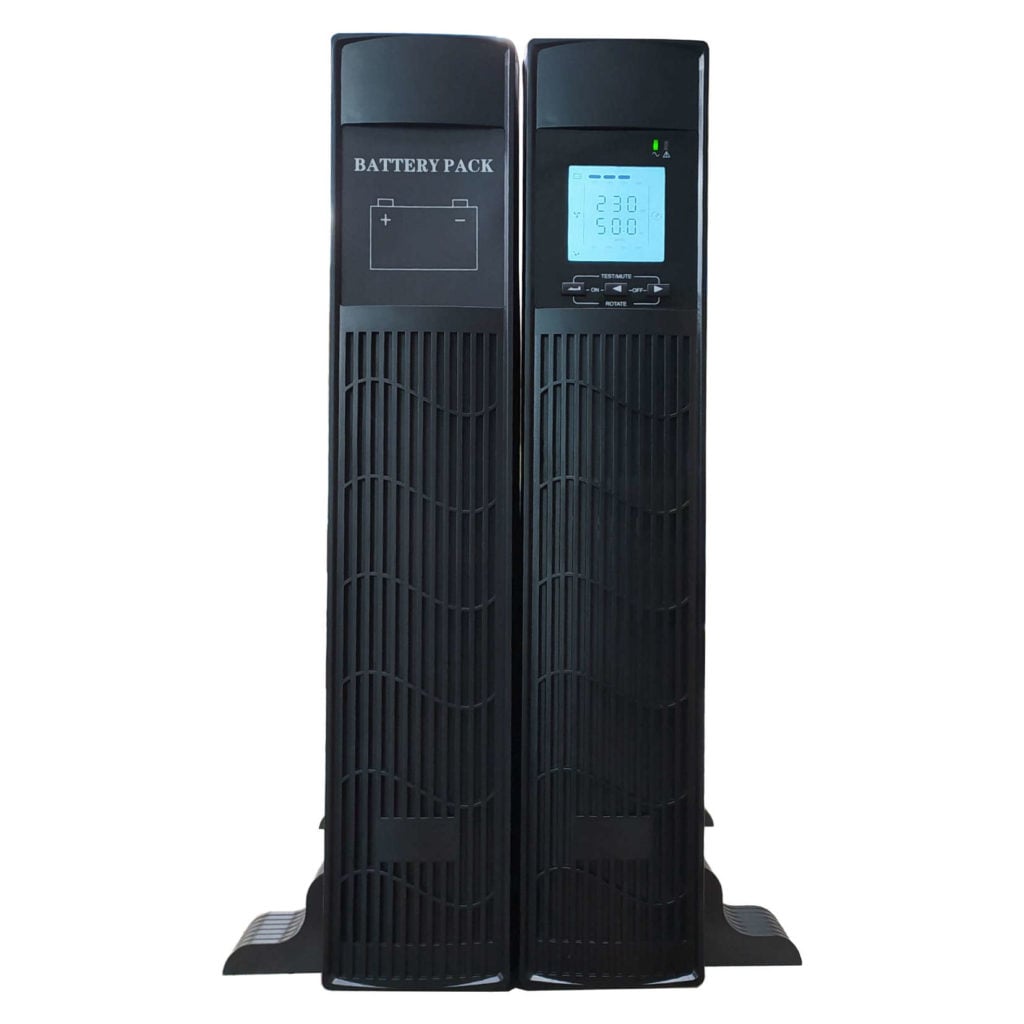

UPS 3000 VA 2700 W OnLine Double Converter Tower/Rack - Techly Professional IUPS-RM 3 KL 9 PROS

€1,478.02
Tax included €1,211.50 excl. VAT

UPS On Line dual conversion power 3000 VA/ 2700 W, sinusoidal wave and 8 Hot Swap 9 Ah batteries. Tower or 19 rack can be installed, with APFC correction and EPO contact.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Continuity group; Double-conversion Online with rated power 3000 VA - 2700 W with sinusoidal wave

  • Equipped with 8 Hot Swap 9 Ah 24 V DC batteries

  • Tower solution or installable 19 rack



Specifications

  • Rated power 3000 VA – 2700 W

  • Double Conversion Online Technology (VFI)

  • Total control with DSP (Digital Signal Processors) technology

  • Active Power Factor Correction (APFC) Power Factor Up 0.99

  • 0.9 output power factor

  • Wide tolerance on input voltage (100 V/ 300 Vac) and input frequency (40 / 70 Hz)

  • Automatic detection of input frequency

  • Frequency converter operation (50 / 60 Hz), configurable by SW

  • Battery ignition (Cold Start), configurable by SW

  • Automatic re-ignition at the return of the network (Auto Restart), configurable by SW

  • Rumorosità reduced by variable rear fan speed, less than 50 dB

  • Possibility of expansion autonomy via external battery connector

  • Replaceable Hot Swap batteries without switching off the UPS by pulling out drawer from the front panel

  • Emergency Power Off (EPO) contact for remote emergency shutdown

  • Autonomy load 70 %: ~ 6 ′

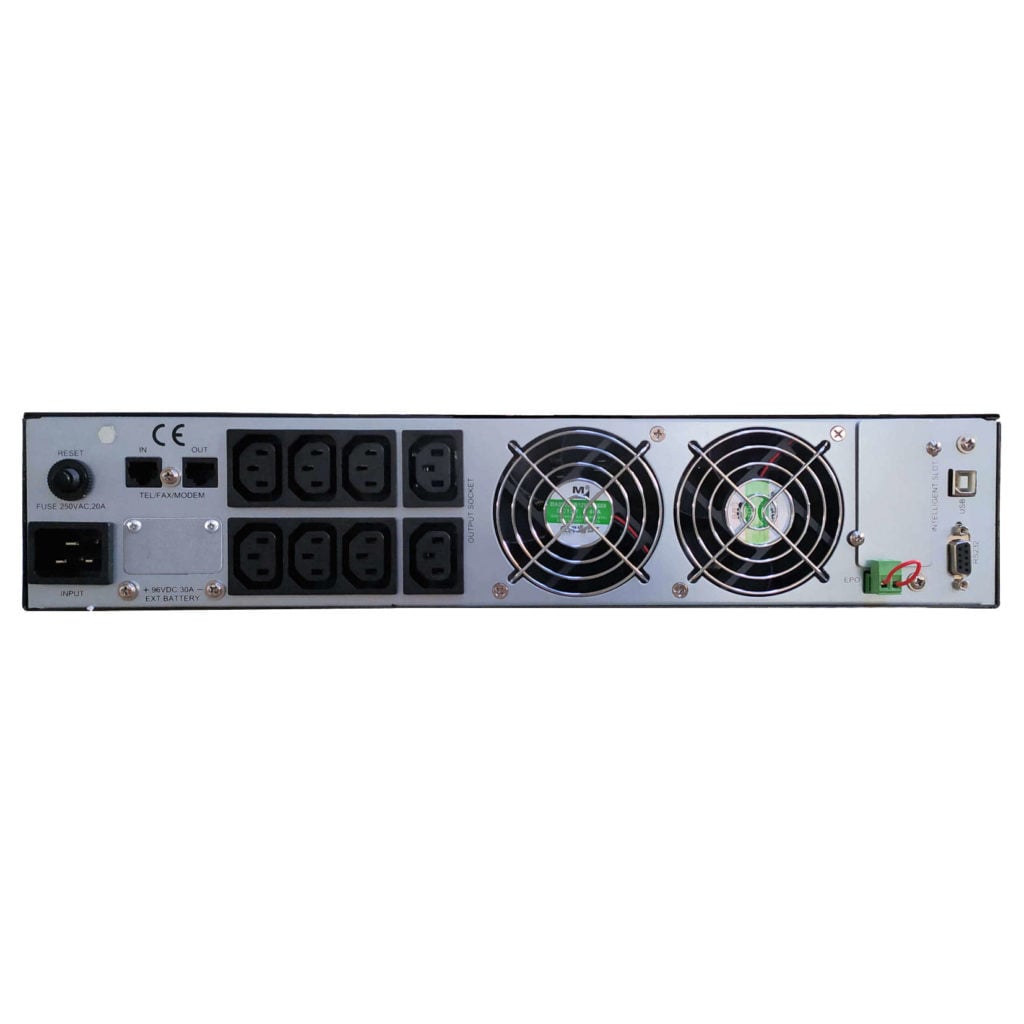

  • Output socket: 8 x IEC 320 C 13 10 A

  • Low distortion sinusoidal waveform



Battery management

  • Stable and fast charging of batteries, battery charging to 90 % in 3 hours (standard version)

  • Advanced battery management against deep discharge

  • Battery test for manual battery efficiency verification

  • Large input voltage tolerance for battery intervention limitation

  • Battery charging current 1 A

  • Possibilities for applications requiring long autonomy (EBK PRO Rack SC model)

  • Possibile version with residual charge reserve for medium voltage applications. Compatible Standard CEI 0 - 16 (EBK PRO Rack Time model)



Mode management à operation

  • Output voltage set (208 / 220 / 230 / 240)

  • Set setting low battery voltage

  • Settling bypass enabled on ignition

  • Automatic start-up setting to network connection

  • Mode setup à ECO via SW (optional)

  • Wide configuration and customization of iService Tool (optional)



Advanced Communication

  • USB and RS 232 interface

  • Overvoltage protection for network/fax/modem

  • Protections: overload, short circuit, overtemperature, low battery voltage, fan protection test

  • Smart Slots for Network Card or Contact Card AS 400 (optional)



Display

  • Large display (LCD and LED)

  • Measurement display (output, load, temperature, input, batteries)

  • Alarms and mode of operation



Physical Characteristics

  • Tower version dimensions (cm): (44 x 8,8 x 48) x 2

  • Rack version size (cm): (2 U x 19 + 48) x 2

  • Weight: 24,5 Kg

  • Operating temperature: 0 ° C ~ 40 ° C

  • Storage temperature: - 25 ° C ~ 55 ° C (without batteries)

  • Humidità relative: 0 ~ 95 % not condensed



Package contents

  • Continuity group; IUPS-RM 3 KL 9 PROS

  • USB cable

  • Power cable

  • Brand
  • Reference
    IUPS-RM3KL9PROS
  • In stock
    2 Items
  • EAN13
    8059018365573
