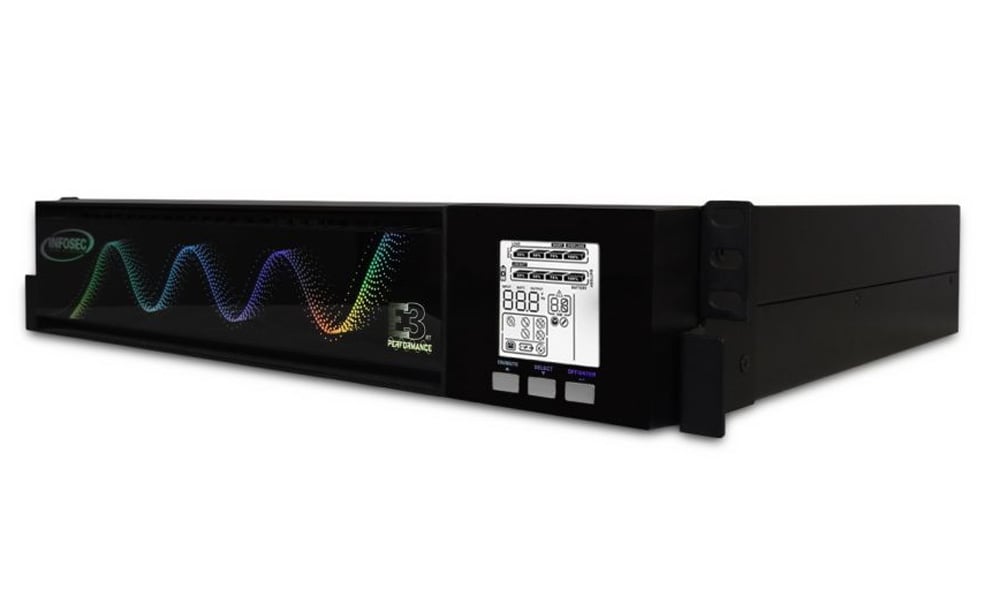

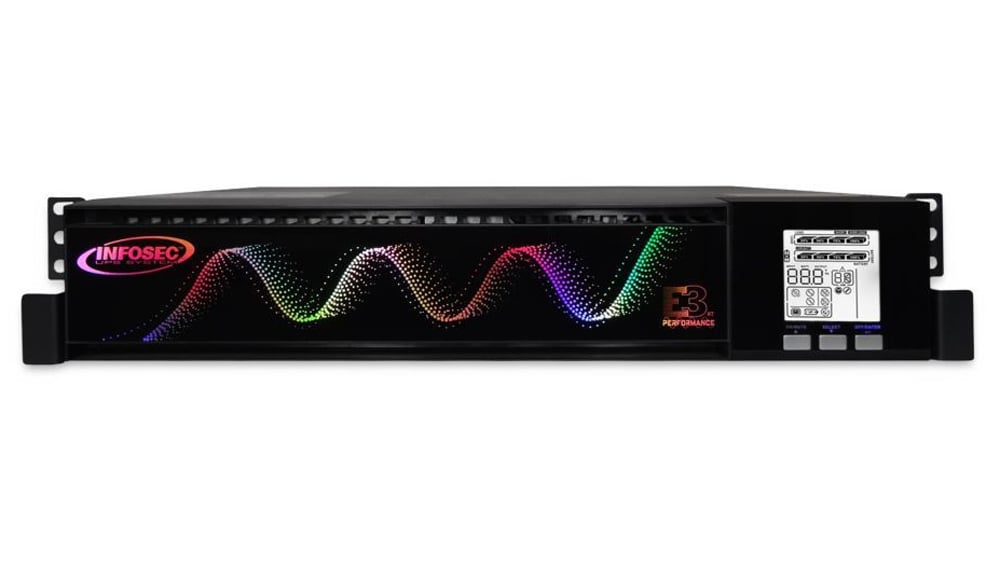

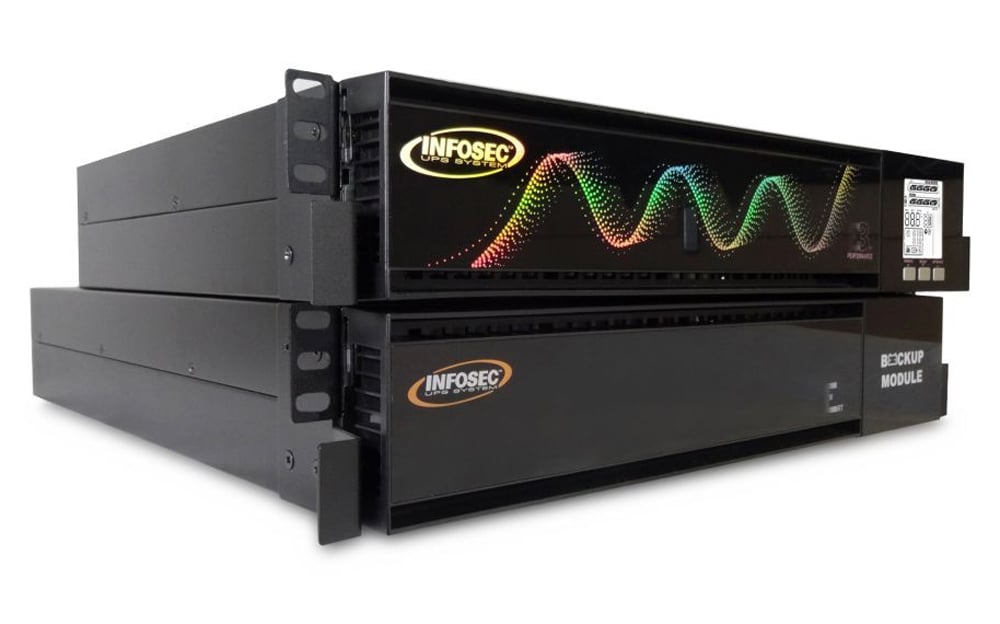

Continuity Group UPS AND 3 Performance 2500 RT Synusoid Wave - Infosec ICUE 3 PER 2500 R

The UPS AND 3 Performance are dedicated to the electrical protection of networks and IT environments. With a high quality sinusoidal current; in output and a wide connection, they are ideal for the supply of sensitive equipment.

Equipped with microprocessor-controlled Online Performance technology, the UPS AND 3 Performance range offers perfect protection for computer networks and loads.

It provides a sinusoidal current and a high power factor (0.9) adequately protects servers and other IT equipment.

The UPS AND 3 Performance guarantees continuity of service and backup of data in case of electrical failure.

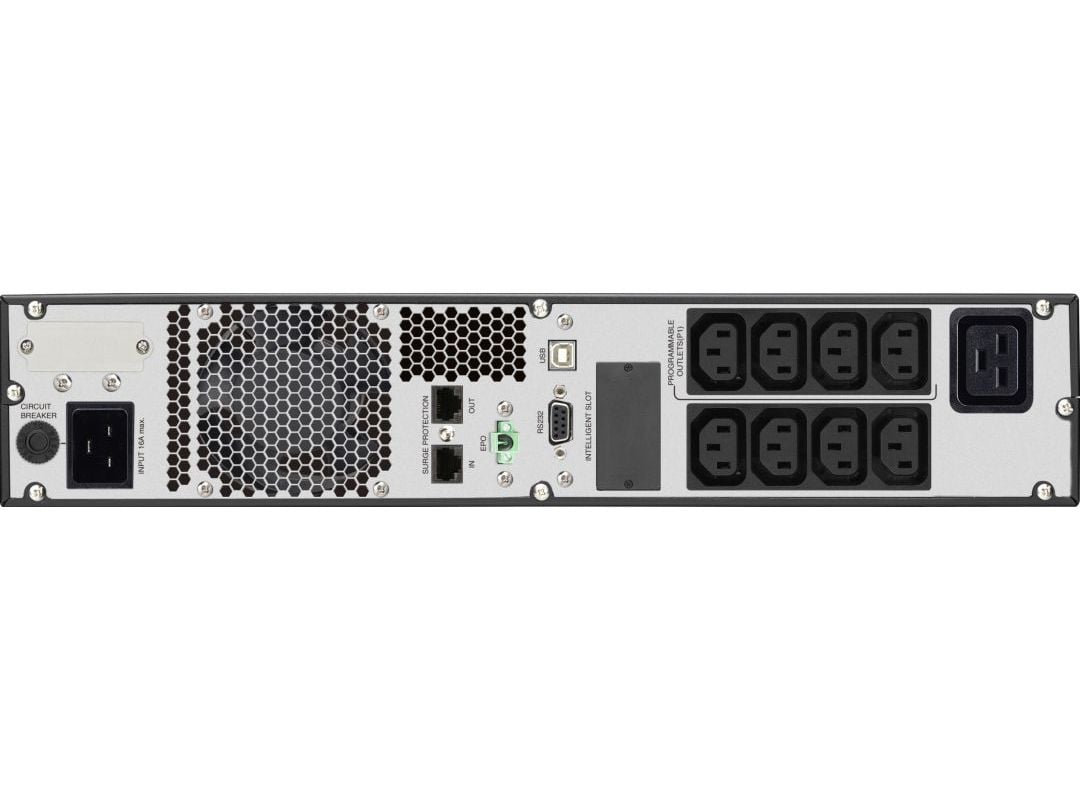

The inverters E 3 Performance offer a great flexibility à adaptation thanks to their wide connection:

• 8 – 9 pulse sockets of which 4 programmable. Programmable sockets allow you to easily and independently control critical and non-critical loads.


• 2 RJ 45 connectors also offer TEL/ADSL line protection.


• RS 232 and USB communication ports allow remote communication with different connected equipment



The flexible design of E 3 Performance allows a simplified installation according to the needs:

• tower position


• rack position



Technical Specifications

• Device type: UPS - rack mountable format


• Number of sockets: 8 sockets


• Power supply: 2250 Watt


• Maximum power (VA): 2500 VA


• Charging time: 4 hours


• Online without interruptions


• Height (unità rack): 2 U



Feeding

• Online power supply technology (UPS = Uninterrupted Power Supply)


• Input voltage: CA 208 / 220 / 230 / 240 V


• Input voltage range: 162 - 290 V AC CA


• Frequency provided: 50 / 60 Hz ± 1 Hz


• Frequency required: 50 / 60 Hz


• Input connectors: 1 x power supply IEC 60320 C 14


• Output connector details: 8 x power supply IEC 60320 C 13


• Output voltage: AC 208 / 220 / 230 / 240 V ± 1,5 % - 50 / 60 Hz


• Capacity & agrave; power: 2250 Watt/ 2500 VA


• Overvoltage suppressor for data lines: Telephone/network line-RJ- 45 /RJ- 11 - 1 input/ 1 output line


• Outgoing waveform: Synusoidal


• Power factor: 0,9


• Battery charging time: 4 hours



Other

• Remote management interface: RS- 232 , USB


• Functions: LCD display, Eco-Mode


• Compliance standards: RoHS, EN 61000-4-2: 2009, EN 61000-4-5: 2006, EN 61000-4-8: 2010, EN 61000-4-6: 2014, EN 61000-3-2: 2014, EN 62040-2: 2006 + AC: 2006, EN 62040-1: 2008 + A1: 2013, EN 61000-2-2: 2002, EN 61000-4-3: 2006 + A2: 2010, EN 61000-4.4: 2012



Environmental Characteristics

• Minimum working temperature: 0 °C


• Maximum operating temperature: 40 °C


• Operating Humidità 0 - 90 % (without condensation)


• Rumorosità: 45 dBA



Dimensions and Weight

• Width: 64,5 cm


• Depthà: 43,8 cm


• Height: 8,8 cm


• Weight: 21,5 g



Package contents

• 1 UPS


• 1 power cable


• 1 IEC output cable


• 1 USB cable


• 1 base and fixing brackets


• 1 user manual
