Video recorder NVR 16 Channels H. 265 with 16 Channels PoE - Avtech IC-AVH 2117 AX

Compression technology H. 265

Thanks to H. 265 compression technology, the è recording capacity is significantly improved as well as the bandwidth savings for better efficiency and performance compared to systems that use other compression formats.



Cloud service - EaZy Networking

- EaZy Networking, the cloud service provided by AVTECH, available to connect this device to the Internet automatically in three steps with our free mobile app, EagleEyes.

- The Buddy function to share the device access permission with other people.

- Reported device access/exit notifications



Customizing alarm scenarios

Scenario è a new functionality à that allows you to customize a series of actions that will be performed automatically after the specified event occurs. There are several scenarios templates to choose from when and what to do after a specific event occurs.



Push Video & Push Status - Notification of active events with the EagleEyes app

- Push Video to send snapshot notifications for an alarm event when an alarm device è is connected to the recorder.

- Push Status to send snapshot notifications for system events, such as video loss or HDD data removal.



A solution for Ethernet cable (POE, Power-over-Ethernet)

Camera power supply and video transmission on an Ethernet cable to eliminate the need for camera power supplies during the configuration of the HD surveillance system.



Pop-up/Event Preview

All events are listed in the right panel with the corresponding event icons to allow you to quickly recognize the event type.

The most current lampeggerà to attract your attention. Click an event and you will be able to preview the movie with pre-alarm images.

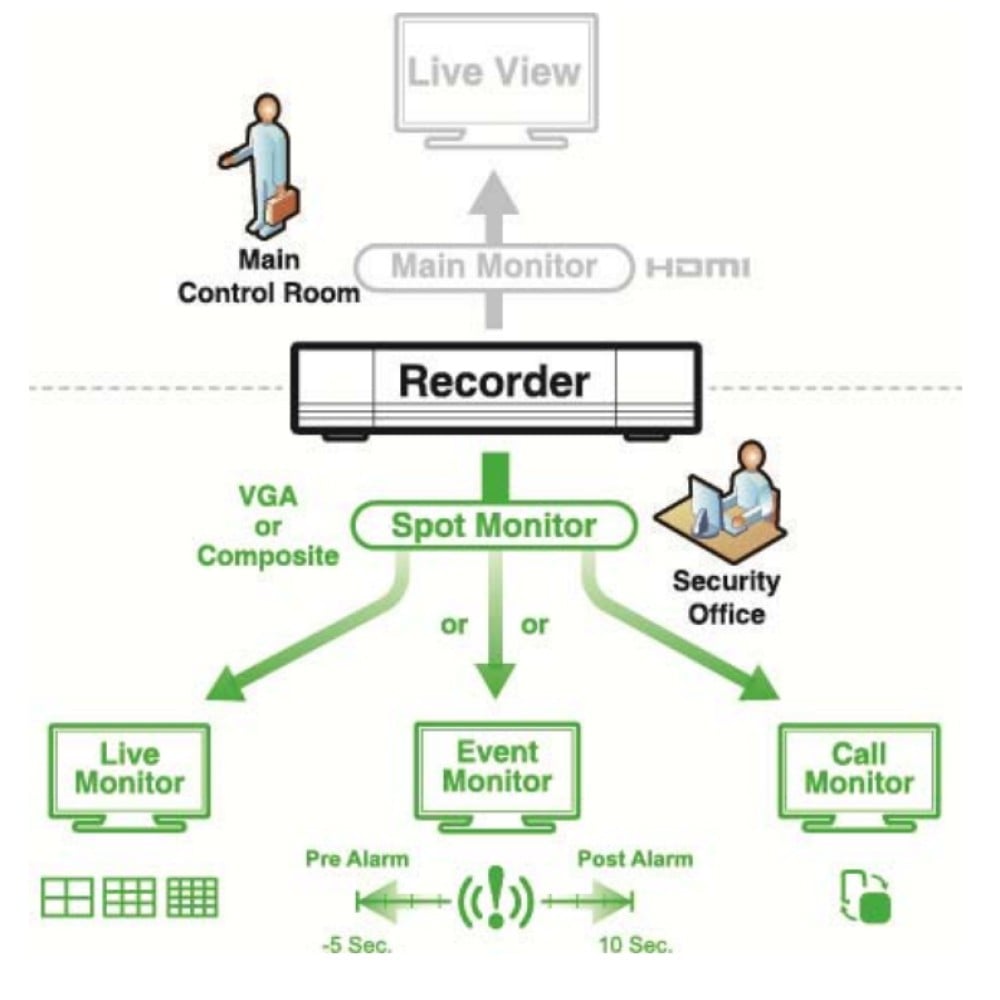

Spot monitor

In addition to the display via the main HDMI output, è can assign a secondary display to show live view, call monitoring or event monitoring.



Technical specifications

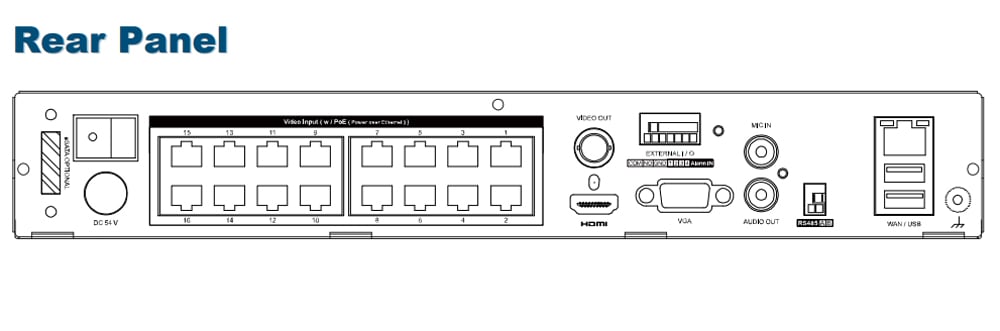

• Video entry: 16 LAN ports with PoE


• Video outputs:



- HDMI 4 K 2 K

- VGA 720 p Spot monitor supported

- Composite video

• Video output resolution 4 K 2 K (3840 x 2160)


• Audio: 1 in / 1 out


• Alarm: 4 in / 1 out


• RS 485


• Two SATA HDDs up to 16 TB or one SATA HDD up to 16 TB installed and an array of disks connected to the recorder can be installed in the recorder via the eSATA interface


• Equipped with two USB ports 2.0


• Expandable eSATA port with a SATA to eSATA cable


• Network:



10 / 100 Mbps x 8 port (EEE 802.3 af)

Internet port (WAN) 1000 Mbps x 1



Software

• Video compression format: H. 265


• Audio compression format: G 711


• Modelità local/remote display 16 channels


• Local/remote playback mode 16 channels


• Local single-channel playback


• Recording mode: manual/event/alarm/programming


• Double streaming recording


• Registration Resolution: 480 IPS @ 4 K 2 K (3840 x 2160)


• Velocità Registration: 160 Mbps


• Event notifications: push video / push status / video mail / message mail


• Security: more ù password user login levels



Network protocols

• DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv 4, UPnP, DNS, UDP, IGMP


• ONVIF compatible


• Maximum users online: 40


• Remote access:



(1) Web browser: Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows and Google Chrome & Mozilla Firefox on MAC

(2) PC program: CMS Lite, CMS 32 CH software for Windows operating system

(3) Mobile App: EagleEyes on iOS and Android mobile devices



Dimensions

• Width: 319.5 mm


• Depthà: 254.9 mm


• Height: 52.0 mm



Certifications

• CE


• UL



Package contents

• IC-AVH 2117 AX video recorder


• User manual
