Video recorder XVR PENTABRID 32 channels 8 -bay - Avtech IC-DGD 8132

•

• Video recorder XVR PENTABRID 32 channels with 8 storage enclosures for SATA 10 TB storage HDD

• Available Cloud EaZy Networking to connect your device to the Internet automatically in three steps with the free mobile app, EagleEyes

• The Buddy function to share device access permission to other people

• Device access / output signals

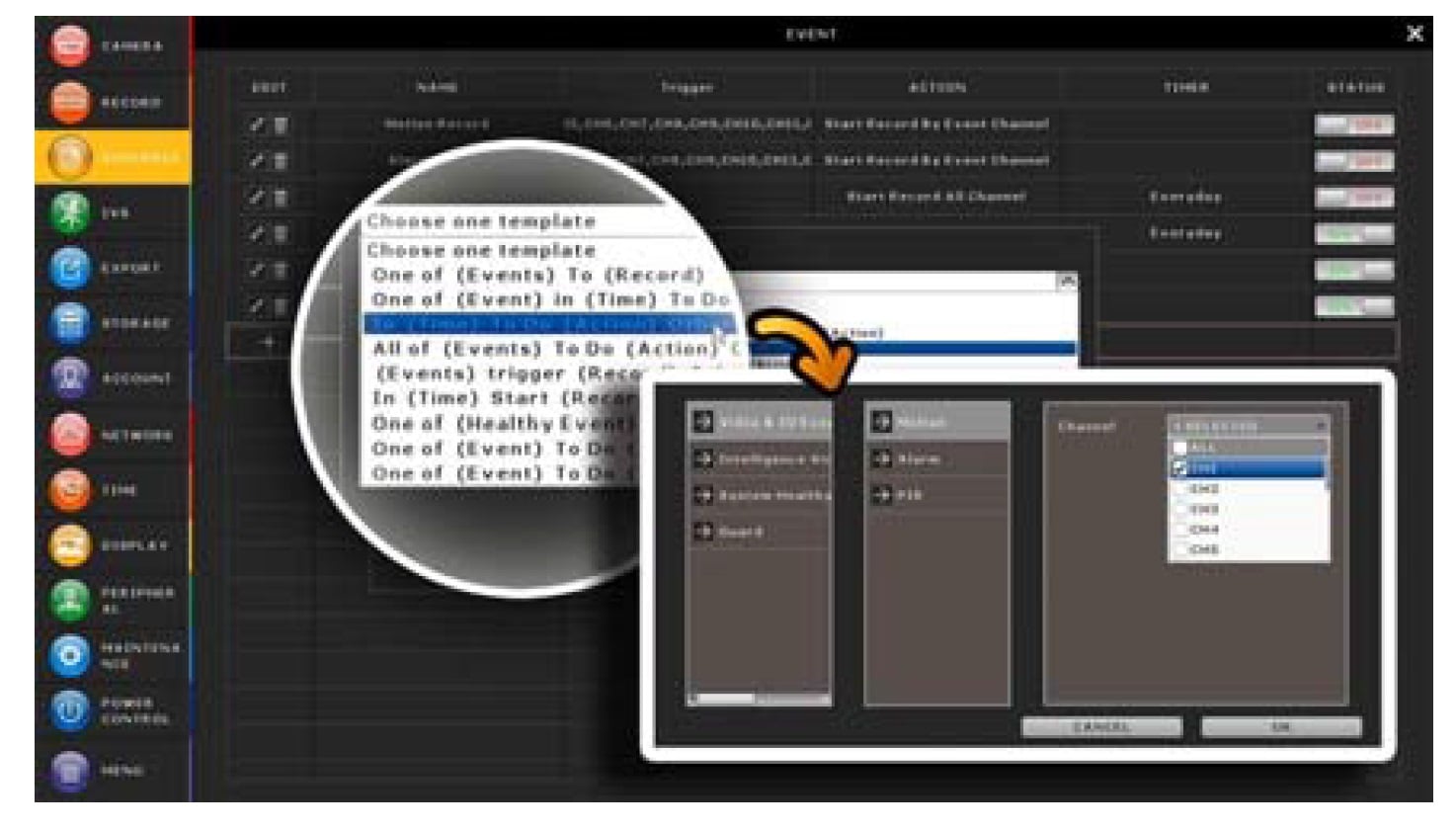

• Customizing the alarm scenario so that a number of actions are performed automatically after the specified event

• Popup/event preview: All events are listed on the right panel with matching event icons to quickly recognize the event type with the most recent event that flashes; clicking on the event you can ` view the movie preview

• Pentabrid video input: supports IP / analog HD / TVI / CVI / 960 H video input

• Registration up to 1080 P

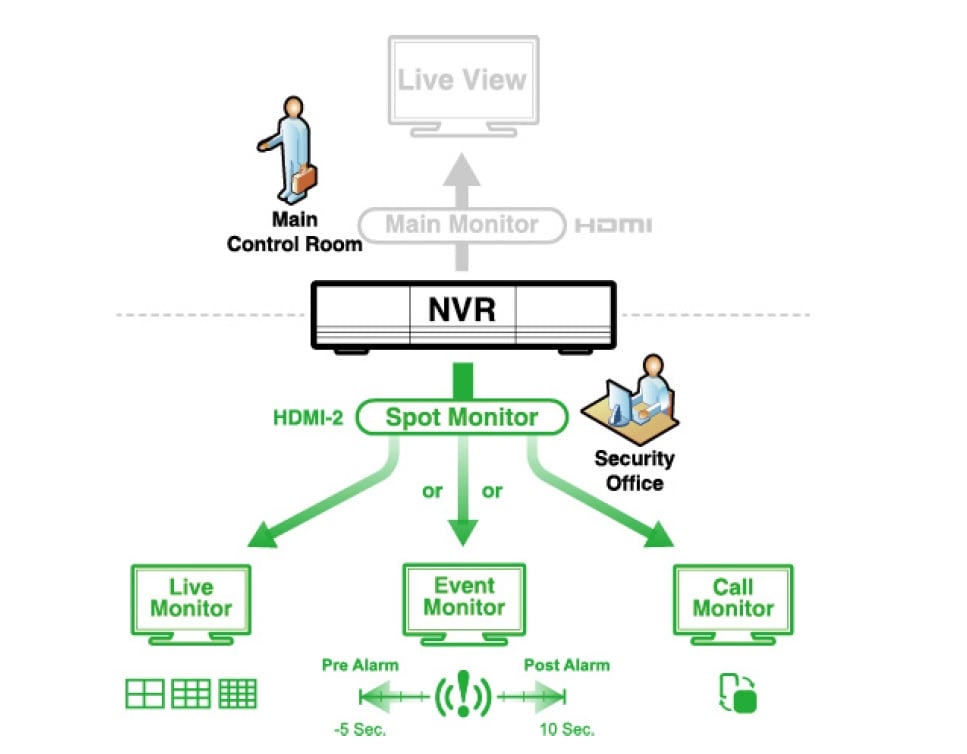

• Spot Monitor: In addition to the main display via the HDMI output, you can ` assign a secondary display for live viewing, call monitor or event monitor

• Push event notification active with the EagleEyes app: to send snapshot notifications for system events, such as video loss or HDD data removal

• Capacità storage on 8 disks, allows you to solve the need for large amounts of data to be stored and to maintain high quality video data; without the obligation to overwrite data too quickly


General information

•

• HDD storage hard drive x 8 SATA 10 TB

• SATA interface: yes

• Setting qualityà image: SUPER BEST / BEST / HIGH / NORMAL

• USB Mouse Control: Yes

• Motion detection area: 16 × 12 grid per channel

• Sensitivityà motion detection: 3 adjustable parameters for precise detection

• Event notification: Push Status / FTP / E-Mail

• Zoom image: 2 X digital zoom

• PTZ control: yes

• Key lock (password protection): yes

• User level: 4 user levels for differentiated access privileges

• Video loss detection: yes

• Room Title: supports up to 25 letters

• Tonalità video / Saturation / Contrast / Luminosità: adjustable

• Date format displayed YY/MM/DD, DD/MM/YY & MM/DD/YY

• Summer time: yes

• Power source (± 10 %) 19 V/ 4.7 A

• Operating temperature: 10 oC ~ 40 oC (50 OF ~ 104 OF)

• Humidità exercise: 10 % ~ 85 %

• Dimensions (mm)** 358 mm(L) x 267 mm(P) x 152 mm(A)

• Net weight (kg) 5.9 kg


Network

•

• Ethernet 1000 Base-T. Supports remote and live view control via Ethernet

• TCP/IP network protocol, PPPOE, DHCP and DDNS


Remote surveillance via PC

•

• Compatible operating systems: Windows & MAC

• Compatible programs:


- Web Browser: Windows Edge, Internet Explorer (Windows 8 and version più recent)
- Safari, Google Chrome & Mozilla Firefox (Windows Vista and more recent versions)
- CMS Lite: 32 CH central management software for Windows OS

•

• Max. number of users online: 36

• Compression format for web transmission: H. 264

• Remote Live Display: 9 CH (Selectable)

• Live Audio Network: yes

• Download remote event and playback: yes

• Mobile surveillance: EagleEyes App

• Compatible peripherals: iOS & Android devices

• Push State: yes


Video Specifications

•

• Video system: NTSC / PAL (self-detecting)

• Video compression format: H. 264

• Video signal: 32 channels (TVI / CVI / Analog HD / 960 H)


within which IP channels are up to 2 channels.

•

• Video input: 32 channels (compound video signal 1 Vp-p 75 Ω BNC)

• Video input interface:


- Modelità analog – Composite video signal 1 Vp-p 75 Ω BNC
- Modelità IP: Ethernet, 10 / 100 Base-T

•

• Video output:


- BNC: Yes (Spot Monitor supported)
- VGA: Yes (1080 P display / Spot Monitor supported)
- HDMI: HDMI- 1 (4 K 2 K display) / HDMI- 2 (1080 P display / Spot Monitor supported)

•

• Video resolution:


- Modalità analogue 1080 P / 720 P / QHD / 960 H / Frame / Field / CIF
- Modelità IP 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240

Registration & Backup

•

• Max. speedà recording modeà analog up to 384 IPS @ 1920 x 1080

• Modelità IP: up to 30 IPS @ 1920 x 1080 (2 channels)

• Modelità recording: Manual / Scheduled / Movement / Alarm / Remote

• Pre-alarm recording: yes

• Play Channel: 16 CH

• Fast search: mode à search by time / movement / alarm

• Periferica Backup: USB 3.0 drive / Network

• Regular backup: yes (USB hard drive or FTP)


Audio

•

• Audio input: 16

• Audio output (Mono): 2


External I/O

•

• RS 485:yes

• Alarm input: 8

• Alarm output: 1

• Alarm Scenario: yes


Other

•

• EaZy Networking: yes

• Alarm scenario configuration: yes

• Spot Monitor Configuration: Call Monitor / Event Monitor / Live Monitor (HDMI- 2 , VGA & Composite Selectable)

• Supports DCCS: yes

• AVTECH Free DDNS service: yes

• Privacy Mask: yes

• Activeà multiple: Live display / record / playback / backup / network operations

• System Restore: Auto System Restore after Power Break


Package contents

•

• Video recorder XVR PENTABRID 32 channels 8 -bay

• Power supply

• Quick Guide
