NVR video recorder 9 Channels H.265 with PoE - Avtech IC-AVH2109AX

H.265 compression technology

Thanks to H.265 compression technology, recording capacity is greatly improved as well as bandwidth savings for better efficiency and performance compared to systems using other compression formats.



Cloud service - EaZy Networking

- EaZy Networking, the cloud service provided by AVTECH, available to connect this device to the Internet automatically in three steps with our free mobile app, EagleEyes.

- The Buddy function to share device access permission with other people.

- Reported device access/exit notifications



Customization of alarm scenarios

Scenario is a new feature that allows you to customize a series of actions that will be performed automatically after the specified event occurs. There are several scenario models to choose from when and what to do after a specific event occurs.



Push Video & Push Status - Active event notification with the EagleEyes app

- Push Video to send instant notifications for an alarm event when an alarm device is connected to the recorder.

- Push Status to send instant notifications for system events, such as video loss or HDD data removal.



A solution for Ethernet cable (POE, Power-over-Ethernet)

Camera power and video transmission over a single Ethernet cable to eliminate the need for camera power supplies during HD surveillance system setup.



Pop-up/Event preview

All events are listed in the right panel with corresponding event icons to allow you to quickly recognize the event type.

The most current one will flash to attract your attention. Click on an event and you will be able to preview the footage with pre-alarm images.



Spot monitor

In addition to display via the main HDMI output, you can assign a secondary display to show live view, call monitoring, or event monitoring.



Technical specifications

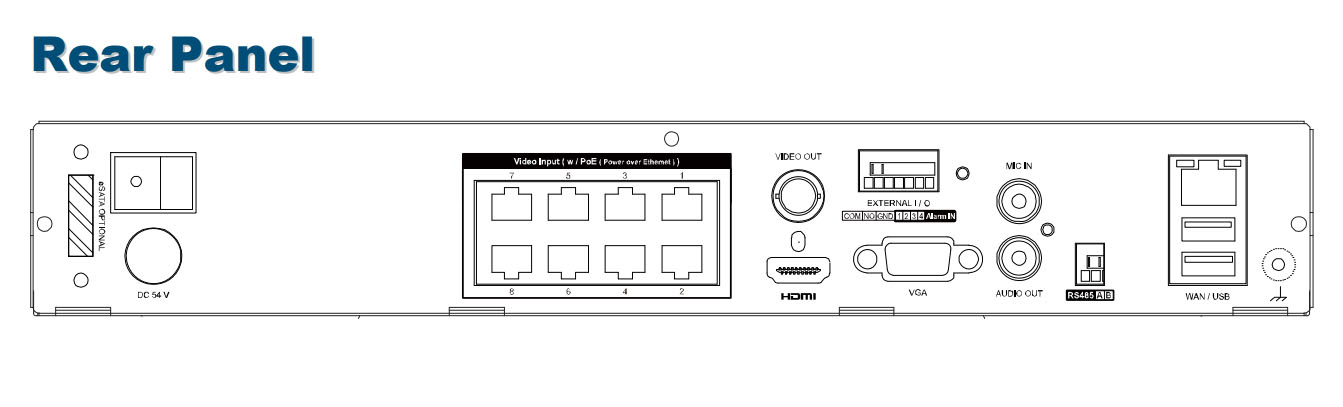

• Video inputs: 8 LAN ports with PoE + 1 WAN port


• Video outputs:



- HDMI 4K2K

- VGA 720p Spot monitor supported

- Composite video

• Video output resolution 4K2K (3840x2160)


• Audio: 1 in / 1 out


• Alarm: 4 in / 1 out


• RS485


• Up to two SATA HDDs of 16 TB can be installed in the recorder, or one SATA HDD up to 16 TB installed and a disk array connected to the recorder via the eSATA interface


• Equipped with two USB2.0 ports


• Expandable eSATA port with a SATA to eSATA cable


• Network:



POE port 10/100 Mbps x 8 (IEEE802.3af)

Internet (WAN) port 1000 Mbps x 1

• Fan



Software

• Video compression format: H.265


• Audio compression format: G711


• Local display mode 9 channels / remote 4 channels


• Local playback mode 9 channels / remote 4 channels


• Single-channel local playback


• Recording modes: manual/event/alarm/schedule


• Dual streaming recording


• Recording resolution: 270 IPS @ 4K2K (3840 x 2160)


• Recording speed: 80Mbps


• Event notifications: push video / push status / video mail / message mail


• Security: multiple user access levels with password



Network protocols

• DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4, UPnP, DNS, UDP, IGMP


• ONVIF compatible


• Maximum online users: 40


• Remote access:



(1) Web Browser: Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows and Google Chrome & Mozilla Firefox on MAC

(2) PC Program: CMS Lite, CMS 32CH software for Windows operating system

(3) Mobile App: EagleEyes on iOS and Android mobile devices



Dimensions

• Width: 319.5 mm


• Depth: 254.9 mm


• Height: 52.0 mm



Certifications

• CE


• UL



Package contents

• Recorder IC-AVH2109AX


• User manual
