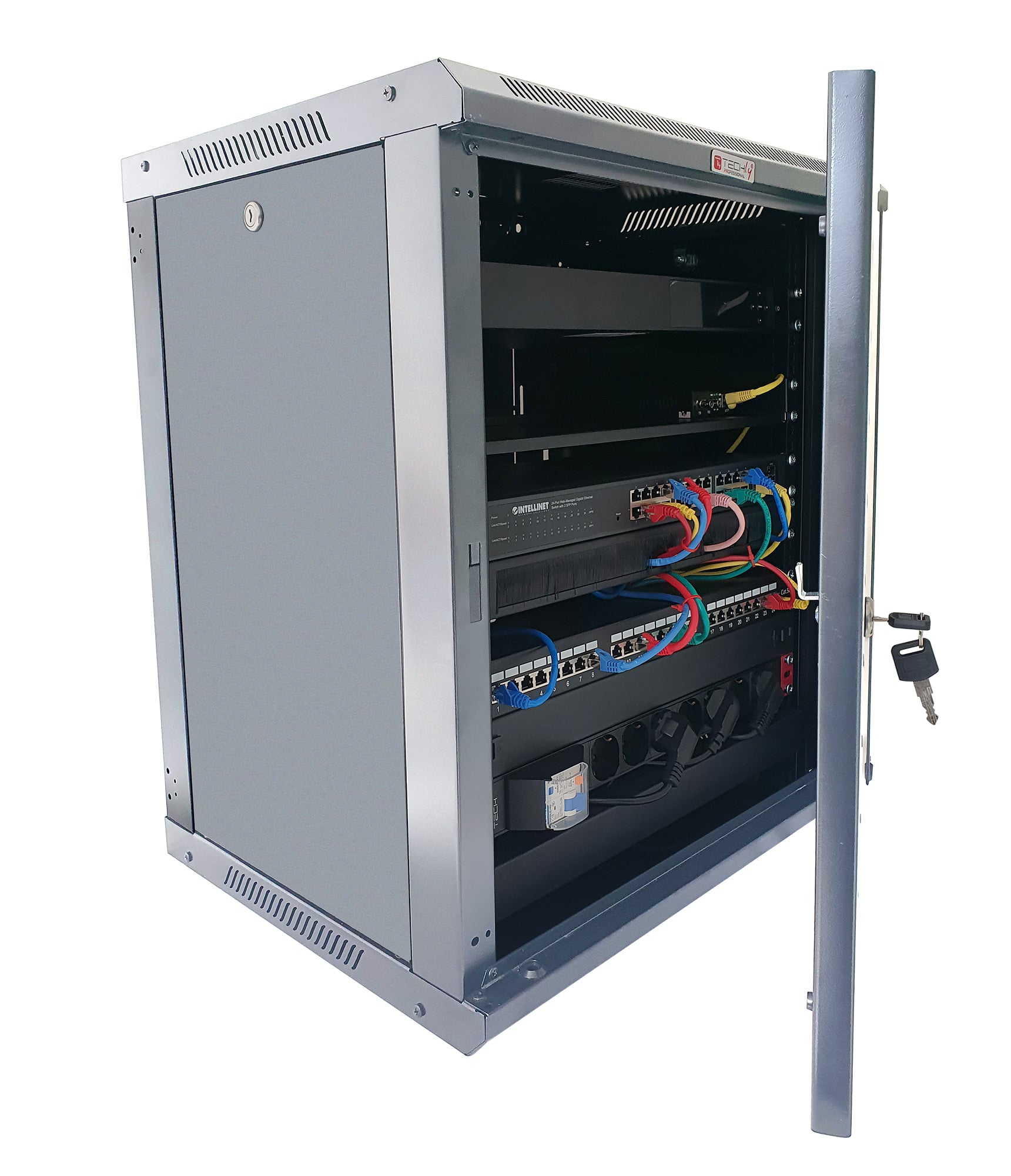

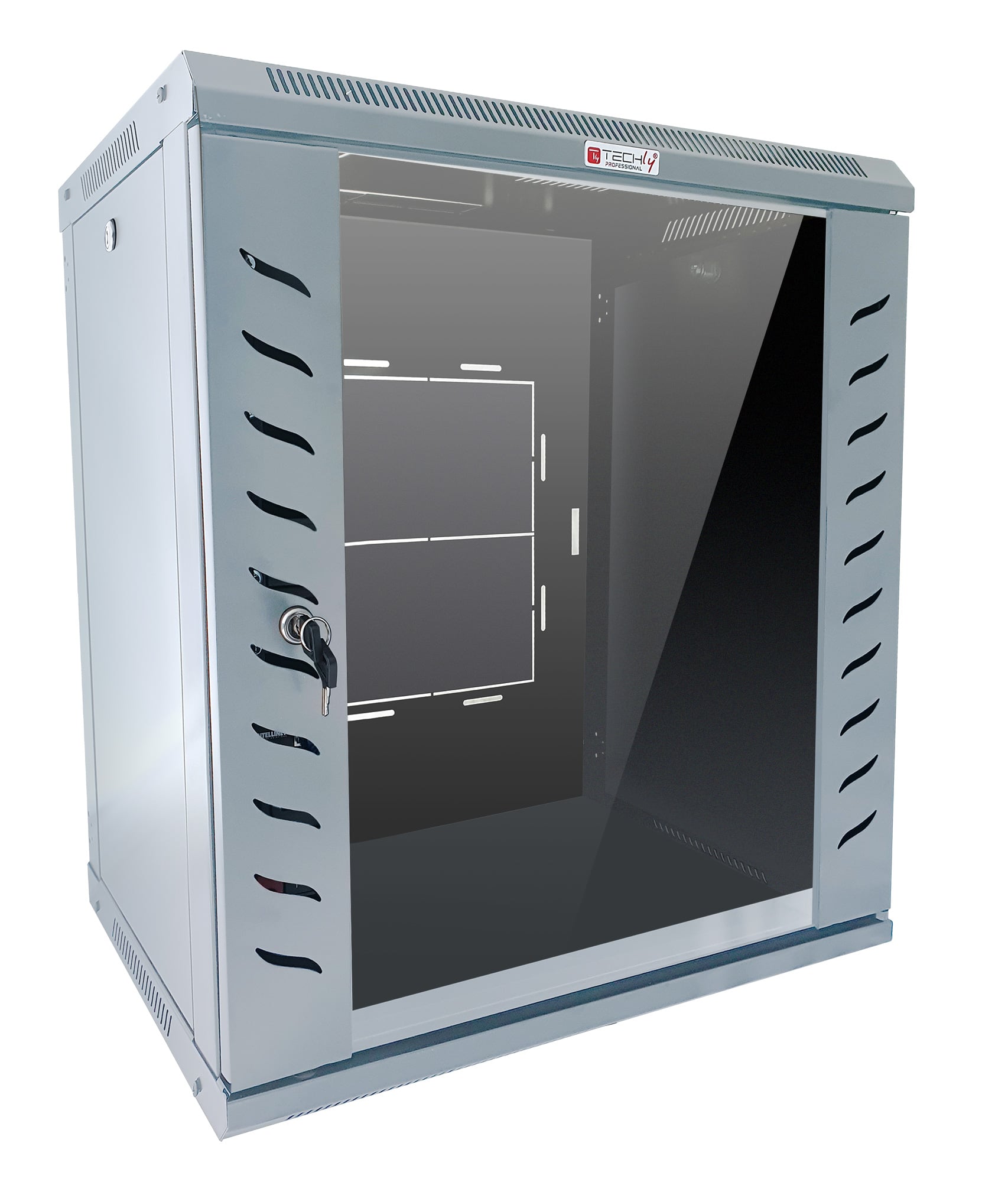

19" Wall Mount Rack Cabinet 20 Units Depth 600 mm Flat Pack Gray - Techly Professional I-CASE FP-6020G

€188.84
Tax included €154.80 excl. VAT

19" wall mount rack cabinet with 20 units, depth 600 mm, gray color. SPCC steel structure, 5 mm tempered glass door reversible with 180° opening, adjustable mounting rails and static load capacity 60 kg. Shipped as assembly kit.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Single-section wall mount cabinet 20 units with removable side panels

  • Robust welded structure in cold-rolled SPCC steel

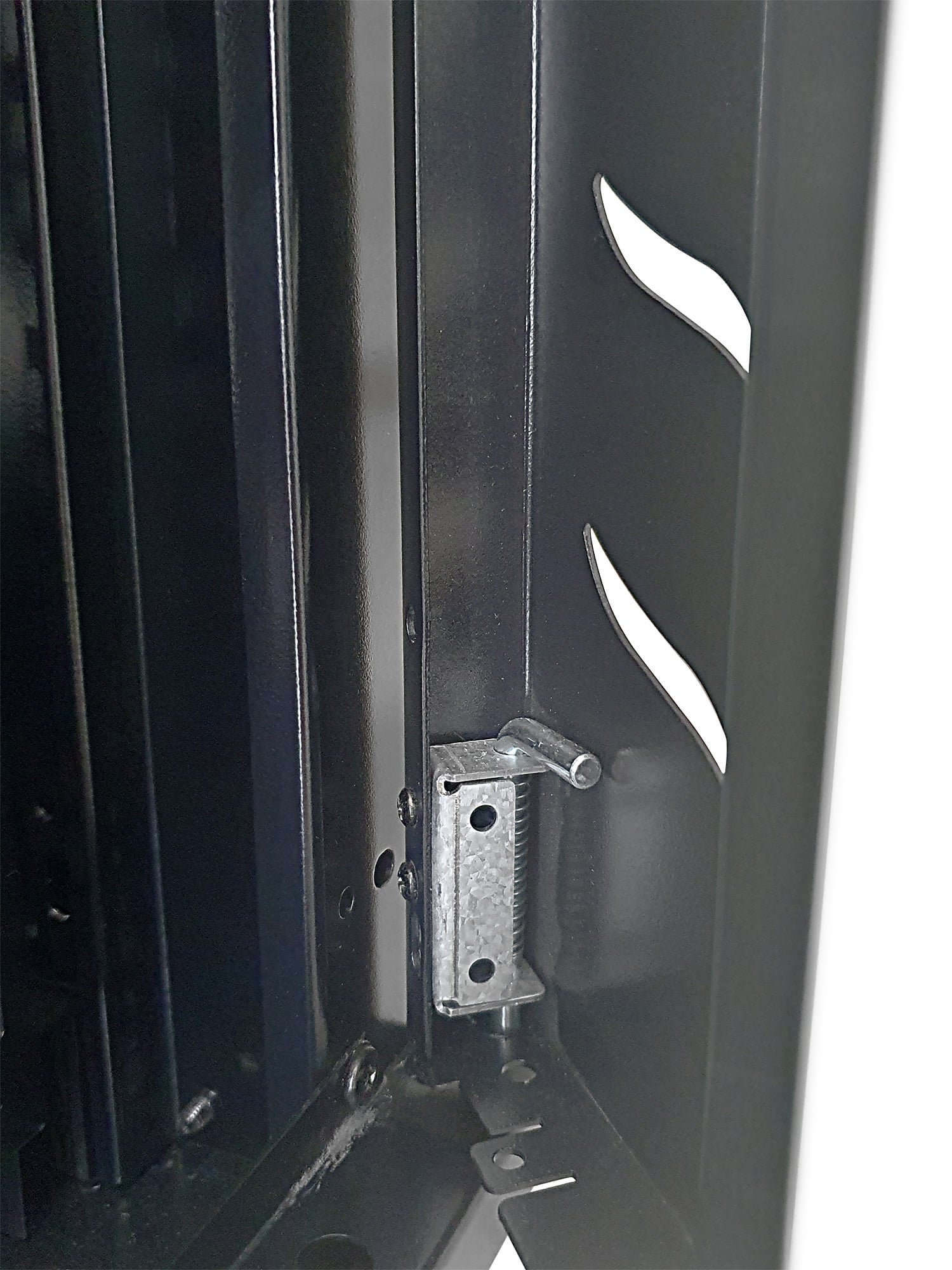

  • 5 mm tempered glass door easily removable and reversible, opening angle 180°, key lock

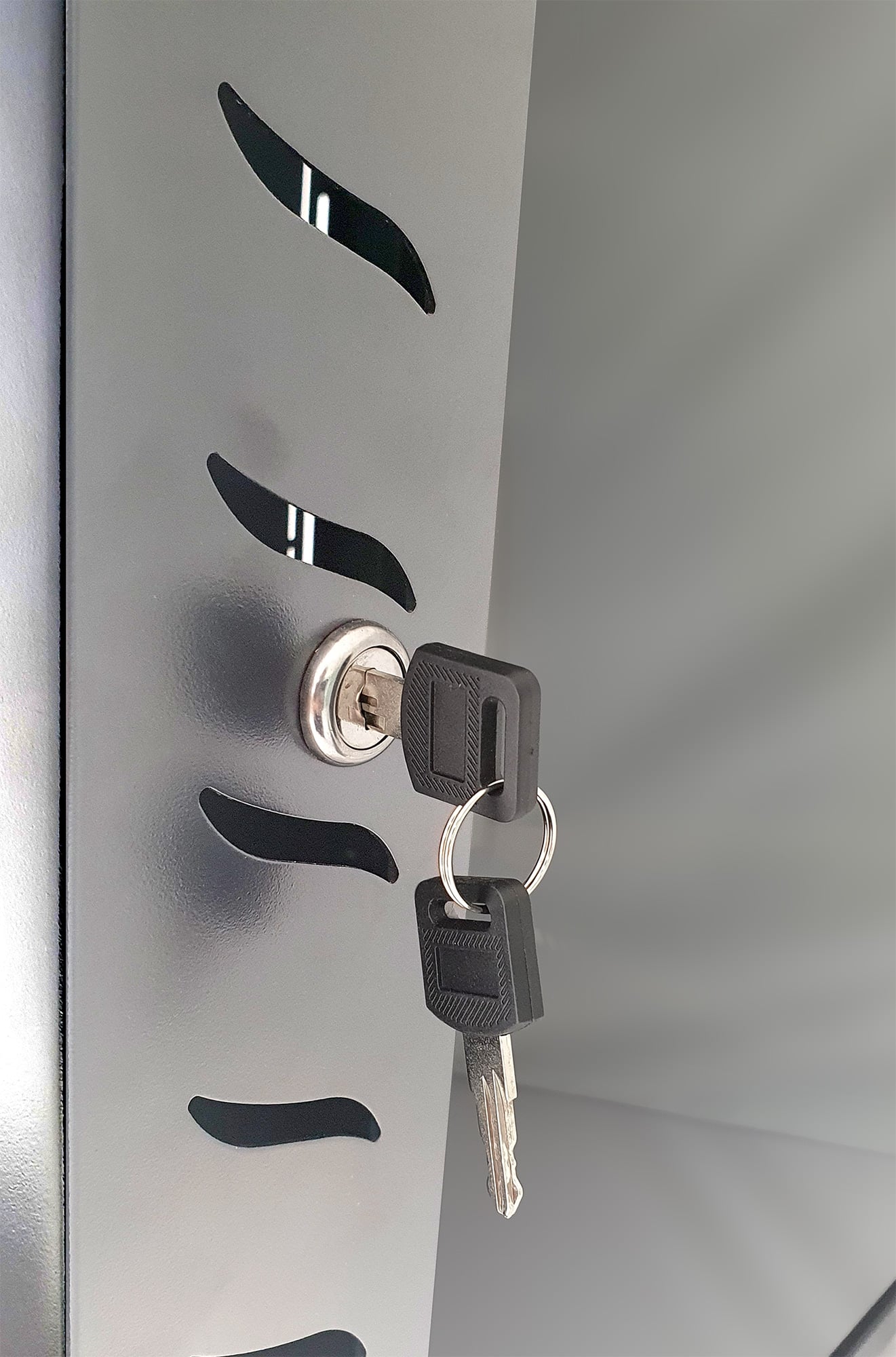

  • Front door lock key also compatible with side panel lock

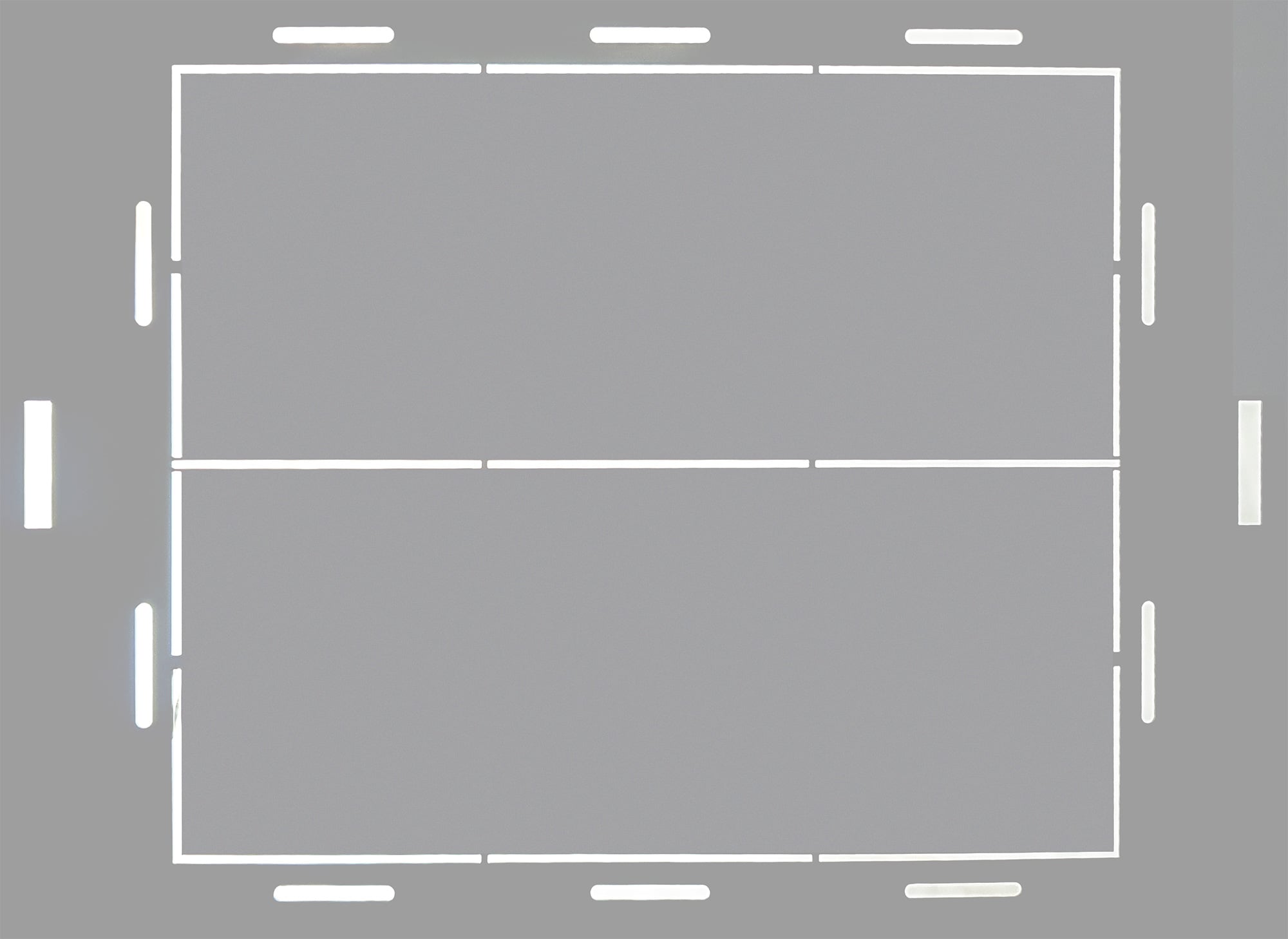

  • Non-removable blank rear panel, equipped with two pre-cut panels on 6 points, size 40x16 cm each; thickness 0.8 mm

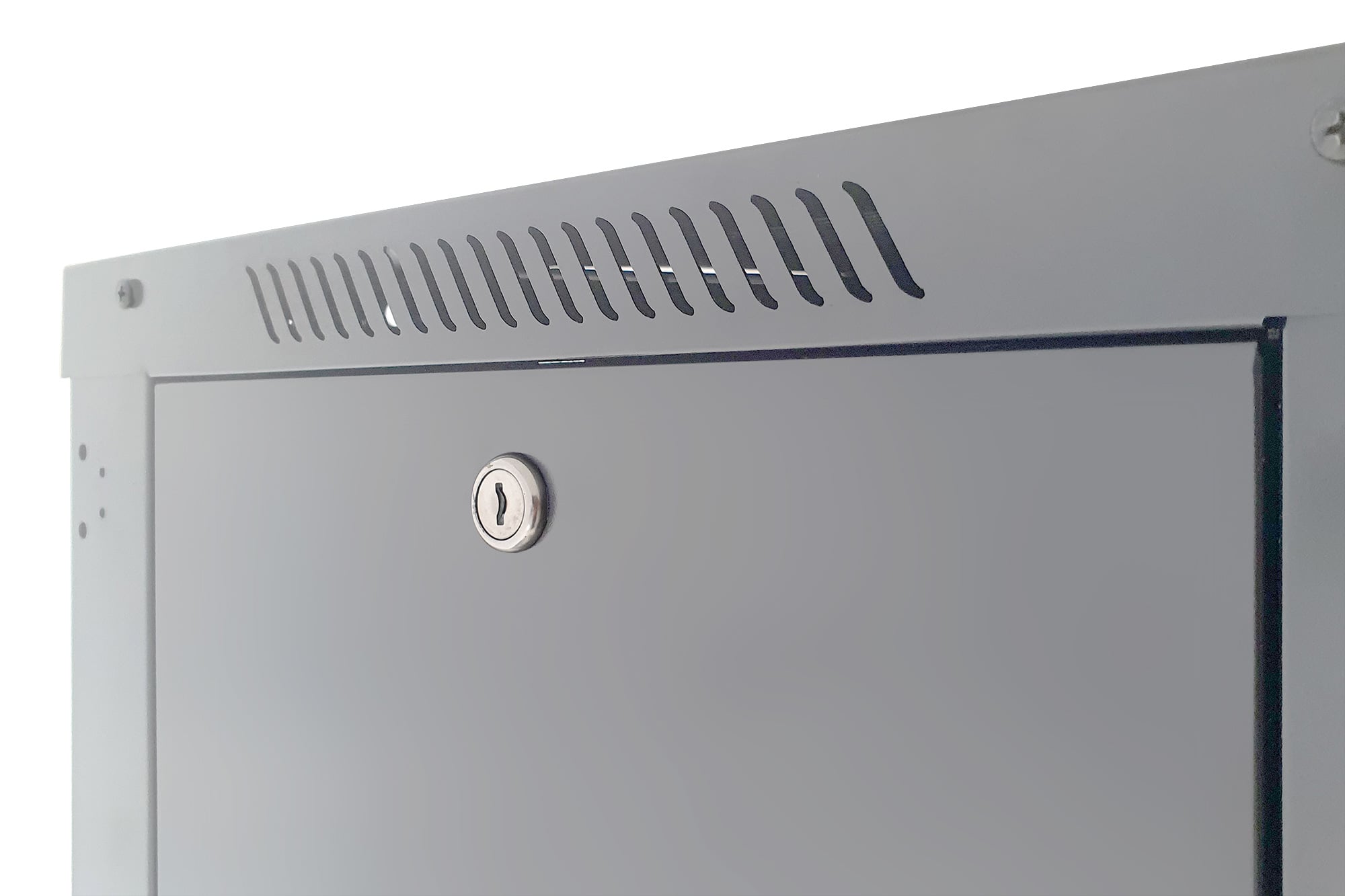

  • Removable blank side panels with 1/4 turn key lock; thickness 0.8 mm

  • Base and top panel thickness: 1.0 mm

  • Provision for cable entry on base and top via pre-cut profiles (230 x 45 mm)

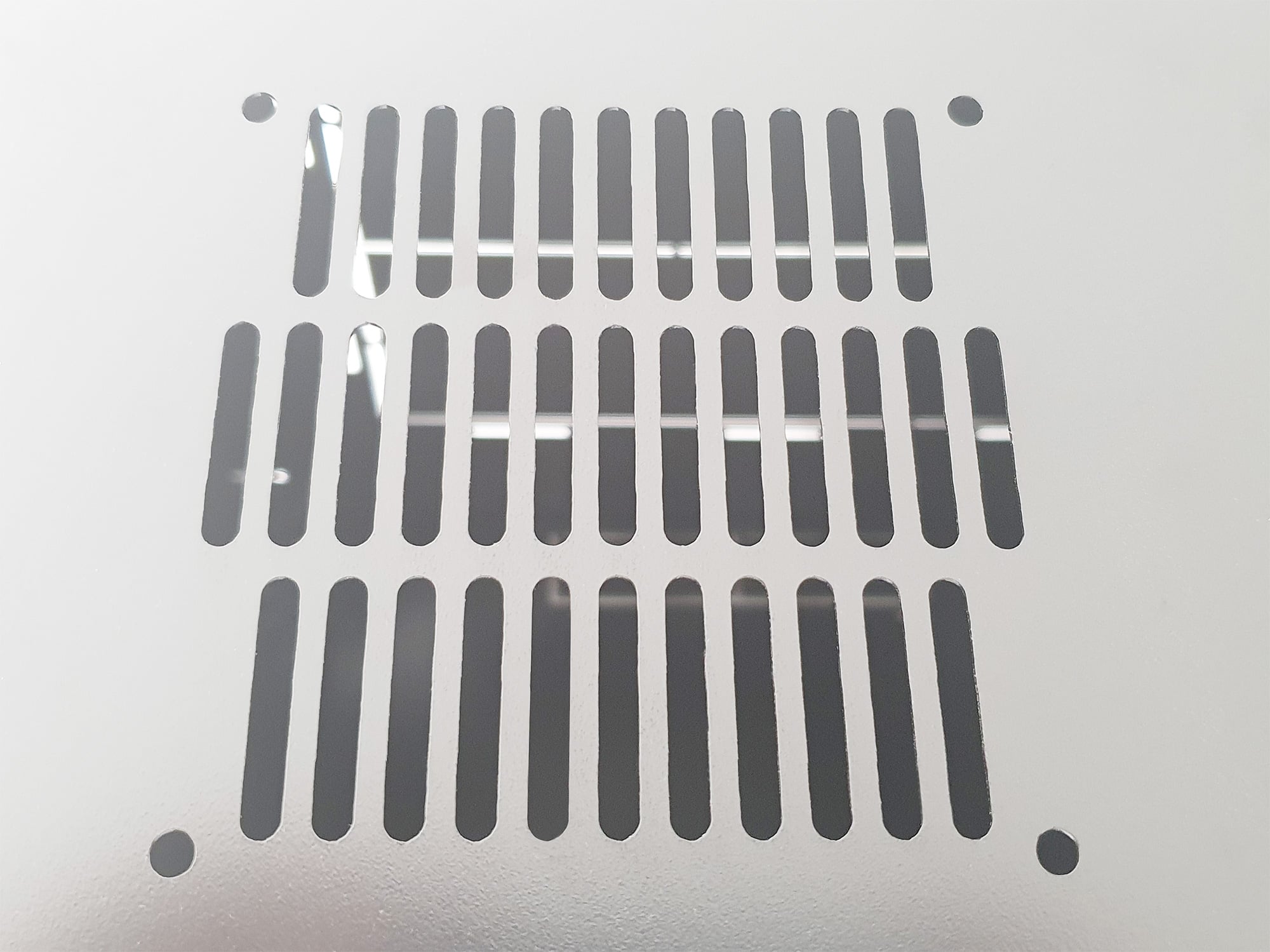

  • Provision for installation of 2 fans 120 mm on top of cabinet

  • Pair of 19" front mounting rails 1.2 mm, adjustable in depth (usable depth: 575 mm; maximum usable depth with rails fully forward: 525 mm)

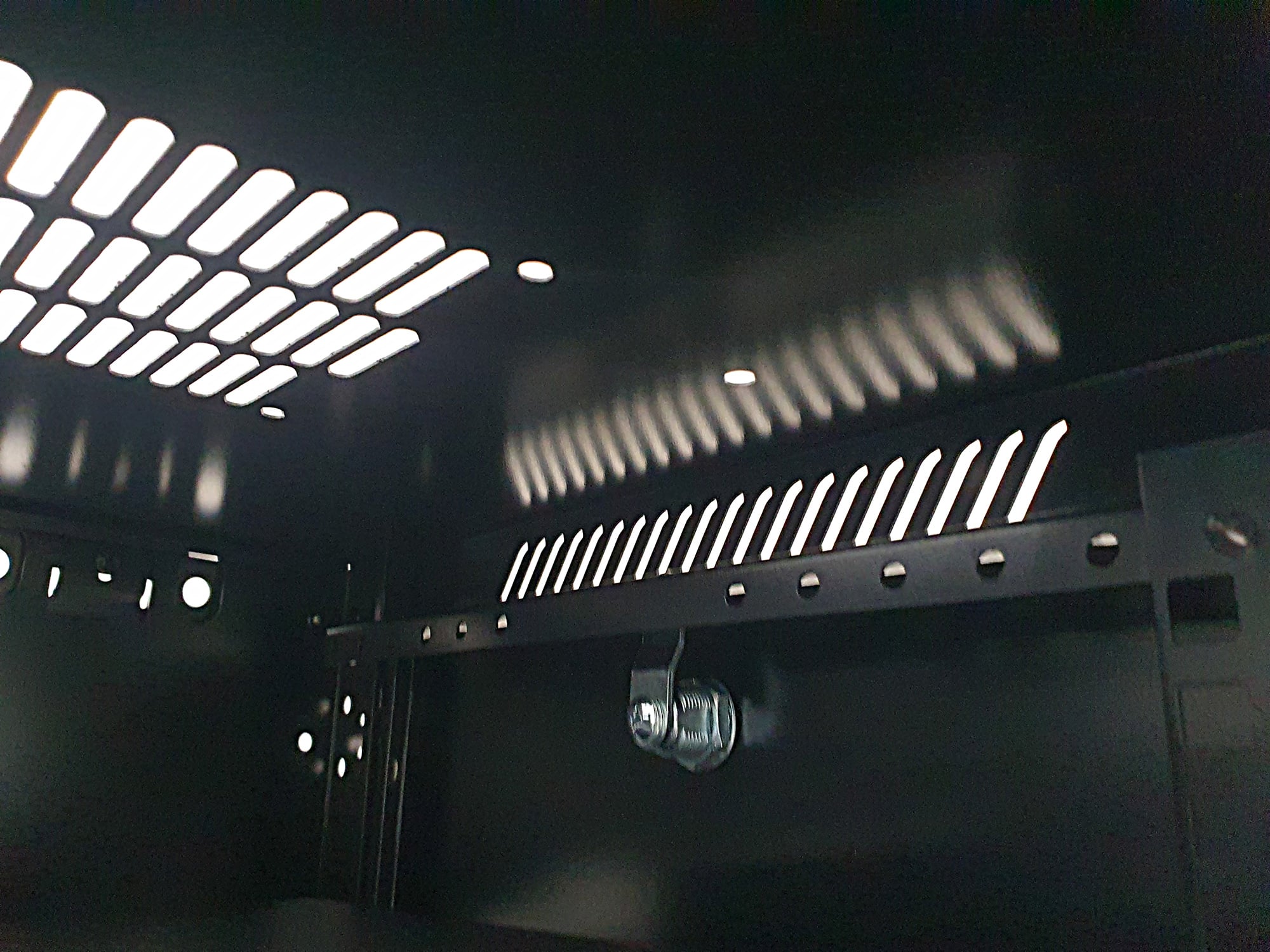

  • Ventilation slots on top and bottom of front and side panels

  • Quick wall fixing system with support bar

  • Bar equipped with four fixing holes

  • Static load capacity: 60 kg

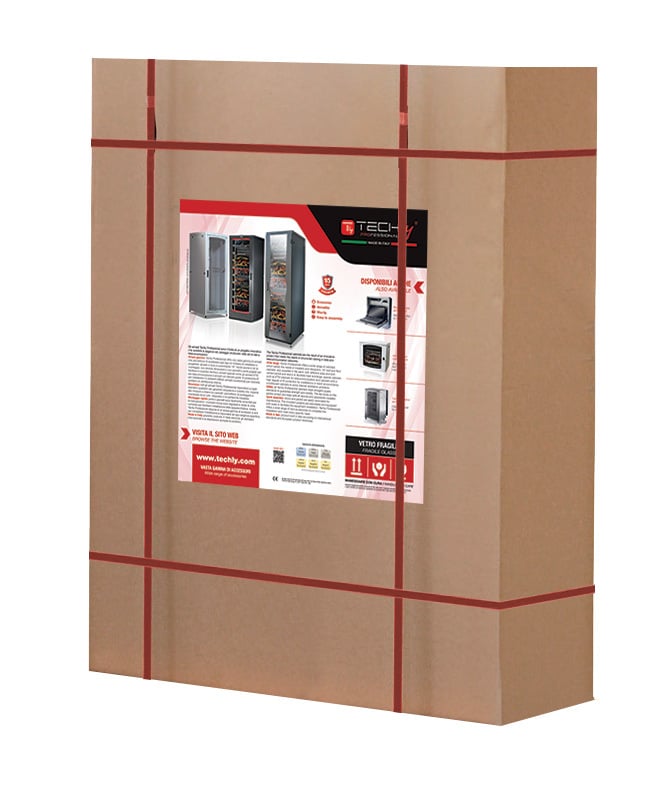

  • Shipped as assembly kit to save space and shipping costs

  • Easy to assemble



Standards and certifications

  • RoHS

  • ANSI/EIA RS-310-D

  • IEC297-2

  • DIN41494; PART1

  • DIN41494; PART7



General information

  • Dimensions (D x W x H): 600 x 570 x 991 mm; 20U

  • Package dimensions: 1058 x 625 x 200 mm

  • Material: powder coated steel

  • Color: gray RAL 7035



Package contents

  • 19" flat pack wall mount rack 20U

  • 20 cage nuts

  • 22 self-tapping screws for assembly

  • 3 sets of 2 keys each

  • Assembly instructions

  • Brand
  • Reference
    I-CASE FP-6020G
  • In stock
    11 Items
  • EAN13
    8059018367515
