Rack cabinet 19" in Wall 20 Unit P.600 mm Black Flat Pack - Techly Professional I-CASE FP-6020BK

€188.84
Tax included €154.80 excl. VAT

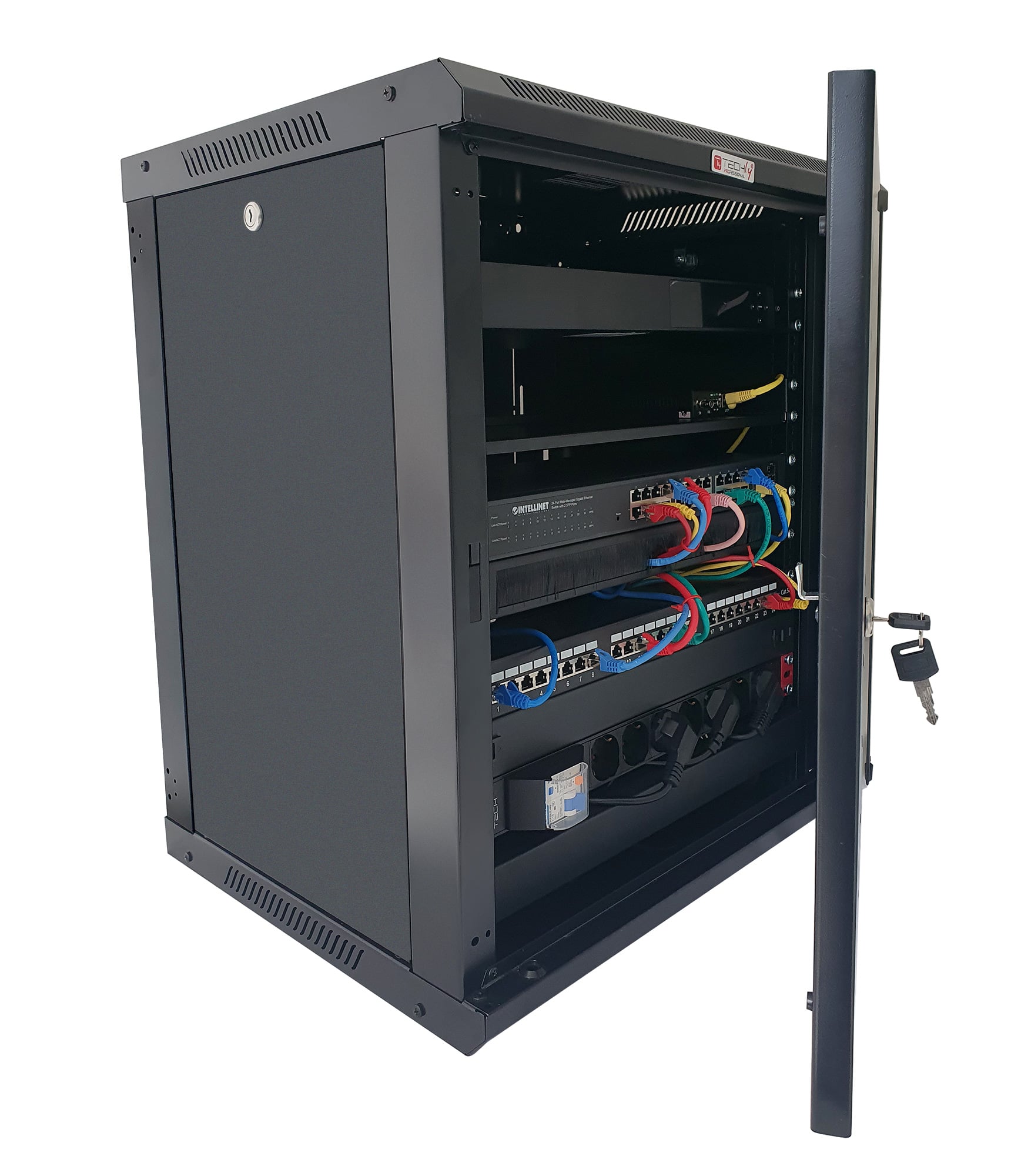

Wall-mounted rack cabinet 19" from 20 unit, depth 600 mm, black colour. SPCC steel structure, hardened glass door 5 mm reversible with opening 180°, adjustable uprights and static flow rate 60 kg. Shipped in assembly kit.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Single section wall cabinet 20 unità with removable side panels

  • Sturdy welded steel structure cold rolled SPCC

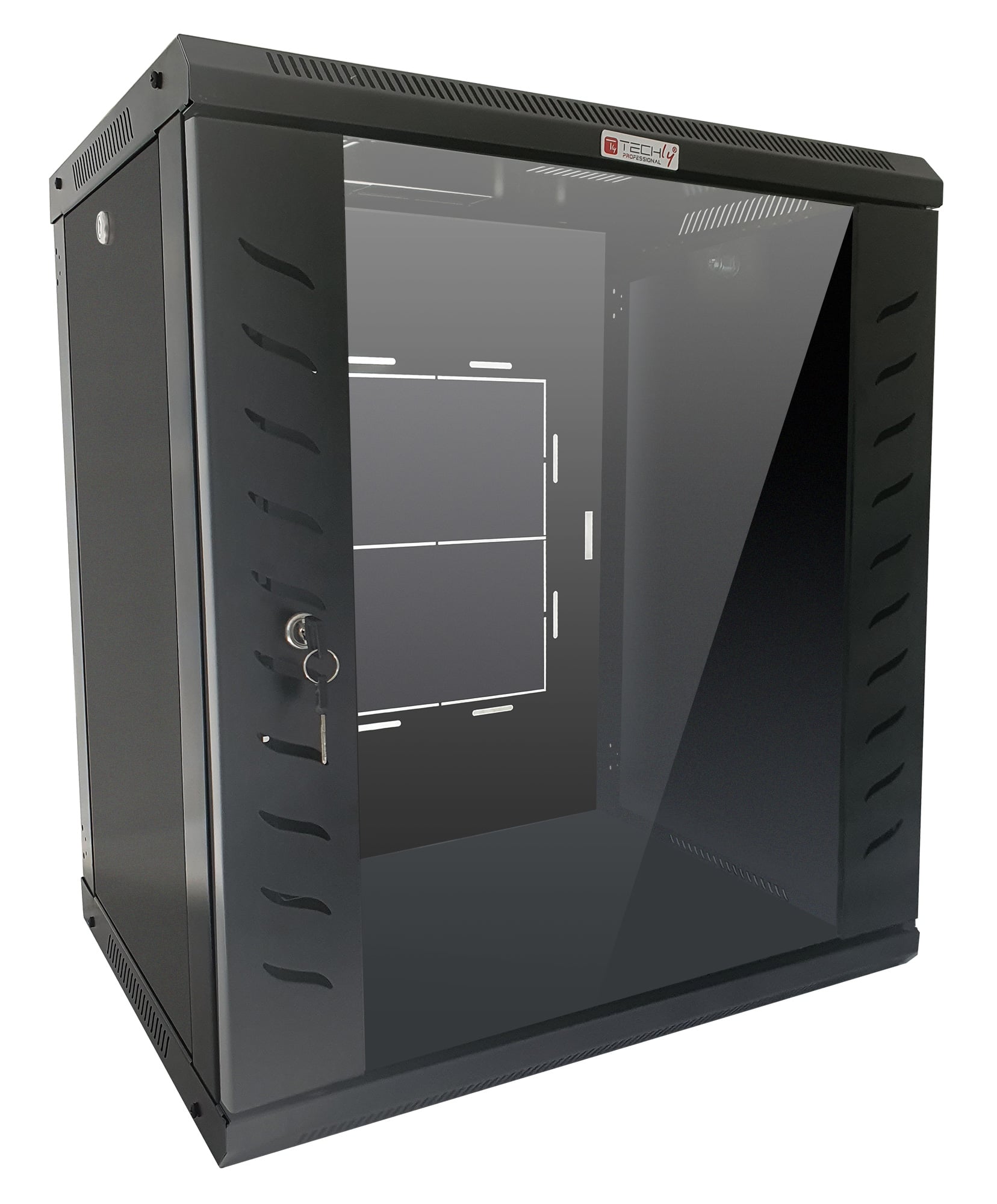

  • tempered glass door from 5 mm easily removable and reversible, opening angle of 180°, lock with key

  • Front door locking key compatible also with the closing of side panels

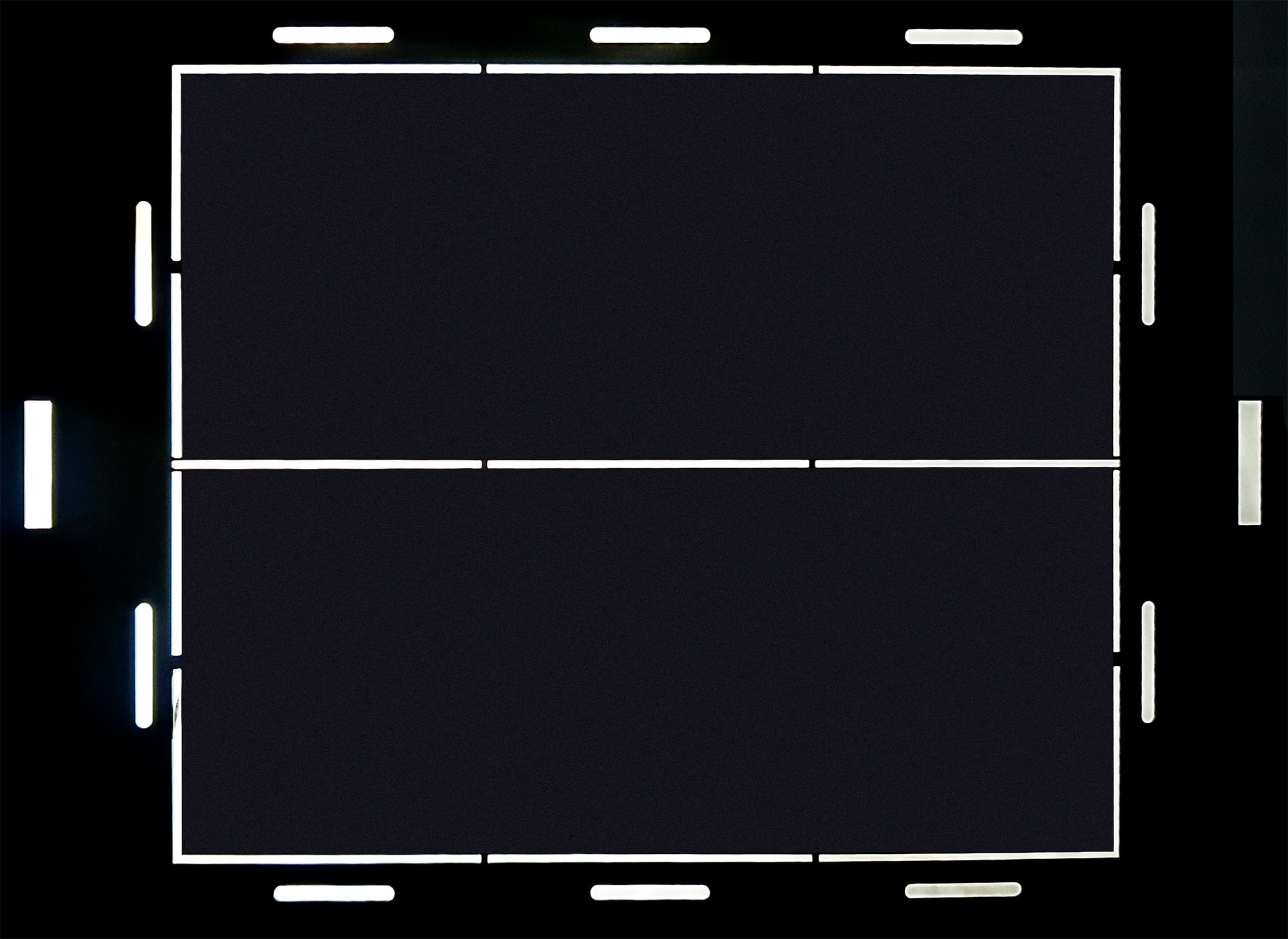

  • Non-removable blank rear panel, equipped with two pre-cut panels on 6 points, size 40x16 cm each; thickness 0.8 mm

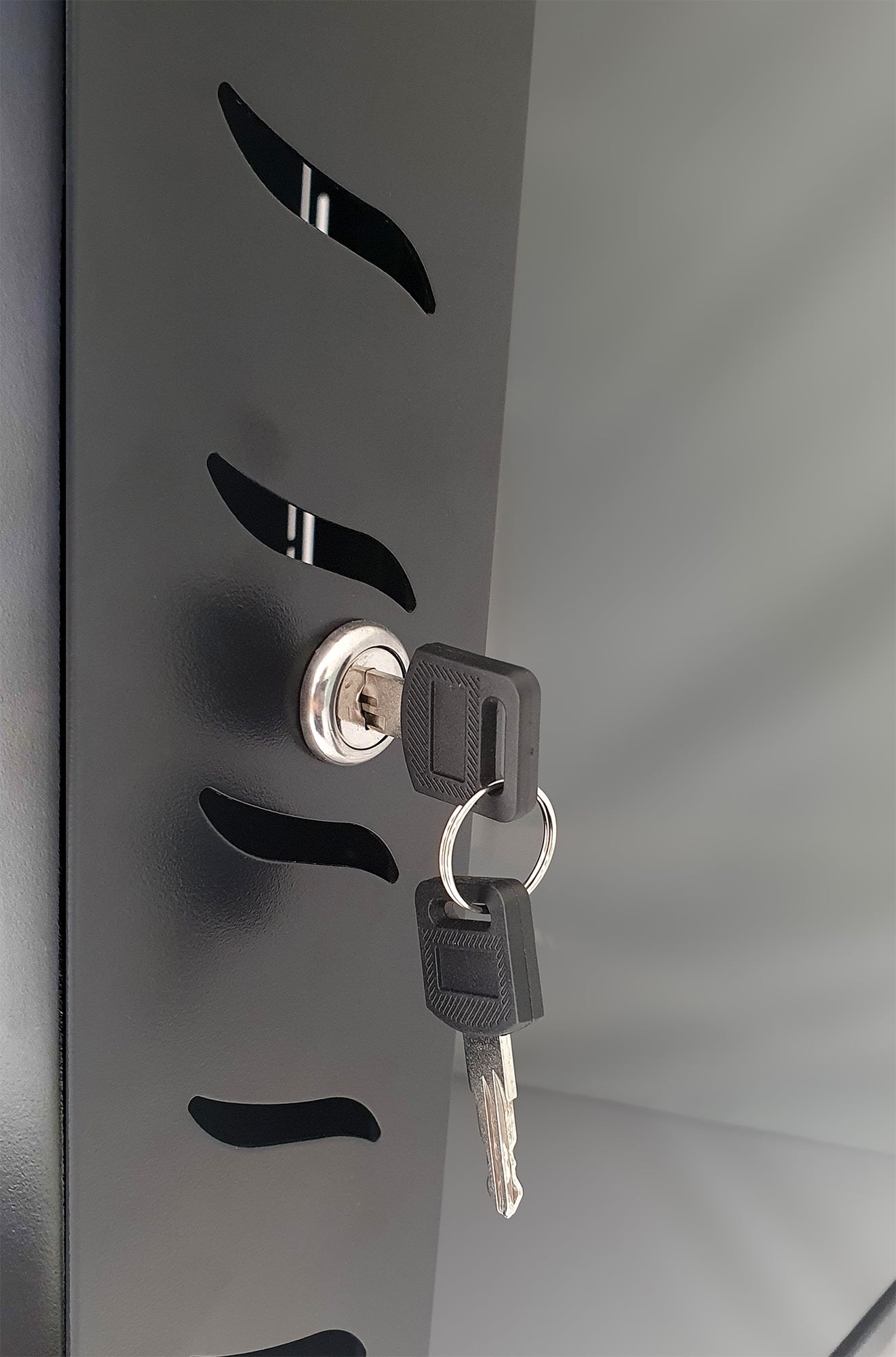

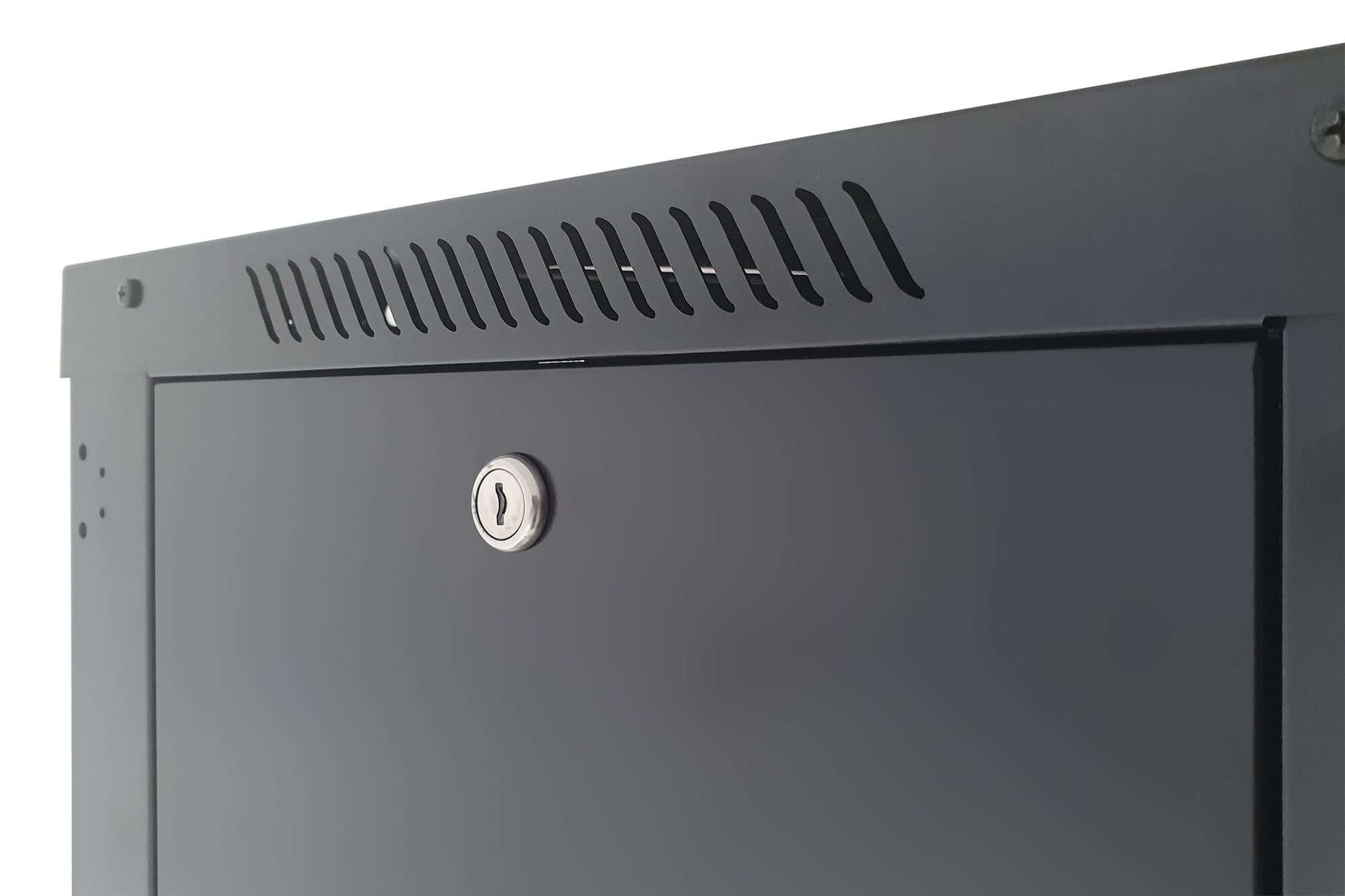

  • Removable blind side panels with key lock at 1/4 turn; thickness 0.8 mm

  • Base panel thickness and roof: 1.0 mm

  • Cable input on the base and roof via pre-cut profiles (230 x 45 mm)

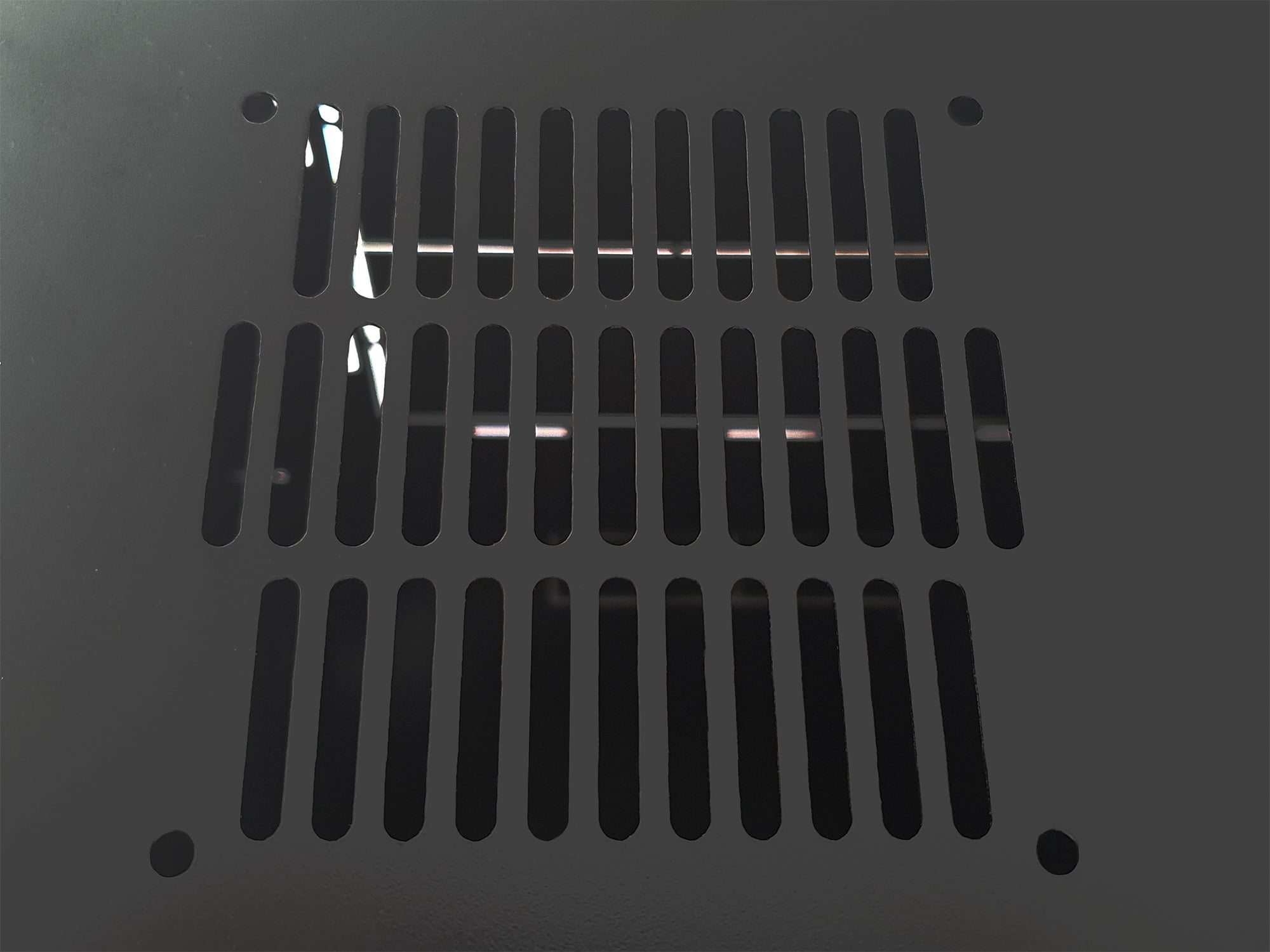

  • Preparation for the installation of 2 fans from 120 mm on the cabinet roof

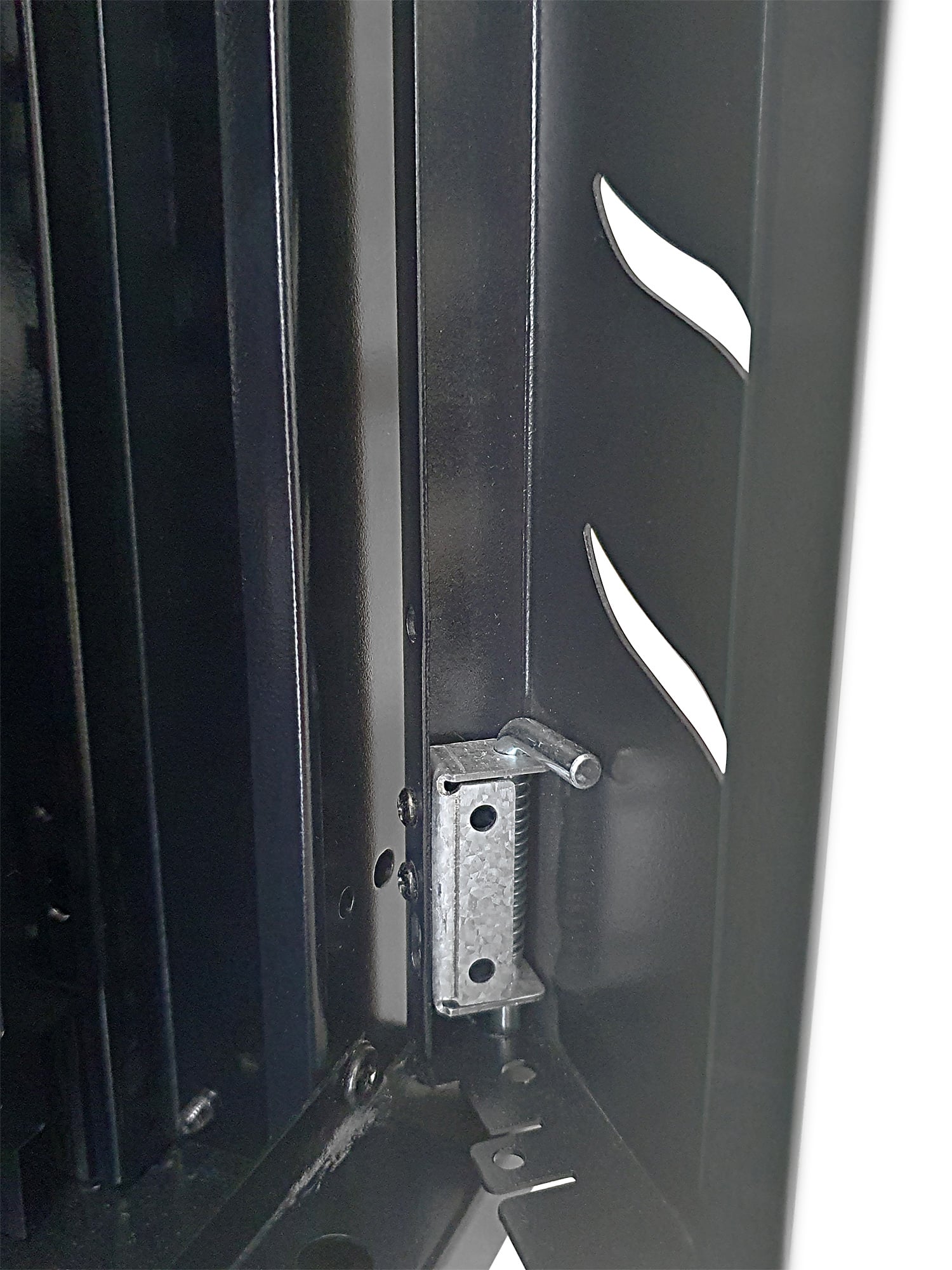

  • Pair of front uprights 19 from 1.2 mm, adjustable in depthà (deepestà useful: 575 mm; maximum depthà usable  with fully advanced uprights: 525 mm)

  • Aeration wounds at the top and bottom of the front and side panels

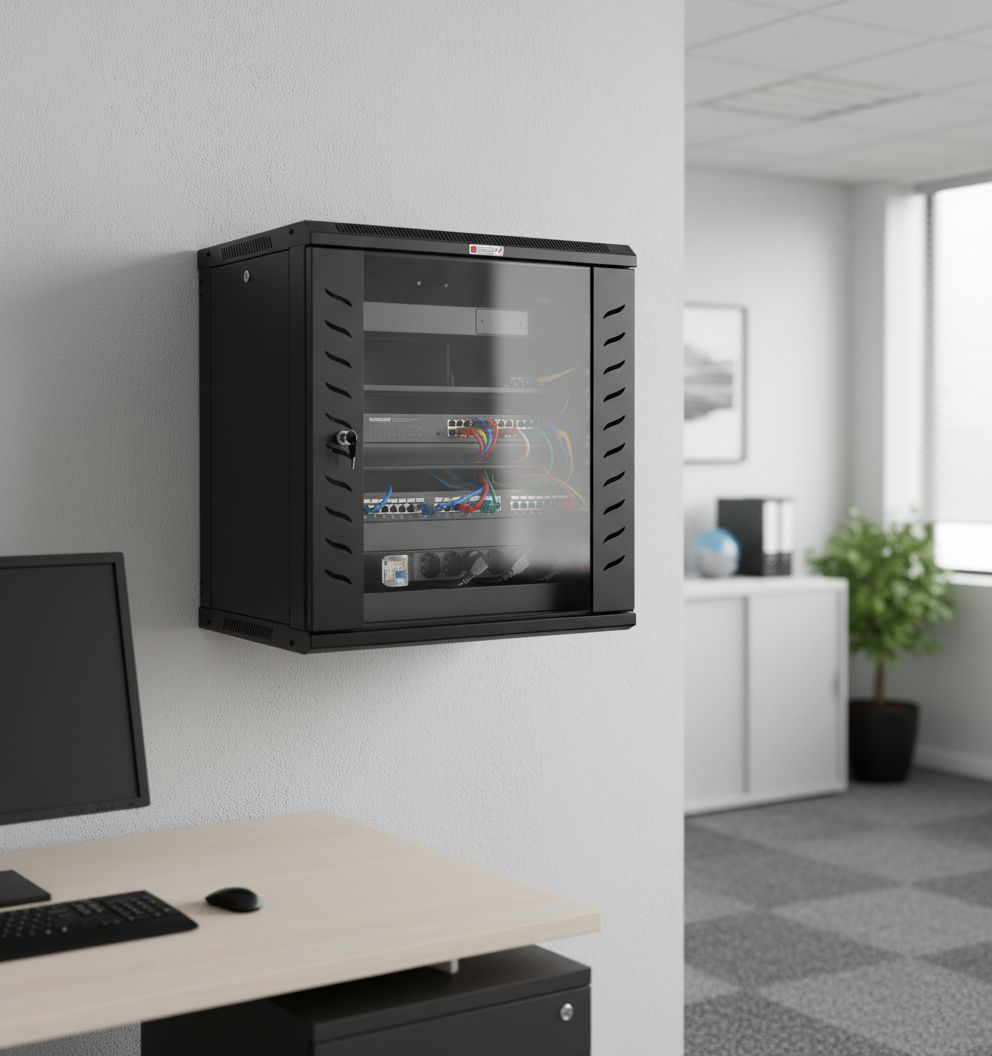

  • Quick fixing system to the wall with support bar

  • Bar provided with four fixing holes

  • Static flow rate: 60 kg

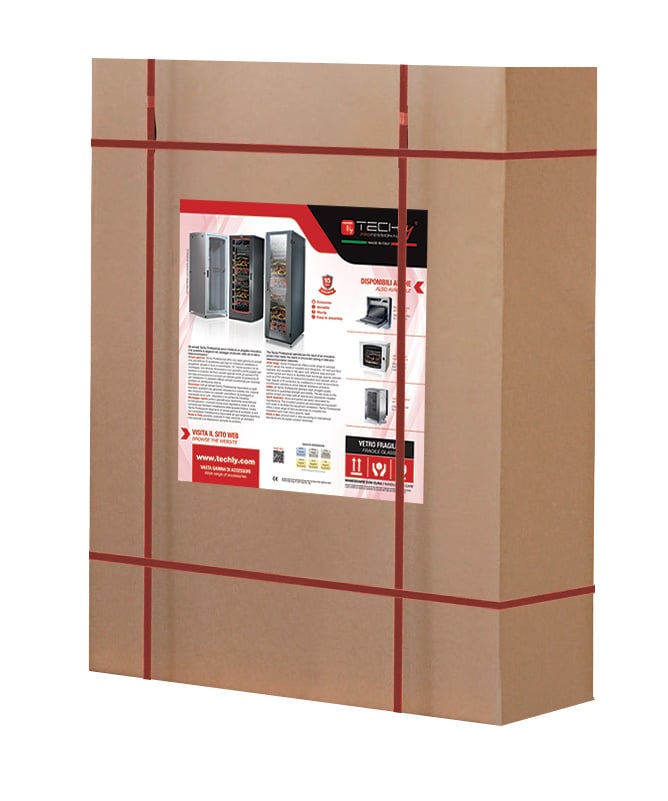

  • Shipped in assembly kit to save space and transport costs

  • Easy to assemble



Standards and certifications

  • RoHS

  • ANSI/EIA RS-310-D

  • IEC297-2

  • DIN41494; PART1

  • DIN41494; PART7



General information

  • Dimensions (D x W x H): 600 x 570 x 991 mm; 20U

  • Package size: 1058 x 625 x 200 mm

  • Material: powder coated steel

  • Color: black RAL 9004



Package contents

  • Wall Rack 19 flat pack 20U

  • 20 cage nuts

  • 22 self-tapping screws for assembly

  • 3 set from 2 keys cad.

  • Installation instructions

  • Brand
  • Reference
    I-CASE FP-6020BK
  • In stock
    24 Items
  • EAN13
    8059018367522
