Server rack cabinet NextGen 19" 800x1000 33U black - Intellinet I-CASE EPPX-3310BKX

The new NextGen cabinet line is ready to meet the latest cabling trends and new projects.

This floor-standing rack cabinet features an innovative two-tone design and is characterized by a front opening of 270°, a stylistic choice that combines practicality with an additional touch of elegance, allowing quick and complete access to all units in the cabinet.

It features a solid and robust structure with 19 uprights 2 mm thick and innovative corner brackets 3 mm thick, characterized by a snap-in attachment on the base for quick adjustment.

It can be assembled and disassembled using a simple key, thus allowing quick installation. This fast assembly is guaranteed by the quick-release hinges on the front door and the locks on the panels.

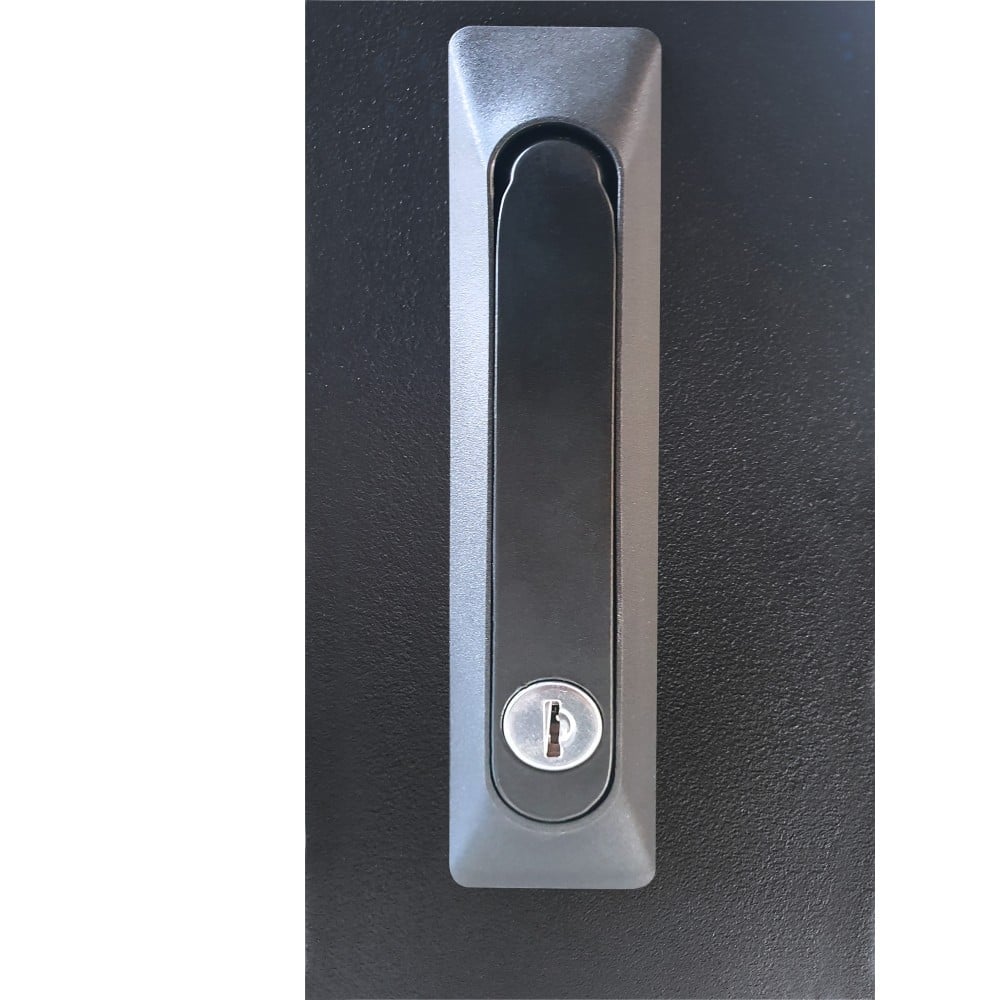

It features a new push-button handle with PVC insert for smoother operation and better alignment, and a new 3-way joint that increases the already exceptional robustness for its category. In addition, the static load capacity of the rack has been increased to 1000 kg, making it even more solid, stable and safe.

Key features continue to be present such as the reversible door, removable side and rear panels, and the double pair of mounting rails with silkscreened units.



Features

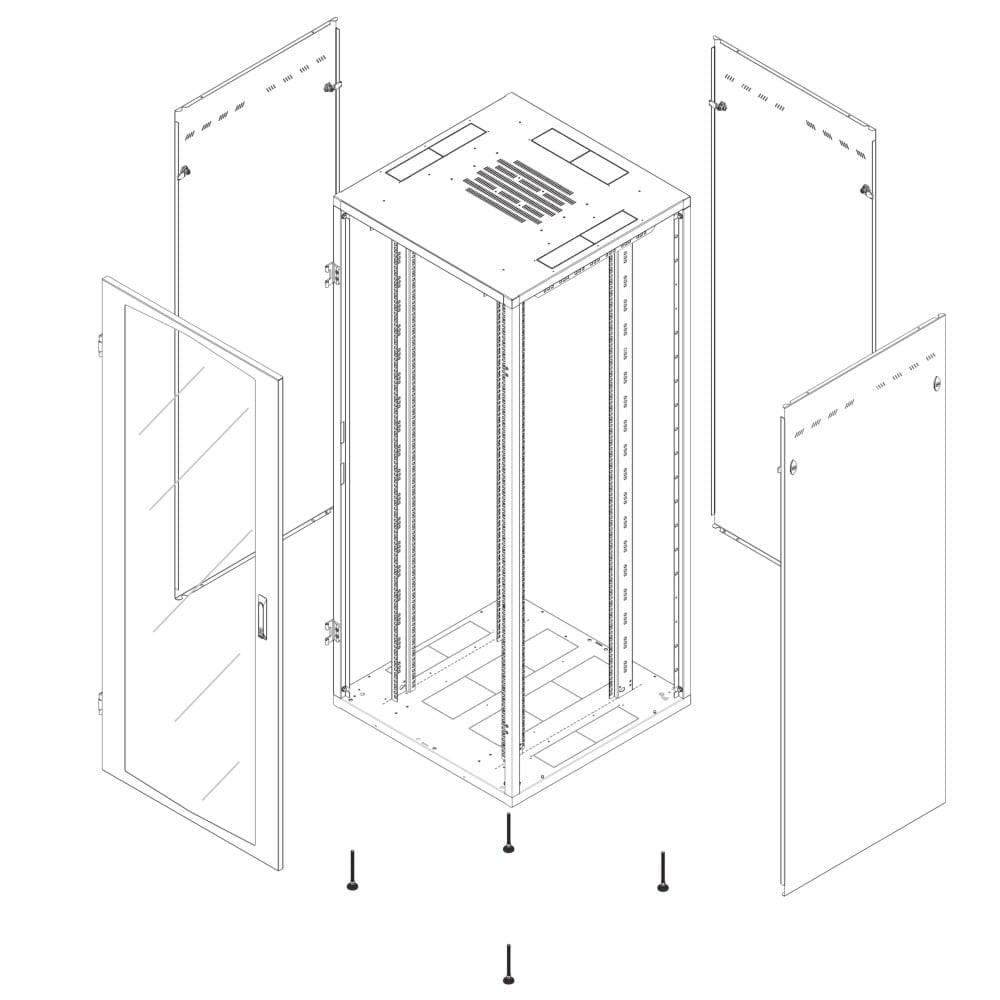

• Panels and door easily removable to facilitate equipment installation

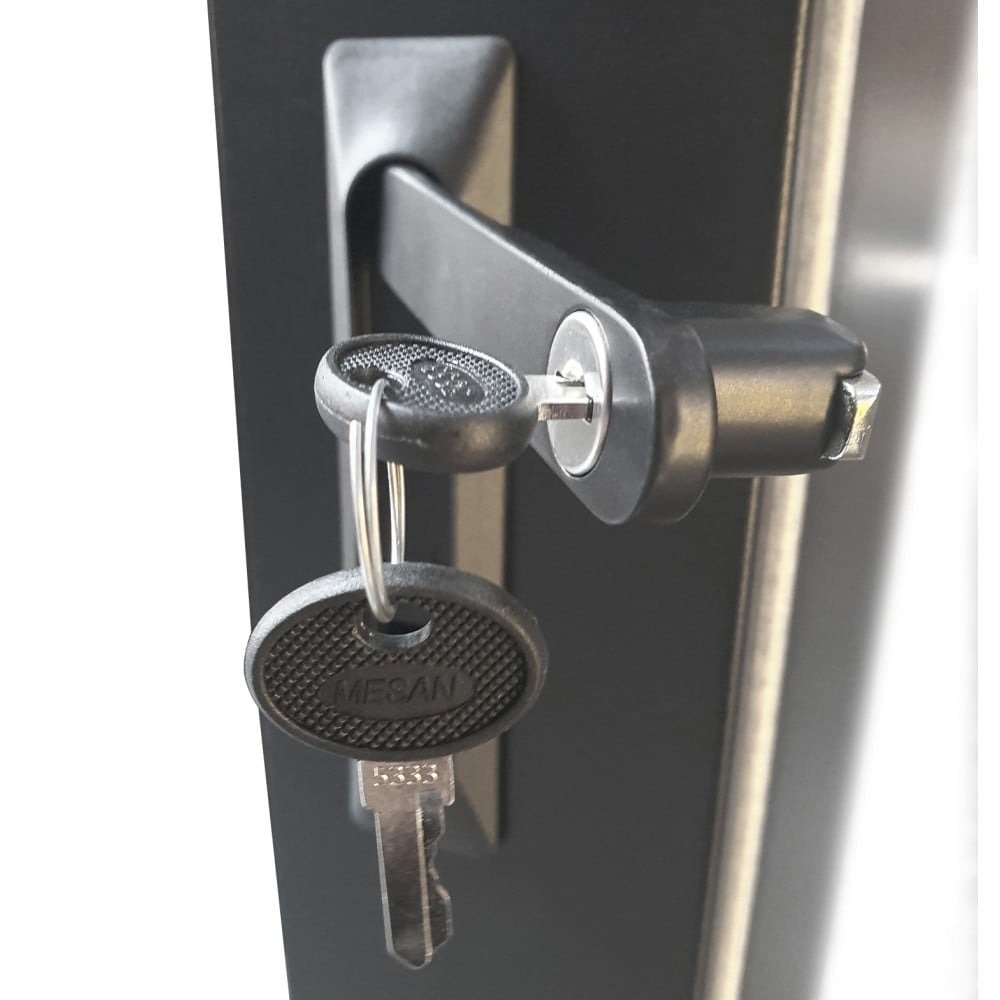

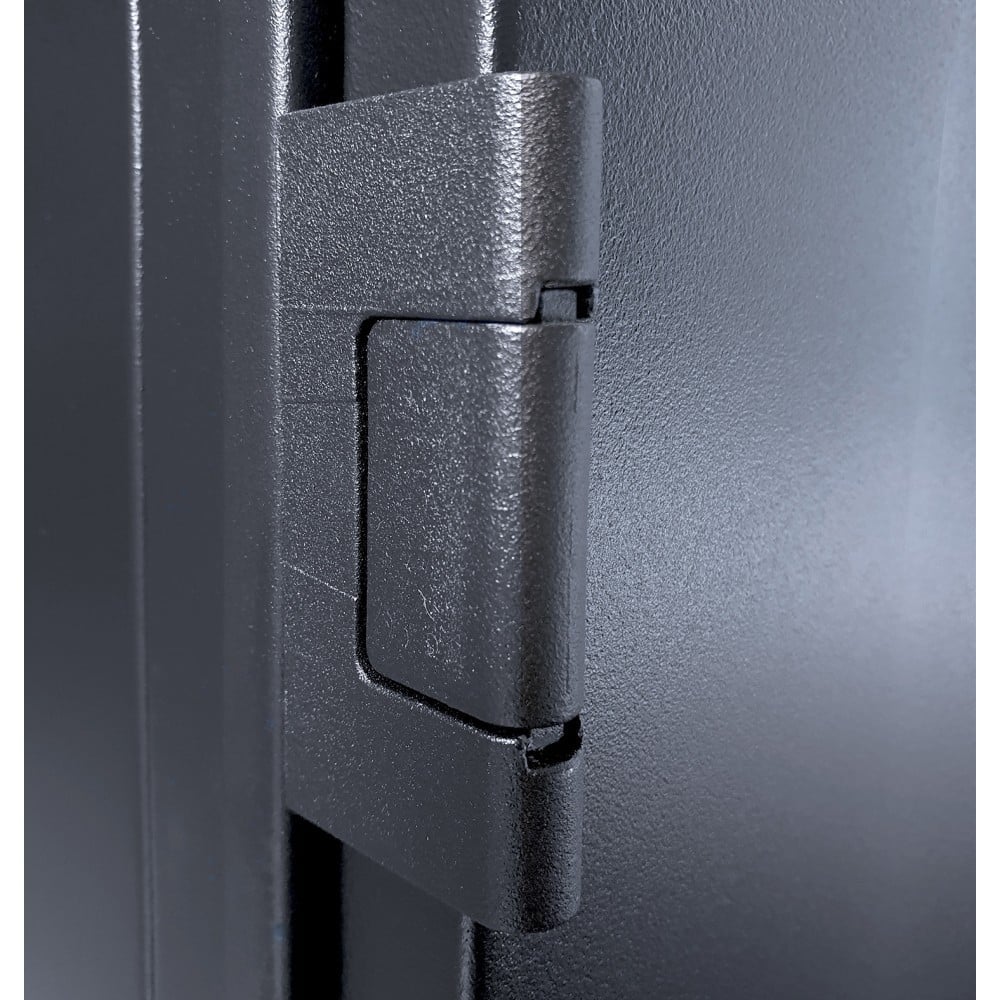

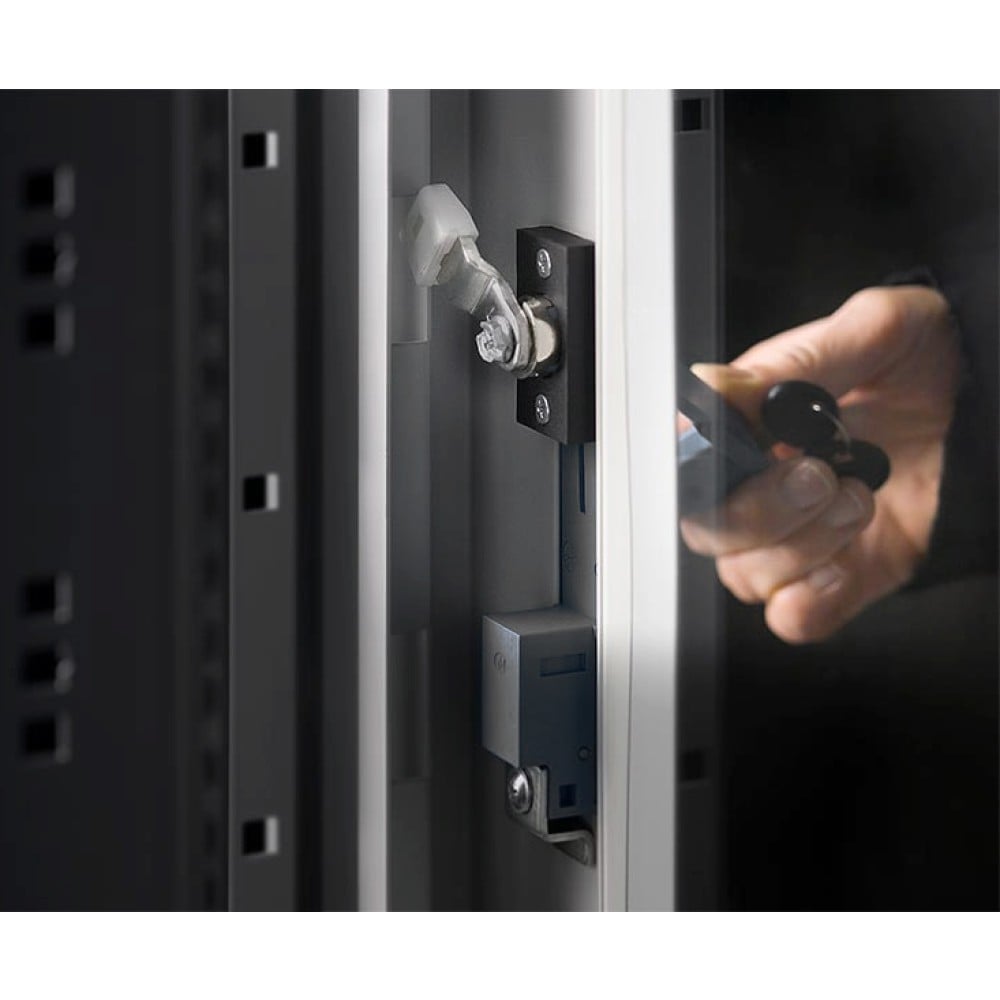

• Reversible front door with tempered glass conforming to EN UNI 12150-1, with opening of 270°, quick-release hinges and handle with key lock

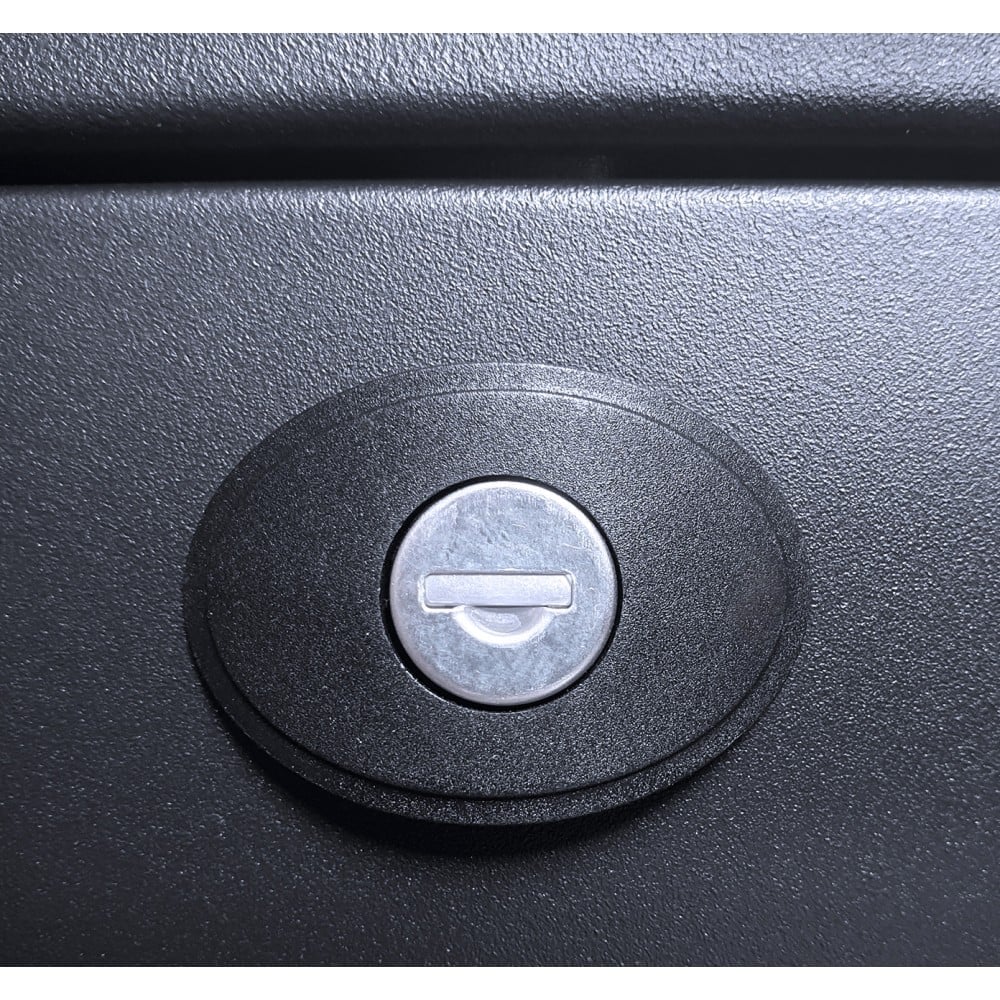

• Removable blind side panels with ¼ turn system


• Rear door with single grille door at 75%

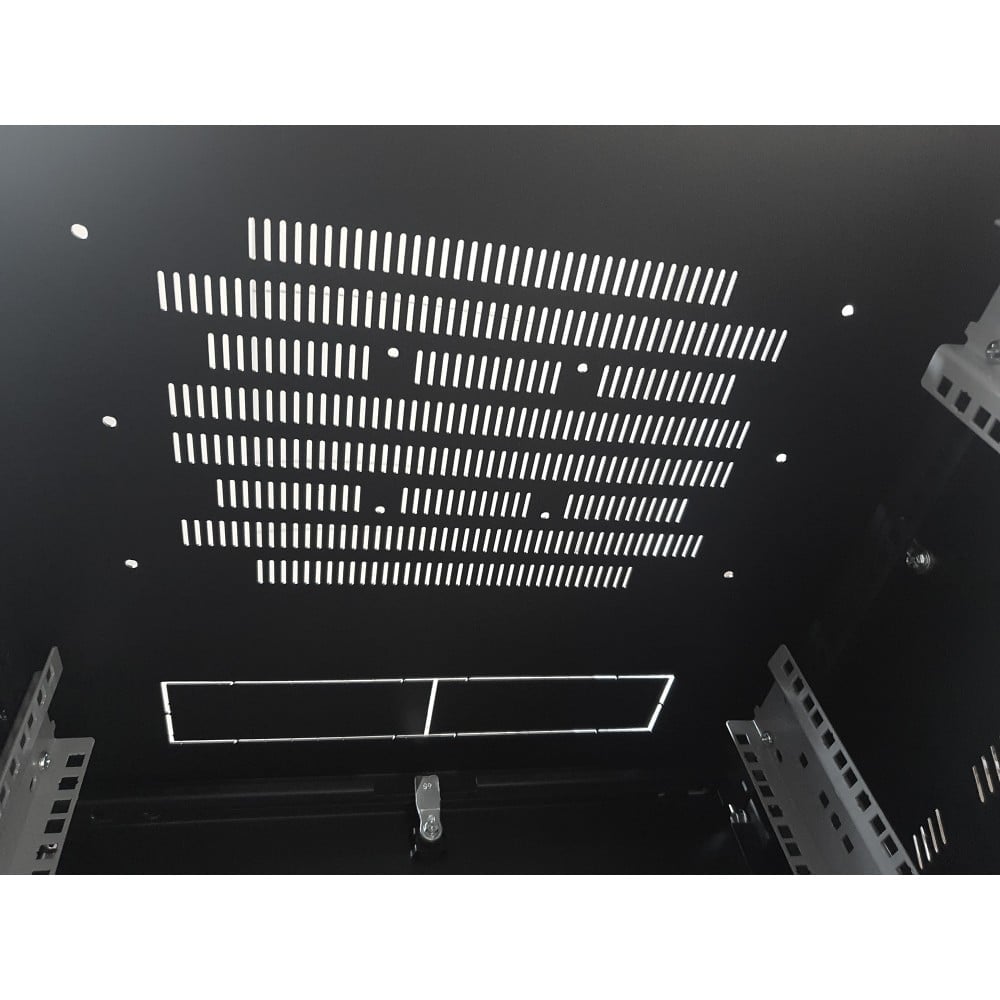

• Roof pre-drilled for ventilation system and equipped with cable entry


• Bottom prepared for cable entry with pre-cut panels

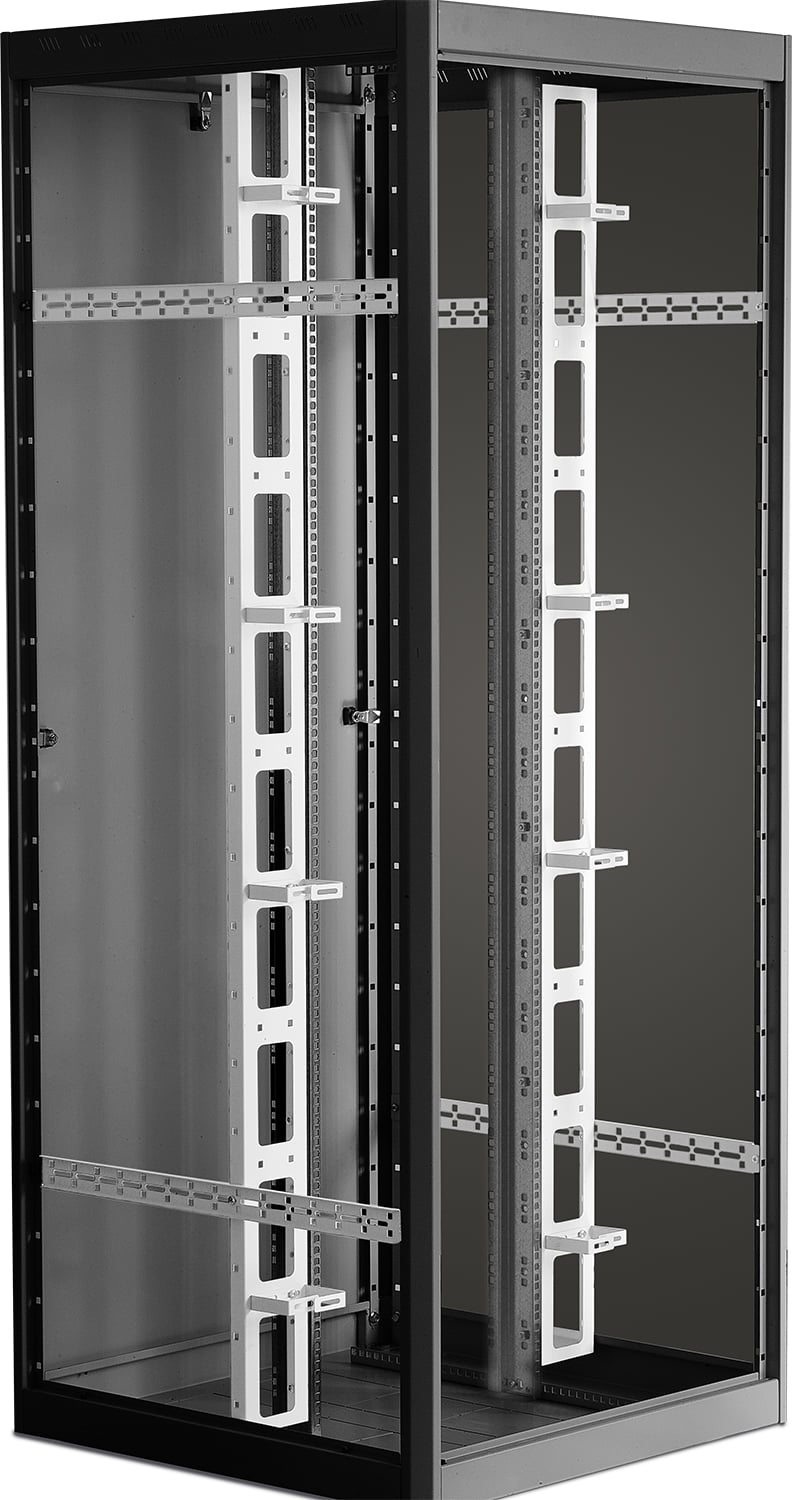

• Complete with a pair of uprights with silk-screened 19” units front and rear, quick snap-in on the base


• Static load capacity 700 kg


• With feet included in the supply


• Protection rating IP20 according to EN 60529


• Color: RAL9005 (Black)


• External dimensions: (H x W x D) 1656 x 800 x 1000 mm


• Usable dimensions: (W x D) 686 x 965 mm



Certifications

• CE certification according to EN 62208


• Conformity to IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; EN60529; EN12150-1


• Conformity to UNI EN ISO 9001:2008
