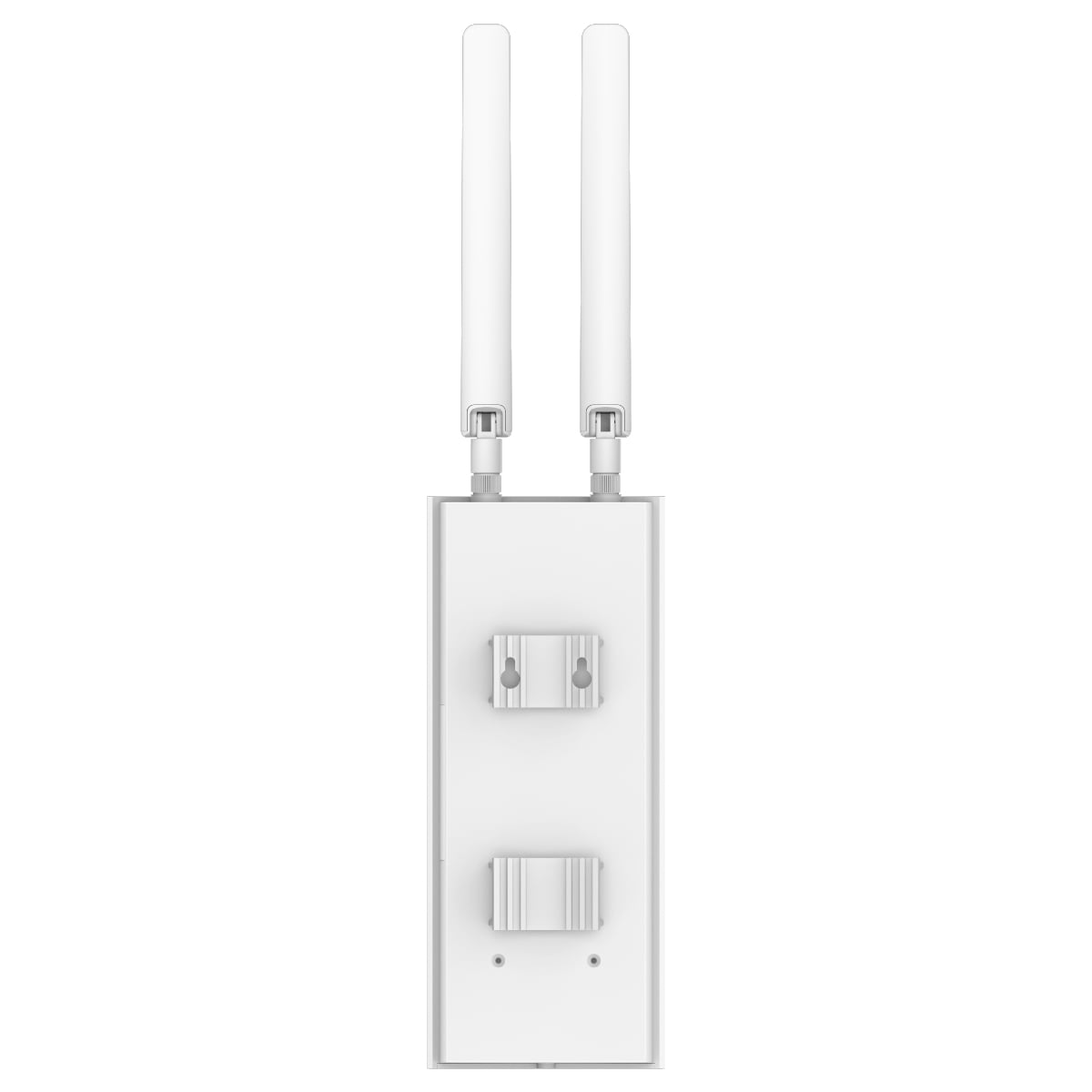

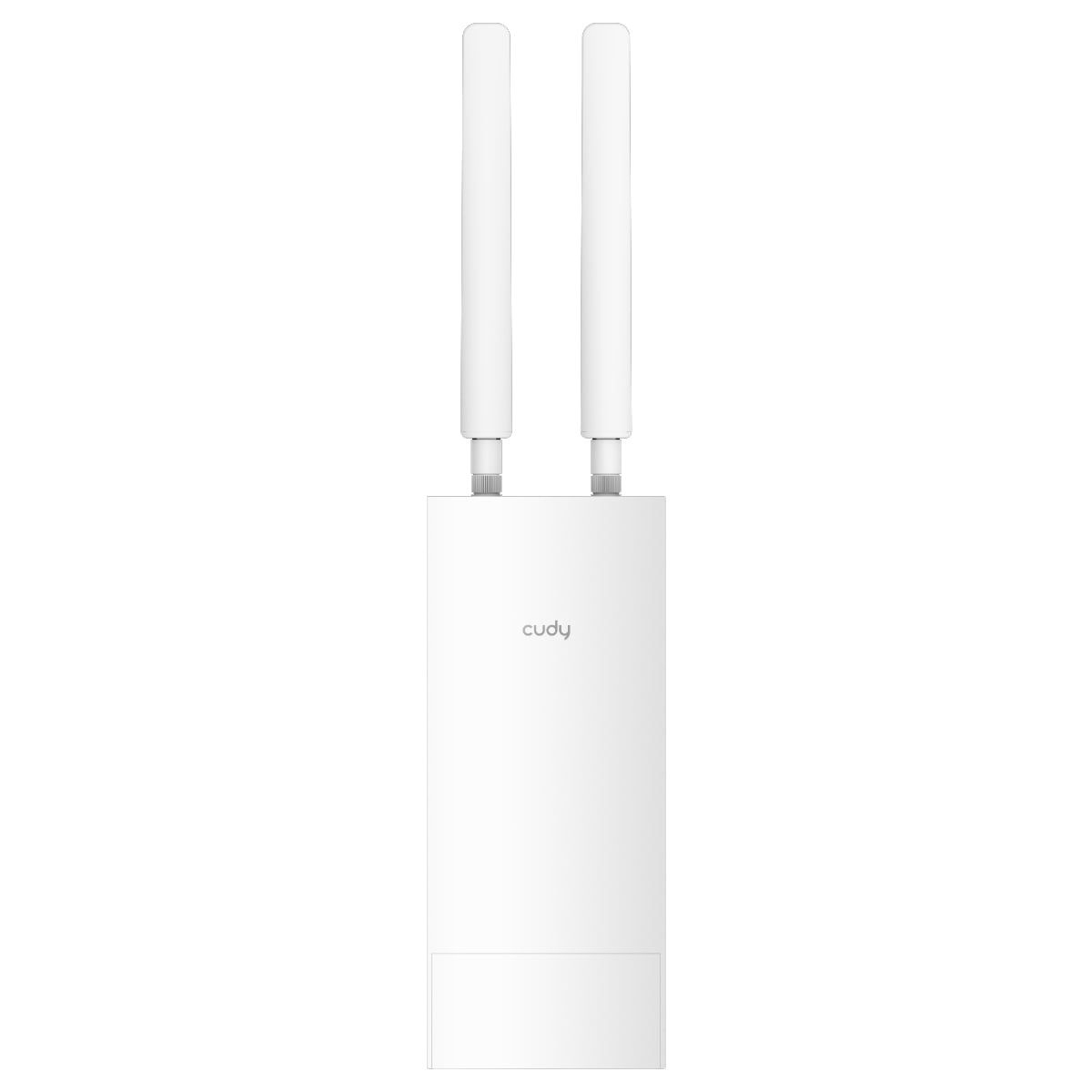

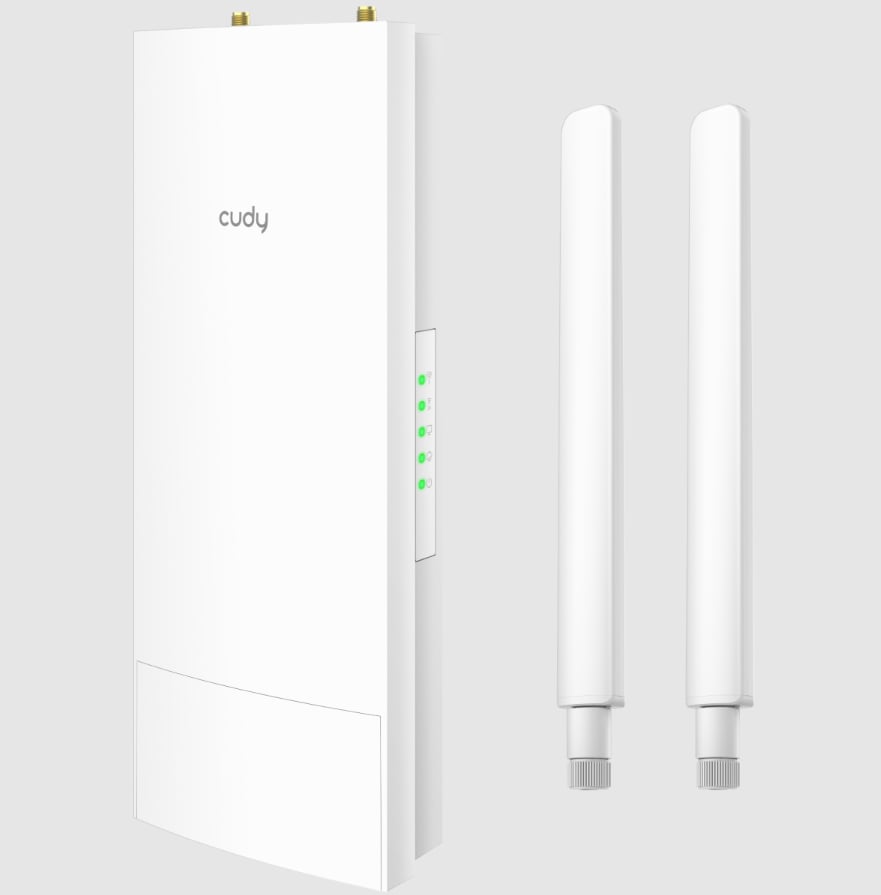

Gigabit AX 3000 Wireless Access Point for Outdoors IP 65 - Cudy ICU-AP 3000 OUT

• Access point AX 3000 Wi-Fi 6 with 160 MHz channel: 2402 Mbps on 5 GHz and 574 Mbps on 2,4 GHz. OFDMA and MU-MIMO work on the download directions of the plug uplink allowing you to connect over 100 devices by minimizing latency (maximum 512 devices)


• ad alta potenza Wi-Fi: With five power amplifiers and an advanced 3 + 2 antenna structure, this AP offers top-notch functionality to get the signal across physical obstacles, providing outstanding Wi-Fi coverage performance for a wider area.


• Power supply: passive PoE 802.3 at/af, 24 - 57 V (PoE adapter included)


• The access point è equipped with a standard IP 65 case, which protects it from rain and dust when installed vertically; and equipped with a protection against lightning surges 6 KV on the Ethernet port



Technical specifications

• Highlights:



- CPU: 1.3 GHz Dual-Core ARM Cortex-A 53 CPU

- Flash: 128 MB (1 Gbit)

- DDR memory: 256 MB (2 Gbit)

• Interfaces:



- 1 Gigabit Ethernet port (PoE entrance)

- 1 restore button

- 1 WPS button

• Feeding:



- 802.3 at PoE

- PoE passive 48 - 57 V (+ 4,5 pin; - 7,8 pin)

• Type of antenna:



- 2 removable omnidirectional antennas

- mounting on pole/wall mounting (kit included)



Wireless

• Wireless standard Wi-Fi 6 (802.11 ax/ac/n/g/b/a)


• Frequency 5 GHz, 2,4 GHz


• Velocità signal: 5 GHz: up to 2402 Mbps


• 2,4 GHz: up to 574 Mbps


• Bandwidth 20 / 40 / 80 / 160 MHz


• Functions:



- Roaming fast

- Multiple SSIDs

- Doorway bound

- Self-organizing Mesh

- Band management

- Automatic channel optimization

- Enable/disable wireless function

- Transmission of power control

- QoS (WMM)

- MU-MIMO

- Beamforming

- Speed limit;

- Reboot planning

- Wireless programming

• Encryption:



- WPA-PSK

- WPA 2 -PSK

- WPA-PSK/WPA 2 -PSK

- WPA 3 -SAE

- WPA 2 -PSK/WPA 3 -SAE

• Security:



- Access control

- Mac filtering

- Wireless isolation client

- VPN Server and Client Zerotier, Wireguard, OpenVPN, IPSec, L 2 TP, PPTP

- DNS over TLS Cloudflare, Google, Quad 9

• IP protection degree 65 (protection against dust and low pressure water from any direction)


• Lightning protection: lightning protection / overvoltage from 6 KV on the Ethernet port


• ESD: ESD protection from 8 KV contact / 15 KV air


• Working temperatures: - 20 / 60 °C


• Modelità operating:



- Access Point

- Wi-Fi Router

- Range Extender.

- WISP

- Mesh



Dimensions

• Access point (without antennas): 240 x 100 x 53,7 mm


• Wi-Fi antennas: 197,5 × 21,6 × 15,5 mm each


• AP height with installed antennas: 438 mm



Compatibilityà

• Windows


• Android


• MacOS


• iOS


• Linux



Environmental features

• Operating temperatures: - 40 ~ 65 °C east. - 40 ~ 70 °C


• Storage temperature: - 40 – 70 °C


• Operating Humidit à 10 – 90 % RH without condensation


• Storage humidit à: 5 – 90 % RH without condensation



Package contents

• Wireless outdoor access point


• 2 removable Wi-Fi antennas


• Passive PoE Adapter


• Assembly kit


• Installation Guide
