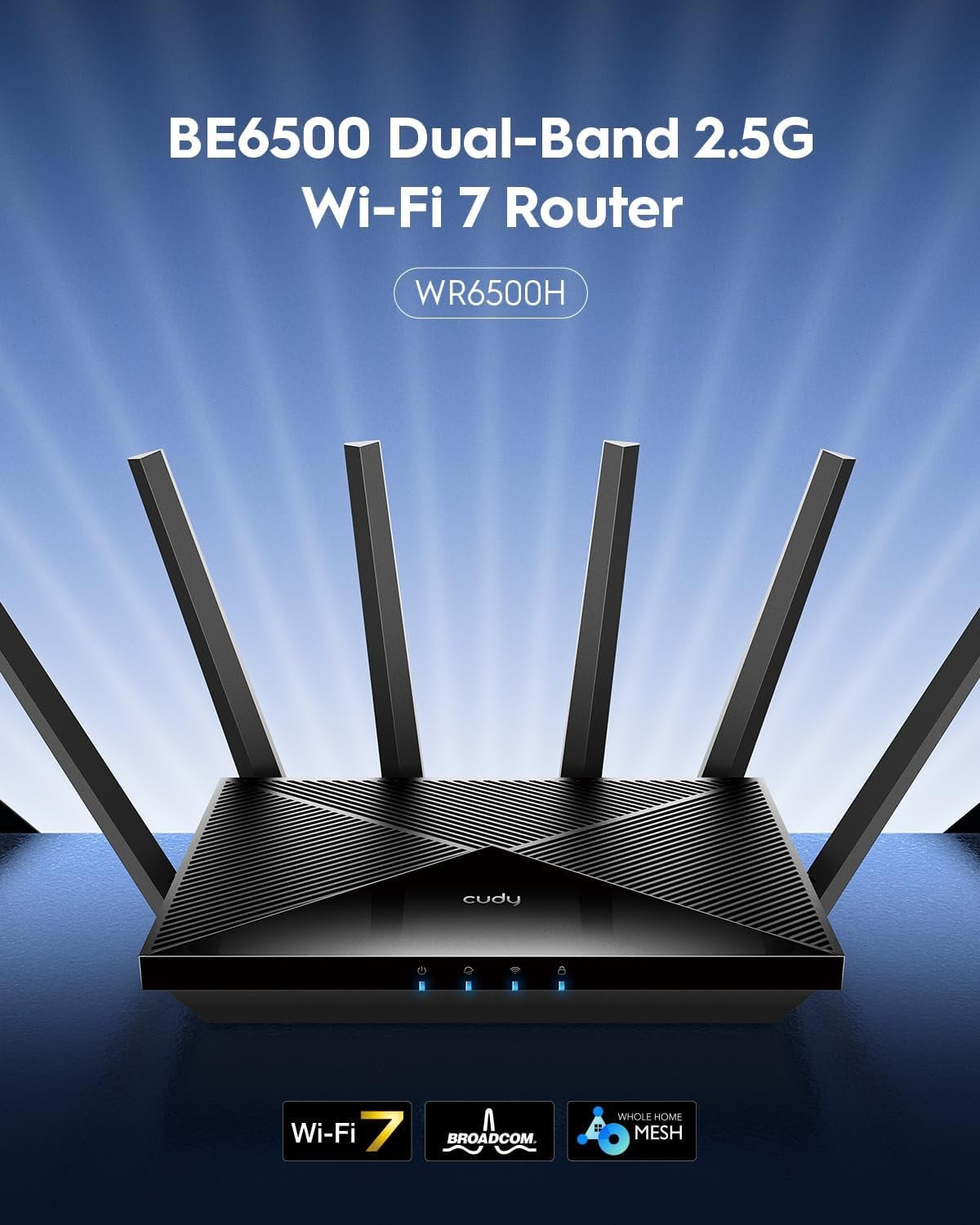

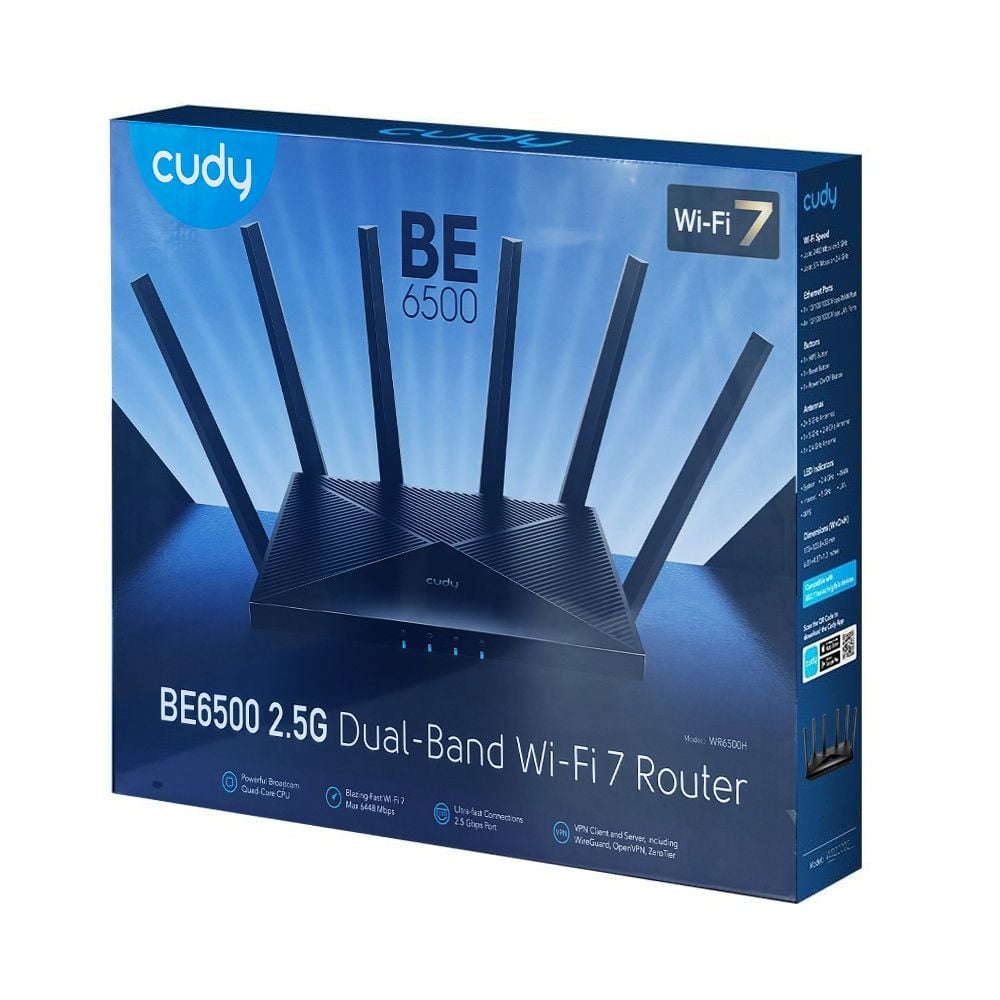

Mesh Router WiFi 7 Dual-Band Gigabit BE 6500 2.5 G WAN - Cudy ICU-WR 6500 H

•

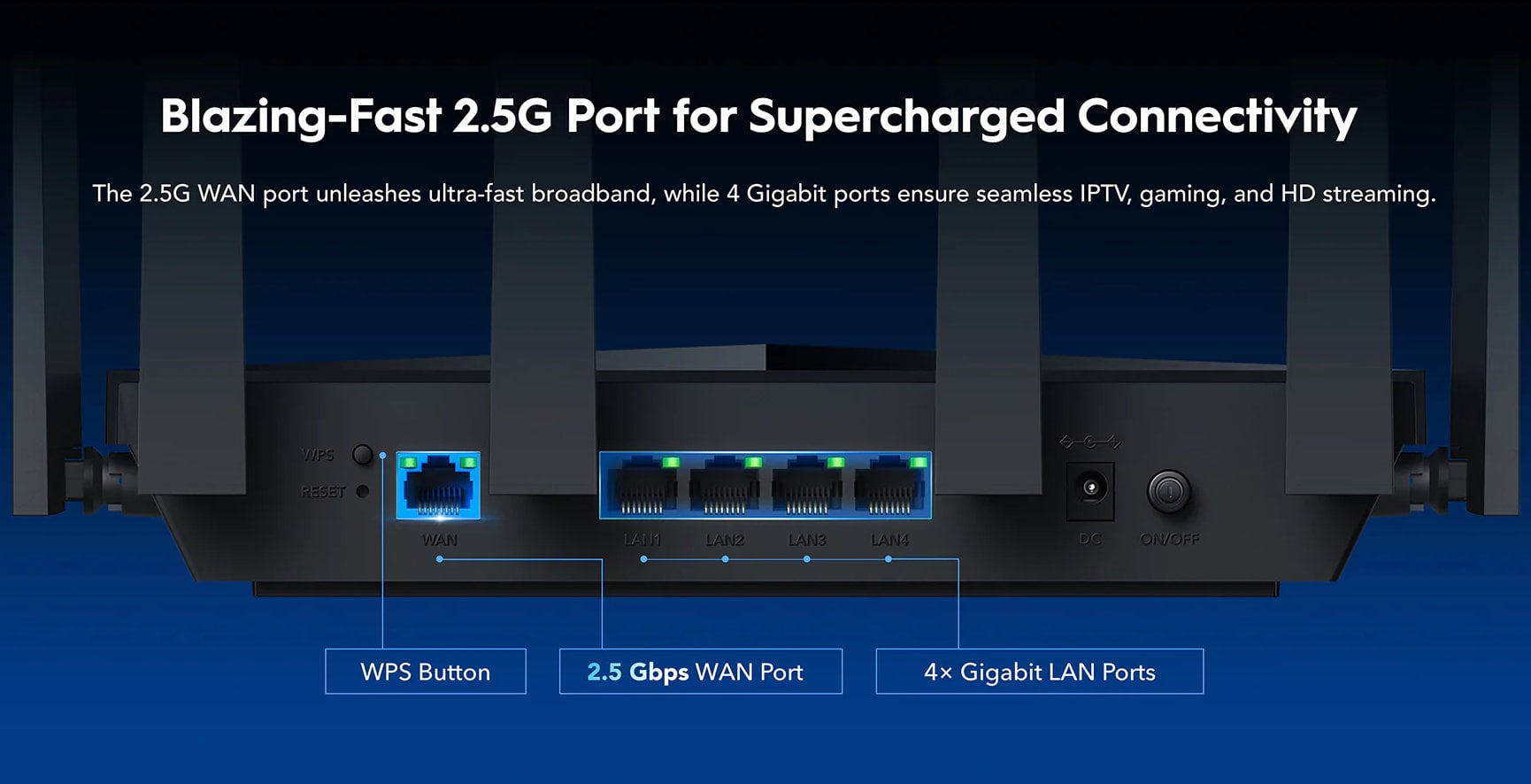

• The WAN 2.5 G port and 4 Gigabit LAN ports offer high-speed data transmissions;

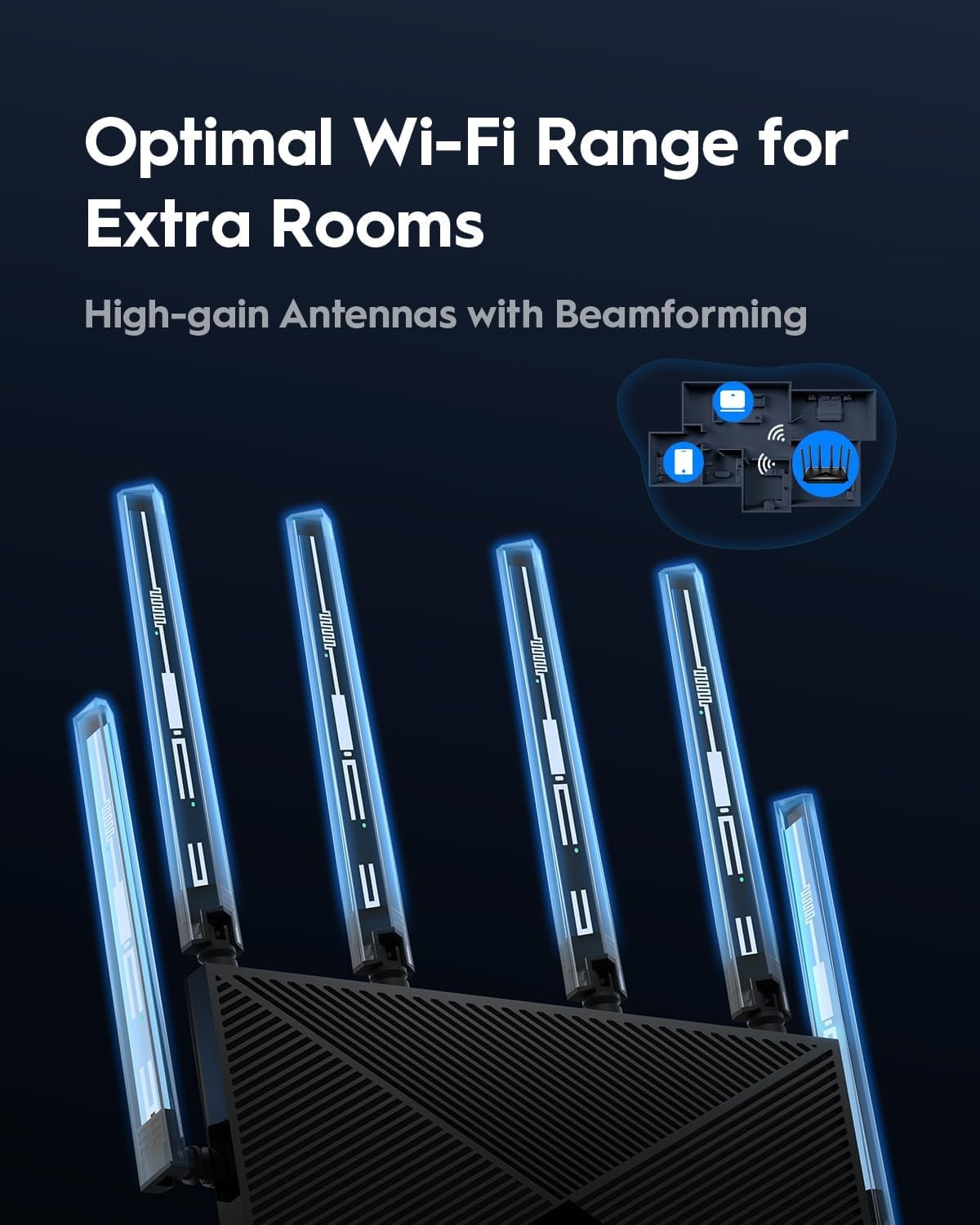

• Greater coverage: Beamforming high gain antennas offer more ù powerful and targeted Wi-Fi signals to client devices, ensuring higher speed à and higher stabilityà throughout the home or office

• Intelligent Multi-Ru and Puncturing technology that increase interference resistance

• Multi-VPN support: PTP/L 2 TP/IPsec/OpenVPN/WireGuard/Zerotier

• Easy configuration and use thanks to remote cloud control and local control via the Cudy app

• Parental control: sets Wi-Fi times and blocks inappropriate content to ensure online family security


Technical specifications

•

• CPU details: 2.0 GHz Quad-core, ARM Cortex-A 7

• Flash/ROM: 128 MB (1 Gbit) NAND

• DDR/RAM: 512 MB (4 Gbit) DDR 4

• Velocità Wi-Fi at 5 GHz: 5765 Mbps

• Velocità Wi-Fi at 2,4 GHz: 688 Mbps

• Wi-Fi flows at 5 GHz: 4 T 4 R (4 × 4 MIMO)

• 2,4 GHz Wi-Fi Flows: 2 T 2 R (2 × 2 MIMO)

• Wi-Fi antennas: 6 fixed

• 5 GHz antenna gain: maximum 5,27 dBi

• 2,4 GHz antenna gain: maximum 5,19 dBi

• FEM or PA/LNA: 5 GHz: 4 x internal, 2,4 GHz: 2 x external

• Beamforming

• Maximum capacity: 240 m

• Tested in open environments with minimal interference

• The actual flow rate of Wi-Fi can be different depending on the layout and material of the walls (see the specifications for wall performance for positioning suggestions)

• Wall performance: two wooden walls with thickness < 10 cm (4); one concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)

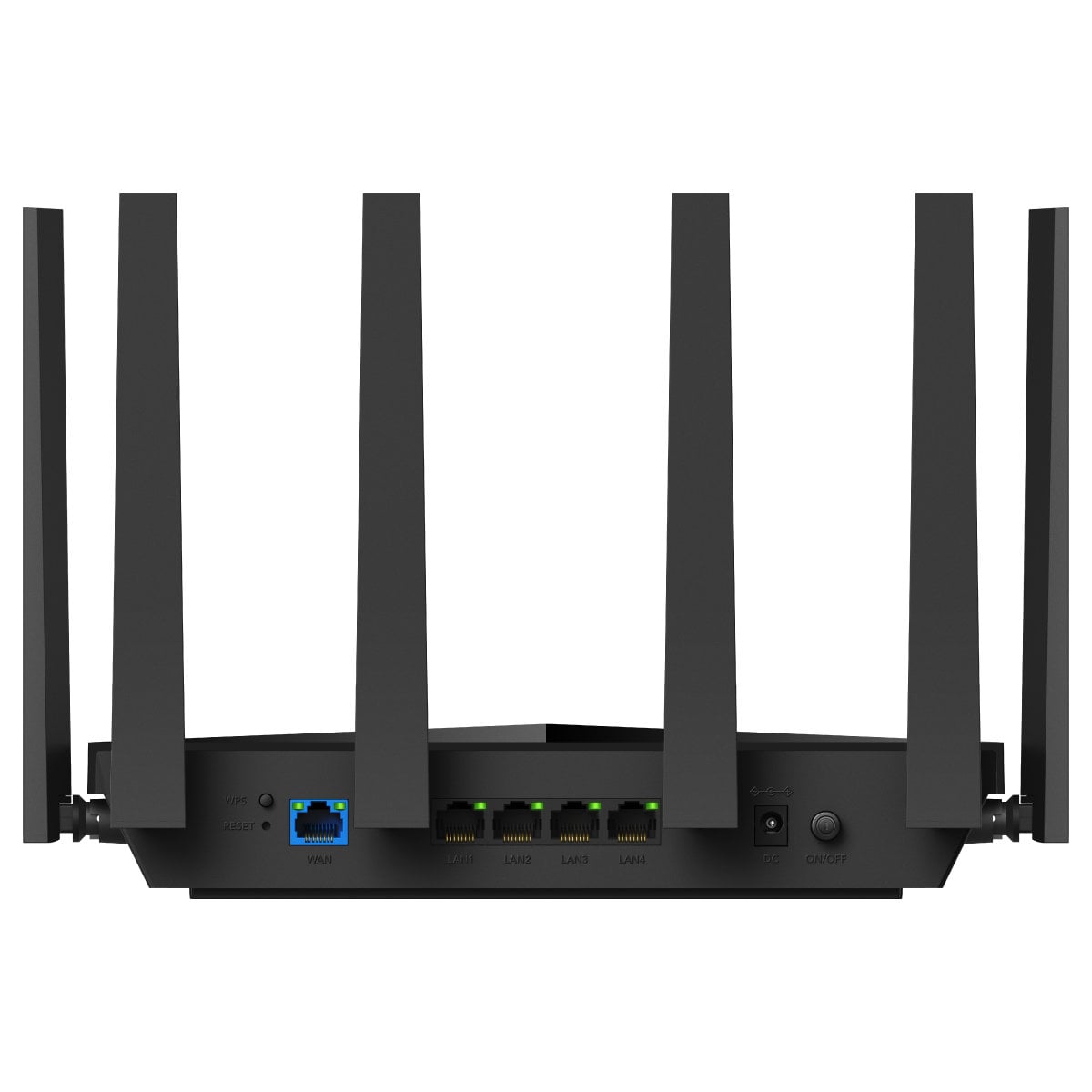

• Gigabit doors RJ 45 : 5

• Ethernet Doors: 1 WAN Doors, the others are LAN Doors

• LED: Power supply, Internet, WAN, LAN, Wi-Fi 2,4 GHz and Wi-Fi 5 GHz

• On/Off button

• WPS Button

• Reset Button

• Power input: Jack DC

• Power adapter input: 100 ~ 240 V, 50 / 60 Hz AC

• Output: 12 V 1,5 A DC

• Maximum power consumption (W) 17 W


Environmental features

•

• Ambient temperature: 0 °C ~ 40 °C

• Storage temperature: - 40 °C ~ 70 °C

• Humidità: 10 % ~ 90 % without condensation

• Storage humidità 5 % ~ 95 % without condensation


Dimensions

•

• Width: 253 mm

• Depthà: 152,5 mm

• Height: 48,2 mm

• Weight: 580 g


Package contents

•

• Mesh Router WiFi 7 Dual-Band Gigabit BE 6500 2,5 G WAN ICU-WR 6500 H

• Power supply

• Ethernet cable

• User manual
