Video recorder 4 CH H. 265 XVR - Avtech IC-DGD 1005 AX

Compression technology H. 265

With this compression technology, the recording capacity is greatly improved as well as the bandwidth savings for better efficiency and performance than systems that use other compression formats.



Cloud Service - EaZy Network

- EaZy Networking, the cloud service provided by AVTECH, available to connect this device to the Internet automatically in three steps with our free mobile app, EagleEyes

- Buddy function to share device access permission with other people

- Device access/exit signals



Customizing alarm scenarios

Scenario è a new functionality à that allows you to customize a series of actions that will be performed automatically after the specified event occurs. There are several scenario templates to choose from when and what to do after a specific event occurs.



Push video and push status - Active event

Notification with the EagleEyes app

• Push Video to send snapshot notifications for an alarm event when an alarm device è connected to the recorder


• Push Status to send snapshot notifications to your event system, such as video loss or HDD data removal



Pentabrid video input

• 4 IP / TVI / CVI / Analog HD / 960 H video input channels



Pop-up/event preview

All events are listed in the right panel with corresponding event icons to quickly recognize the event type.

The most current lampeggerà to attract your attention. Click an event and you can preview the movie with pre-alarm images.

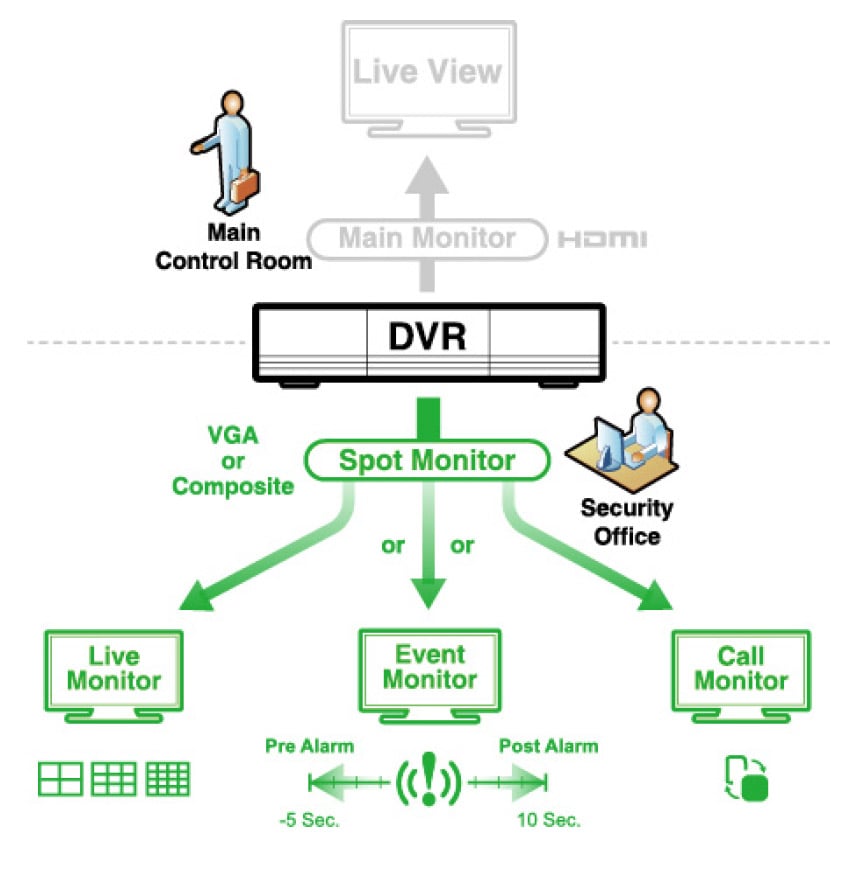

Spot Monitor

In addition to the main display via the main HDMI output, è can assign a secondary display to show live view, call monitor or event monitor.



Video

• Video system: NTSC / PAL (automatic detection)


• Video compression format: H. 265


• Video signal: IP / TVI / CVI / Analog HD / 960 H


• Video input: 4 pentabrid channels (IP / TVI / CVI / Analog HD / 960 H)


• Video input interface:



modalità analog composite video signal 1 Vp-p 75 Ω BNC

mode; IP Ethernet, 10 / 100 Base-T

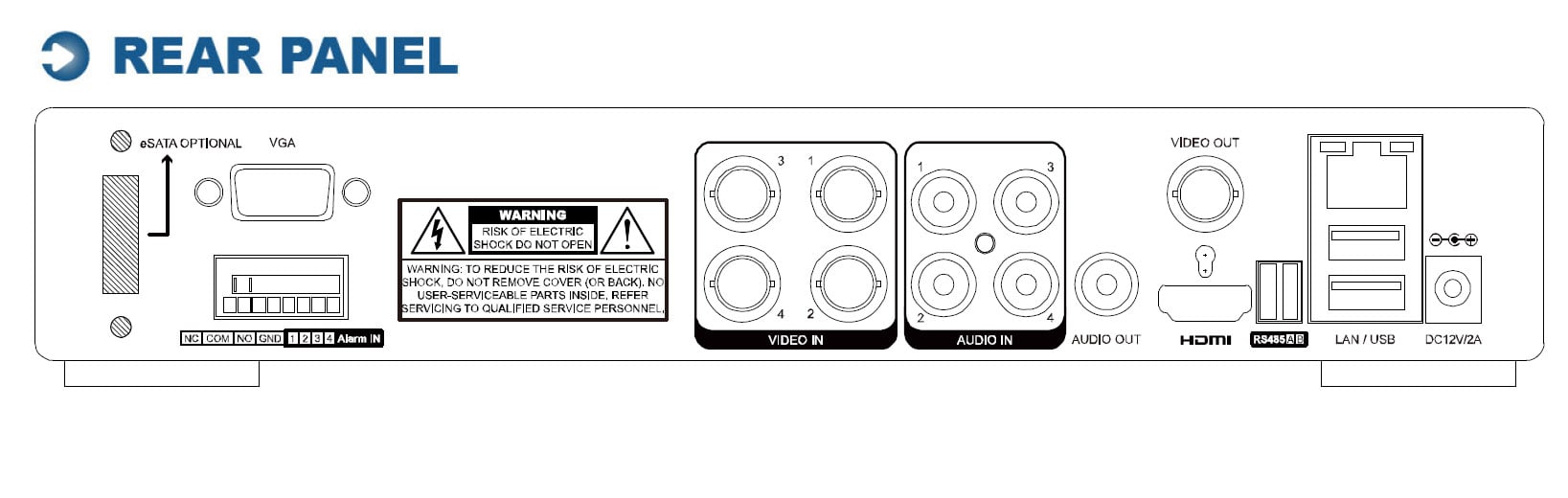

• Video output:



BNC (supported Spot Monitor)

VGA (supported Spot Monitor)

HDMI (Show 4 K 2 K)

• Video resolution:



Modalità analog 8 MP Lite / 5 MP / 5 MLITE / 4 MP / 4 MLITE / FHD ( 1080 P) / HD / 960 H / Frame / CIF

Modelità IP 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240

• Modelità live view:



Local 4 CH

Remote 4 CH

• Modelità playback display:



Local 4 CH

Remote 4 CH



Compatibilityà

• Windows


• MAC



Dimensions

• Width: 260,0 mm


• Depthà: 235,7 mm


• Height: 48,0 mm



Certifications

• CE


• UL (Alimentator)



Package contents

• IC-DGD 1005 AX video recorder


• User manual
