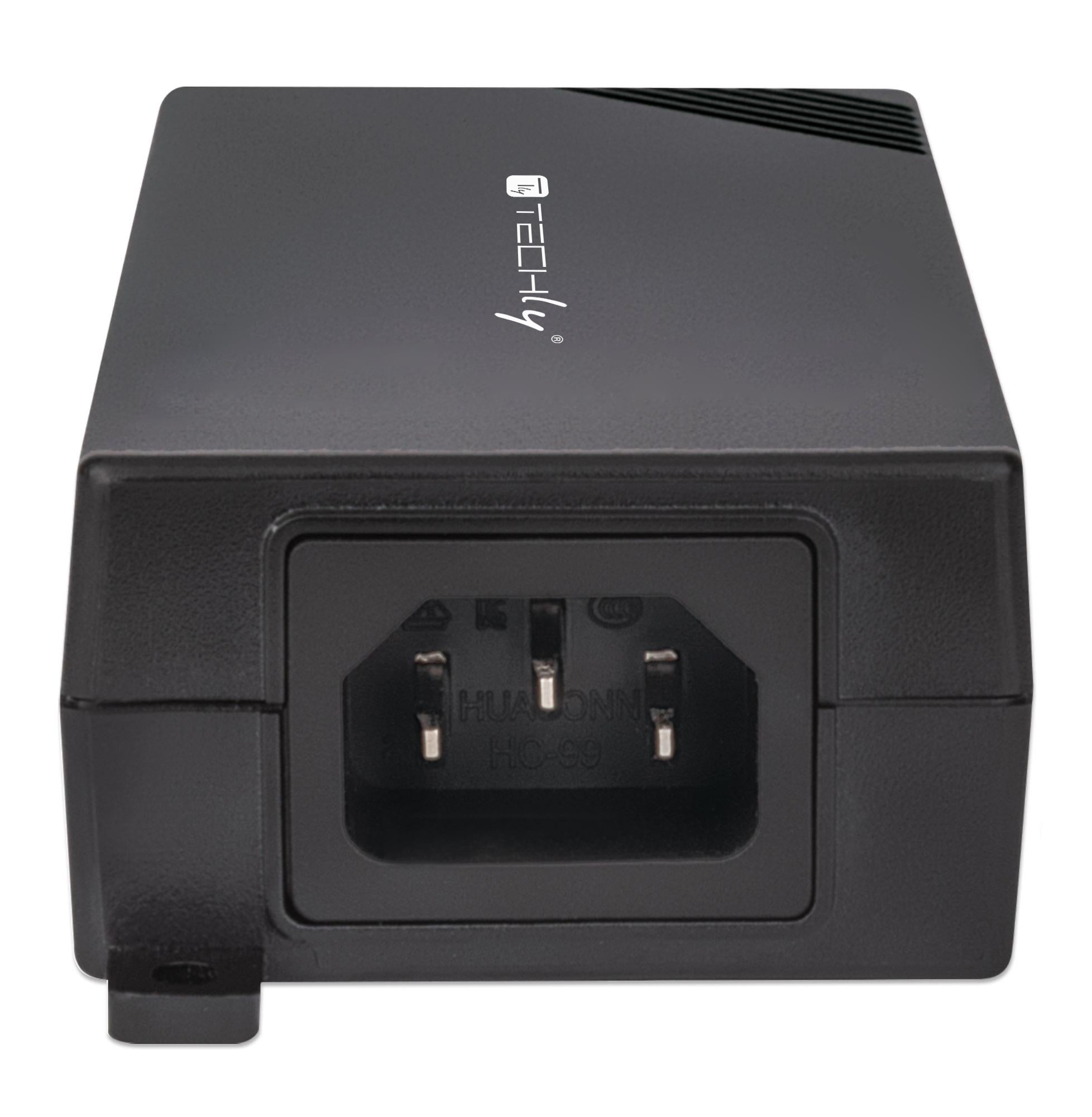

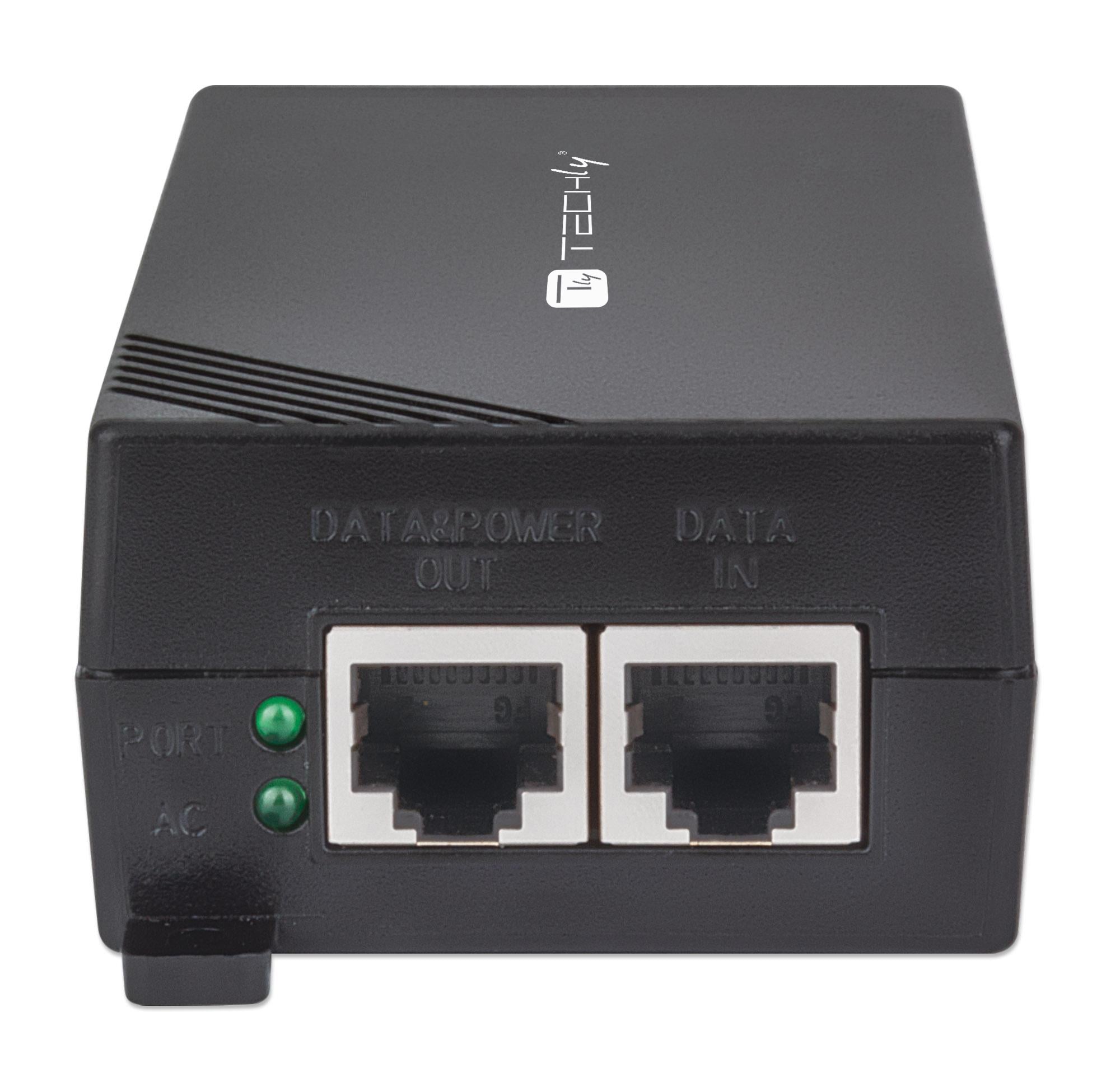

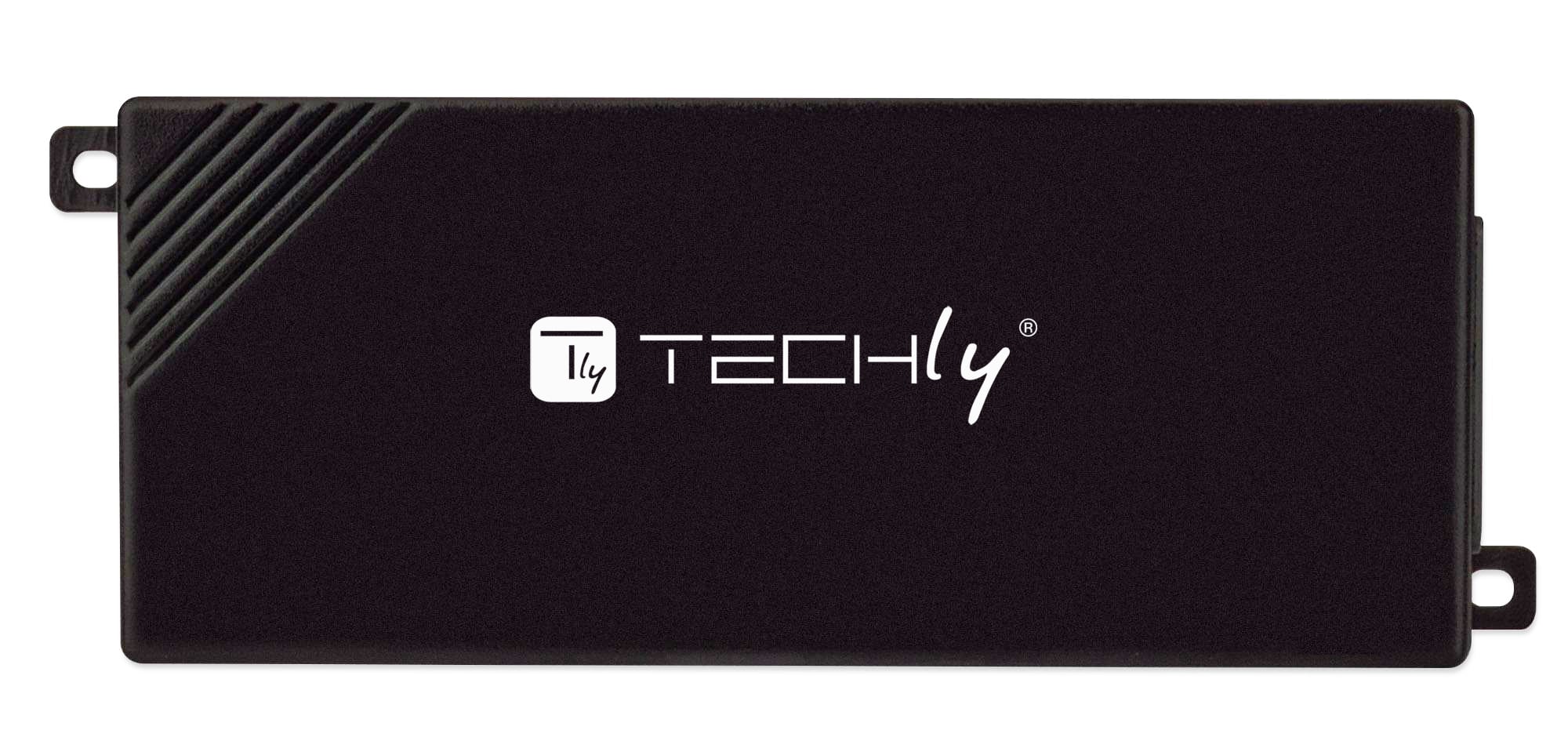

Gigabit PoE+ High Power Injector - Techly I-SWHUB 3000STY2

€30.46
Tax included €25.00 excl. VAT

Techly PoE+ Gigabit Injector compliant with IEEE 802.3at/af, power up to 30W and distance up to 100m. Internal power supply, fanless design, integrated protections. CE approved.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Saves time and money by providing data and power over existing network cables

  • Compliant with IEEE 802.3at (PoE+)

  • PoE output power up to 30 watts

  • Supported distance: up to 100m

  • Supports all PoE devices compliant with IEEE 802.3at and IEEE 802.3af (wireless access points and bridges, VoIP and IP cameras for video surveillance, etc.)

  • Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection

  • Internal power supply

  • Fanless design ideal for silent operation

  • CE approved



Standard

  • IEEE 802.3af (Power over Ethernet)

  • IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)

  • IEEE 802.3 (10Base-T Ethernet)

  • IEEE 802.3ab (Gigabit Ethernet)

  • IEEE 802.3u (100Base-TX Fast Ethernet)

  • IEEE 802.3x (flow control, for full duplex mode)



General information

  • Supports:


- 100Base-TX Cat5 UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

  • Ports:


- One RJ45 10/100/1000 Mbps input port

- One RJ45 10/100/1000 Mbps output port for data and power

  • Protection Functions:


- Protection against short circuit for GND short

- Overload protection for current exceeding 0,6A

  • PoE Configuration: IEEE 802.3af/at Mode A


- Pin 1: DC (+)

- Pin 2: DC (+)

- Pin 3: DC (-)

- Pin 6: DC (-)

  • Certifications: FCC Class A, CE, UL



LED:

  • Dual-color LED for power and PoE



Power

  • Input: 100 ~ 240 V AC, 50 to 60 Hz

  • Power consumption: 35 watt (maximum)



Physical information

  • Plastic housing

  • Dimensions: 130 (D) x 57 (W) x 34 (H) mm

  • Operating temperature: 0 – 50°C

  • Operating humidity: 5 – 90% RH, non-condensing

  • Storage temperature: -20 - 80°C



Package contents

  • Gigabit PoE+ High Power Injector

  • Power cable

  • User manual

  • Brand
  • Reference
    I-SWHUB 3000STY2
  • In stock
    5 Items
  • EAN13
    8058956621024
