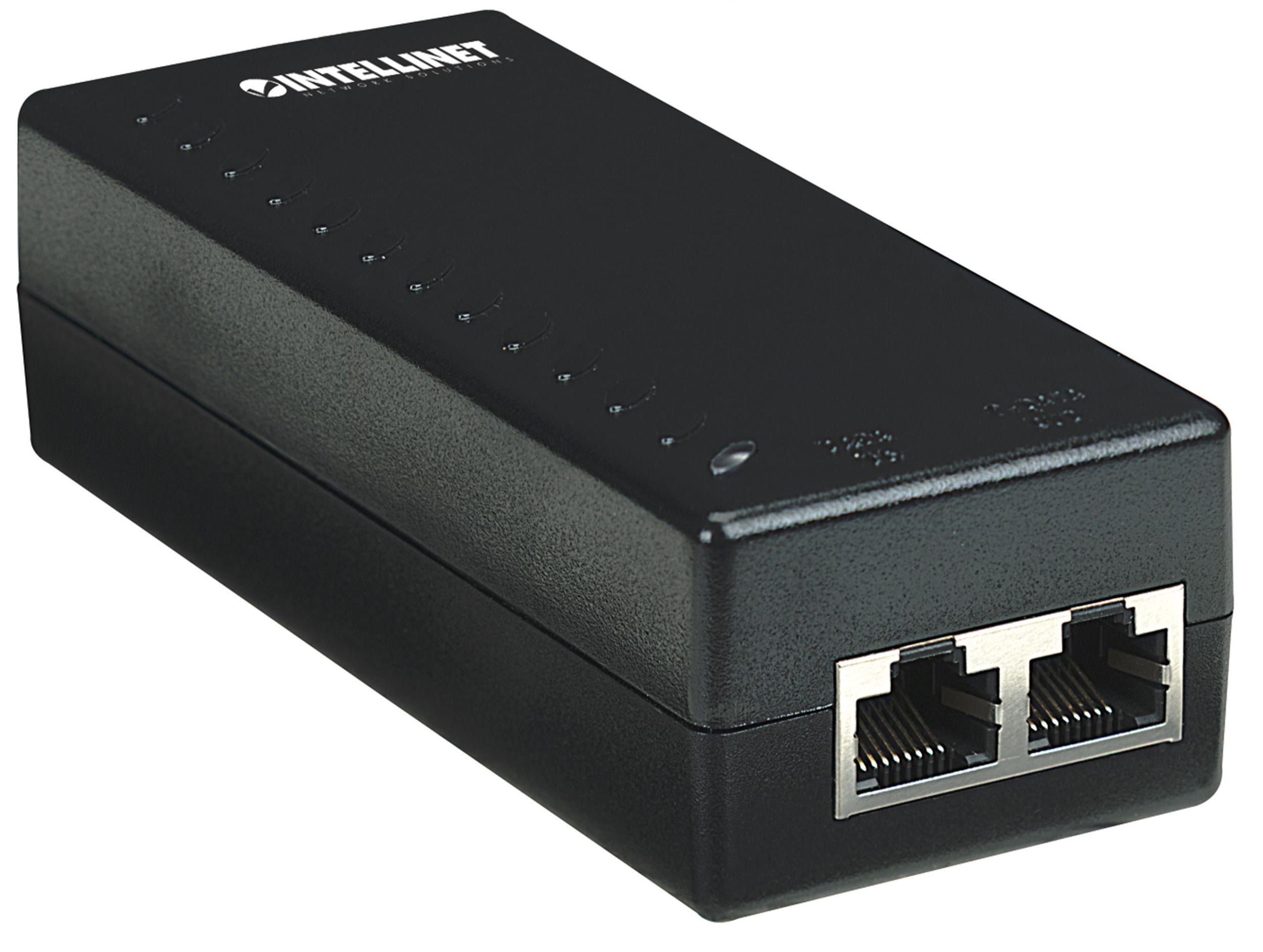

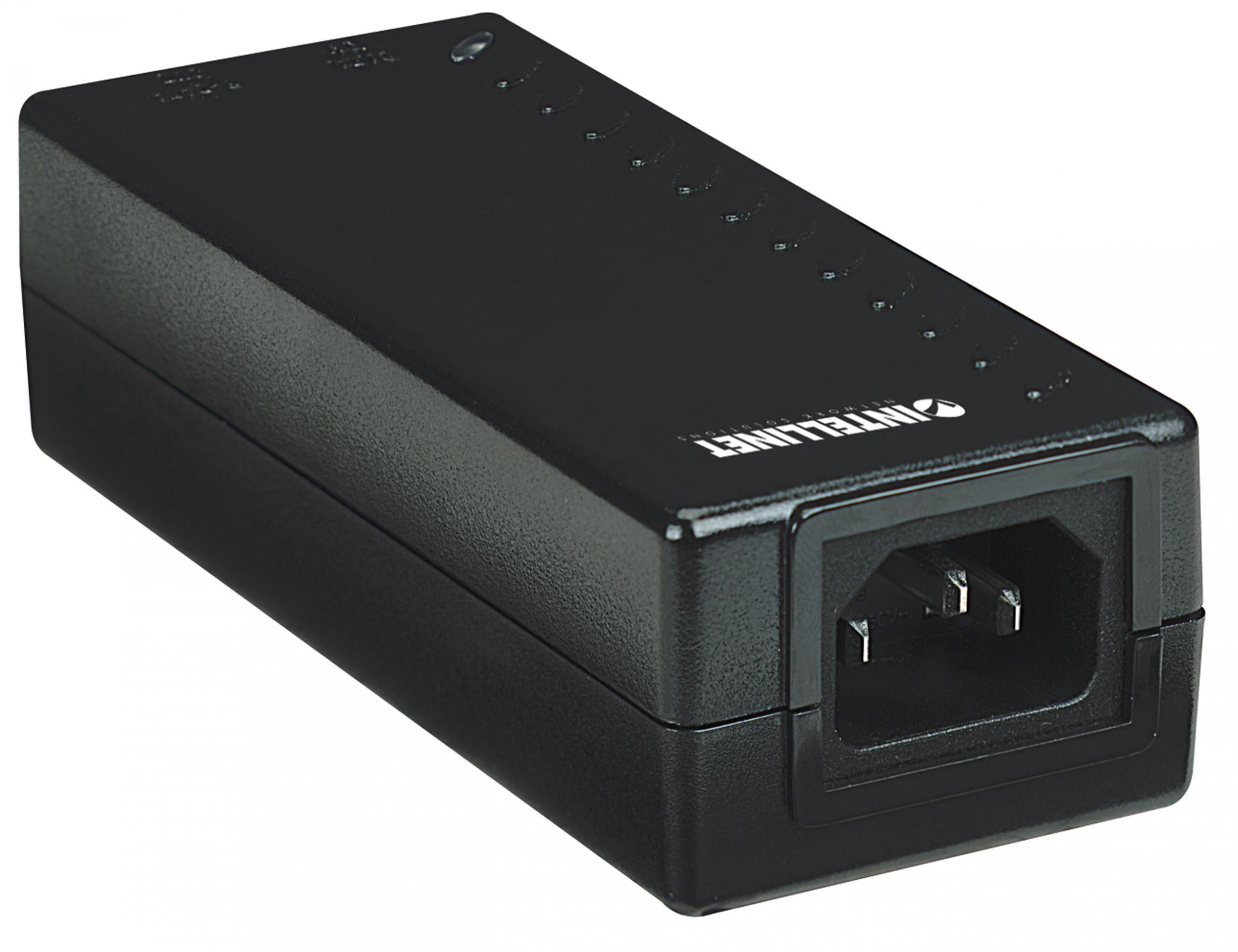

Power over Ethernet (PoE) Injector 15.4 W IEEE 802.3 af - Intellinet IDATA IP-POWER 3

€25.30
Tax included €20.70 excl. VAT

PoE 48 V DC injector with power up to 15,4 W, IEEE 802.3 af compliant. Supports PoE devices such as access points, VoIP phones and IP cameras. Distance up to 100 m, protection against short circuit and overload.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Power PoE injector equipped with a 48 V DC port, ideal in the absence of AC power sockets

  • Output power up to 15.4 Watts

  • Supports all IEEE 802.3 af compliant PoE devices (Wireless LAN access point and bridge, VoIP (Voice over Internet Protocol) phones, IP cameras)

  • Supports IEEE 802.3 af detection and short circuit protection, overload and high voltage protection

  • Supported distance: up to 100 m

  • Fully compatible design Class 3 POE



Standards

  • IEEE 802.3 af (Power over Ethernet)

  • IEEE 802.3 (10 Base-T Ethernet)

  • IEEE 802.3 u (100 Base-TX Fast Ethernet)



General information

  • Support


- 100 Base-TX Cat 5 UTP/STP RJ- 45 , 8 pin

  • Doors:

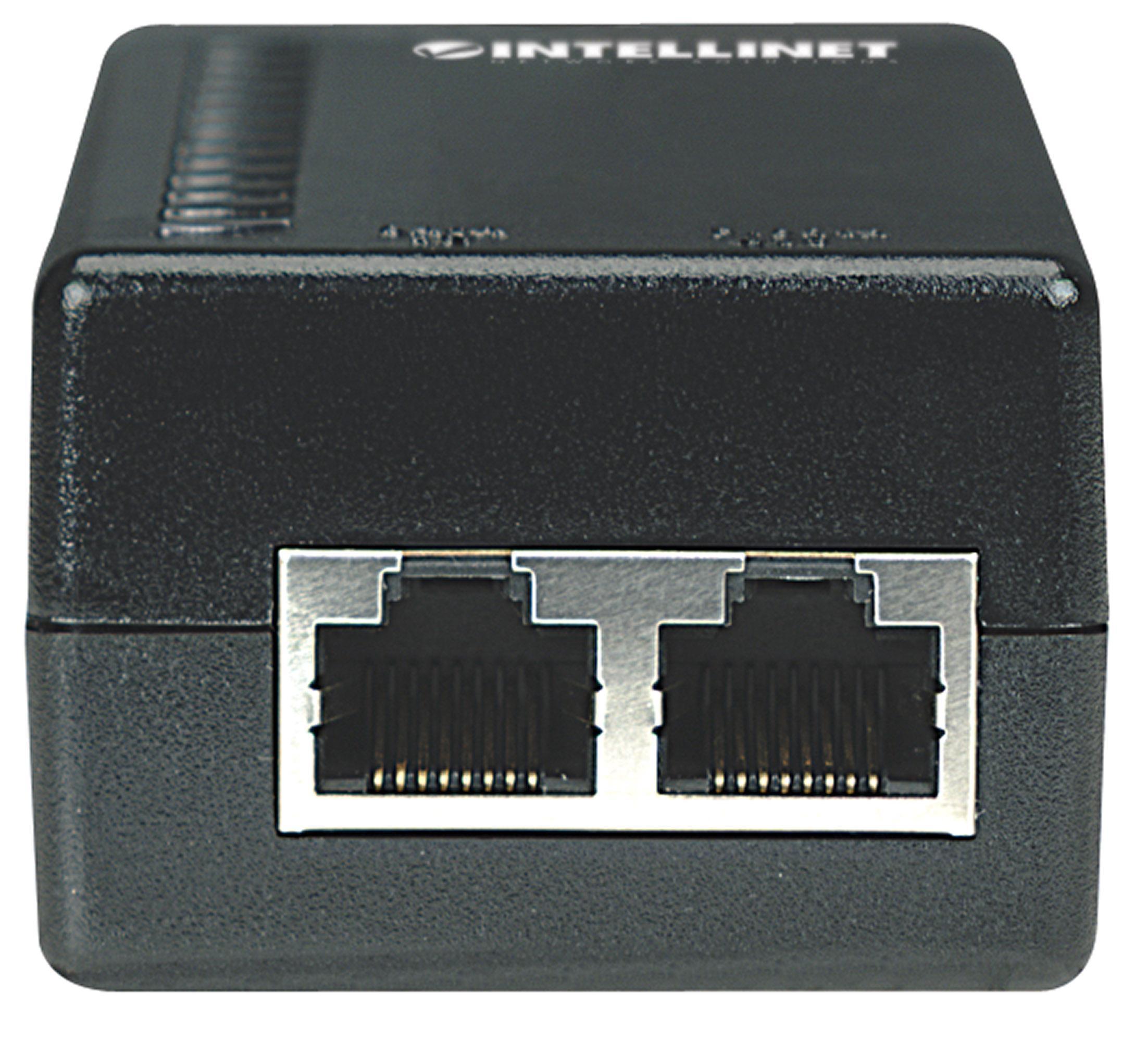

- 1 RJ- 45 100 Mbps in input

- 1 RJ- 45 100 Mbps output data and power

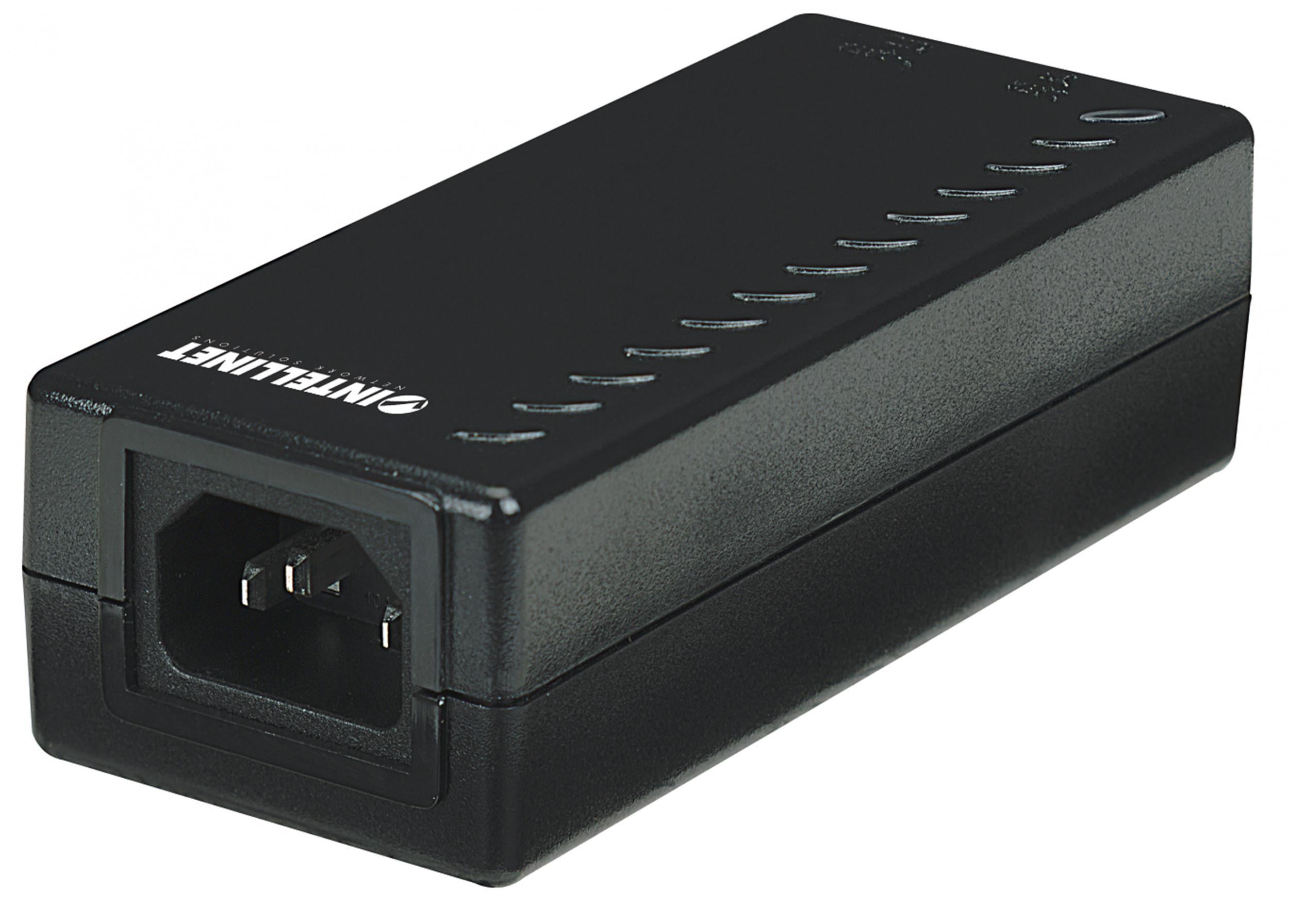

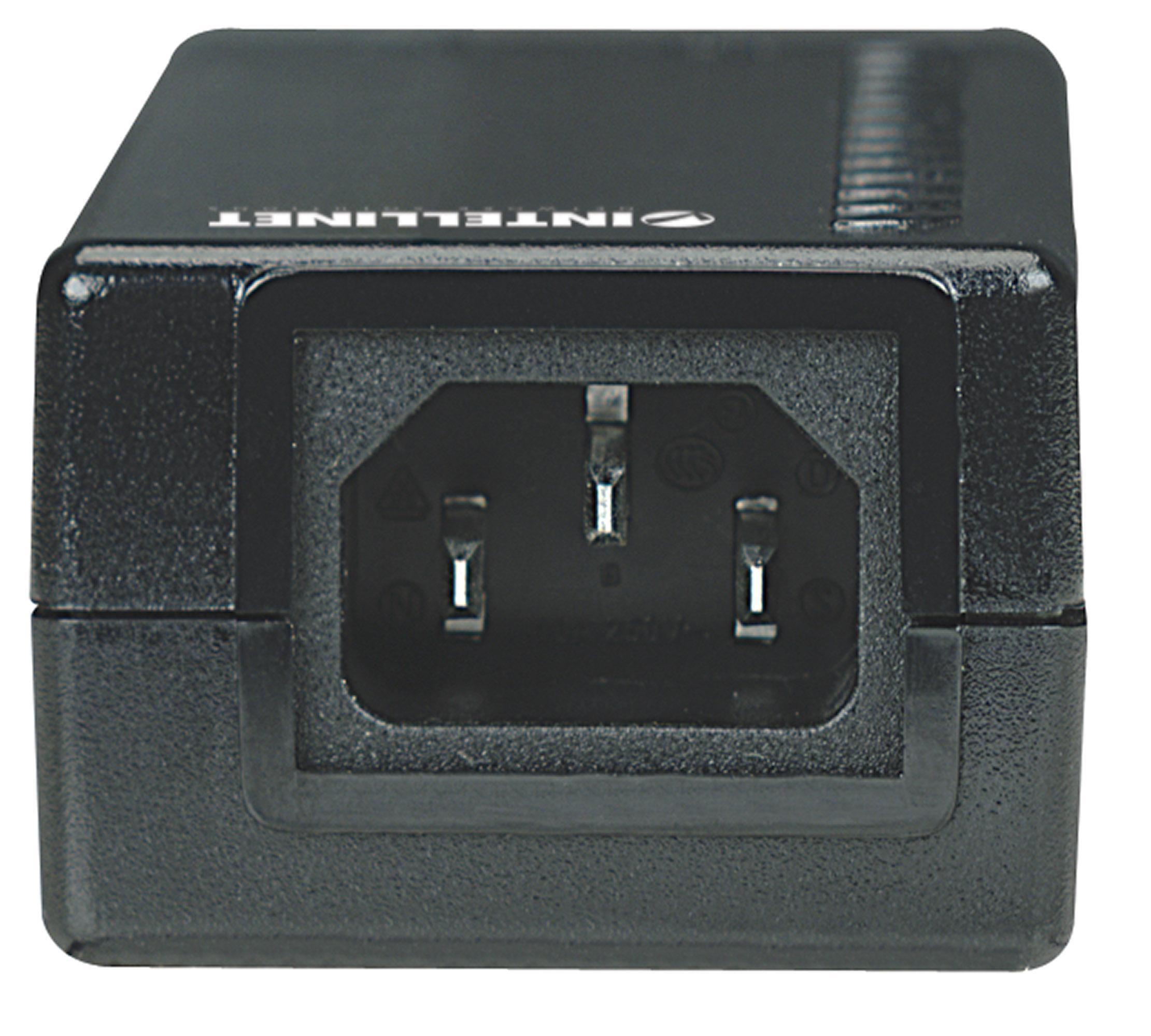

- 1 power connector (3 pin)

  • Protection Functions:


- Short circuit for GND

- Overload for currents over 450 mA

- High voltage protection for outputs beyond 52 V

  • Compatibilityà: all devices compliant with IEEE 802.3 af

  • Certifications: FCC Class B Part 15 , CE



Footing RJ- 45 connector in Input

  • Pin 1: Rx+ (date received)

  • Pin 2: Rx- (date received)

  • Pin 3: Tx+ (data transmitt)

  • Pin 4: NC (not connected)

  • Pin 5: NC (not connected)

  • Pin 6: Tx- (data transmitt)

  • Pin 7: NC (not connected)

  • Pin 8: NC (not connected)



Output RJ- 45 connector (Data + Power)

  • Pin 1: Rx+ (date received)

  • Pin 2: Rx- (date received)

  • Pin 3: Tx+ (data transmitt)

  • Pin 4: -Vdc_return (+) (feeding power [+])

  • Pin 5: -Vdc_return (+) (feeding power [+])

  • Pin 6: Tx- (data transmitt)

  • Pin 7: -Vdc (feeding power [-])

  • Pin 8: -Vdc (feeding power [-])



LED

  • AC power supply (Red)

  • Power supply on the Data Channel (Green)

  • Power supply on the Alarm Channel (Red)



Feeding

  • Input: 100 ~ 240 V AC, 50 to 60 Hz

  • Output: 48 V DC / 350 mA

  • Power consumption: 19 Watts (maximum)



General information

  • Plastic shell (ABS)

  • Dimensions: 120 (L) x 50 (W) x 35 (H) mm (4.7 x 2.0 x 1.4 in.)

  • Weight: 0.14 kg (0.3 lbs.)

  • Operating temperature: 0 – 60°C

  • Operating humidità 10 – 90 % RH, without condensation

  • Storage temperature: - 20 – 85 °C



Package contents

  • Power Over Ethernet Injector

  • Power cable

  • Instruction sheet

  • Brand
  • Reference
    IDATA IP-POWER3
  • In stock
    111 Items
  • EAN13
    0766623524179
