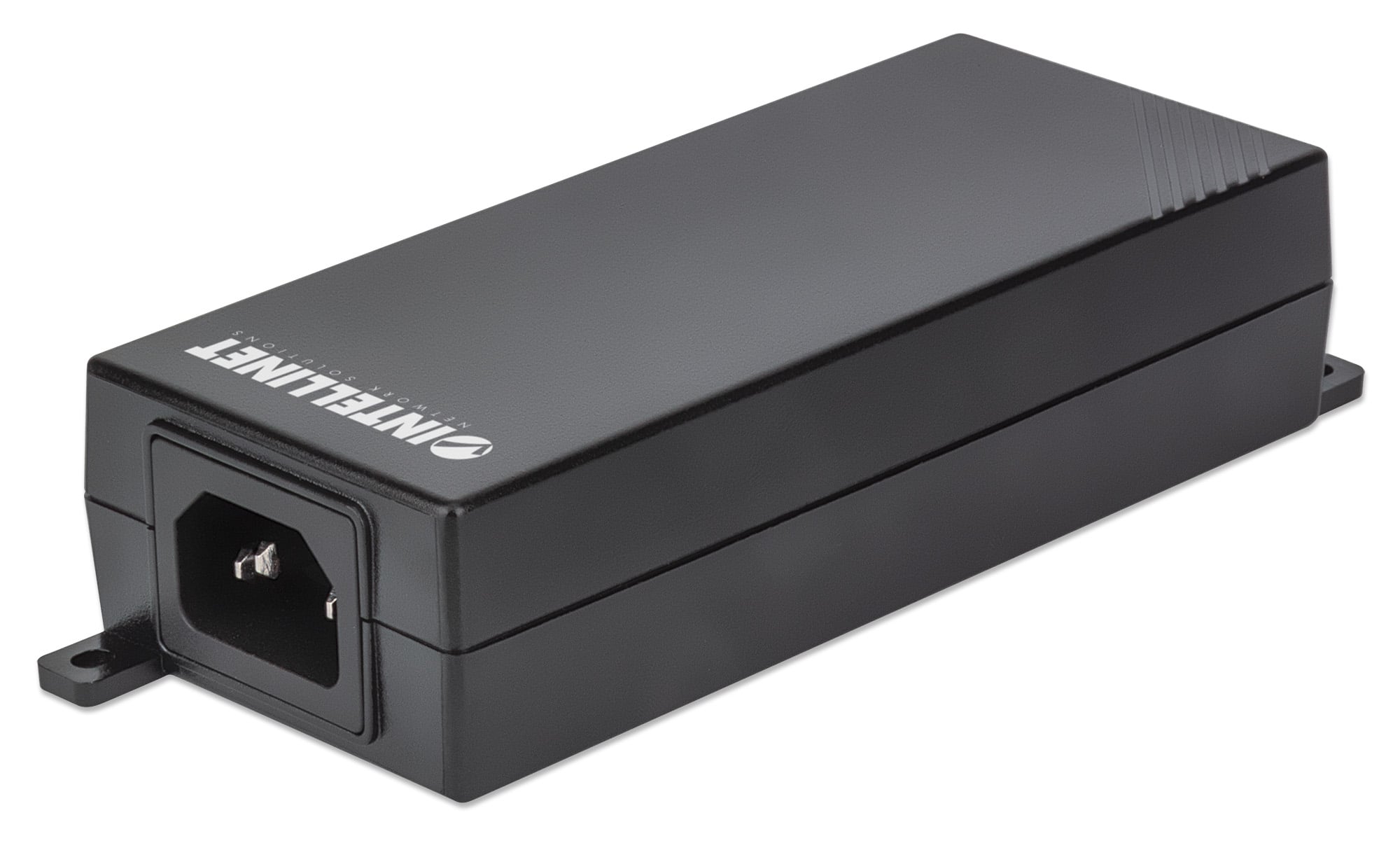

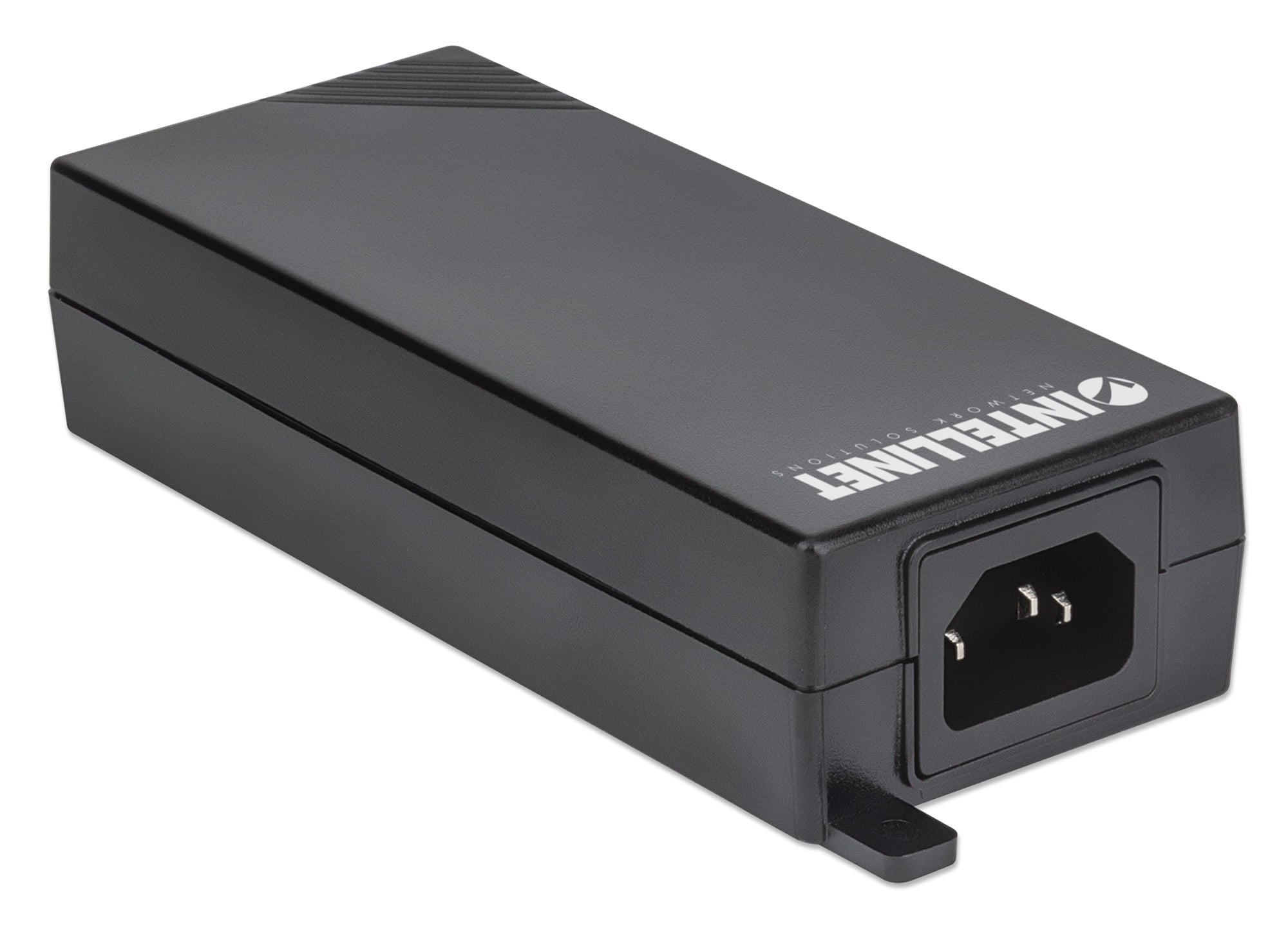

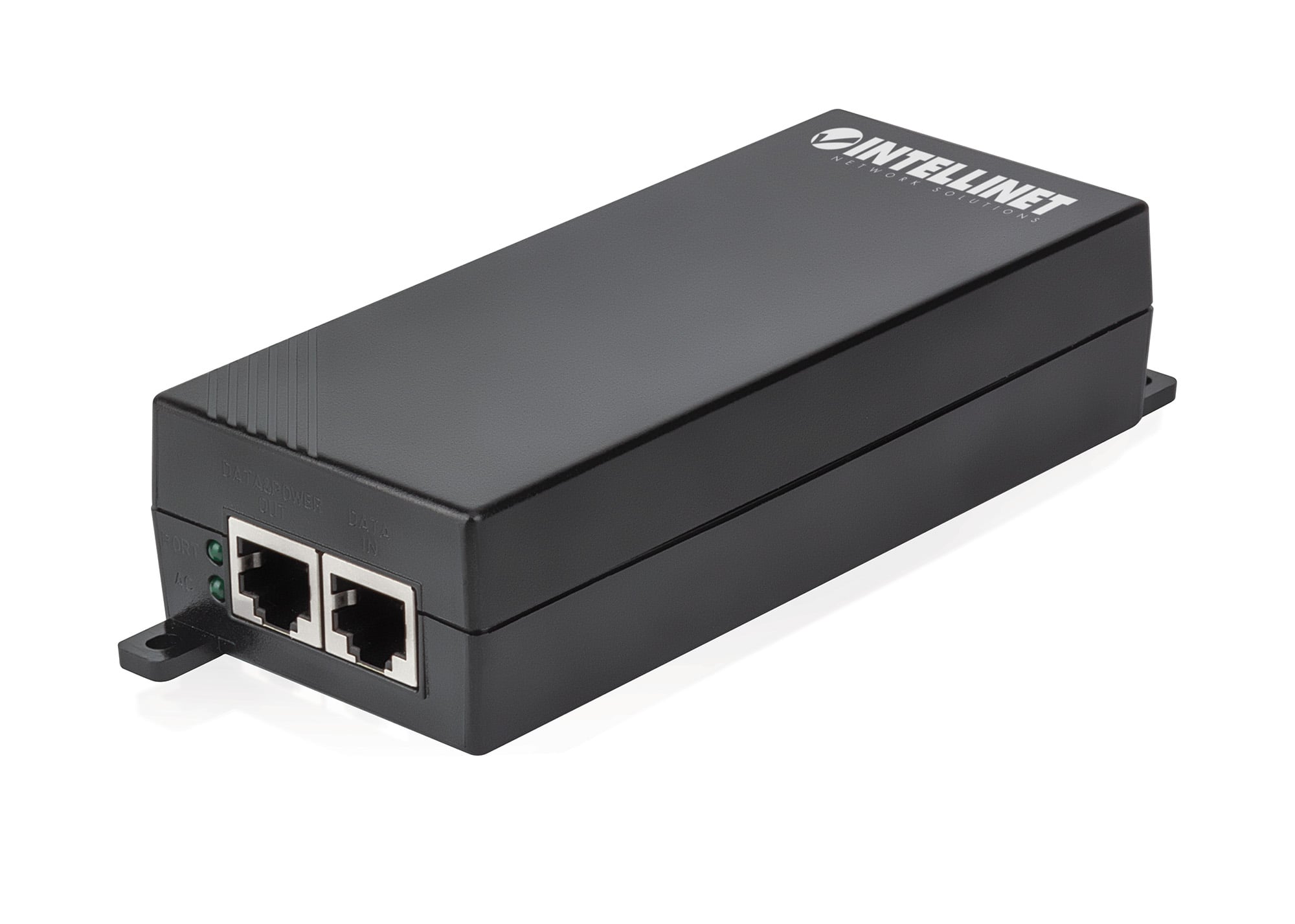

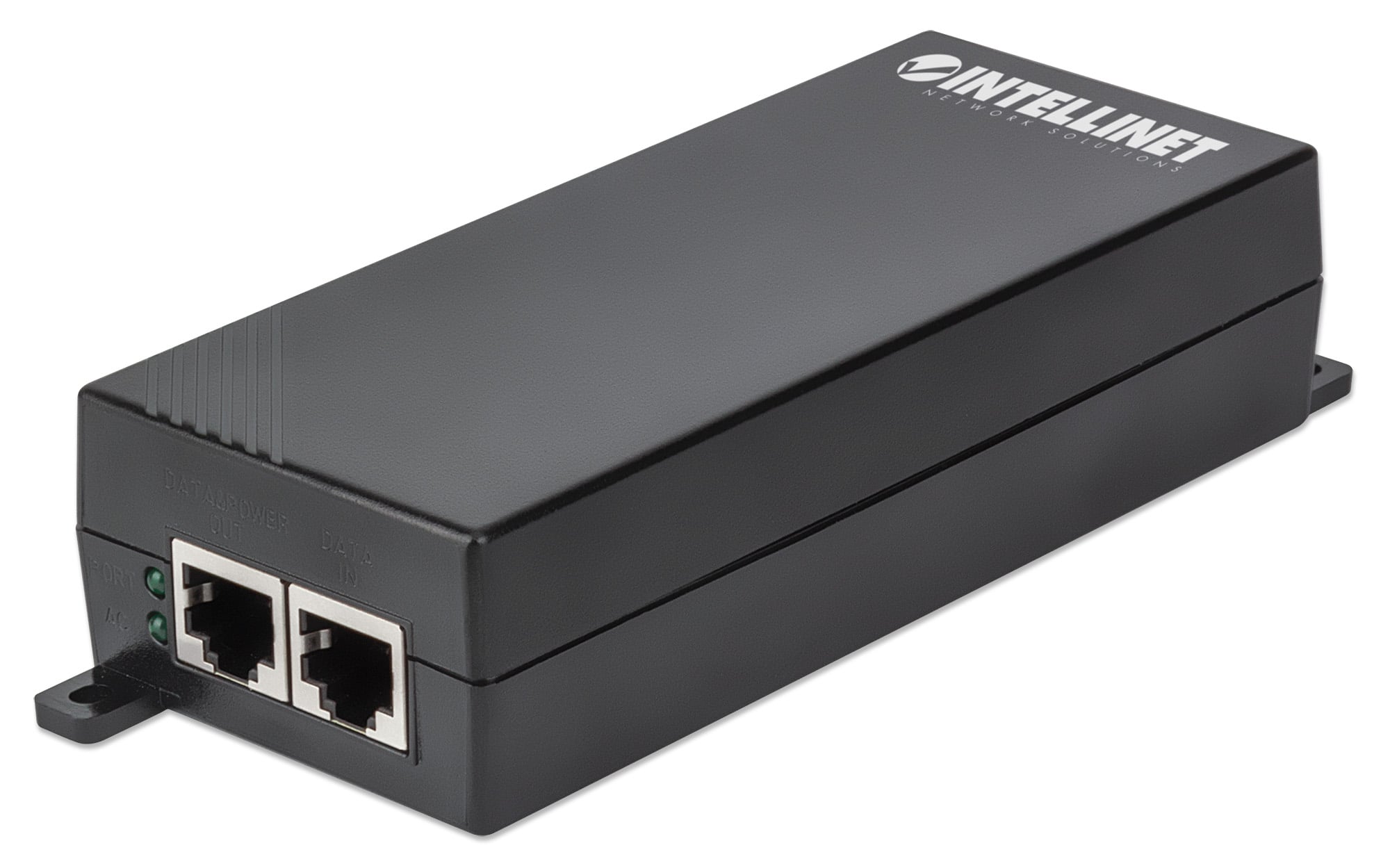

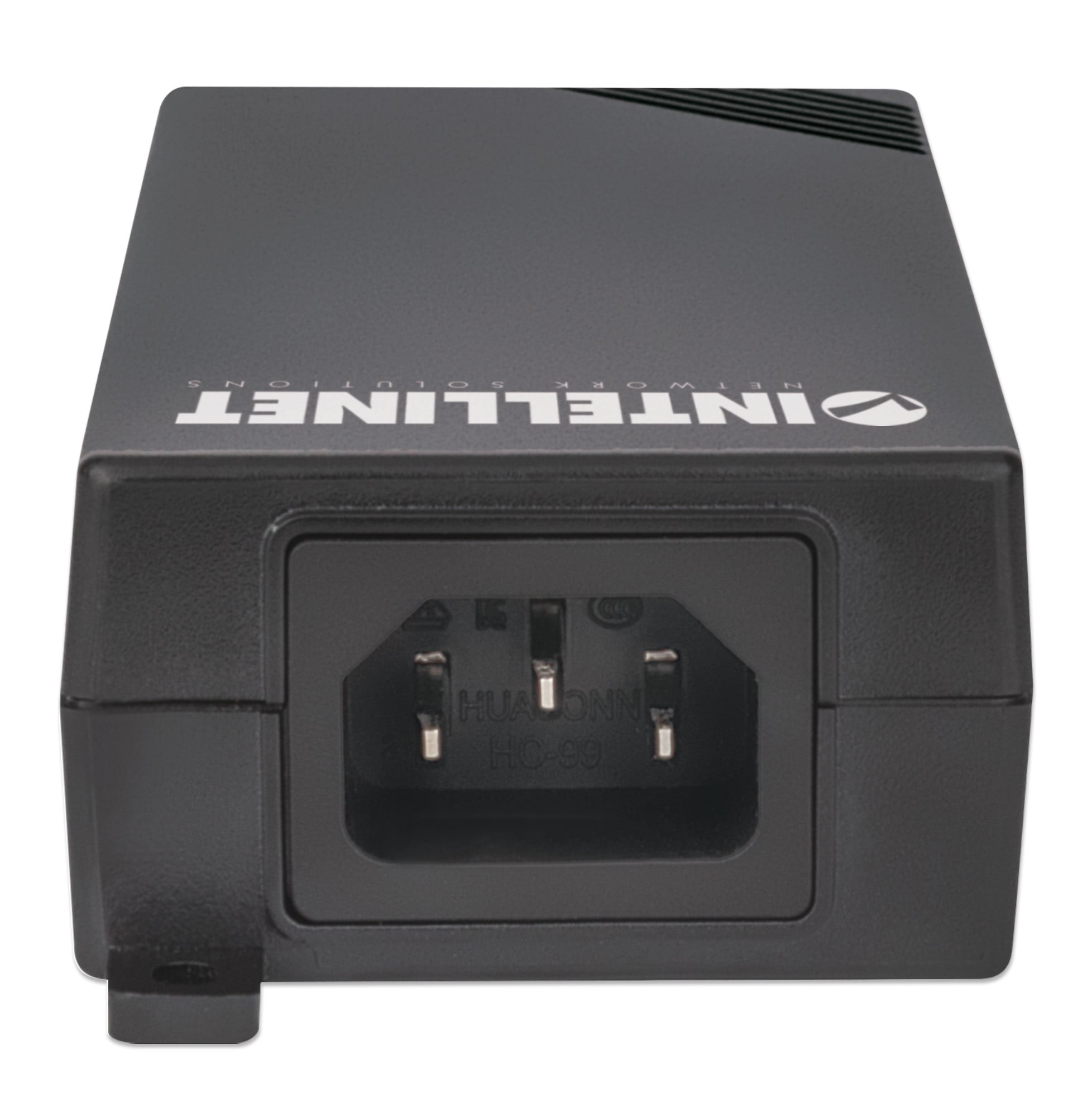

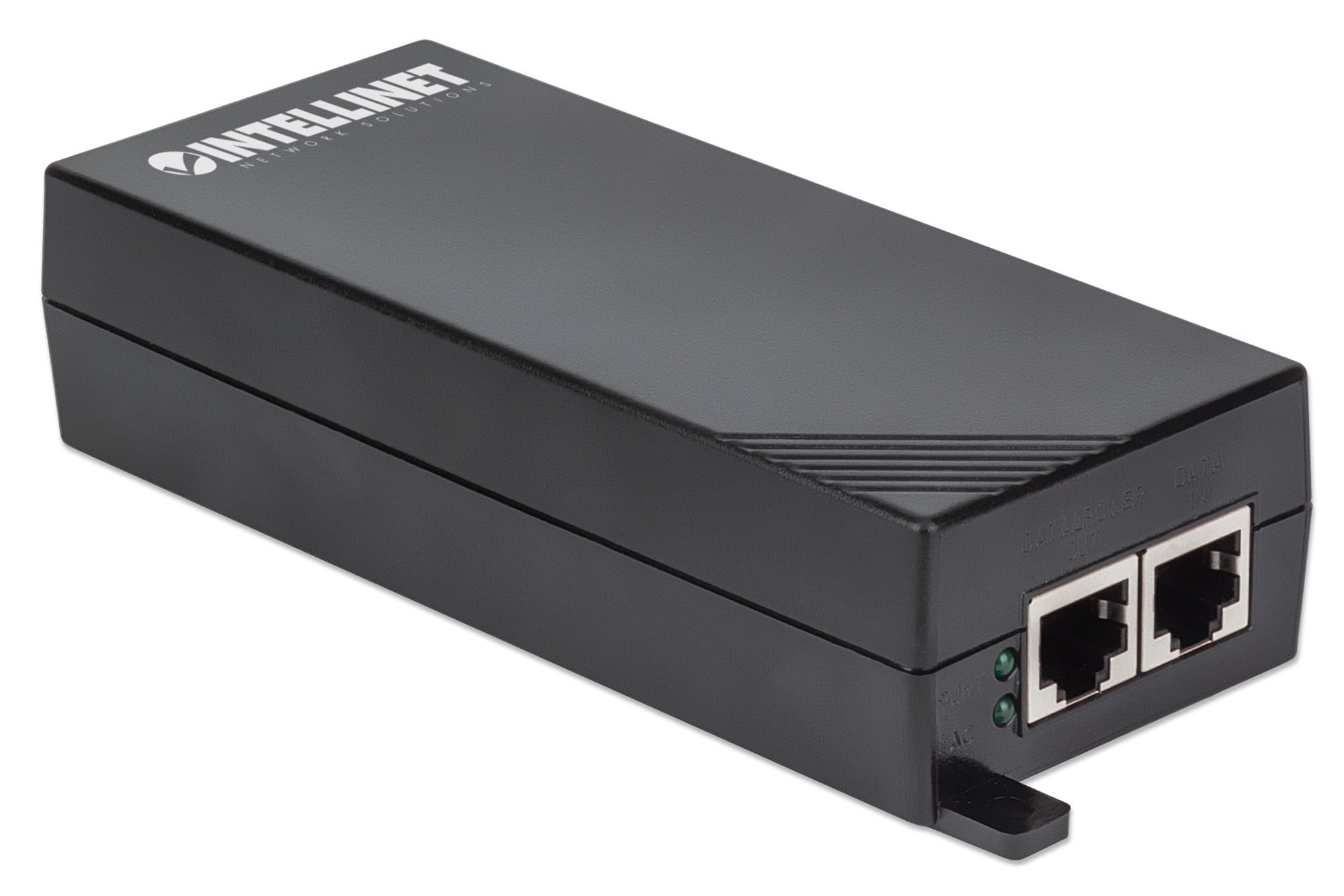

Injector 2.5G PoE++ 60W - Intellinet I-SWHUB POE-256

•

• Power over Ethernet with output up to 60 watts

• RJ45 High-speed 2.5GBASE-T network port, compliant with IEEE 802.3bz

• Supports data transmission speed 10/100/1000/2500 Mbps

• Compatible with powered devices (PD) compliant with IEEE 802.3bt/at/af such as network cameras, wireless access points, VoIP phones and more

• Ideal for IoT devices that require plenty of power such as motorized IP cameras, thin clients, PoE lighting and more

• Backward compatible with 10/100/1000 Mbps devices

• Supported distance: up to 100m

• Auto-sensing PoE with automatic detection to ensure that power is sent only to devices compliant with IEEE 802.3at/af; non-PoE devices receive data only

• Protection against short circuit, overload and high voltage

• Equipped with holes for wall mounting and four rubber feet for desktop use

• Internal power supply

• Fanless design ideal for silent operation

• Saves time and money by providing data and power over existing network cables

• Plug-and-play installation; no configuration required

• Fully TAA compliant


Standard

•

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)

• IEEE 802.3af (Power over Ethernet 802.3at type 1)

• IEEE 802.3at (Power over Ethernet 802.3at type 2)

• IEEE 802.3bt (PoE++/4PPoE/Ultra Power over Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3bz (2.5GBASE-T Ethernet)


Features

•

• Supports:


•

• 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45

• 100Base-TX Cat5/5e/6/6a UTP/STP RJ45

• 1000Base-T Cat5e/6/6a UTP/STP RJ45

• 2.5GBase-T Cat5e/Cat6/6a UTP/STP RJ45


•

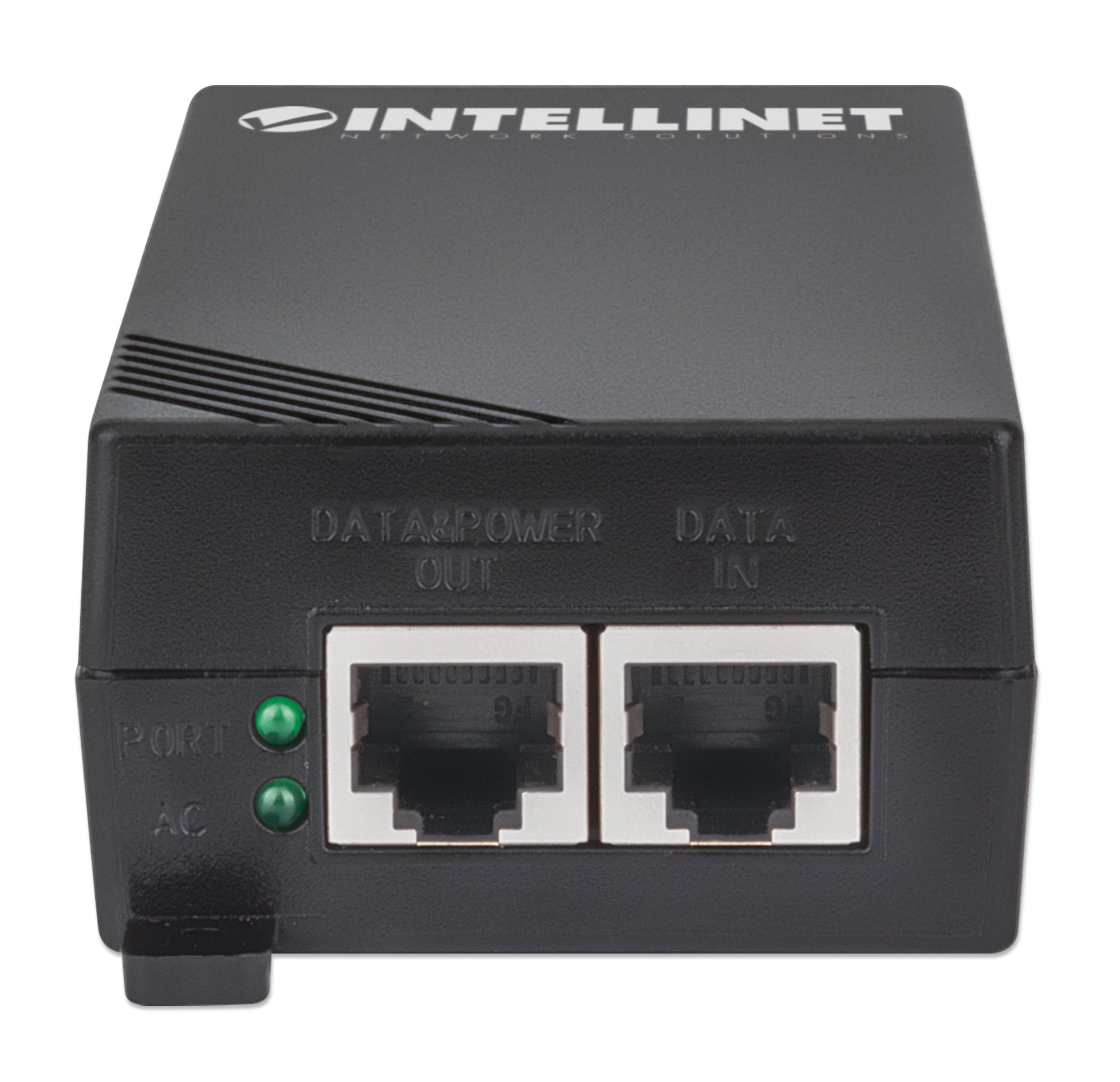

• Ports:


•

• One RJ45 2.5G port for data input

• One RJ45 PoE power + 2.5G data output port


Certifications

•

• CE

• RoHS

• FCC

• UKCA

• TAA


Pinout PoE

•

• Pin 1: CC (+)

• Pin 2: CC (+)

• Pin 3: CC (-)

• Pin 4: CC (+)

• Pin 5: CC (+)

• Pin 6: CC (-)

• Pin 7: CC (-)

• Pin 8: CC (-)


LED

•

• Power

• PoE


Power

•

• Internal power supply:

• Input: 100.0 - 240.0 VAC, 50 - 60 Hz

• Output: DC, 54.0 V, 1.1 A

• PoE power budget: 60.0 watts (max.)

• Power consumption: 73.0 watt (max)


General information

•

• Plastic housing

• Net weight: 230 g

• Gross weight: 410 g

• Operating temperature: from 0 to 40°C

• Storage temperature: -⁠40 to 70°C

• Operating humidity: 10 -95% RH, non-condensing

• Storage humidity: 5 - 95% RH, non-condensing


Dimensions

•

• Width: 155 mm

• Depth: 58 mm

• Height: 34 mm

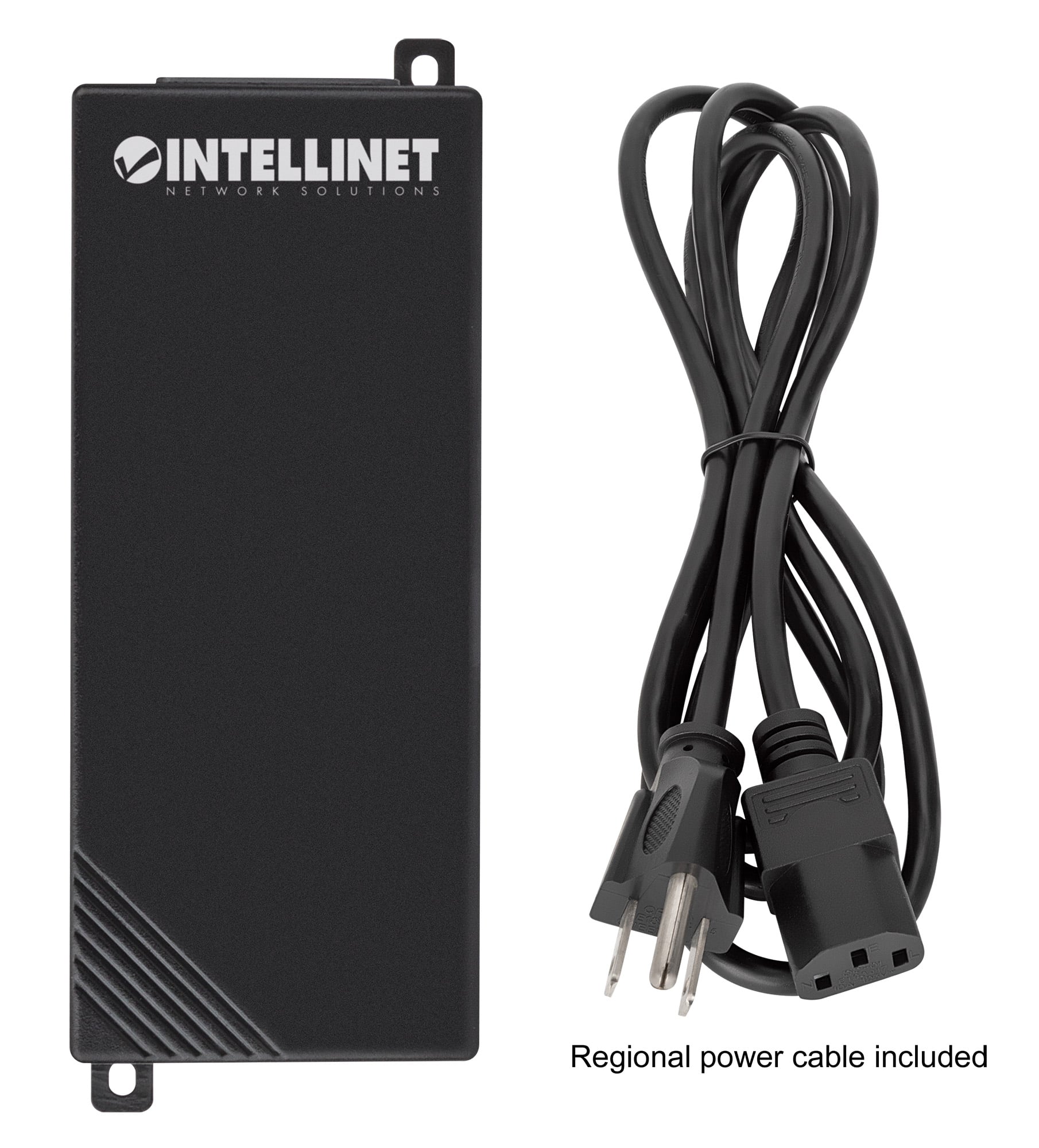

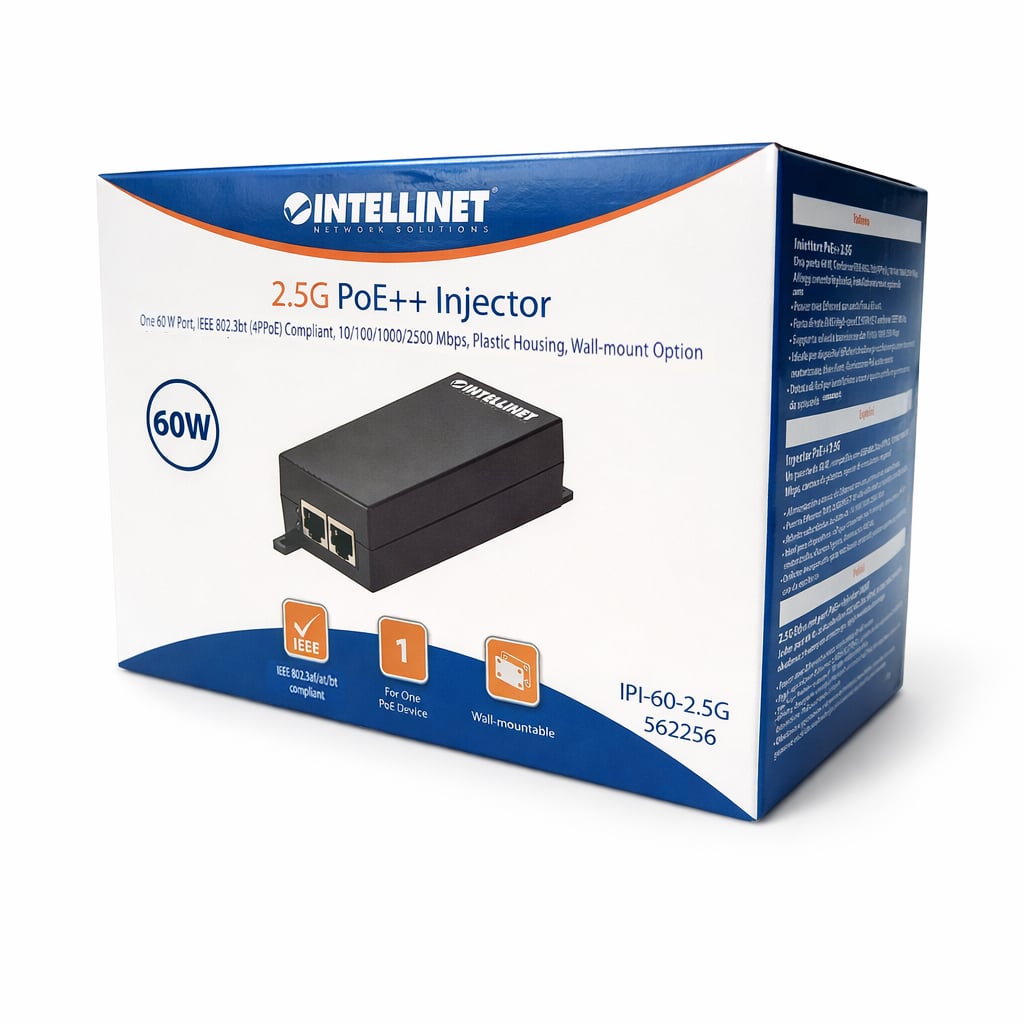

Package contents

•

• PoE++ Injector 2.5G I-SWHUB POE-256

• Power cable

• User manual
