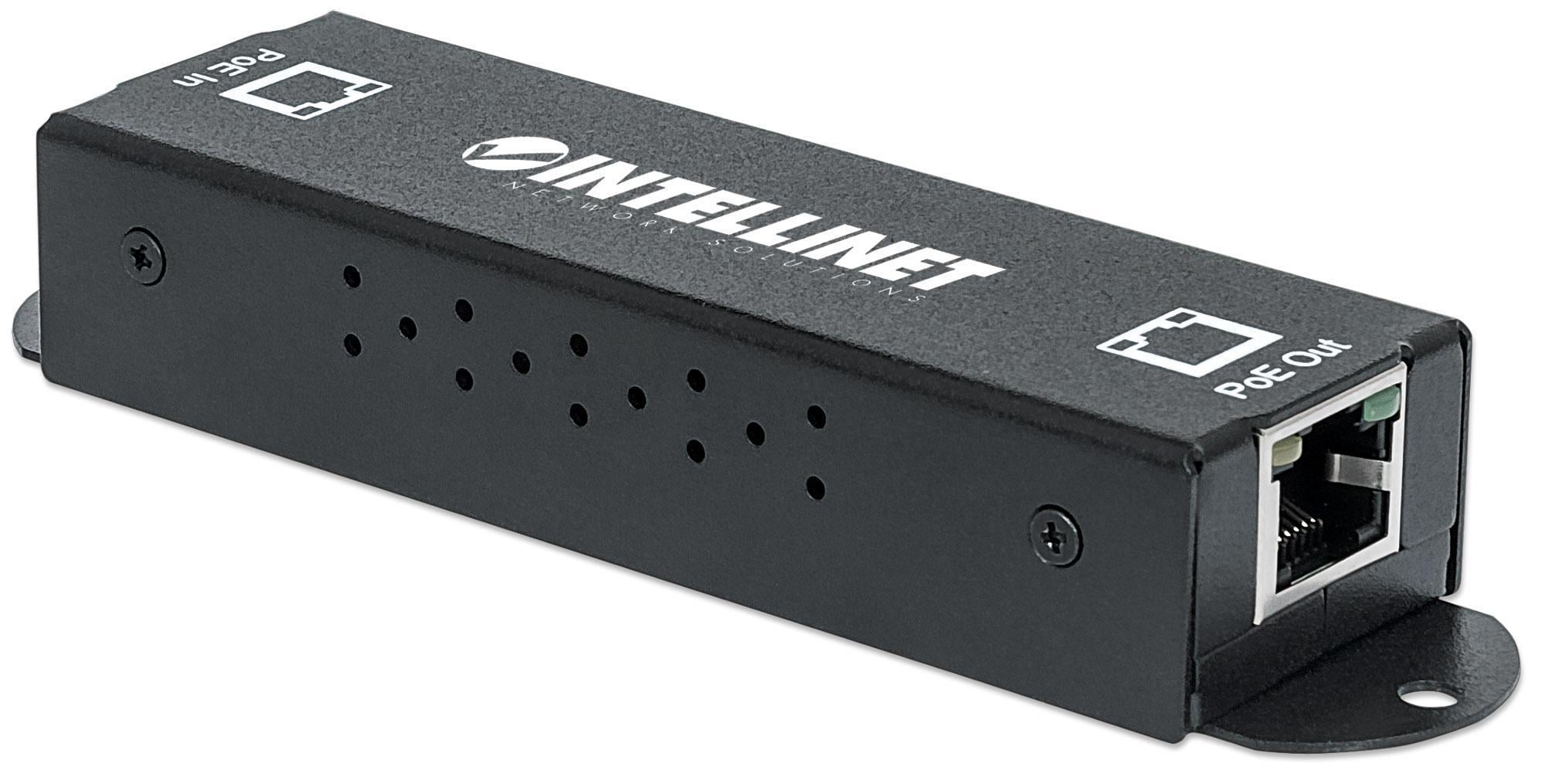

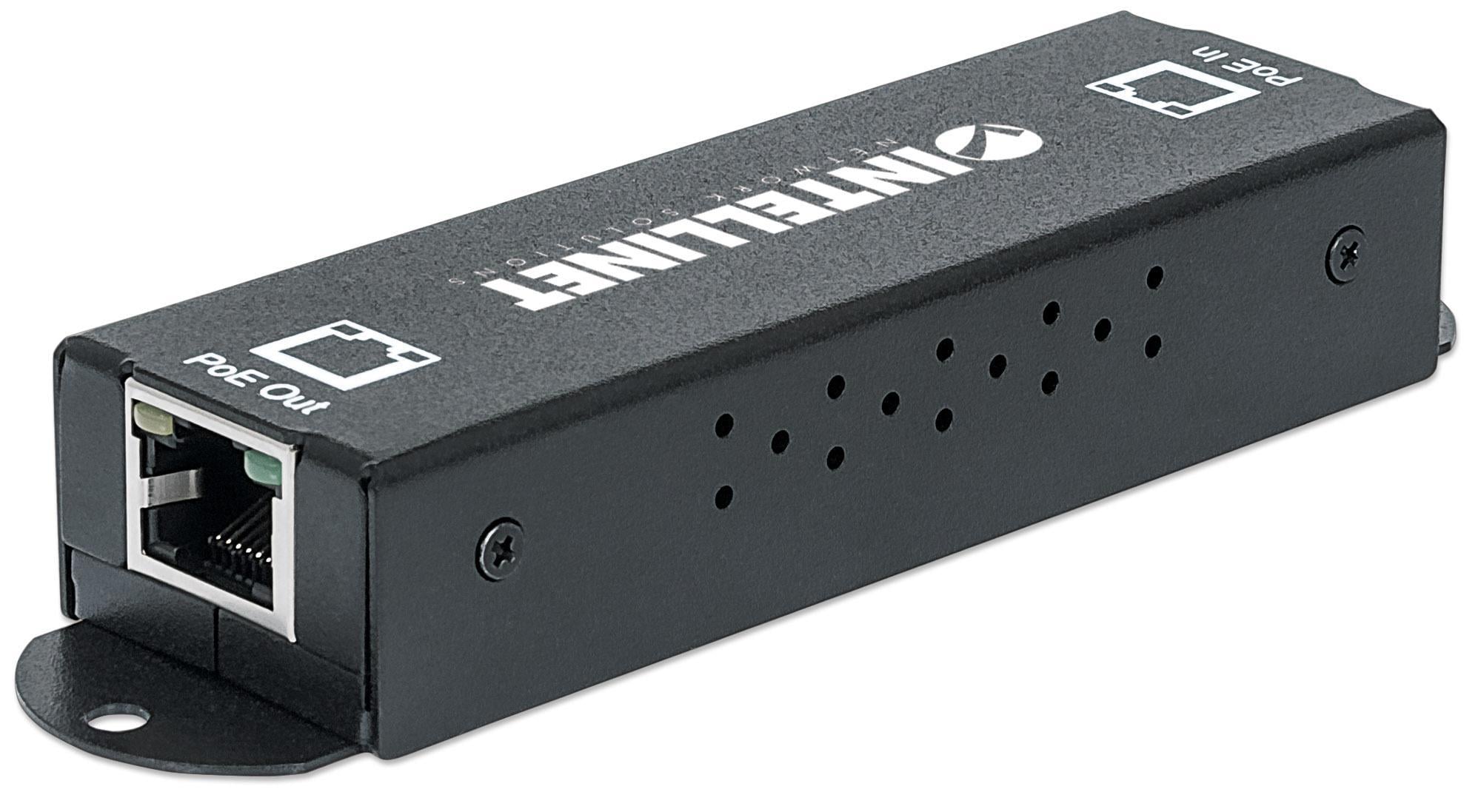

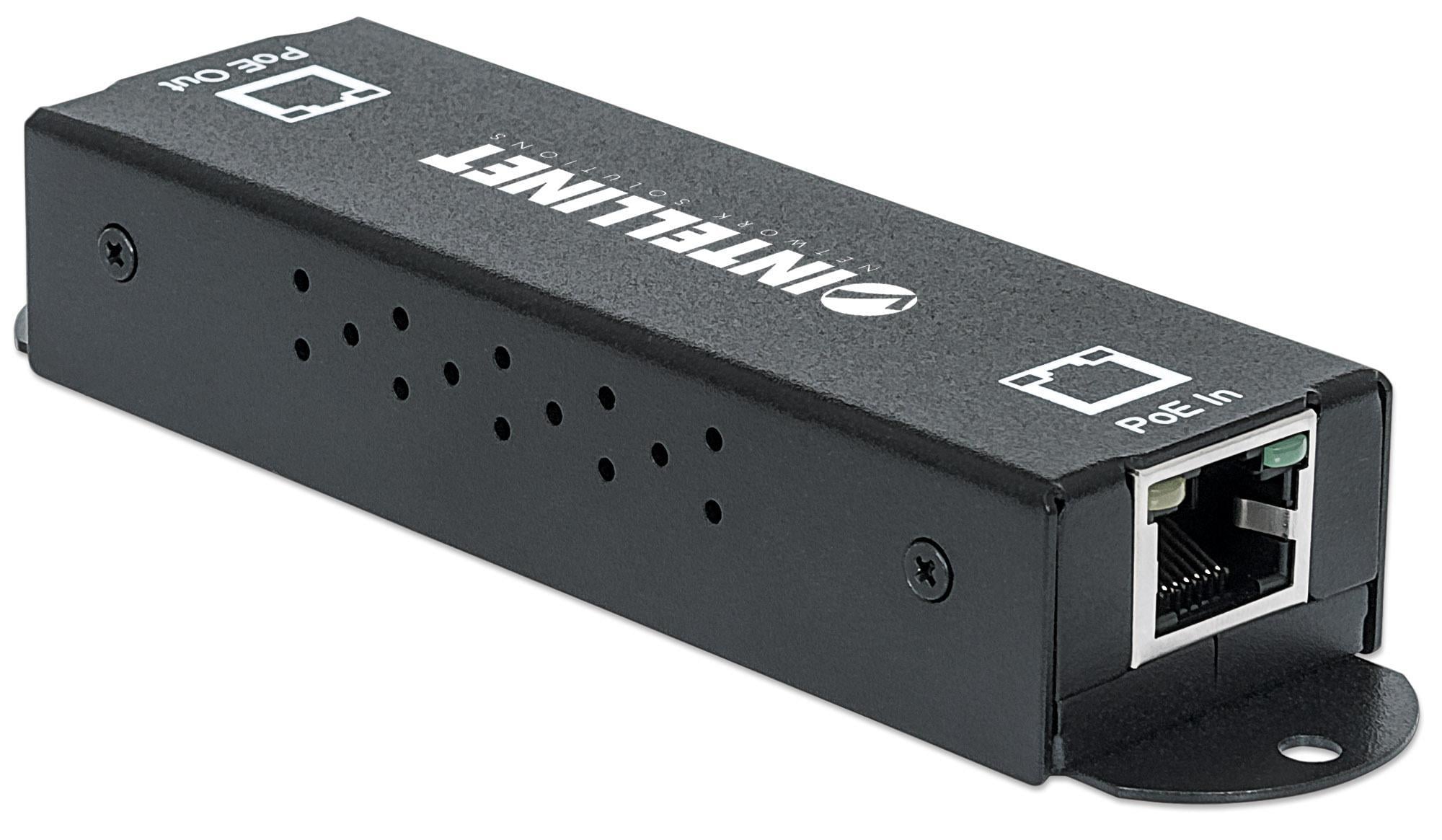

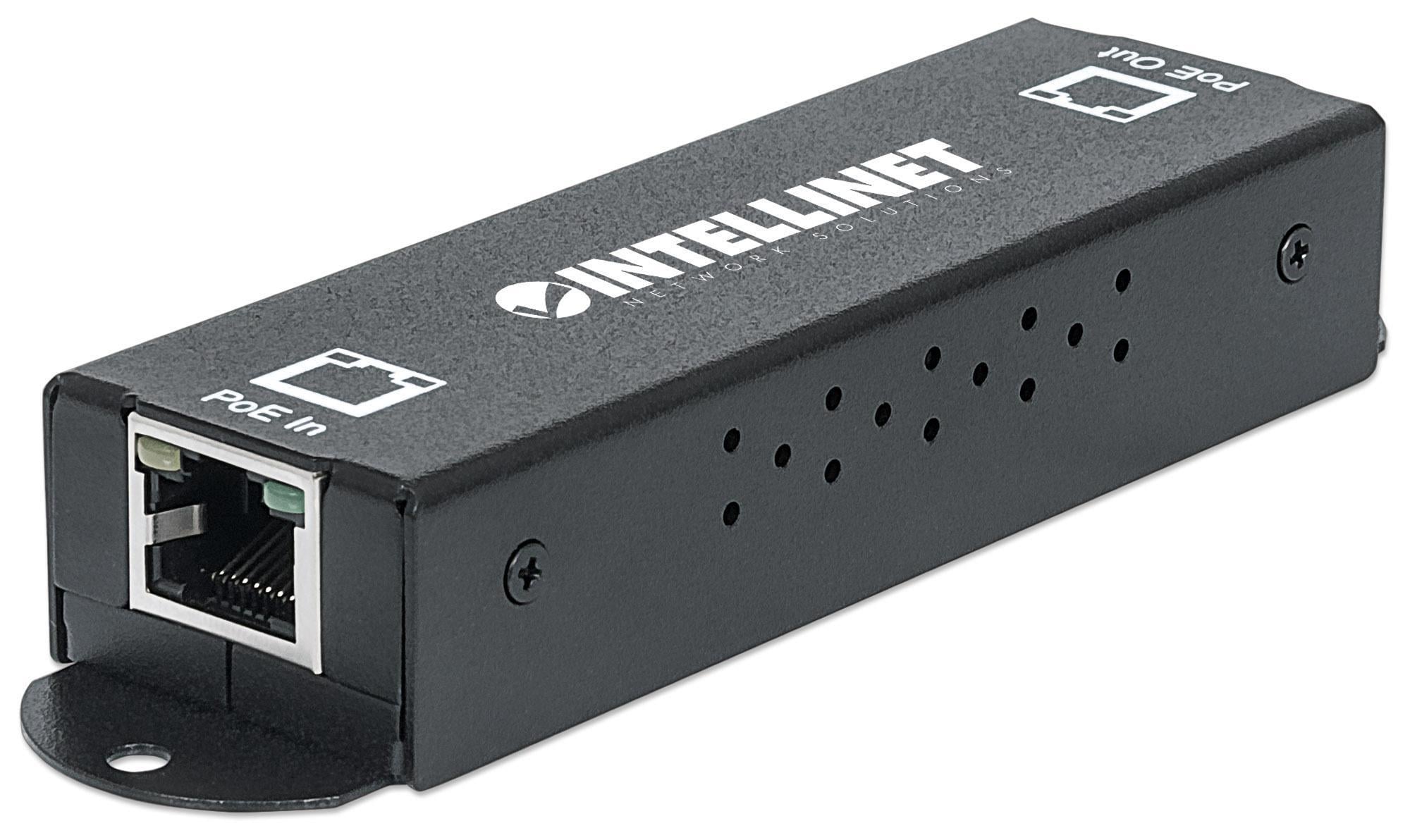

PoE+ Extender High Power Gigabit Repairer - Intellinet ICPOE 001

• Extends an existing PoE connection beyond the limit of 100 m


• Saves time and money by providing data and current via existing network cables


• Allows you to cover longer distances ù using more ù PoE extender in cascade (model 560962)

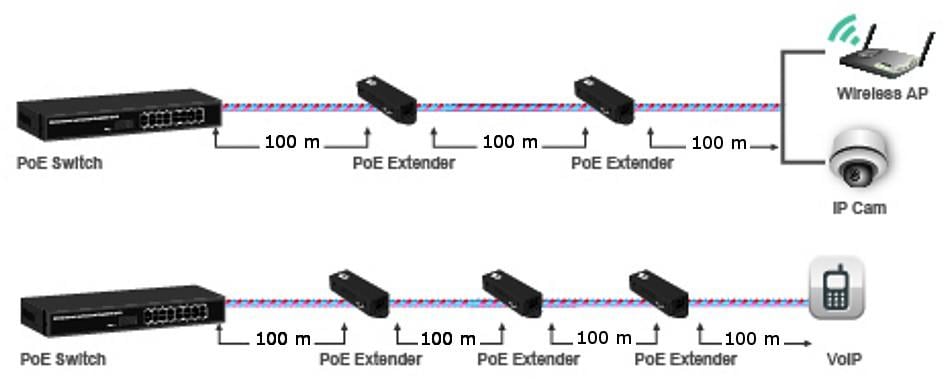

• Waterfall connection up to five PoE extender for a distance of 600 m


• Supports speed à data transmission 10 / 100 / 1000 Mbps and offers up to 25 W for a connected PoE device


• PoE awareness ensures that the power supply is sent only to IEEE 802.3 af/at compatible devices; non-PoE devices receive only data


• Does not require additional power supply; calls the power directly from the PoE input


• Compatible with PoE IEEE 802.3 at/af and PoE (PSE) compatible injectors


• Compatible with devices powered by IEEE 802.3 at/af


• LED for PoE and data


• Fanless design ideal for quiet operation


• Compact metal shell

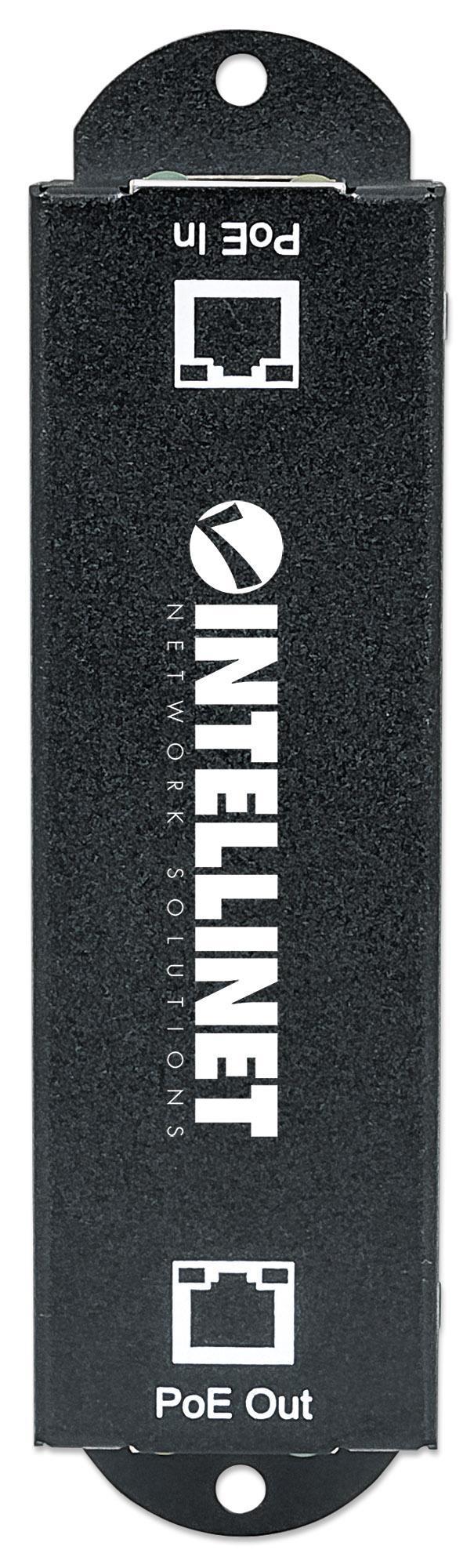

• Mounting holes for wall mounting


• WARNING: Not compatible with the Switch mod. 560849 to 16 ports Fast Ethernet PoE+



Standard

• IEEE 802.3 af (Power over Ethernet)


• IEEE 802.3 at (ad alta potenza PoE+ Power over Ethernet)


• IEEE 802.3 (10 Base-T Ethernet)


• IEEE 802.3 ab (Gigabit Ethernet)


• IEEE 802.3 u (100 Base-TX Fast Ethernet)



General information:

• Supports:



- 100 Base-TX Cat 5 UTP/STP RJ 45 , 8 pin

- 1000 Base-T Cat 5 and UTP/STP RJ 45 , 8 pin

• Doors:

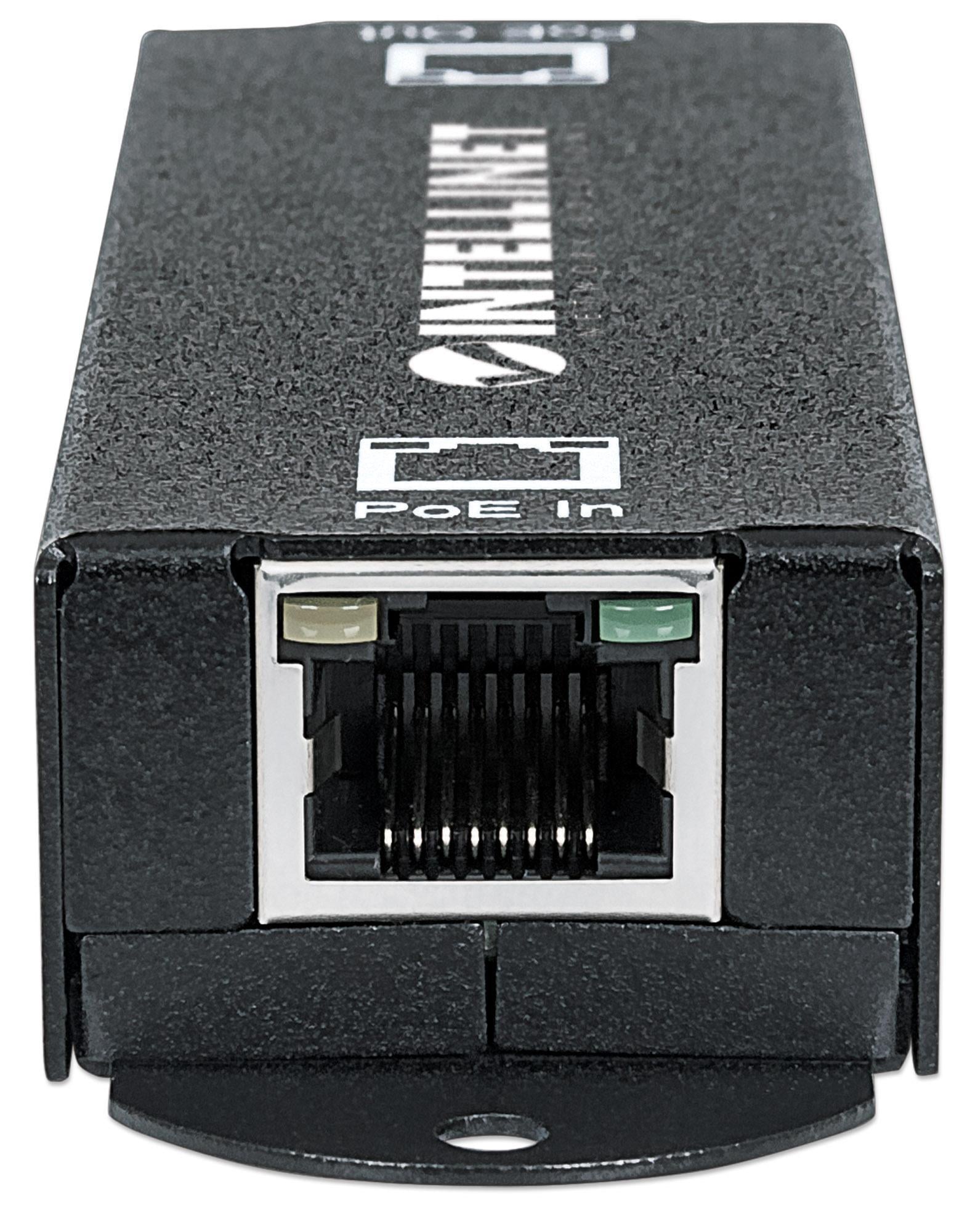

- 1 RJ 45 10 / 100 / 1000 Mbps input port for 48 V IEEE 802.3 af/at compliant signal

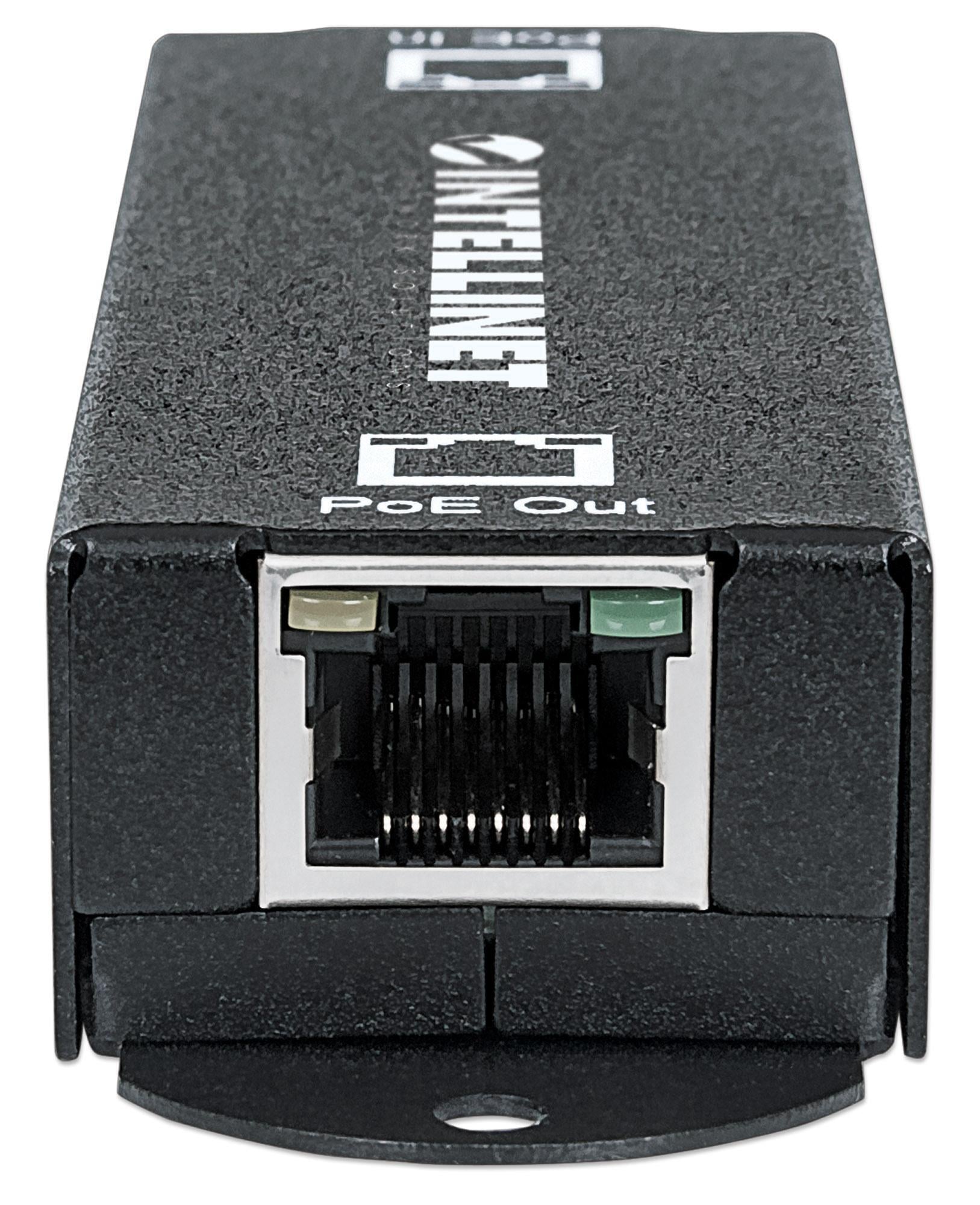

   - 1 RJ 45 10 / 100 / 1000 Mbps PoE exit door

• Certifications: FCC Class A, CE



Feeding

• Max PD output power



   - 24.6 W when using an extender PoE @ 200 m combined cable length

   - 20 W while using two PoE extender @ 300 m combined cable length

   - 16.2 W using three PoE extenders @ 400 m combined cable length

   - 12.5 W using four PoE extenders @ 500 m combined cable length

- 8.6 W using five PoE extenders @ 600 m combined cable length

• Power supply: IEEE 802.3 af/at compatible PSE



General information

• Metal chassis


• Dimensions: 102.8 (L) x 31 (W) x 20 (H) [mm]


• Weight: 0.1 kg


• Operating temperature: - 10 – 50 °C (14 – 122 °F)



Package contents

• 1 repeater High Power Gigabit PoE + Extender


• Instructions
